Ref.: 945699 49

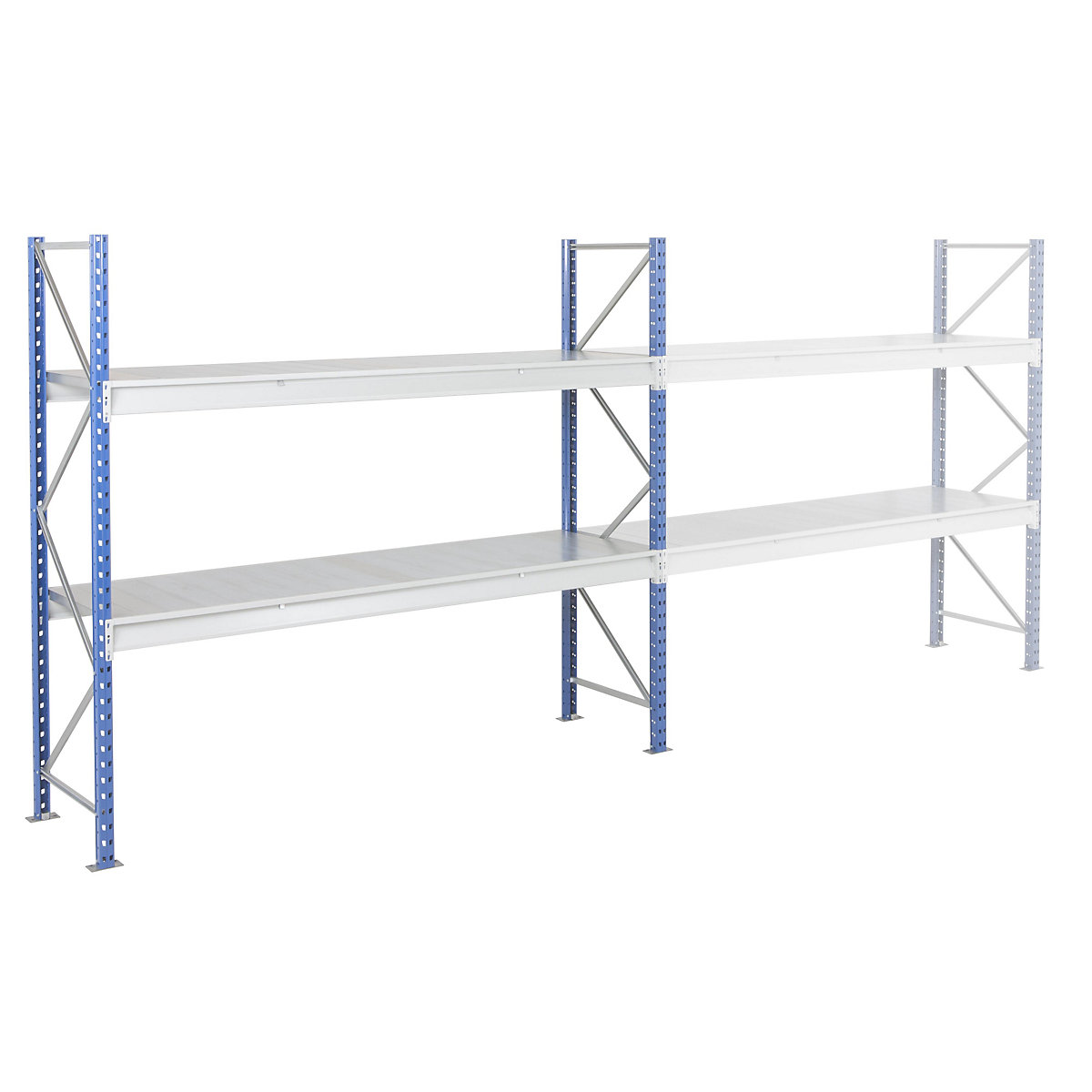

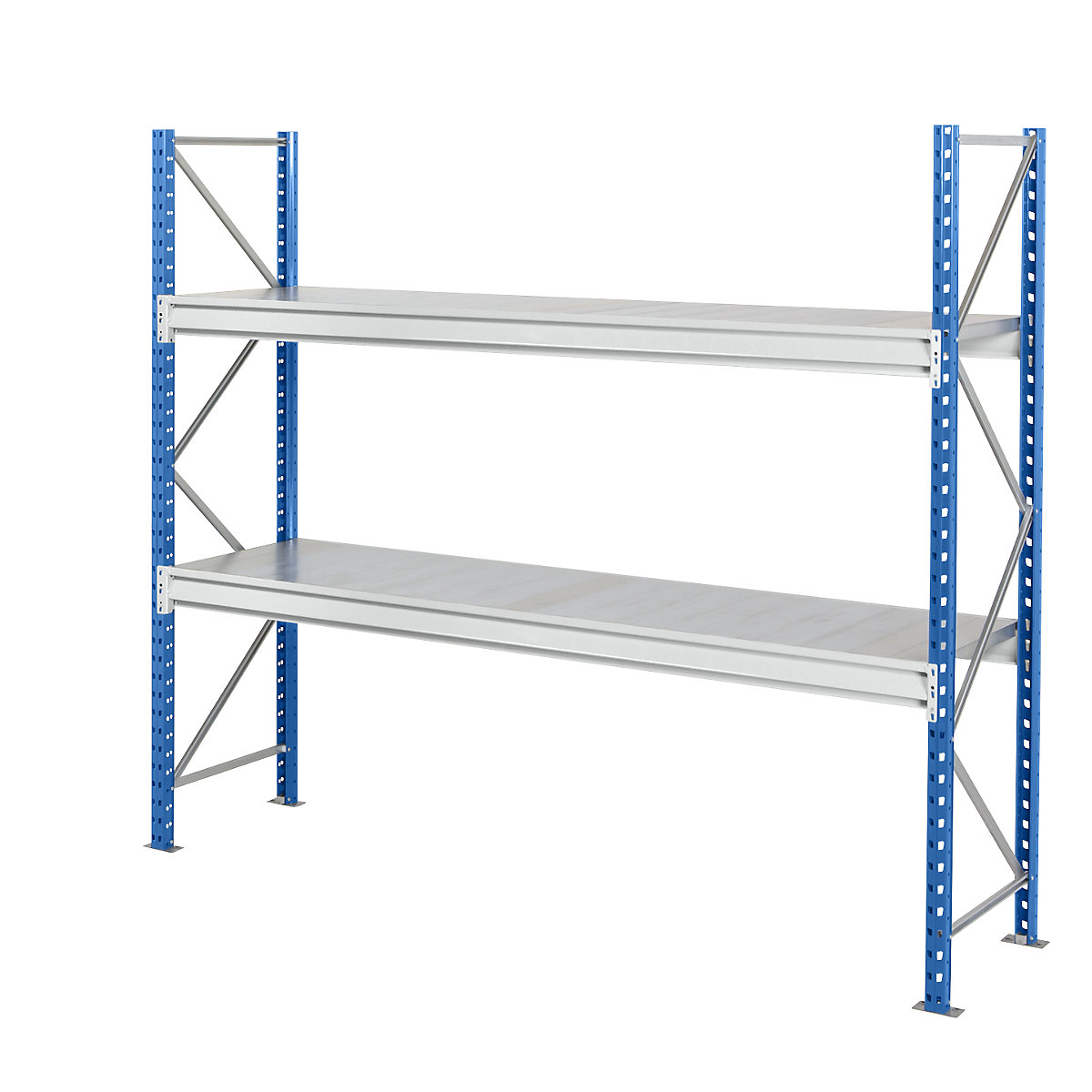

Heavy duty wide span shelving with steel shelf panels – Manorga frame colour blue
(10)
HxWxD 1996 x 2410 x 600 mm, standard shelf unit
Shelf unit type
Shelf unit height [mm]
Shelf width [mm]
Shelf depth [mm]
Ref.: 945699 49
Heavy duty wide span shelving with steel shelf panels – Manorga frame colour blue
(10)
HxWxD 1996 x 2410 x 600 mm, standard shelf unit
HxWxD 1996 x 2410 x 600 mm, standard shelf unit
Shelf unit type
Shelf unit height [mm]
Shelf width [mm]
Shelf depth [mm]
£709.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£709.00
Price / item (Excl. VAT)
Product description
- For the manual storage of bulky and heavy goods
- Boltless installation and adjustment of support beams
- Manufactured in accordance with the guidelines and regulations of European FEM 10.2.06 as well as Eurocode III
Upright frame
2 steel posts, 1.5 mm thick, plastic coated blue RAL 5010. Contoured profile, 50 x 50 mm.
Upright cross beams and diagonals are made of zinc plated C-profile, 25 x 15 mm, and are bolted to the posts.
Zinc plated base plates for floor anchoring, 3 mm in height. Bolts and plugs not included.
50 mm shelf adjustment grid.
Shelves
Support beams with Z profile, plastic coated light grey RAL 7035.
3 suspension hooks with securing pins for mounting the support beams.
Steel shelf panel modules, zinc plated, thickness 0.5 mm.
2 steel posts, 1.5 mm thick, plastic coated blue RAL 5010. Contoured profile, 50 x 50 mm.
Upright cross beams and diagonals are made of zinc plated C-profile, 25 x 15 mm, and are bolted to the posts.
Zinc plated base plates for floor anchoring, 3 mm in height. Bolts and plugs not included.
50 mm shelf adjustment grid.
Shelves
Support beams with Z profile, plastic coated light grey RAL 7035.
3 suspension hooks with securing pins for mounting the support beams.
Steel shelf panel modules, zinc plated, thickness 0.5 mm.
Standard shelf unit width
– without footplates: shelf width + 100 mm.
– with footplates: shelf width + 160 mm.

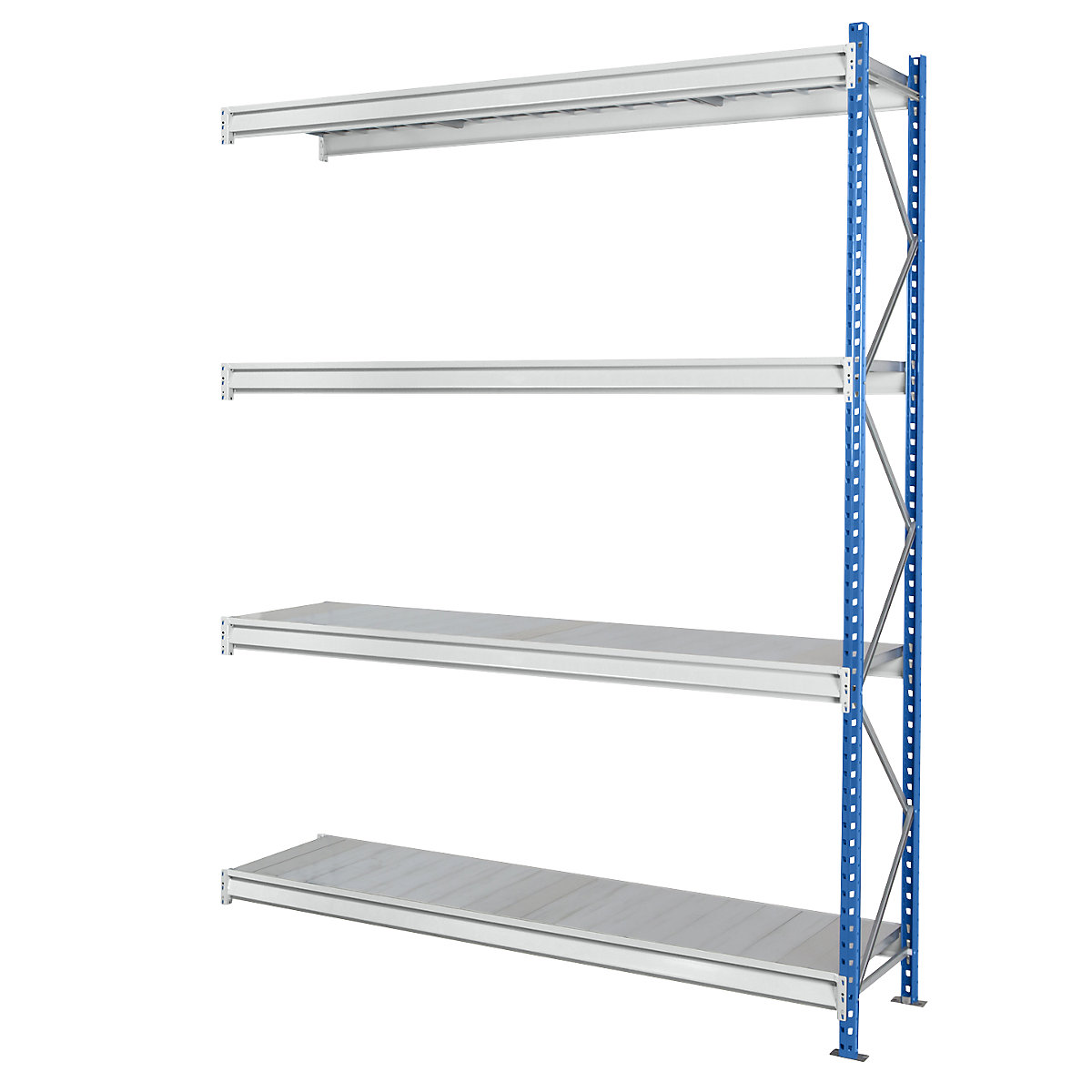

Extension shelf unit width
– without footplates: shelf width + 50 mm.
– with footplates: shelf width + 80 mm.
Shelf unit depth incl. foot plates
Shelf depth + 10 mm.
– without footplates: shelf width + 100 mm.
– with footplates: shelf width + 160 mm.
Extension shelf unit width
– without footplates: shelf width + 50 mm.
– with footplates: shelf width + 80 mm.
Shelf unit depth incl. foot plates
Shelf depth + 10 mm.
The specified max. load values are applicable with uniform load distribution. Additional shelf levels may be used if the specified max. bay load is observed.
Technical data
| Colour of uprights | gentian blue RAL 5010 |
|---|---|
| Width of upright profile | 25 mm |
| Depth of upright profile | 15 mm |
| Shelf thickness | 0.5 mm |
| Max. bay load | 4500 kg |
| Adjustment grid | 50 mm |
| Material | steel |
| Material of uprights | steel, plastic coated |
| Cross beam material | steel, zinc plated |
| Shelf material | steel, zinc plated |
| Cross beam colour | light grey RAL 7035 |
| Shelf colour | silver |
| Design | screw connection |
| Design of shelf levels | cross-pieces with shelves |
| Product type | heavy duty bolt-together shelving units |
| Supplied | flat pack |
| Shelf unit type | standard unit |
| Shelf unit height | 1996 mm |
| Shelf width | 2250 mm |
| Shelf depth | 600 mm |
| Width | 2410 mm |
| Depth | 610 mm |
| Shelf clearance width | 2245 mm |
| Max. shelf load | 810 kg |
| Number of shelf levels | 2 pcs. |
| Weight | 59.455 kg |
| Pictorial instructions |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
Product CO₂ footprint
- Product Carbon Footprint per kg CO2e
- 291.543
- Product Carbon Footprint Calculation Year
- 2026
- Product Carbon Footprint System Boundaries
- Cradle-to-gate
- Product Carbon Footprint Calculation Method
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
| Criteria | Weighting | Score |
|---|---|---|
| 30% | 2.2 | |
| 30% | 3.5 | |
| 25% | 1.0 | |
| 10% | 3.2 | |
| 5% | 3.9 | |
| Overall score | 3.0 | |
