Ref.: 920738 49

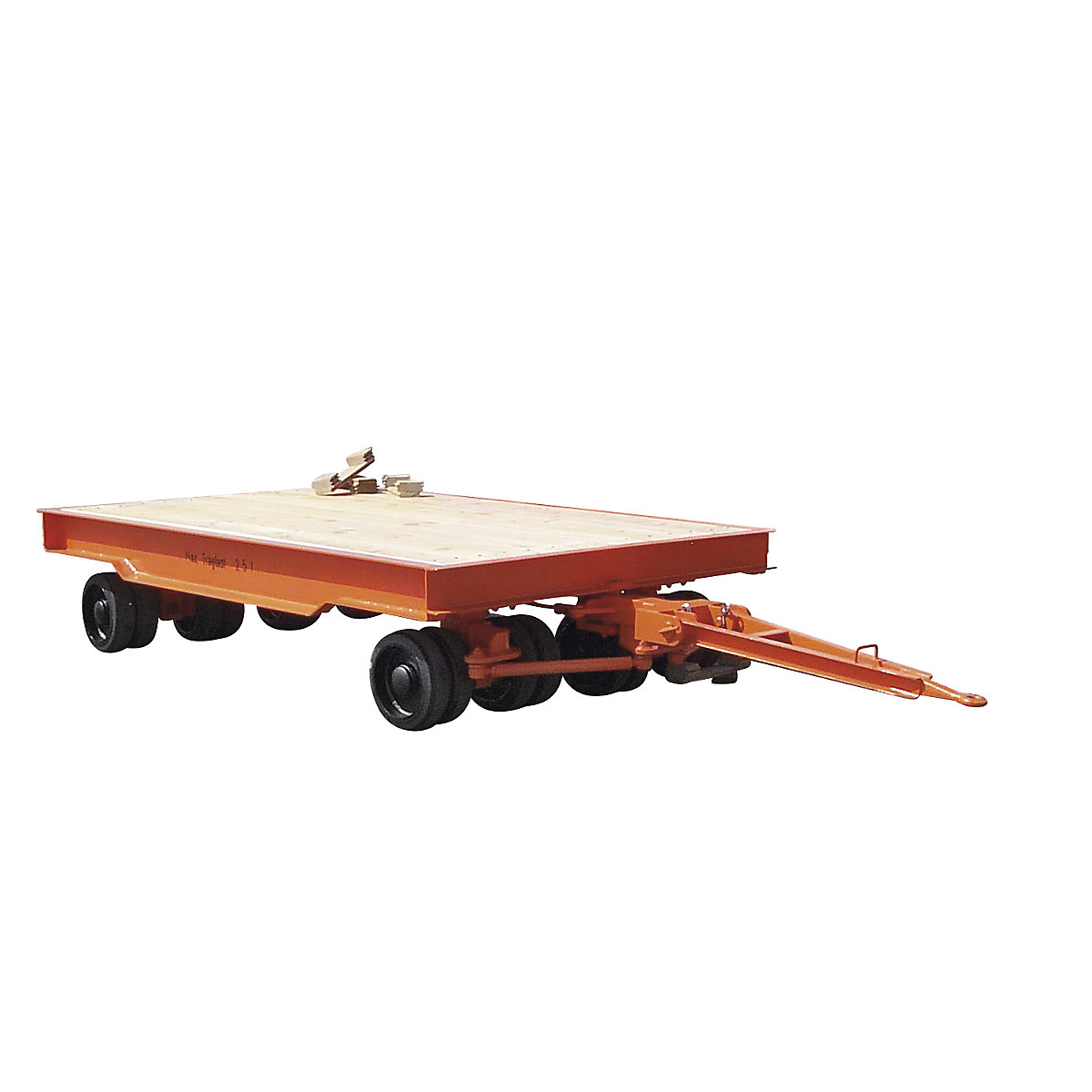

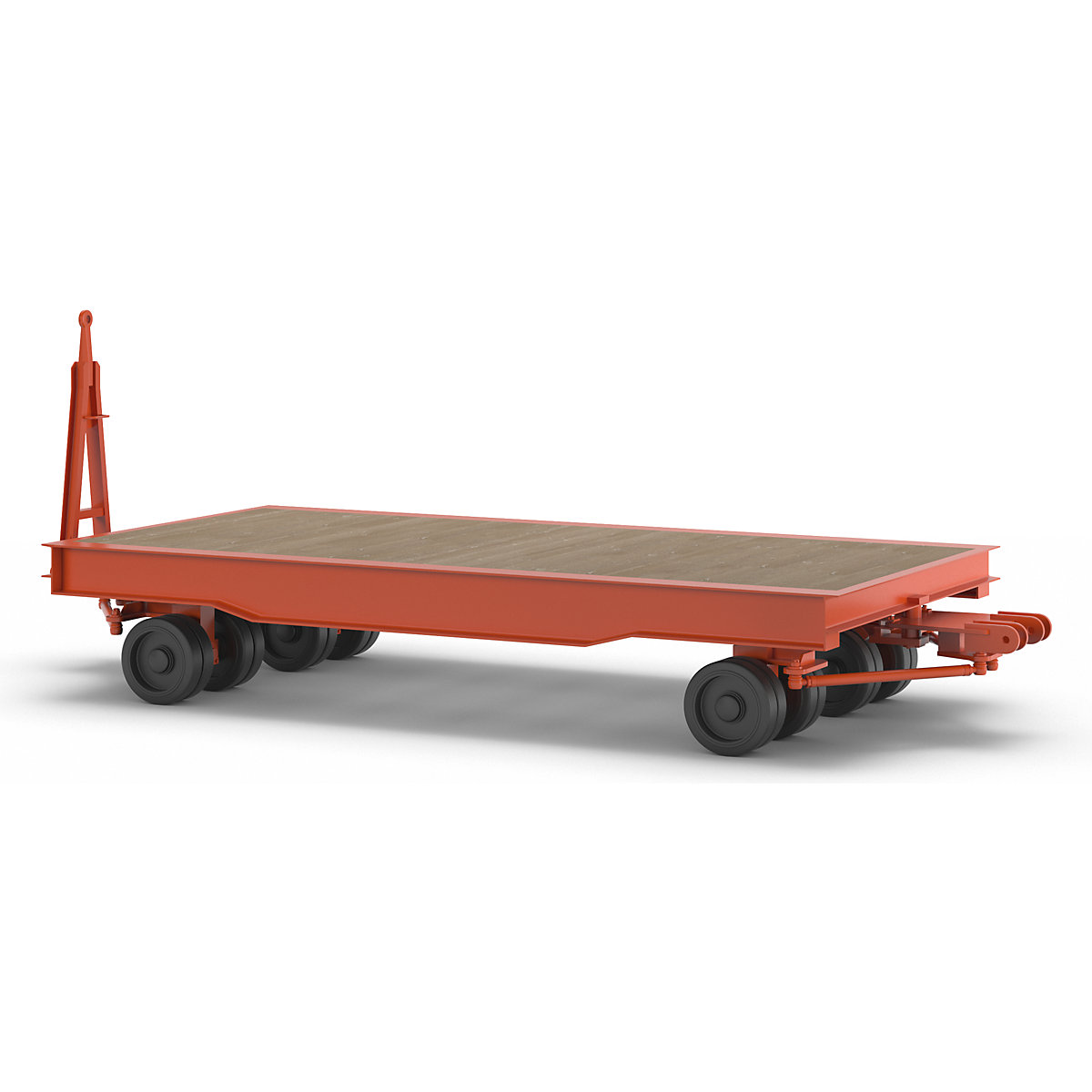

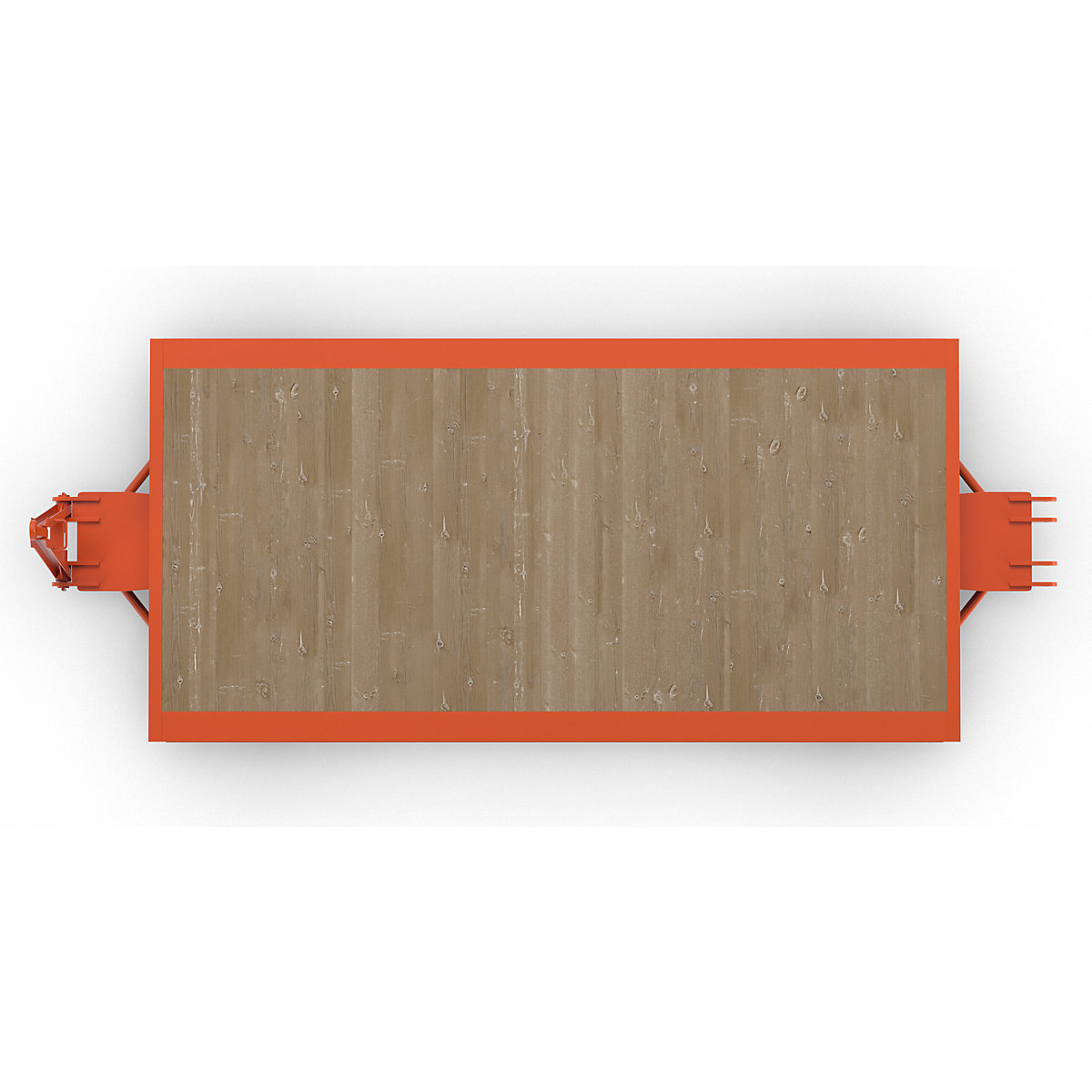

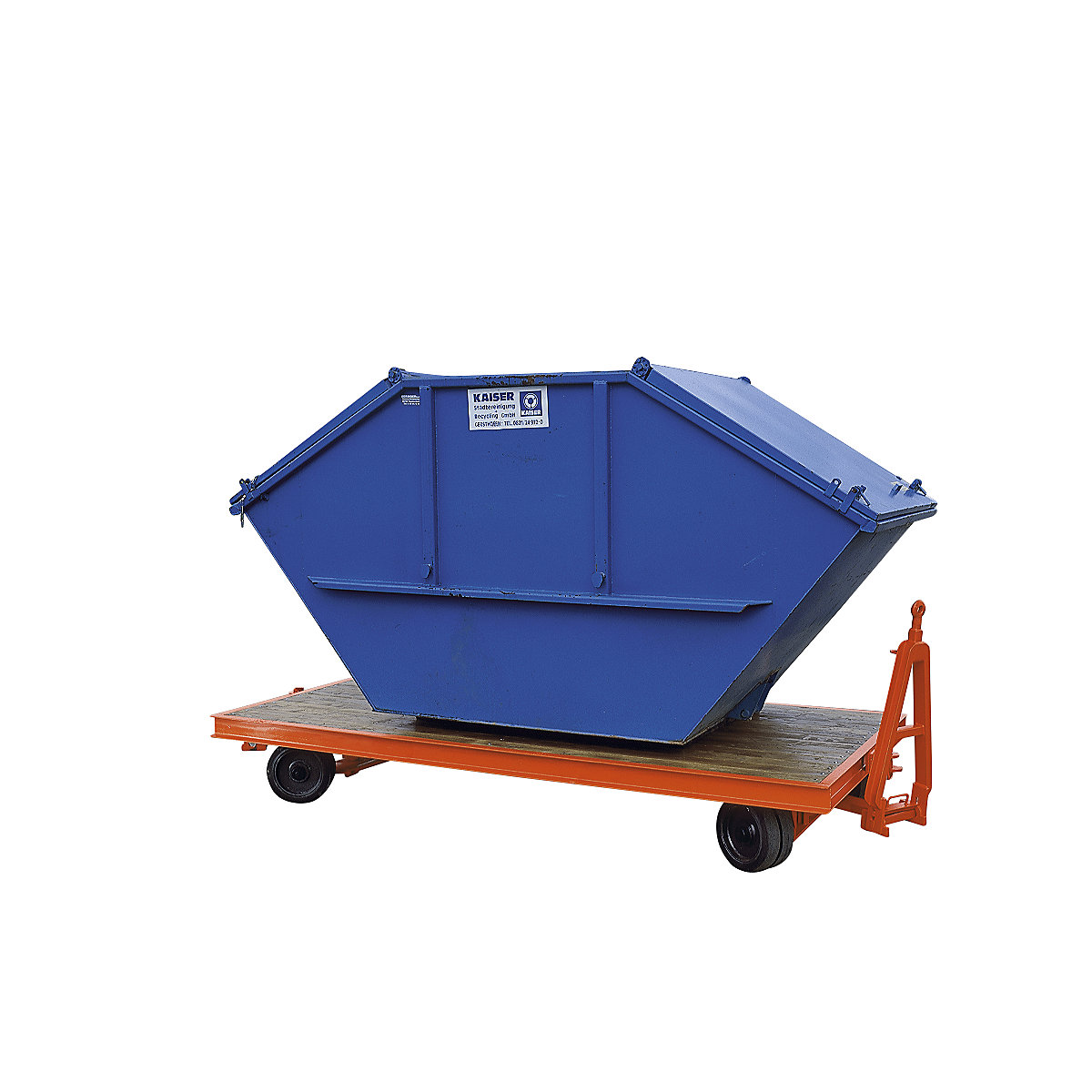

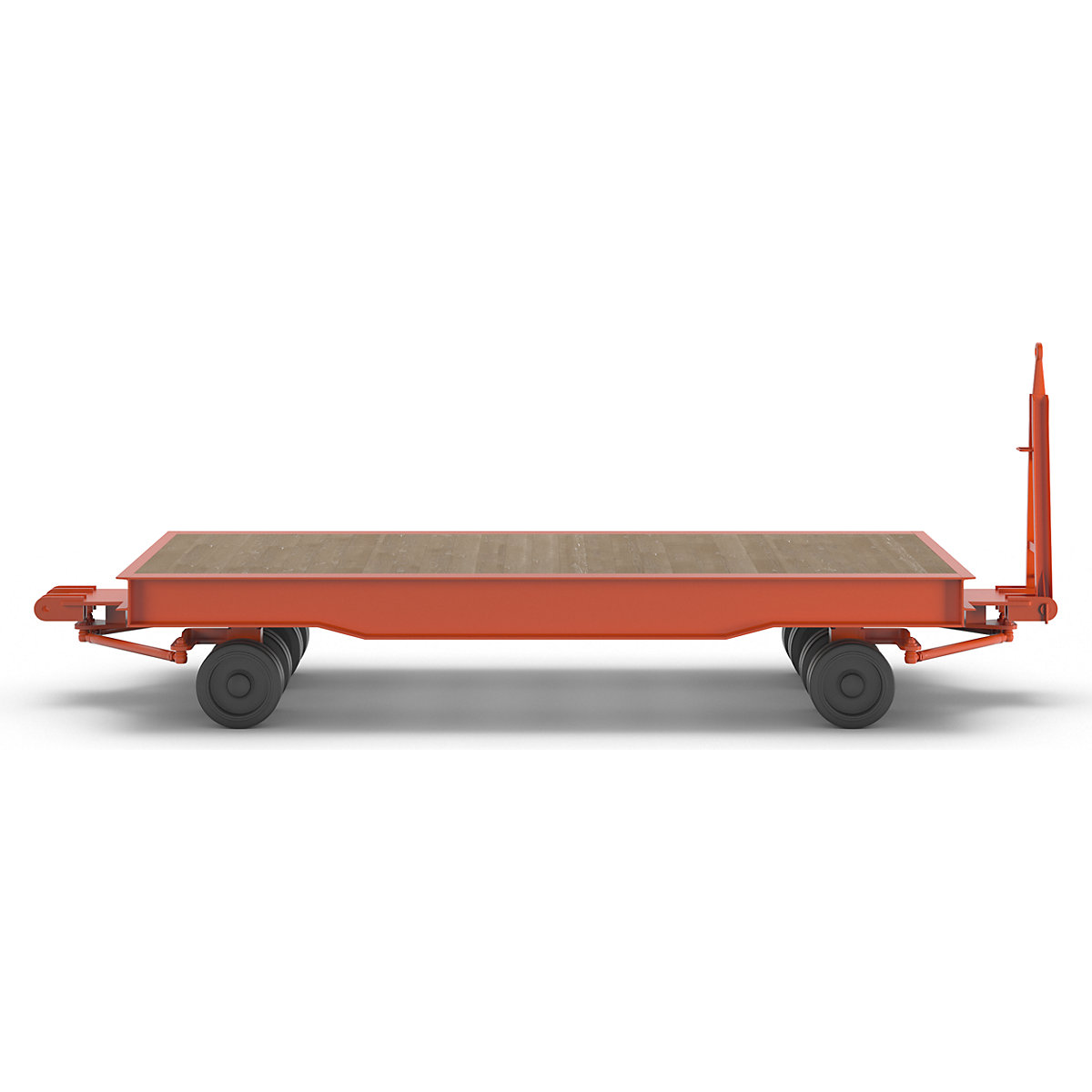

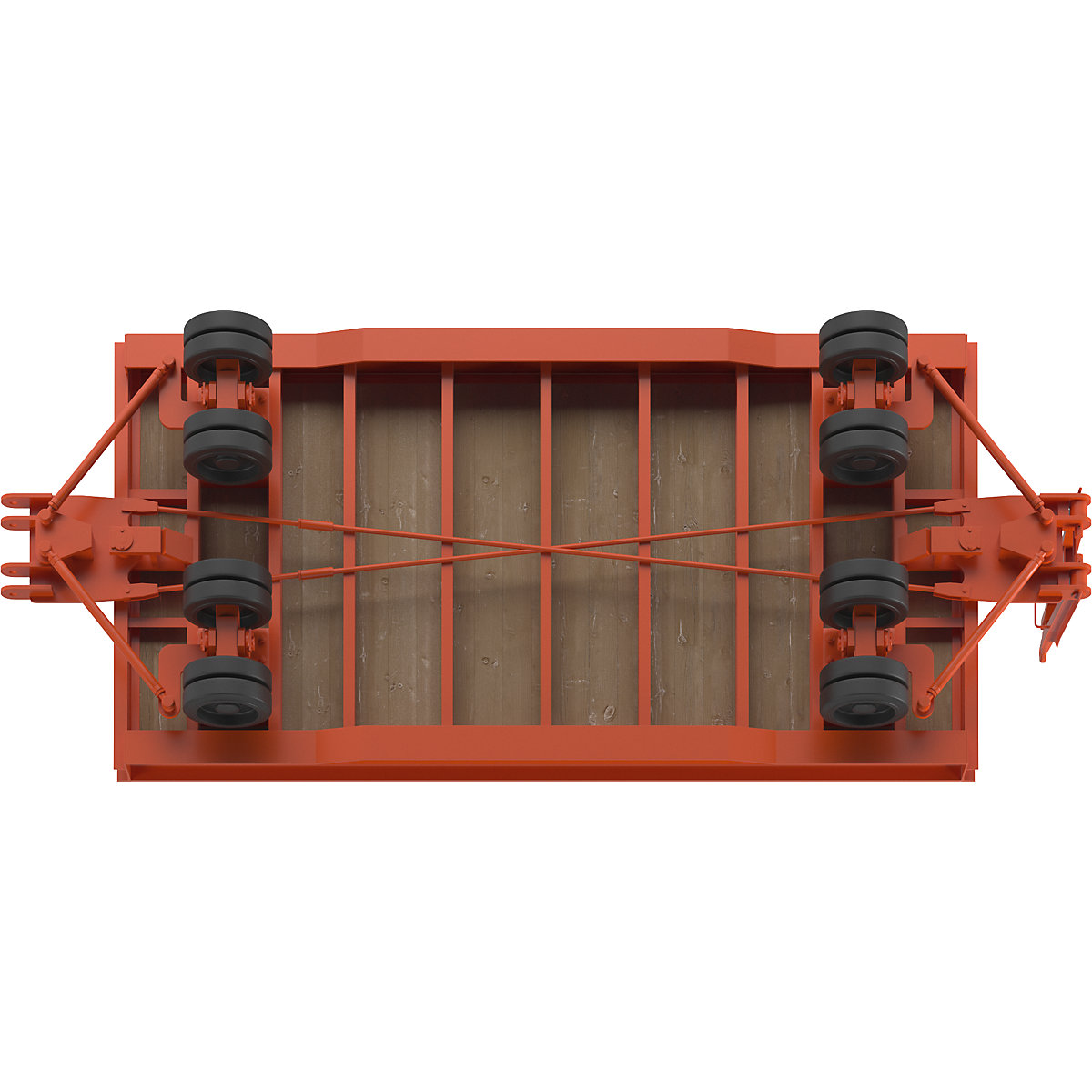

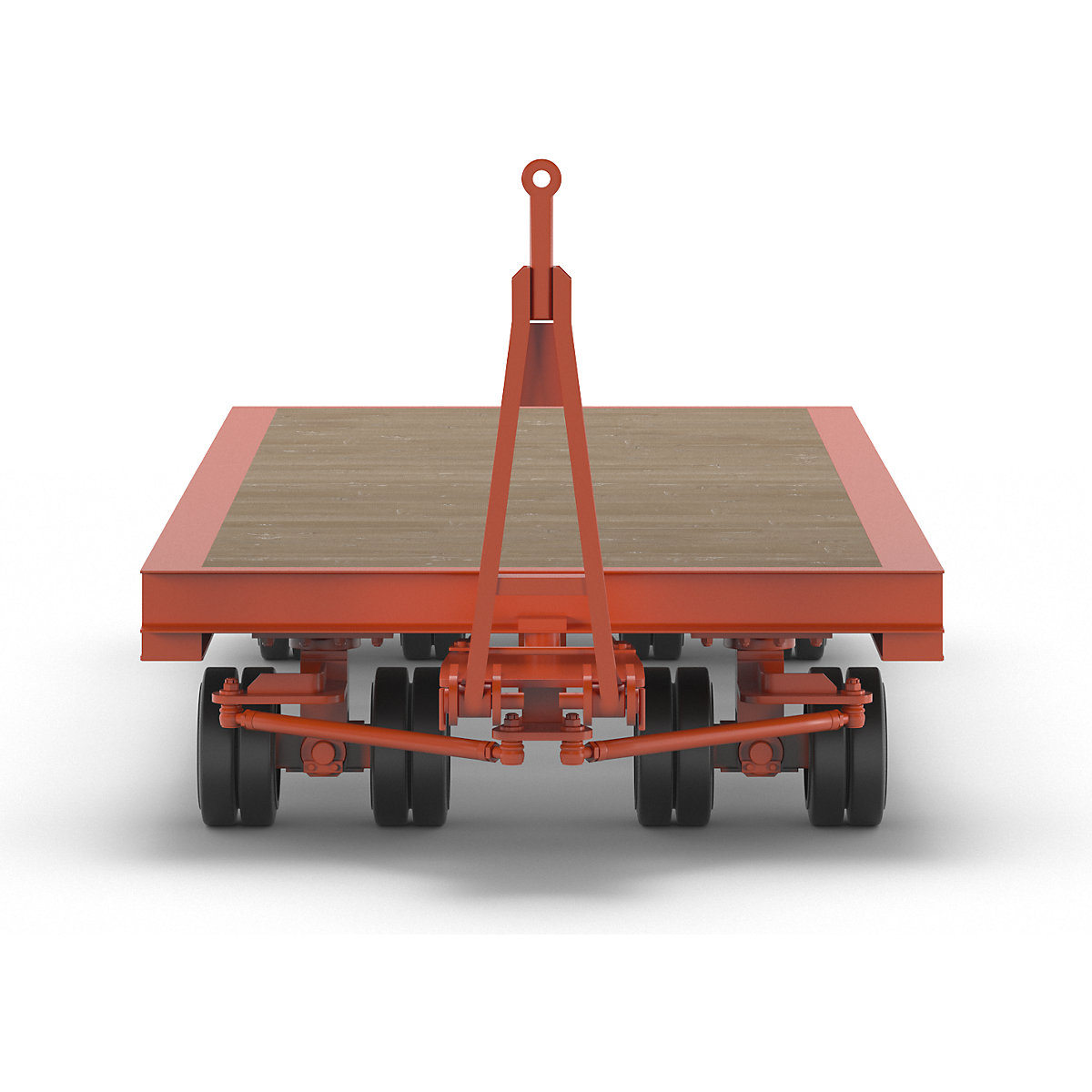

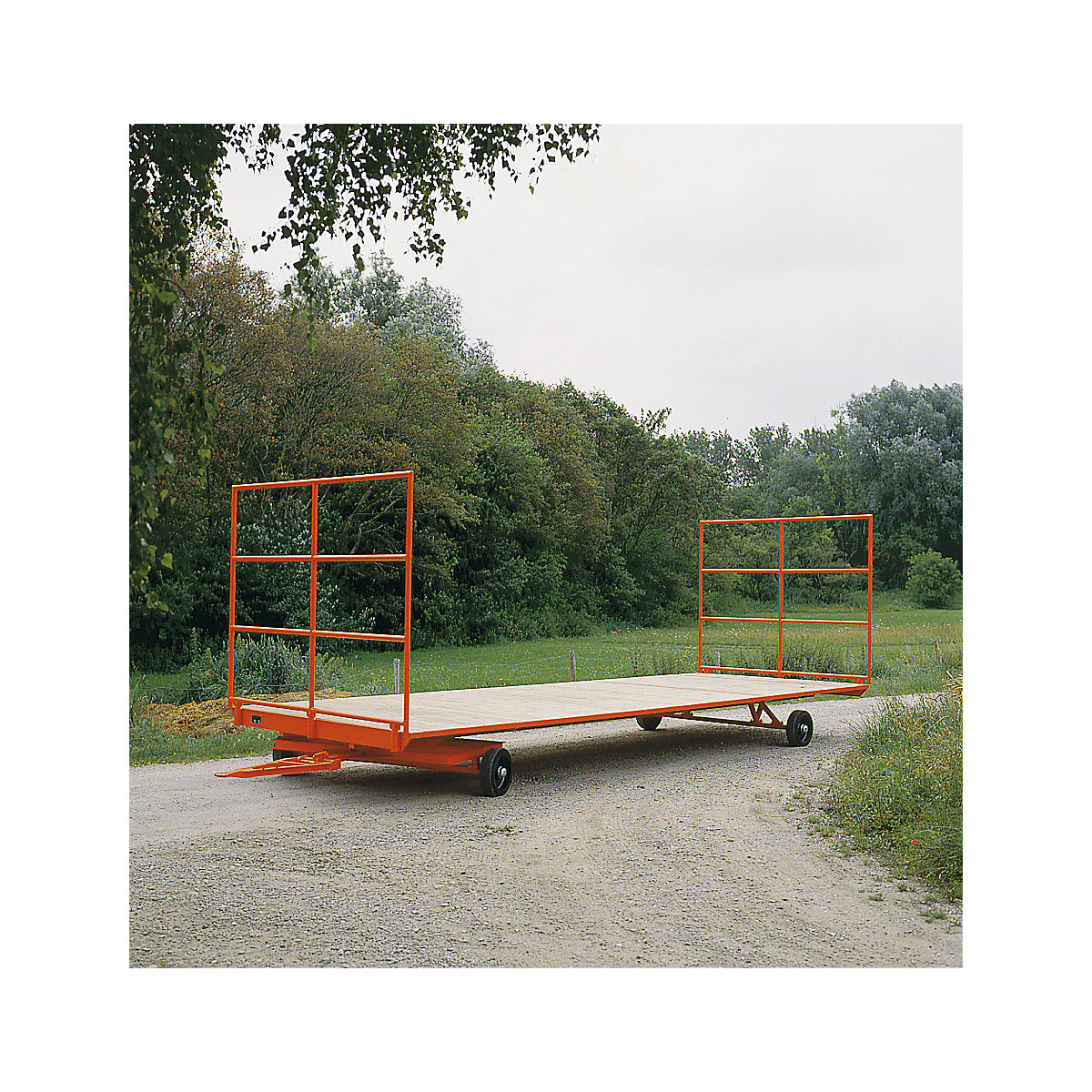

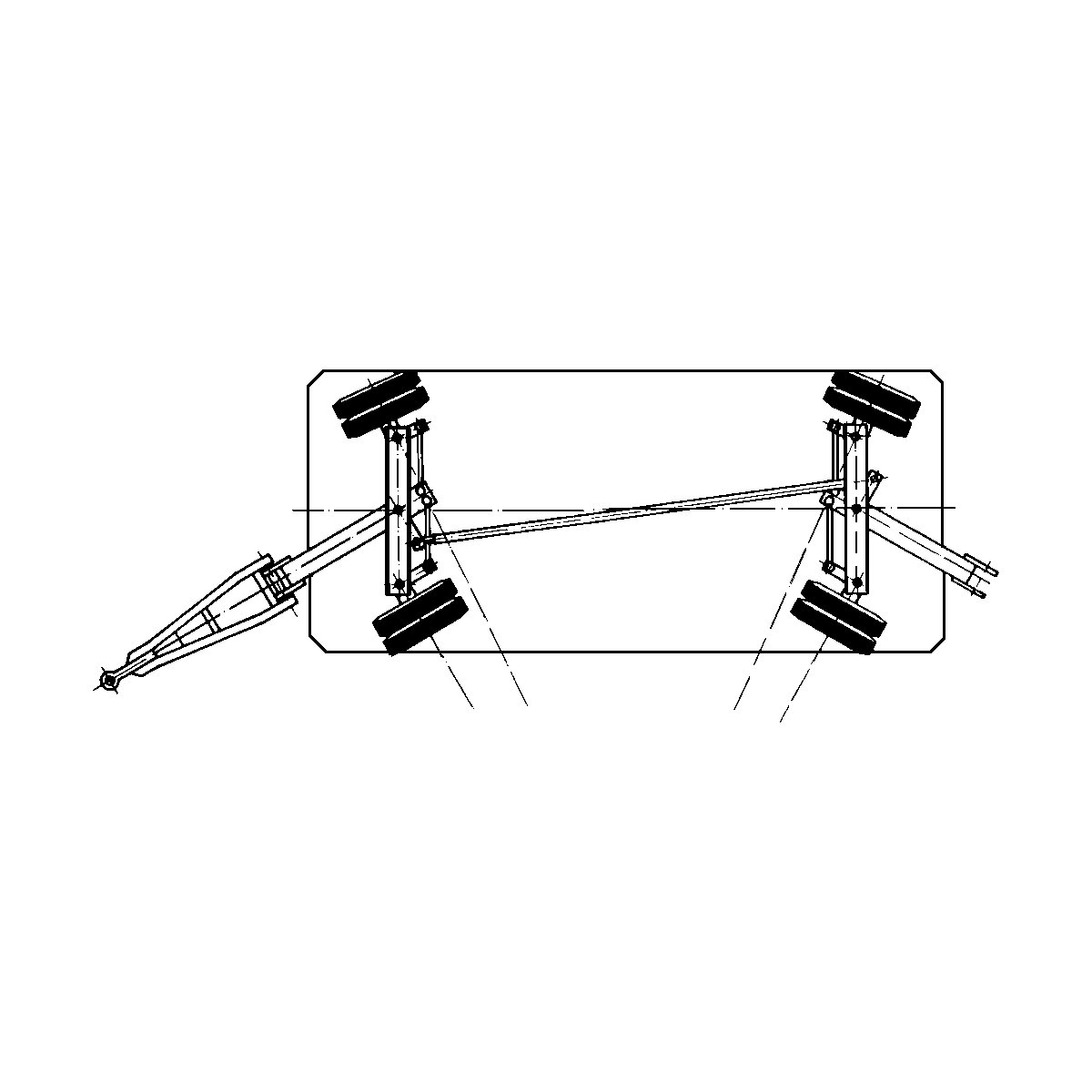

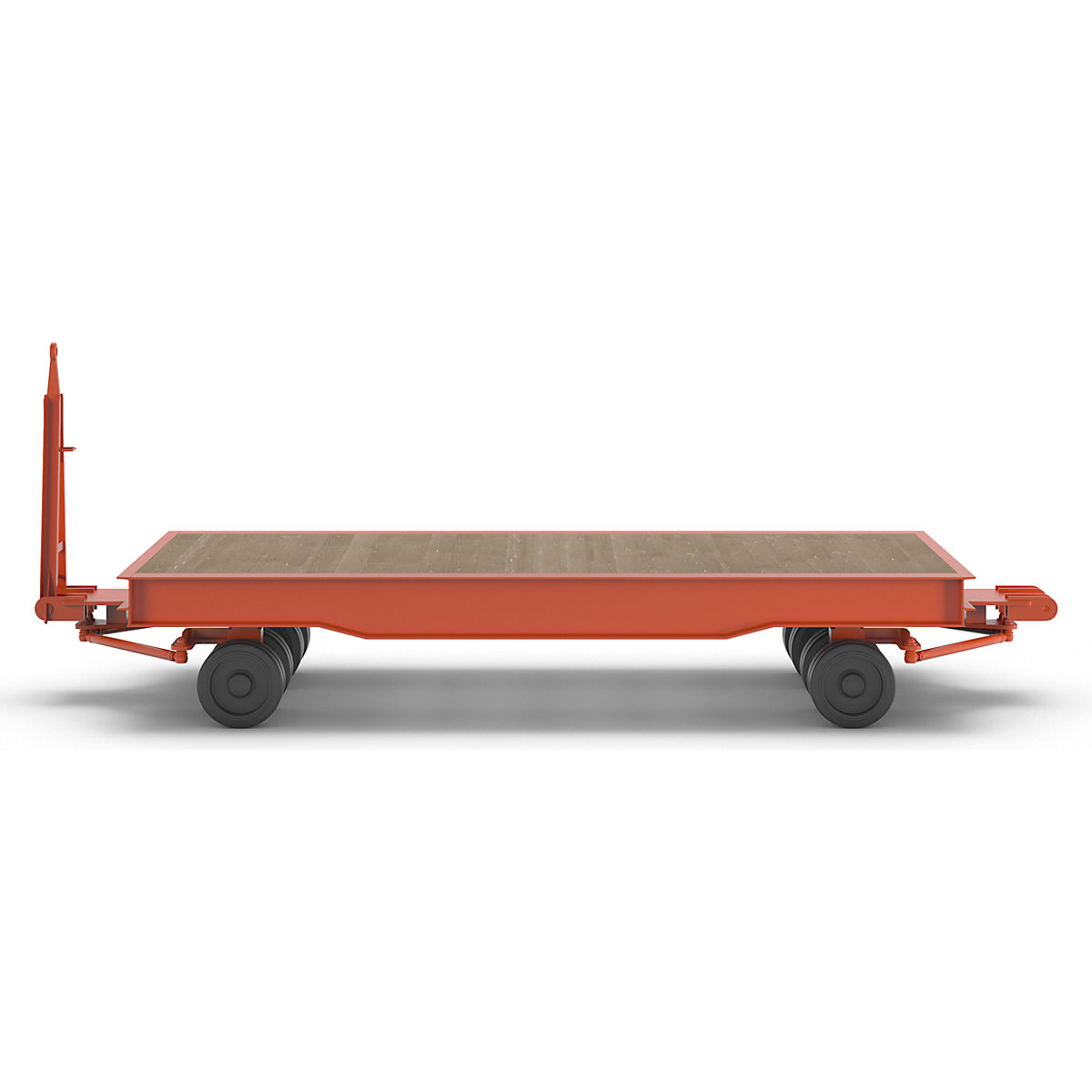

Heavy goods trailer 20 t, 4-wheel linked Ackermann steering

Heavy goods trailer

platform 4.0 x 2.0 m

Platform length [mm]
£22,500.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Product description
  • Small turning circle – steering radius 45°
  • Impregnated wooden platform for weather resistant and non-destructive load support
  • Detachable drawbar, trailer coupling on both sides
  • Robust welded steel construction
  • Low maintenance
  • Excellent stability due to four-point support
  • Durable
  • Tracking stability
  • In line with workplace safety regulations for transport vehicles
  • Track rods and steering rods with maintenance free ball heads
Wheel type
Dual tyres, solid rubber wheels with welded steel rims. Dual roller bearings, DIN compliant. Permanent lubrication, sealed to be dustproof and greaseproof.

Platform
Impregnated pine laminate.

Paintwork
Pure orange RAL 2004.
On request
Various platform linings, puncture proof solid tyres, parking brake, rubber axle and lead spring, CSE tyres, side walls, weather protection structure, lighting, sheet metal covering, stanchions, compressed air brake, mesh panel, mesh construction and folding aluminium side panels, folding loading ramps, electric brake, special paint finish, support feet, long material trailer, long material trailer with adjustable rear vehicle, special trailer with overrun brake, drawbar height adjustment mechanism, cropped drawbar, fixed bogie, dual action wheel chock with chain and bracket, cranked drawbar with drawbar height adjustment mechanism, low loader, low loader with hand crank parking brake, low loader with weather protection structure and other accessories
The technical specifications for these trailers makes it necessary to manufacture them to order.
For this reason, please be aware that there is no right of return for these items.
Technical data
Max. load at 6 km/h20 t
Platform width2000 mm
Loading height730 mm
Steeringall-wheel axle journal with pendulum axle
Platform materialpine wood covering, treated with preservative
Type of tyretwin tyres
Featuredetachable drawbar
Finishpainted
Wheel typesolid rubber
Wheel width200 mm
Wheel diameter415 mm
Colourpure orange RAL 2004
Steering radius45 °
Product typeindustrial trailers
Suppliedassembled
Platform length4000 mm
Weight2100 kg
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
50
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

13,657kg CO₂e
LCA Raw Material Extraction & Processing
50.3%
LCA packaging production
1.1%
LCA Product Manufacturing
41.2%
LCA Inbound and Outbound Transportation
7.3%
‌
‌
‌
‌
