Workshop Product Guide

Explanation of pictograms used for ladders

EN 131-3 states that the use of different types of ladders must be explained using pictograms. The pictograms can be found affixed to your climbing aids, as well as in the corresponding instructions. To provide you with a quick overview, we've compiled all pictograms here, along with an explanation of what they mean.

Instructions

Explanation of pictograms used for ladders wt$

Observe instructions

Warning

Explanation of pictograms used for ladders wt$

Warning about falling from ladder

Inspection

Explanation of pictograms used for ladders wt$

Inspect ladder following delivery. Before each use, a visual inspection of the ladder for damage and for safe usage. Do not use damaged ladders.

Securing

Explanation of pictograms used for ladders wt$

Ladders used to access a higher level must be extended at least 1 meter above the point of contact and must be secured when necessary.

Caution

Explanation of pictograms used for ladders wt$

Avoid leaning out to the side

Beware

Explanation of pictograms used for ladders wt$

Do not use the ladder on uneven or unsealed surfaces.

User limit

Explanation of pictograms used for ladders wt$

Maximum number of users

Max. load limit

Explanation of pictograms used for ladders wt$

Maximum load bearing capacity

Professional use

Explanation of pictograms used for ladders wt$

Ladder for professional use

Non-professional use

Explanation of pictograms used for ladders wt$

Ladder not for professional use

Angle of contact

Explanation of pictograms used for ladders wt$

Lean to ladders with rungs must be used at the correct angle of 65° – 75°.

Step alignment

Explanation of pictograms used for ladders wt$

Lean to ladders with steps must be used in a position that ensures the steps are horizontal.

Stabilisation

Explanation of pictograms used for ladders wt$

Stabilisation beams must be affixed to the ladder before being used for the first time.

Setup direction

Explanation of pictograms used for ladders wt$

Only use the ladder in the setup direction specified.

Lean correctly

Explanation of pictograms used for ladders wt$

The ladder must not lean against unsuitable surfaces.

Standing area

Explanation of pictograms used for ladders wt$

Do not stand on the top three steps/rungs of a lean to ladder.

Not allowed

Explanation of pictograms used for ladders wt$

Climbing off a step ladder sideways to access another surface is not allowed.

Open correctly

Explanation of pictograms used for ladders wt$

Open the ladder completely before use.

Uppermost rungs

Explanation of pictograms used for ladders wt$

Do not use the top two steps/rungs of a step ladder as a standing area without a platform and railing for hands/knees.

Do not step here

Explanation of pictograms used for ladders wt$

Do not step on any surfaces marked this way.

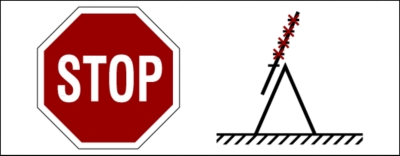

Special requirements 1

Explanation of pictograms used for ladders wt$

When using the ladder as a step ladder with an extension ladder added, or in the step position, do not stand on the top four steps/rungs.

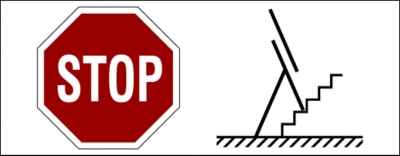

Special requirements 2

Explanation of pictograms used for ladders wt$

When using the ladder as a step ladder with an extension ladder added, or in the step position, do not stand on the top four steps/rungs.

Platform

Explanation of pictograms used for ladders wt$

When using the ladder as a platform, only the platform elements recommended by the manufacturer may be used. The platform element must be secured before use.

Stabiliser

Explanation of pictograms used for ladders wt$

Only use with a stabiliser (when part of the ladder)

Ballast weight

Explanation of pictograms used for ladders wt$

Only use with ballast weight (when part of the ladder)

Locking mechanisms

Explanation of pictograms used for ladders wt$

Locking mechanisms must be checked before use and be fully secured should this not occur automatically.

Maximum platform load

Explanation of pictograms used for ladders wt$

Maximum load bearing capacity of the platform specified by the manufacturer when used as a scaffold (120 kg to 150 kg) (see EN 131-4:2007, section 7)

Brakes

Explanation of pictograms used for ladders wt$

Only use with activated brakes (when part of the ladder)

Joints

Explanation of pictograms used for ladders wt$

Ensure that the joints have been locked in position.

Outdoor use

Explanation of pictograms used for ladders wt$

Do not use ladders outdoors when they are not designed for this.

Uprights

Explanation of pictograms used for ladders wt$

Open the uprights fully before use.

Not allowed

Explanation of pictograms used for ladders wt$

Do not use the ladder as a bridge.
