Ref.: 523216 49

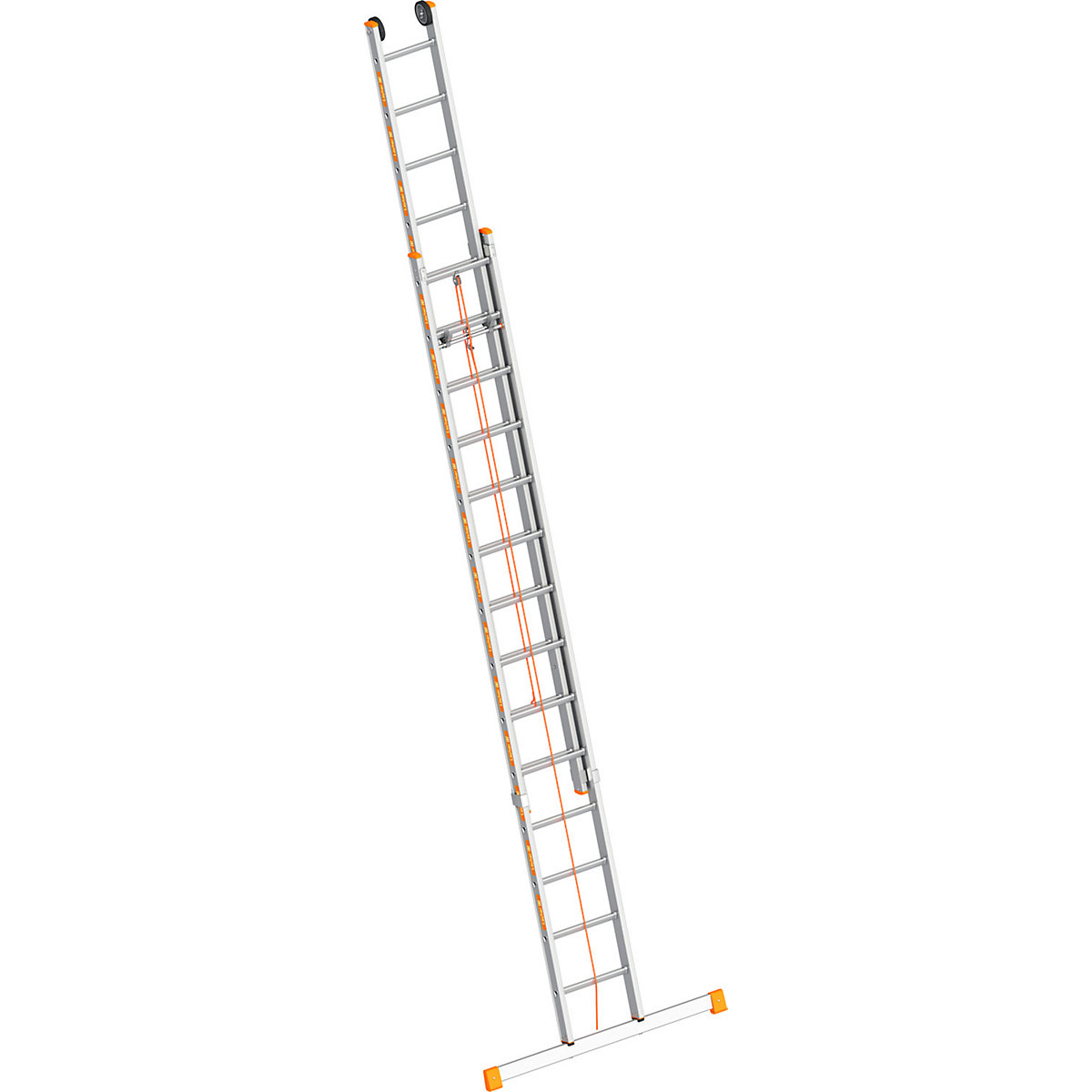

Aluminium rope operated extension ladder – Layher 2-part, extendable, incl. beam
2 x 14 rungs
Number of rungs [pcs.]

This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 523216 49
Aluminium rope operated extension ladder – Layher 2-part, extendable, incl. beam
2 x 14 rungs

2 x 14 rungs
£659.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Product description
- The combigrip ladder feet make the beam easy to fit
- Working height adjustable according to rung spacing
- Rollers with rubber cover to prevent markings
- Unlocking, lowering and securing by automatic drop catch
- User friendly rope guide, durable, soft plastic rope
Aluminium ladders are characterised by robustness and durability, while also featuring a low weight. The rungs of this rope operated extension ladder are made of high strength, closed extruded profiles without a longitudinal weld. They are pressed into the rail at 4 positions. The triangular shape of the rung ensures torsion resistance and the pressing ensures the ladder is particularly stable at the side. A ribbed tread surface provides a high degree of anti-slip protection. Additional braces at the end of the rungs ensure the values in DIN EN 131 are exceeded.
Ladder includes beams (foot extension element), compliant with ladder standard DIN EN 131.
Ladder includes beams (foot extension element), compliant with ladder standard DIN EN 131.

5 year guarantee
Technical data
Access type | single sided |
---|---|
Width | 440 mm |
Max. load | 150 kg |
Frame material | aluminium |
Rung height | 100 mm |
Conforms to | DIN EN 131 |
Cross beam width | 1360 mm |
Product type | extension ladders |
Supplied | pre-assembled, final assembly by customer |
Number of rungs | 2 x 14 pcs. |
Working height | 8050 mm |
Standing height | 6050 mm |
Extended length | 7100 mm |
Retracted length | 4000 mm |
Weight | 23.6 kg |
Instructions |
