Ref.: 572106 49

Balanced crane fork, manual – Eichinger effective height 1150 – 1750 mm, light duty version

Balanced crane fork, manual – Eichinger

max. load 600 kg

Max. load [kg]
£1,125.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Product description
  • Manual weight balancing
  • Low weight
  • Adjustable effective height and fork width
Infinite manual fork width adjustment from 450 – 950 mm and effective height can be adjusted from 1150 – 1750 mm using locking pins. Weights are balanced manually by positioning the individual support ring.
Supplied complete with 4 m safety chain.

Forks made of tubular material.

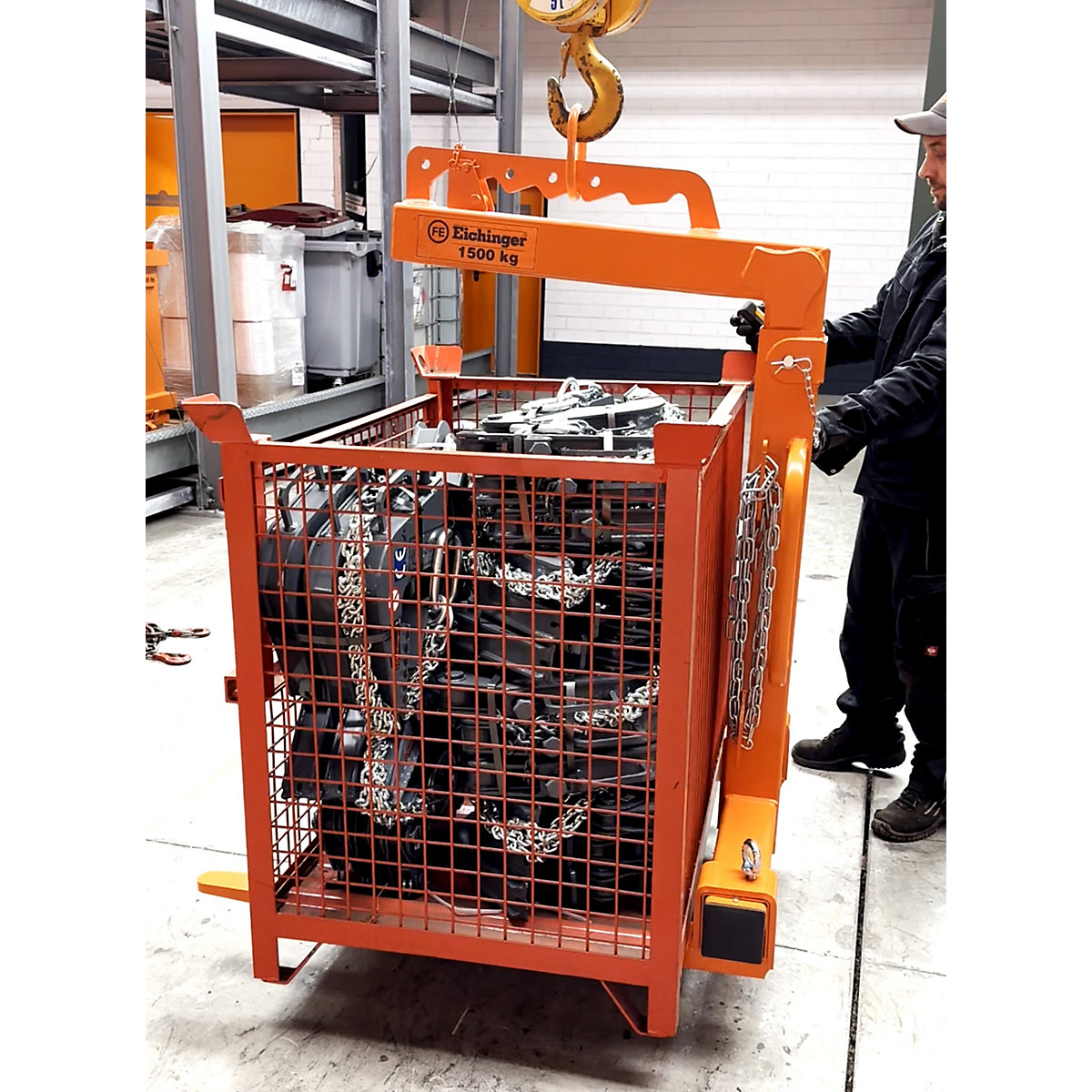

Available upon request with safety cage or loading box in normal size or in any other special size required.
Technical data
Load centre680 mm
Effective height from1150 mm
Fork length1000 mm
Weight compensationmanual
Materialsteel, painted
Colourpure orange RAL 2004
Effective height up to1750 mm
Fork adjustment range450 – 950 mm
Product typecrane forks
Suppliedassembled
Max. load600 kg
Fork width120 mm
Thickness of fork prong40 mm
Weight120 kg
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
0
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

671.61kg CO₂e
LCA Raw Material Extraction & Processing
43.4%
LCA packaging production
1%
LCA Product Manufacturing
48.7%
LCA Inbound and Outbound Transportation
6.8%
‌
‌
‌
‌
