Ref.: 740060 49
ErgoLine® gantry crane system – Vetter with electric chain hoist, max. load 500 kg
width 5.8 m
Ref.: 740060 49
ErgoLine® gantry crane system – Vetter with electric chain hoist, max. load 500 kg
width 5.8 m
width 5.8 m
£30,500.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£30,500.00
Price / item (Excl. VAT)
Product description
- Ideal for linking up several workstations
- No load placed on the hall structure
- Support height can be adjusted variably
The double rail ErgoLine® smooth running gantry is outstandingly suited for handling loads up to 250 kg that need to be moved quickly and without fuss. While conventional crane systems are easiest to move from the centre, this system offers precise and incomparably easy movability from any position.
The ErgoLine® system is modular and further adaptations can be made to suit your requirements. The steplessly adjustable cantilever arms are quick to mount to the supports, and ensure effortless installation using DYNAMIK securing bolts, which make complicated foundation work unnecessary.

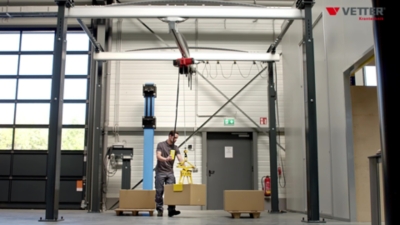

ErgoLine® gantry crane system with height adjustable supports and aluminium crane and trolley tracks, bridge with gimbal bearing.
The ErgoLine® system is modular and further adaptations can be made to suit your requirements. The steplessly adjustable cantilever arms are quick to mount to the supports, and ensure effortless installation using DYNAMIK securing bolts, which make complicated foundation work unnecessary.
ErgoLine® gantry crane system with height adjustable supports and aluminium crane and trolley tracks, bridge with gimbal bearing.
The technical specifications for these cranes makes it necessary to manufacture them to order – no right of return. Illustration with example of use shows accessories, special lengths and special equipment. Please enquire!
Technical data
| Max. load | 500 kg |
|---|---|
| Design of mobile gantry crane | crane with electric chain hoist |
| Material | steel |
| Overall height from – to | 2899 – 4264 mm |
| Main lift | 4.5 m/min |
| Precise lift | 1.1 m/min |
| Operating voltage | 400 V |
| Control voltage | 24 V |
| Weight | 1573 kg |
| Bridge length | 500 mm |
| Colour | silver black |
| Bay length | 4250 + 4750 mm |
| Width | 5820 mm |
| Length of crane arm | 10 m |
| Lower edge of crane bridge | 2160 – 3525 mm |
| Product type | gantry crane systems |
| Supplied | pre-assembled, final assembly by customer |
