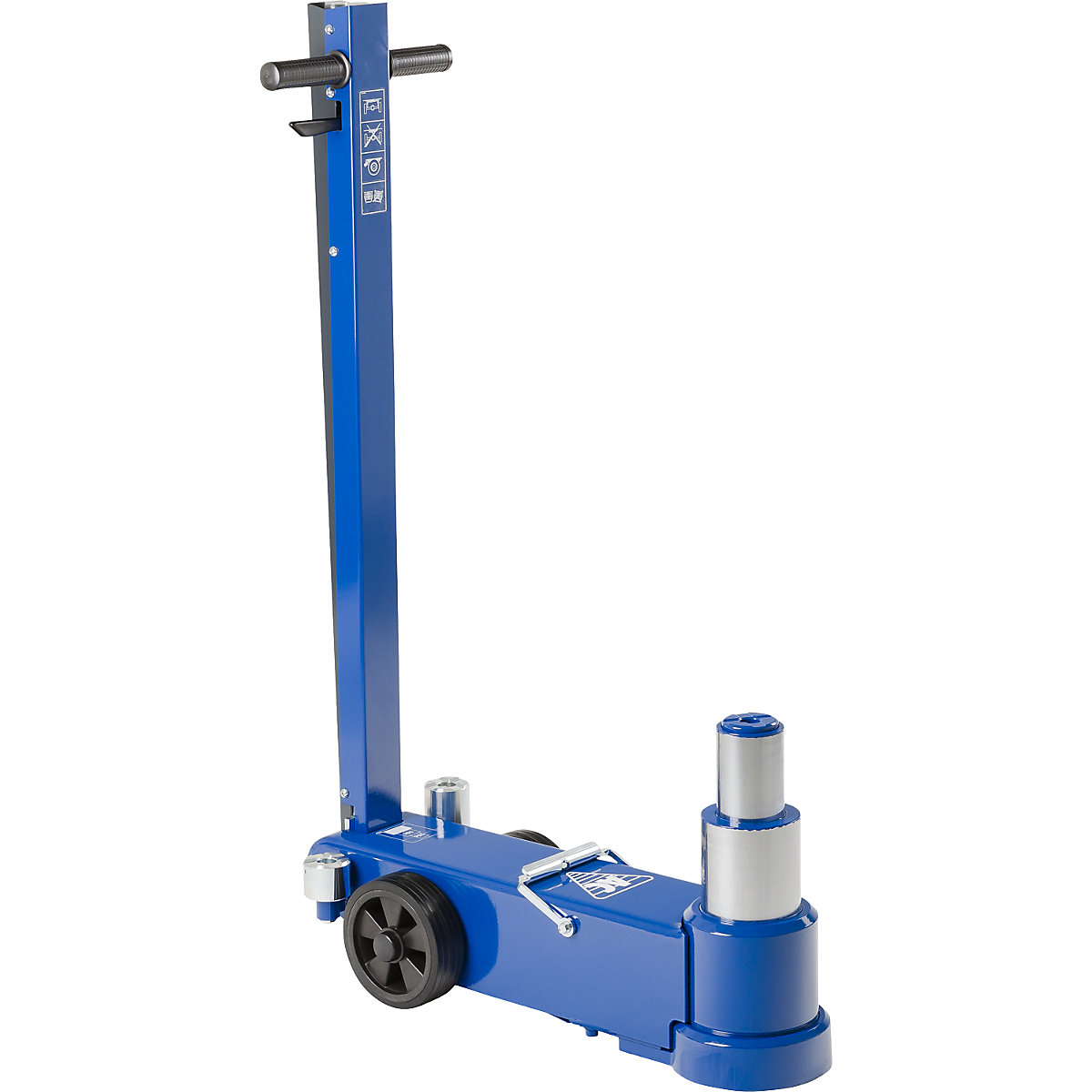

Air-hydraulic car jack 50-2/3 – AC Hydraulic 2-stage
max. load 50000 / 25000 kg
Ref.: 866337 49
Air-hydraulic car jack 50-2/3 – AC Hydraulic 2-stage
max. load 50000 / 25000 kg

max. load 50000 / 25000 kg
Ref.: 866337 49
Product not available
Currently not availableWe will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?Product description
- Very high max. load for heavy commercial vehicles
- Durable and robust steel frame
- Hard chrome-plated cylinders for a long service life
- Safety valve against overload
- Dead man's switch for controlled operation
- Two extensions for flexible working heights
The air-hydraulic jack 50-2/3 is a particularly powerful jack for professional use under extreme conditions. Developed for heavy commercial vehicles, industrial applications and workshops with high loads, this jack impresses with its maximum stability, durable components and high safety standards. Through the combination of a hydraulic system and compressed air support, the air-hydraulic jack enables effortless, fast and controlled lifting, even with very high loads. This makes this jack suitable for daily use in commercial vehicle workshops, construction companies, vehicle fleets and industrial plants.
The air-hydraulic operating principle allows for particularly comfortable working. By connecting it to a compressed air source, the lifting process is made significantly easier, allowing even heavy vehicles to be lifted quickly and safely. This technology significantly reduces physical effort and increases efficiency in daily workshop operations. The built-in hard-chromed cylinders ensure particularly high resistance to wear and corrosion. This ensures the jack remains permanently reliable and low-maintenance, even with intensive use.
Integrated safety features such as a safety valve against overloading and a dead man's control enable controlled lifting and lowering. The ergonomically designed handle is equipped with practical push-button switches, which allow the lifting and lowering functions to be controlled comfortably. This ensures that operation remains pleasant and efficient, even during longer periods of use. For maximum flexibility, the jack is supplied as standard with two extensions (50 mm and 100 mm). These allow for adjustment to different vehicle heights and application scenarios.
The jack is suitable for professional users in workshops, industry and construction. It facilitates the lifting of heavy commercial vehicles and machines. The air-hydraulic jack reduces physical strain and increases efficiency during repetitive lifting operations.
The air-hydraulic operating principle allows for particularly comfortable working. By connecting it to a compressed air source, the lifting process is made significantly easier, allowing even heavy vehicles to be lifted quickly and safely. This technology significantly reduces physical effort and increases efficiency in daily workshop operations. The built-in hard-chromed cylinders ensure particularly high resistance to wear and corrosion. This ensures the jack remains permanently reliable and low-maintenance, even with intensive use.
Integrated safety features such as a safety valve against overloading and a dead man's control enable controlled lifting and lowering. The ergonomically designed handle is equipped with practical push-button switches, which allow the lifting and lowering functions to be controlled comfortably. This ensures that operation remains pleasant and efficient, even during longer periods of use. For maximum flexibility, the jack is supplied as standard with two extensions (50 mm and 100 mm). These allow for adjustment to different vehicle heights and application scenarios.
The jack is suitable for professional users in workshops, industry and construction. It facilitates the lifting of heavy commercial vehicles and machines. The air-hydraulic jack reduces physical strain and increases efficiency during repetitive lifting operations.
Dimensions LxWxH refer to the dimensions of the frame.
Technical data
| Length | 810 mm |
|---|---|
| Max. load | 50000 / 25000 kg |
| Width | 315 mm |
| Lift | 230 mm |
| Weight | 72 kg |
| Lifting range with lifting head | 220 – 450 mm |
| Colour | gentian blue RAL 5010 |
| Material | steel |
| Product type | car jacks |
| Height | 220 mm |
| Supplied | partially assembled |
