Ref.: 566221 49

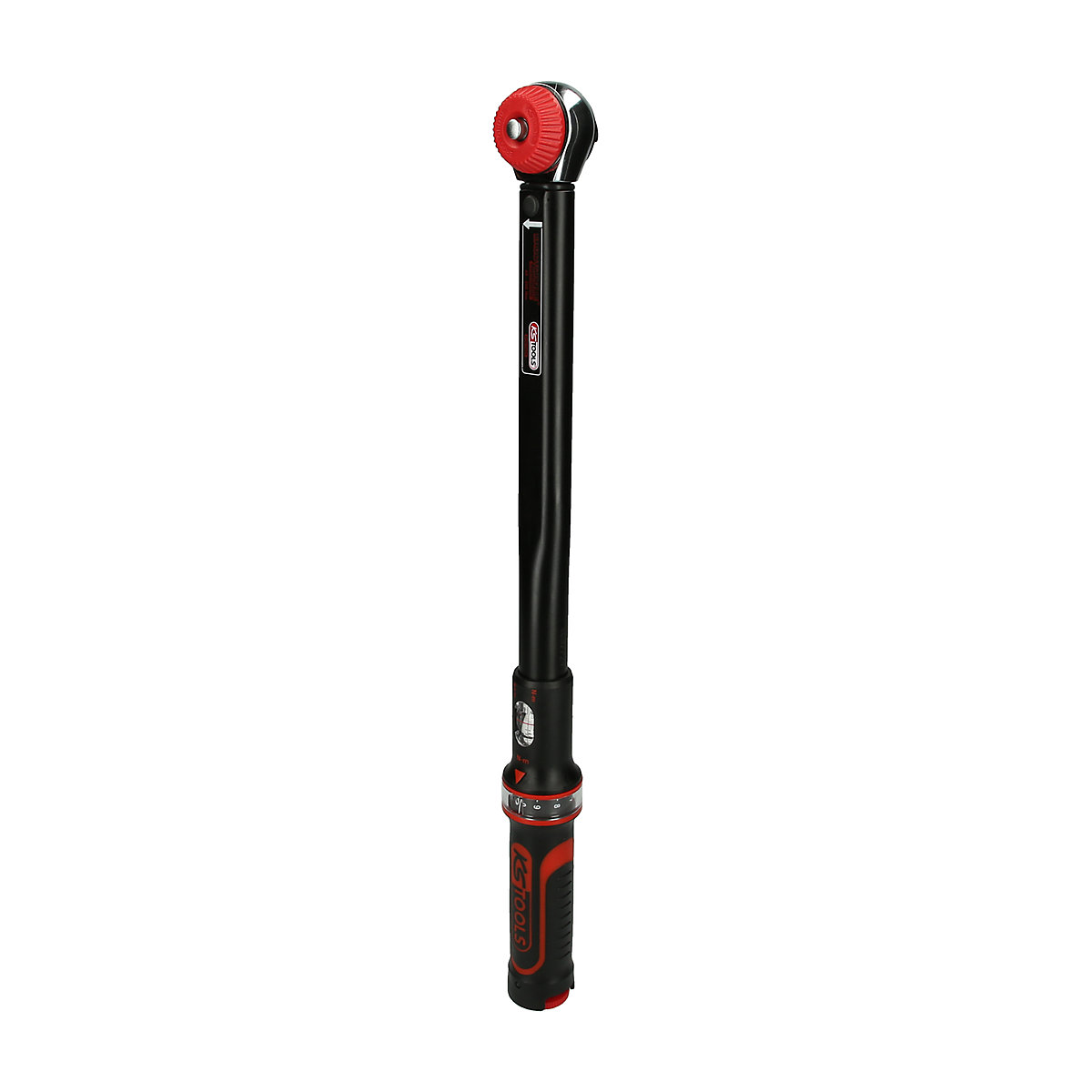

ERGOTORQUE®precision torque wrench with reversible ratchet head – KS Tools 1/4''

ERGOTORQUE®precision torque wrench with reversible ratchet head – KS Tools

5 – 25 Nm

£129.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Product description
  • Actuation accuracy: ±3% tolerance from the value set on the scale
  • Repeat accuracy and precision for at least 5000 load changes
  • For controlled clockwise and anti-clockwise tightening
  • Clearly audible and palpable torque actuation by quick release function

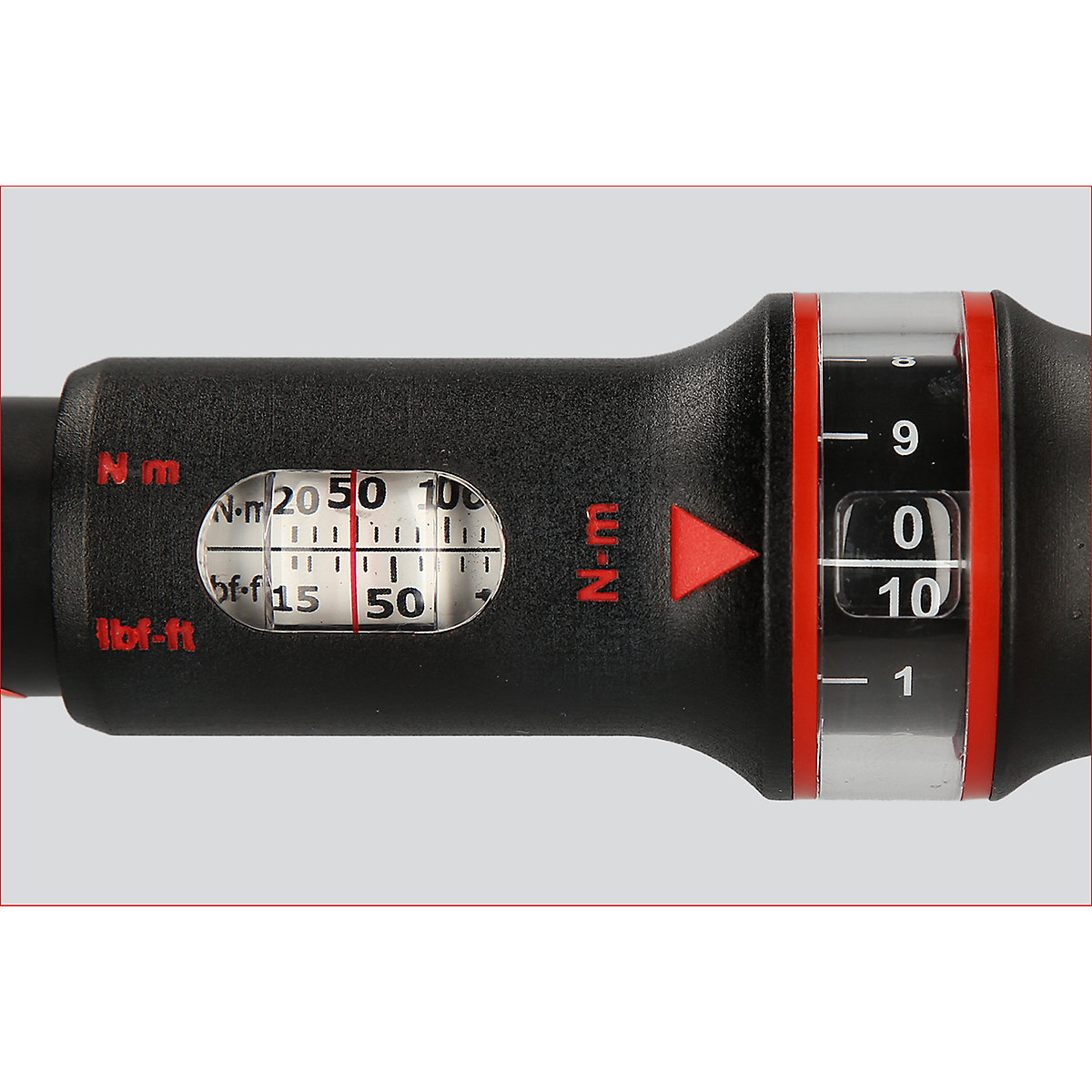

  • Double scale with Nm and lbf ft divisions for precise adjustment
  • Ergonomic and comfortable 2 component handle with soft zone
  • With textured reversible ratchet head on the square drive for manual pretightening
  • Includes an Nm micrometre scale with exact divisions for fine and precise adjustment
  • Large vision panel with magnifying function to optimise readability
  • With a robust 30 tooth ratchet mechanism
  • Turning the handle adjusts the torque quickly and reliably
The direction of operation is changed by pushing through the square edge of the drive. Secure locking mechanism on the handle. With ejection mechanism on the ratchet head by pressing a button.

Includes a declaration of calibration conformity in accordance with EN ISO 6789:2017(E) – traceable to national standards.
Square drive in accordance with DIN 3120 – ISO 1174 with ball locking device.
Technical data
Weight0.46 kg
Display typegraduation (mechanical)
Actuation accuracy±3 %
Diameter35 mm
Handle2-component handle
Height18 mm
Length289 mm
Materialchrome-vanadium steel
Measuring range Nm5 – 25 N·m
Square drive in inches1/4''
Tool holderratchet
Colourblack
Product typetorque wrenches
Suppliedassembled
