Ref.: 940323 49

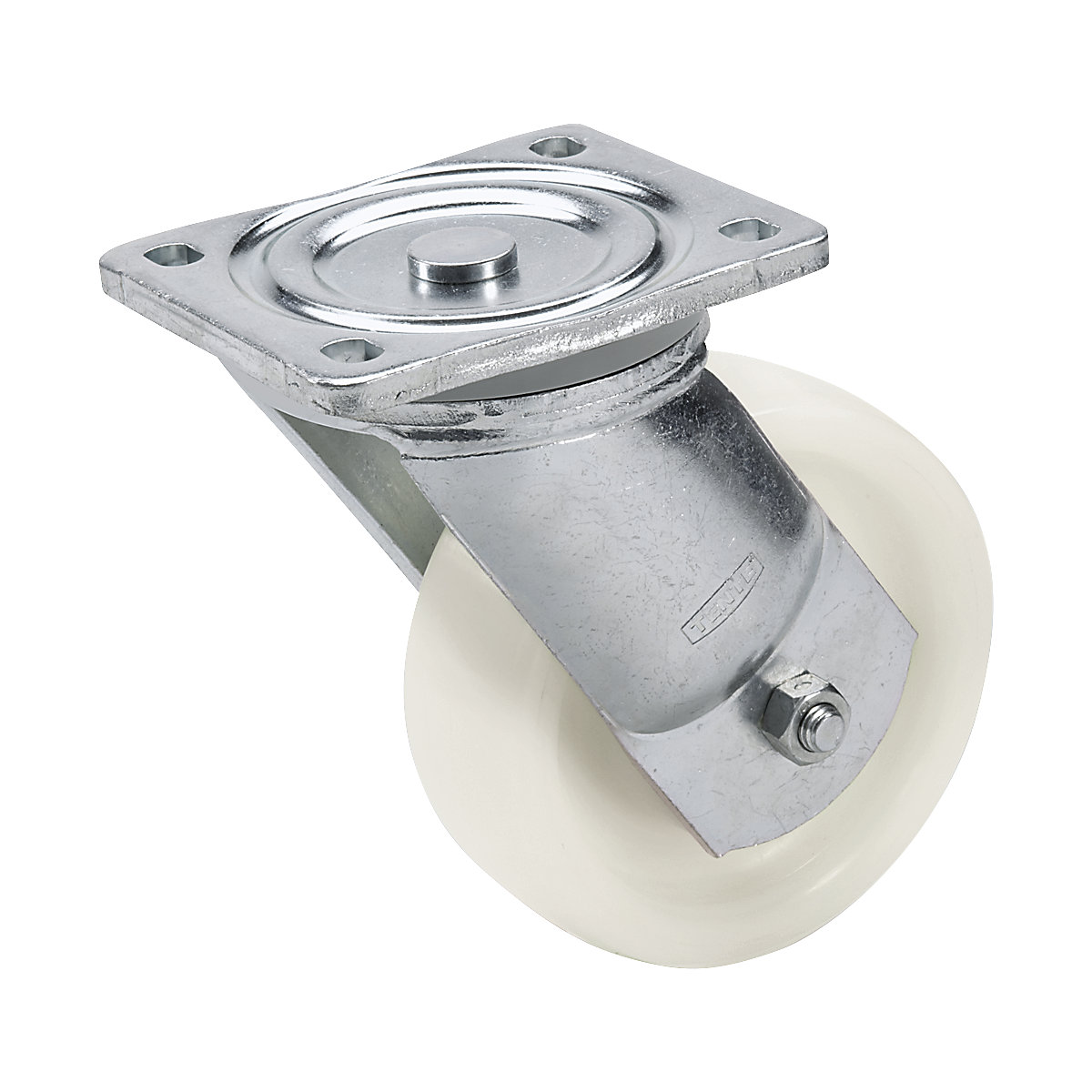

Nylon wheel, hardwearing – TENTE wheel Ø x width 125 x 50 mm
swivel castor
Structure
Wheel diameter [mm]
Ref.: 940323 49
Nylon wheel, hardwearing – TENTE wheel Ø x width 125 x 50 mm
swivel castor
swivel castor
Hardwearing
High maximum load
Score: 2.2/5.9Structure
Wheel diameter [mm]
£98.00
Price / item (Excl. VAT)
Only 6 available
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
£98.00
Price / item (Excl. VAT)
£98.00
Price / item (Excl. VAT)
Only 6 available
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
Product description
- Hardwearing
- Largely resistant to thinned acids and alkaline solutions
- Temperature resistant from –20 °C to +80 °C
Steel housing, welded, with zinc chromate finish. Swivel bearings with double ball race. Live ring with labyrinth seal. With lubrication nipple, centre bolts screwed on and secured.
Technical data
| Model | heavy duty castors |
|---|---|
| Wheel material | plastic – nylon |
| Material of rim | nylon |
| Type of mounting | with top plate |
| Housing material | steel |
| Wheel bearing | ball bearing |
| Temperature resistance | –20 °C to +80 °C |
| Screw hole diameter | 11 mm |
| Hub length | 60 mm |
| Hub bore | 20 mm |
| Screw hole spacing | 105 x 75 – 80 mm |
| Housing surface | galvanised and chrome-plated |
| Feature | low wear low rolling resistance low swivel resistance |
| Swivel castor plate dimensions | 135 x 110 mm |
| Fixed castor plate dimensions | 135 x 110 mm |
| Wheel width | 50 mm |
| Supplied | assembled |
| Structure | swivel castor |
| Wheel diameter | 125 mm |
| Max. load at 4 km/h | 840 kg |
| Swivel castor offset | 48 mm |
| Overall height | 170 mm |
| Product type | swivel castors |
| Weight | 3.6 kg |
