Ref.: 119812 49

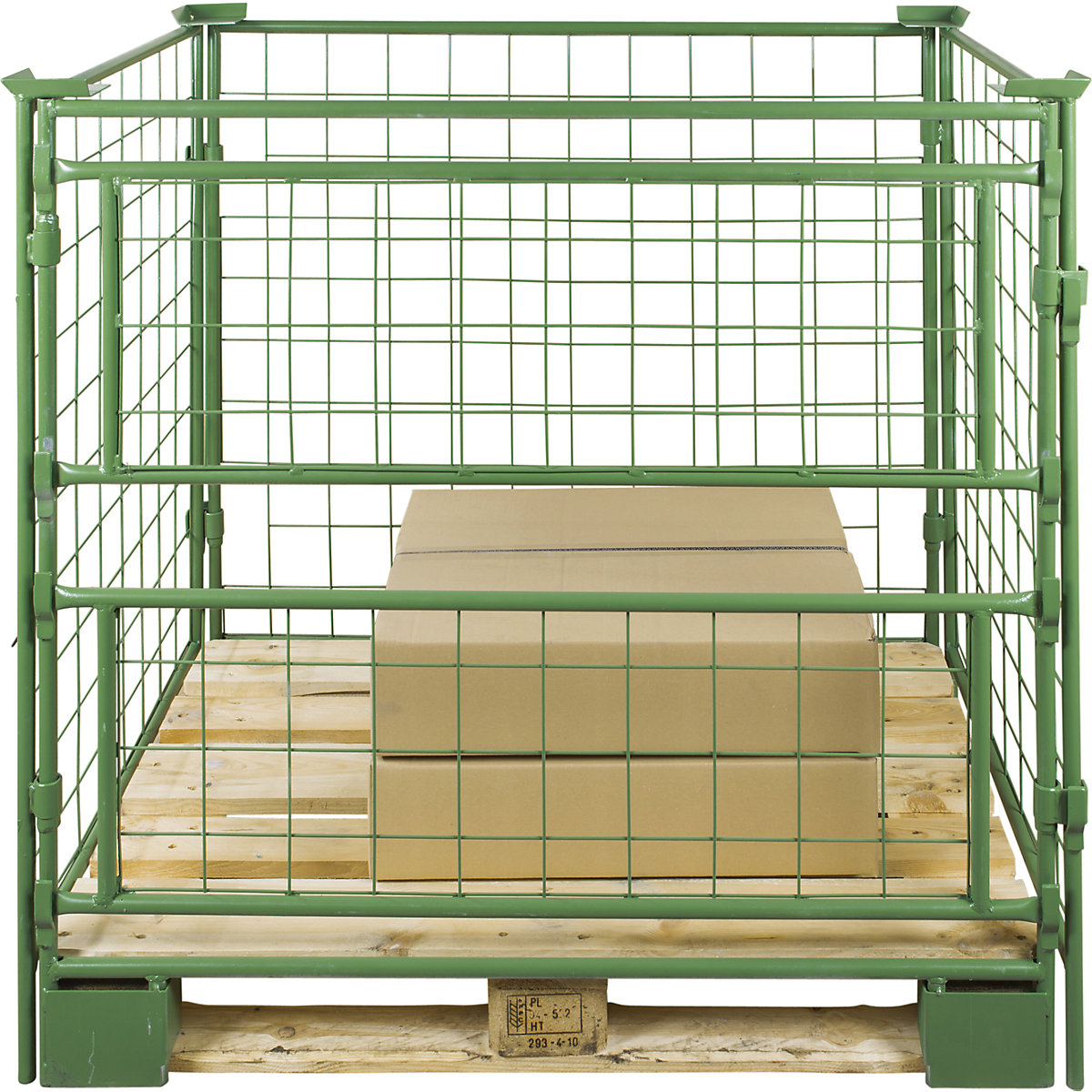

Mesh stacking frames – ratioform for attaching, long side removable in 2 parts
for pallets 1200 x 800, H 800 mm
for pallets 1200 x 800, H 800 mm
Ref.: 119812 49
Mesh stacking frames – ratioform for attaching, long side removable in 2 parts
for pallets 1200 x 800, H 800 mm
£269.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
£269.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Ref. | For pallet size [mm] | Height [mm] | Effective height [mm] | Width [mm] | Weight [kg] | Price / item (Excl. VAT) | Quantity | Total (Excl. VAT) | |
|---|---|---|---|---|---|---|---|---|---|
119812 49 | 1200 x 800 | 800 | 800 | 800 | 27 | £269.00 | £269.00 | ||
119824 49 | 1200 x 1000 | 800 | 800 | 1,000 | 28 | £289.00 | £289.00 | ||
119815 49 | 1200 x 800 | 1,000 | 1,000 | 800 | 30 | £289.00 | £289.00 | ||
119826 49 | 1200 x 1000 | 1,000 | 1,000 | 1,000 | 31 | £315.00 | £315.00 | ||
119817 49 | 1200 x 800 | 1,200 | 1,200 | 800 | 33 | £315.00 | £315.00 | ||
119828 49 | 1200 x 1000 | 1,200 | 1,200 | 1,000 | 34 | £335.00 | £335.00 | ||
119819 49 | 1200 x 800 | 1,600 | 1,600 | 800 | 44 | £319.00 | £319.00 | ||
119831 49 | 1200 x 1000 | 1,600 | 1,600 | 1,000 | 47 | £345.00 | £345.00 | ||
119821 49 | 1200 x 800 | 1,800 | 1,800 | 800 | 48 | £379.00 | £379.00 | ||
119833 49 | 1200 x 1000 | 1,800 | 1,800 | 1,000 | 51 | £389.00 | £389.00 |
119812 49
119812 49
£269.00
for pallets 1200 x 800, H 800 mm
119824 49
119824 49
£289.00
for pallets 1200 x 1000, H 800 mm
119815 49
119815 49
£289.00
for pallets 1200 x 800, H 1000 mm
119826 49
119826 49
£315.00
for pallets 1200 x 1000, H 1000 mm
119817 49
119817 49
£315.00
for pallets 1200 x 800, H 1200 mm
119828 49
119828 49
£335.00
for pallets 1200 x 1000, H 1200 mm
119819 49
119819 49
£319.00
for pallets 1200 x 800, H 1600 mm
119831 49
119831 49
£345.00
for pallets 1200 x 1000, H 1600 mm
119821 49
119821 49
£379.00
for pallets 1200 x 800, H 1800 mm
119833 49
119833 49
£389.00
for pallets 1200 x 1000, H 1800 mm
Product description
- Easy assembly – for attachment – to the pallet
- Minimal space requirements, two-part and folding
- For 800 x 1200 mm and 1000 x 1200 mm pallets
- Frame made of tubular steel, Ø 27 mm with 4 stacking feet
Frame closed on all sides, with open section on long side, as well as other RAL colours on request.
Supplied without pallet.
Supplied flat pack – easy self-assembly.
Technical data
| Model | 1 long side, removable in 2 parts |
|---|---|
| Max. load | 1000 kg |
| Stacking load | 2000 kg |
| Type of mounting | for attaching |
| Material | tubular steel, painted |
| Colour | reseda green RAL 6011 |
| Length | 1200 mm |
| Mesh size | 100 x 100 x 4 mm |
| Product type | pallet frames |
| Supplied | assembled |
| For pallet size | 1200 x 800 mm |
| Height | 800 mm |
| Effective height | 800 mm |
| Width | 800 mm |
| Weight | 27 kg |
Sustainability
Product with potential for future improvement
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
Product CO₂ footprint
- Product Carbon Footprint per kg CO2e
- 143.126
- Product Carbon Footprint Calculation Year
- 2026
- Product Carbon Footprint System Boundaries
- Cradle-to-gate
- Product Carbon Footprint Calculation Method
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
