Jessberger – Canister/drum crank pump fast pumping of mineral oils

For non-flammable mineral oil products such as diesel, gear oil, heating oil, hydraulic oil, machine oil, etc.
Fast pumping – 1 l/revolution
Suitable for canisters and 200 litre drums
With special mineral oil hose 2000 mm and outlet manifold

Ref.: 649190 49

Jessberger – Canister/drum crank pump, fast pumping of mineral oils, hose, manifold

Bulk discount of up to 10.61%

Quantity	Price/Pack	You save
1	£245.00	-
2	£229.00	6.53 %
5	£219.00	10.61 %

Quantity discount from 2

Price / items (Plus VAT)

£245.00

Product description

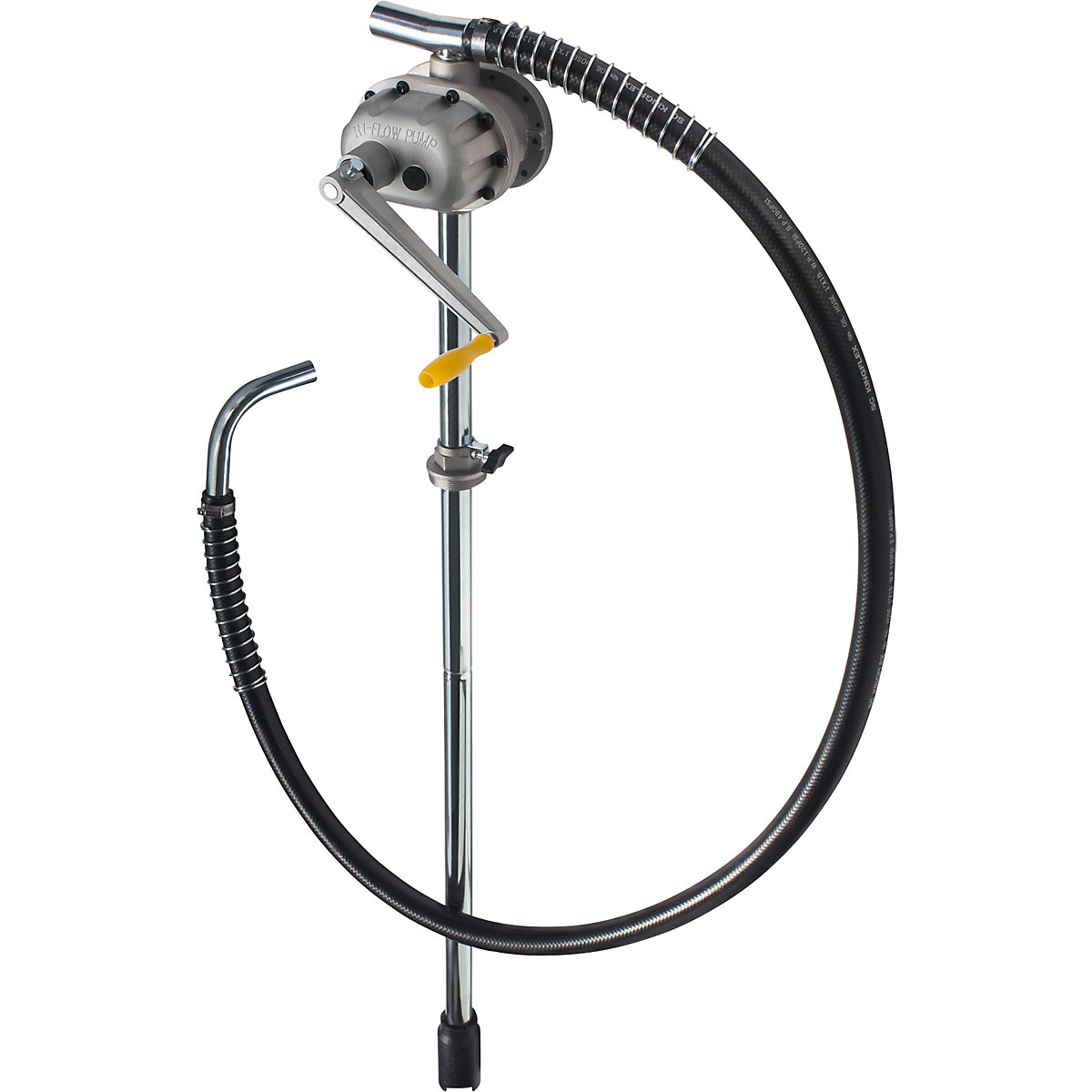

Hand or rotary crank pump for mineral oil products such as diesel, gear oil, heating oil, hydraulic oil, machine oil, mineral oil, motor oil etc. up to 1000 mPas.
Not suitable for flammable media and not suitable for water.

Pump material aluminium and steel.
Seals NBR.
Delivery rate 1 l/revolution. Change from forward to reverse pumping possible.
Water column 15 m. Horizontal distance 50 m.
Immersion tube length 1080 mm, immersion tube diameter 53 mm (sieve).

Pump with 2000 mm special mineral oil hose and outlet manifold. Thread adapter G 2''.

Please note: if media compatibility is unclear, please enquire about the suitability of pumps beforehand.

For non-flammable mineral oil products such as diesel, gear oil, heating oil, hydraulic oil, machine oil, etc.
Fast pumping – 1 l/revolution
Suitable for canisters and 200 litre drums
With special mineral oil hose 2000 mm and outlet manifold

Technical data

Design of pump	rotary piston pump
For media	mineral oils gear oil hydraulic oil diesel heating oil
Material of pump	aluminium steel
Immersion tube diameter	53 mm
Pump rate	1 l/stroke
Immersion tube length	1080 mm
Suction hose length	2000 mm
Thread	G 2 inch
Weight	6.78 kg
Supplied	pre-assembled, final assembly by customer
