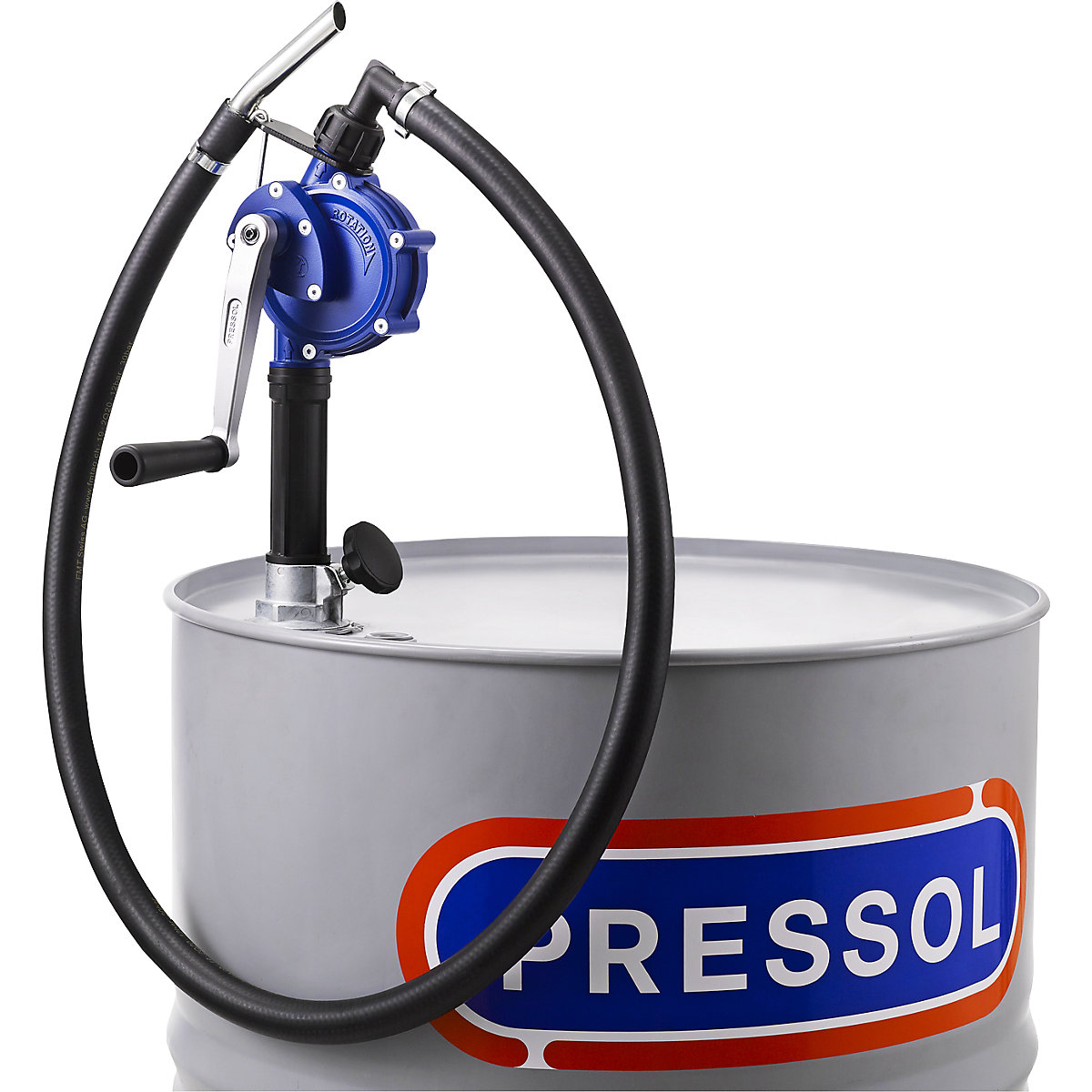

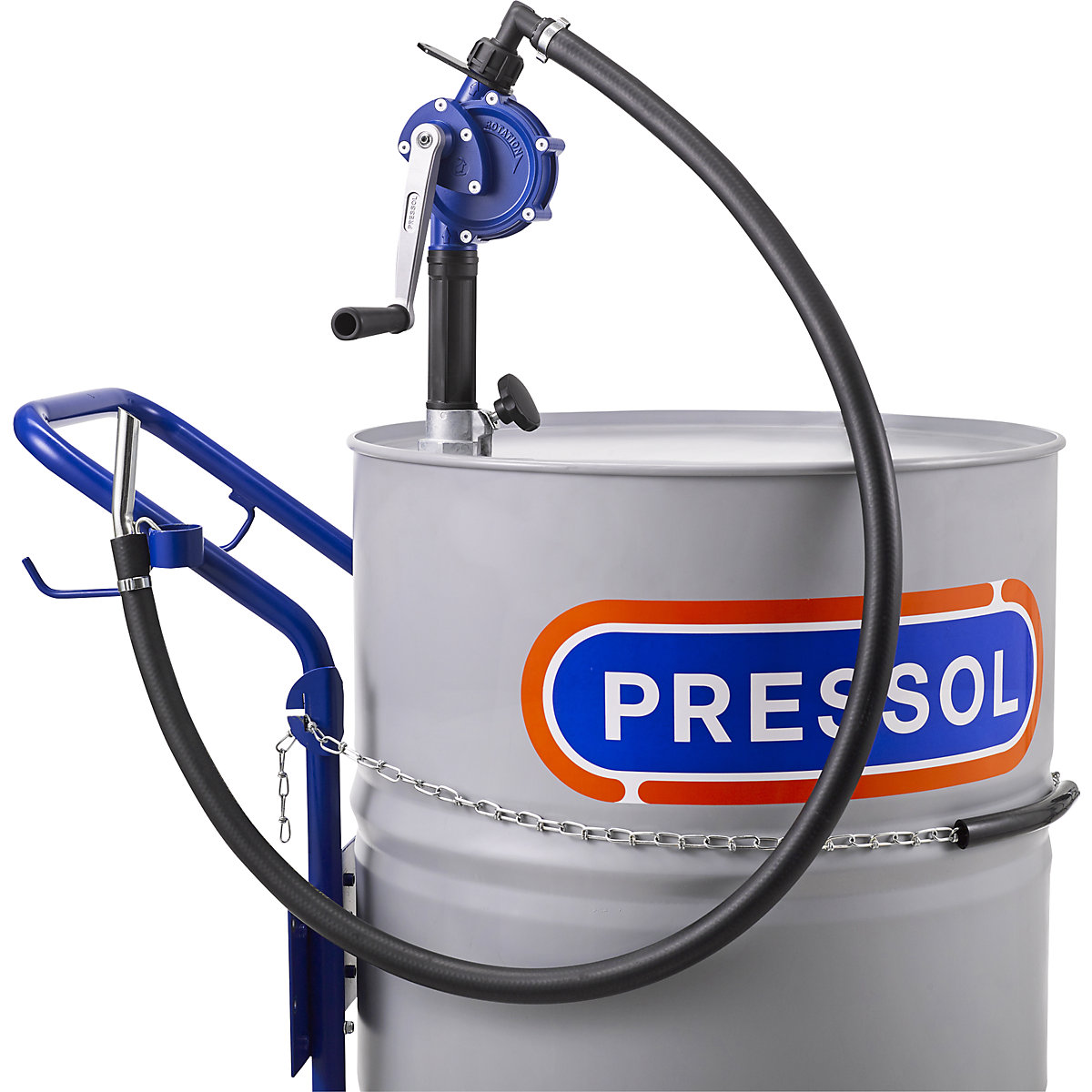

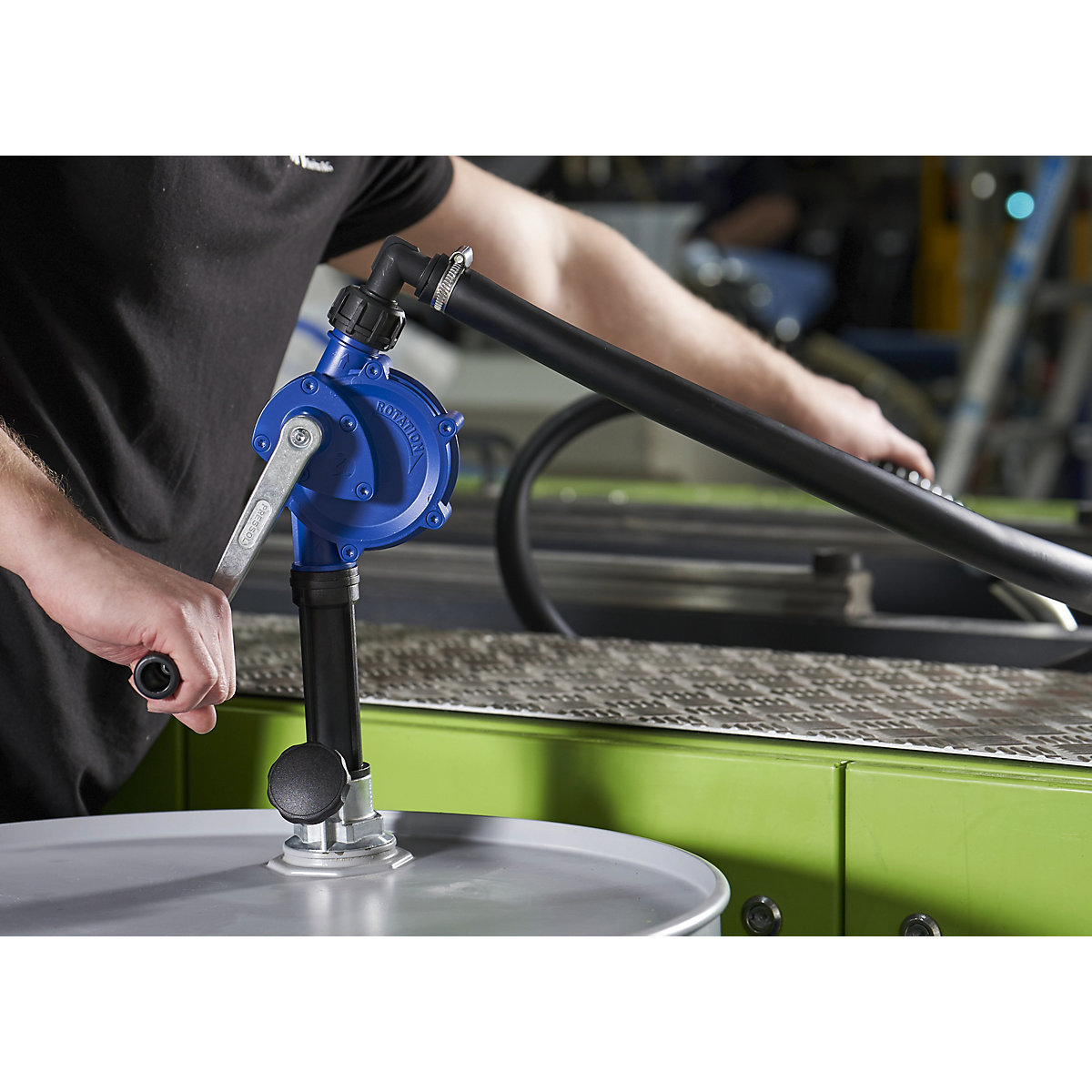

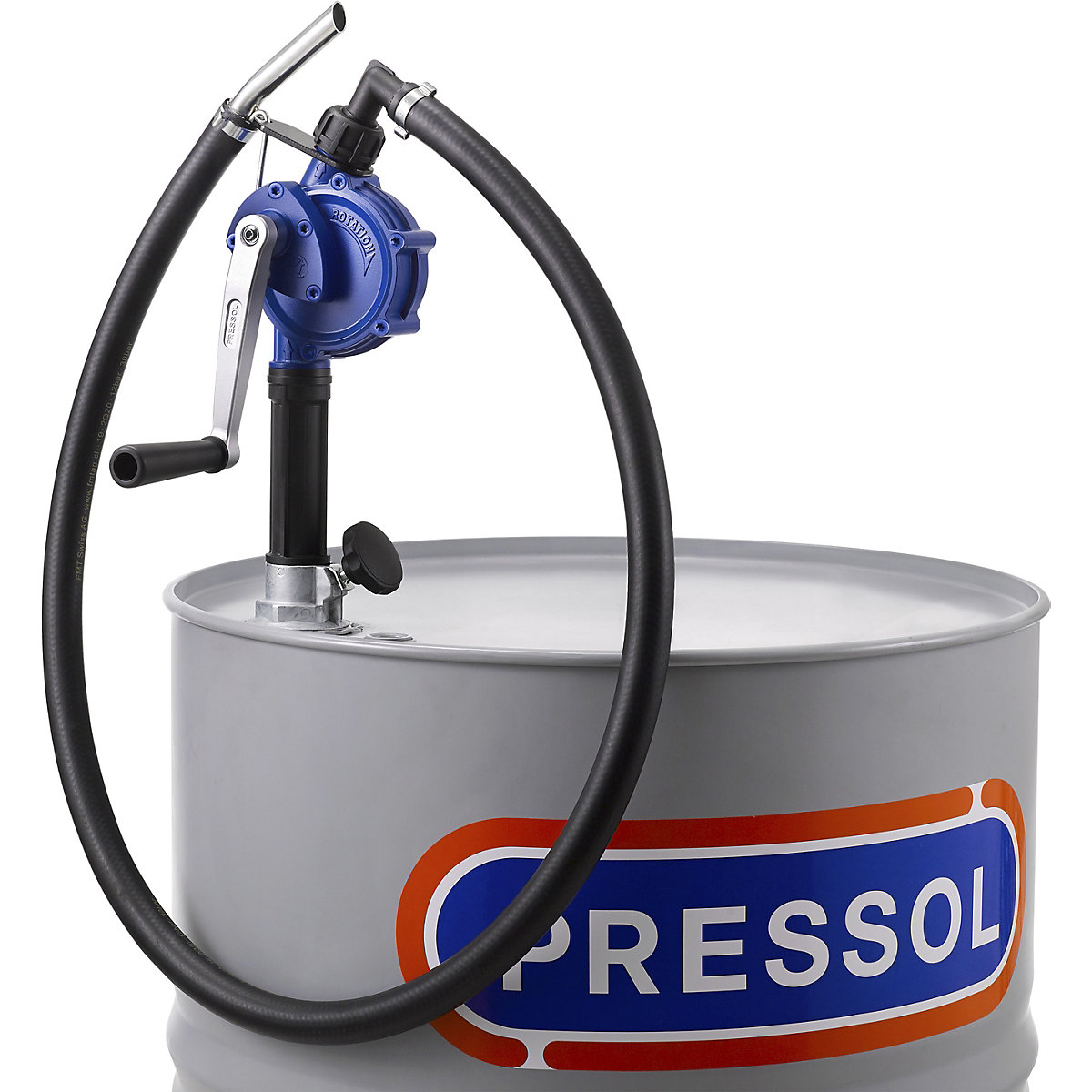

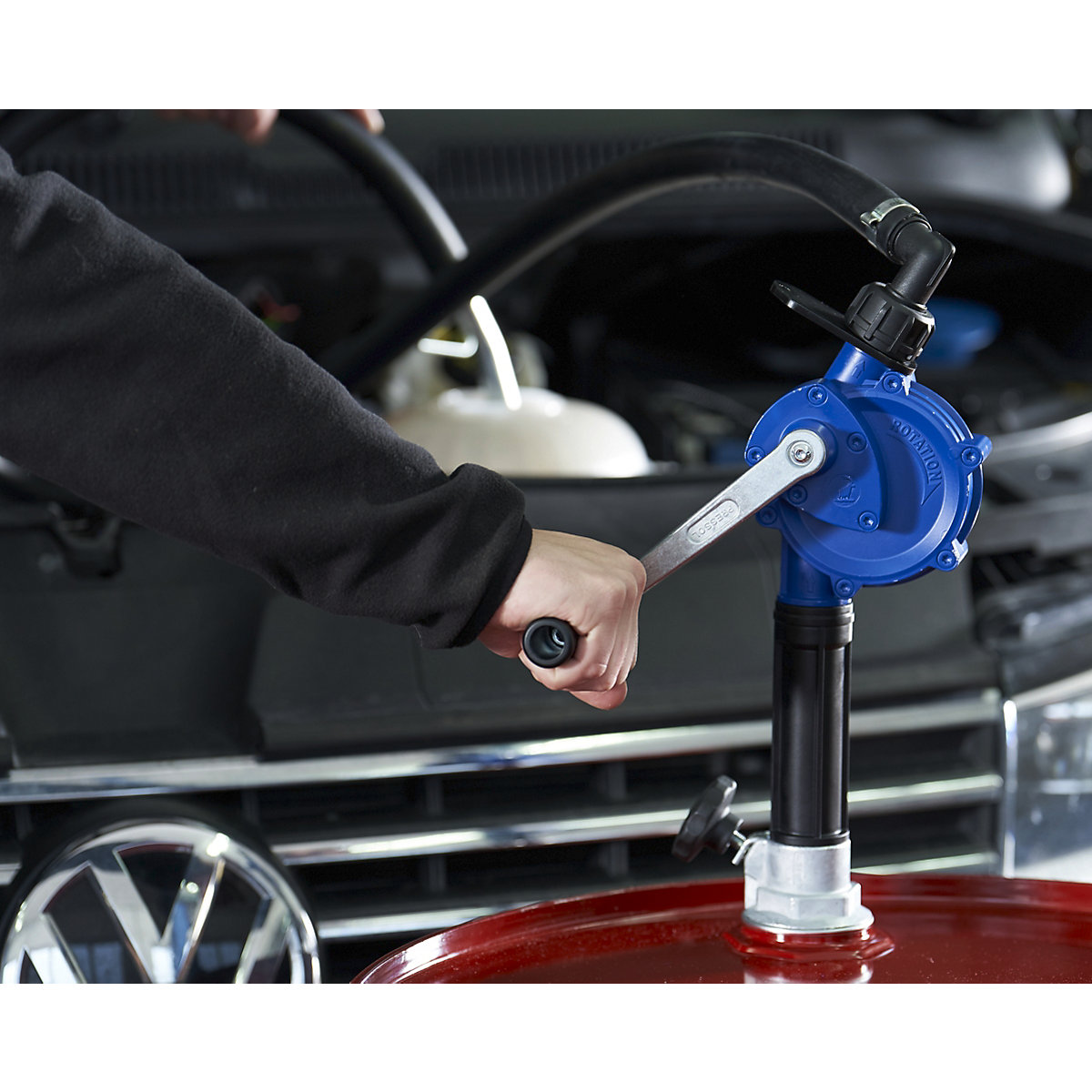

Hand crank pump set – PRESSOL for oils, heating oil, diesel, with hose

Hand rotary piston pump set with delivery hose, hose outlet manifold and hose holder.
For 60/200/220 litre containers.
Ideal for filling measuring vessels, measuring cups, storage cans and canisters.

Technical details
Delivery rate: 0.3 l/rev; delivery rate at 60 rev/min: 18 l/min (diesel)
Pumped media: for oils up to SAE 90, self lubricating, non aggressive media, heating oil, diesel, petroleum
Use: for 60/200/220 litre containers
Areas: ideal for filling measuring vessels, measuring cups, storage cans and canisters
Length of outlet hose: 2000 mm

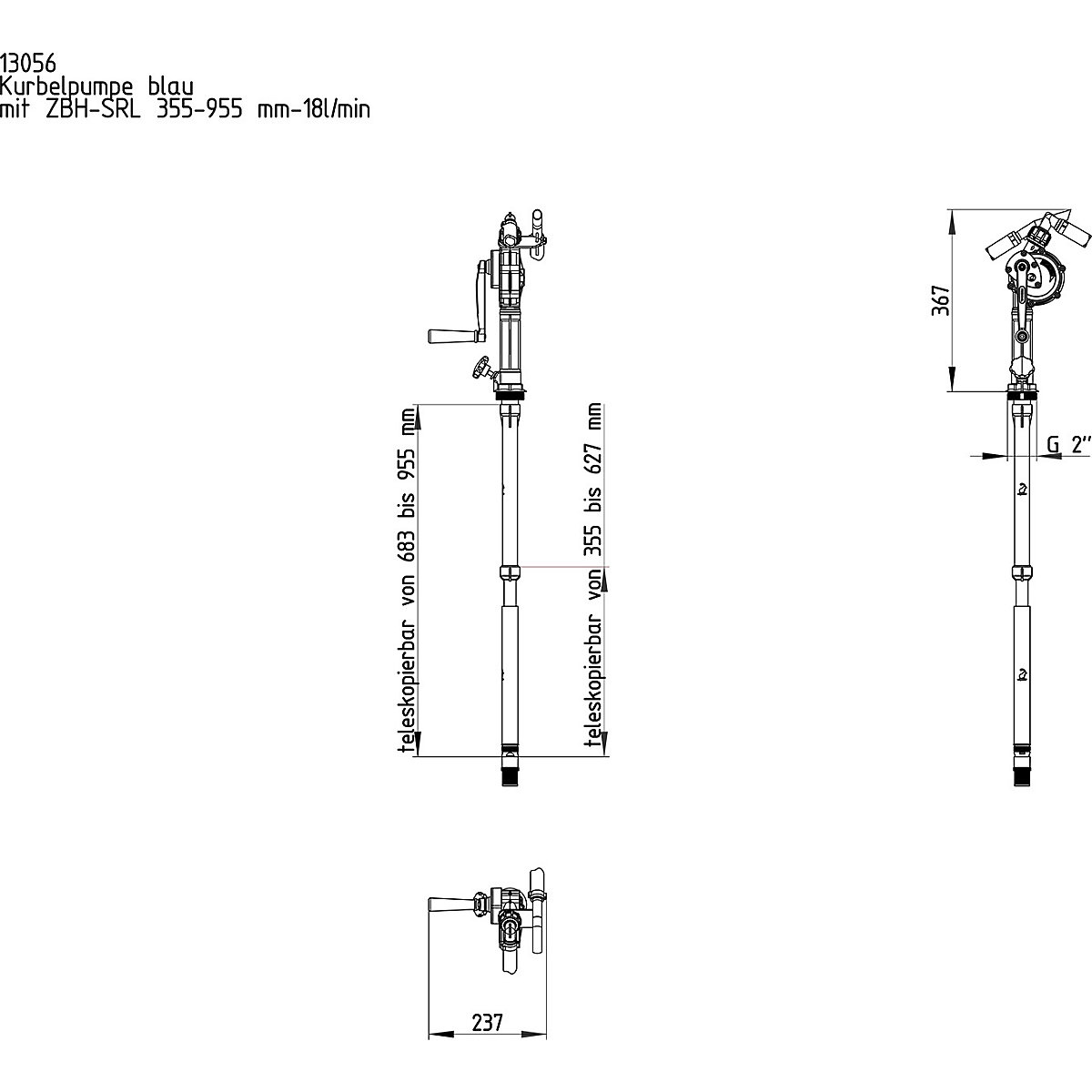

Length of three-part suction hose: 355 – 955 mm
Drum screw connection: G 2'' a

Specification
With 2 m delivery hose, with steel outlet manifold and hose holder.
Telescopic suction hose adjustable in length (from 355 to 955 mm).
With suction filter, drum adapter G 2'' and outlet manifold.

Special features
Smooth running hand crank operation without irritation.
Excellent suction power due to exacting component precision.
Very compact design.
Impact resistant pump housing.
Non-slip handle.
Only gaskets have been used to seal the individual components.
Assembly, commissioning and change of container without tools.
Can be completely disassembled – easy to clean.
3-year warranty when the pump strainer included is used (without wear parts).
