Ref.: 878364 49

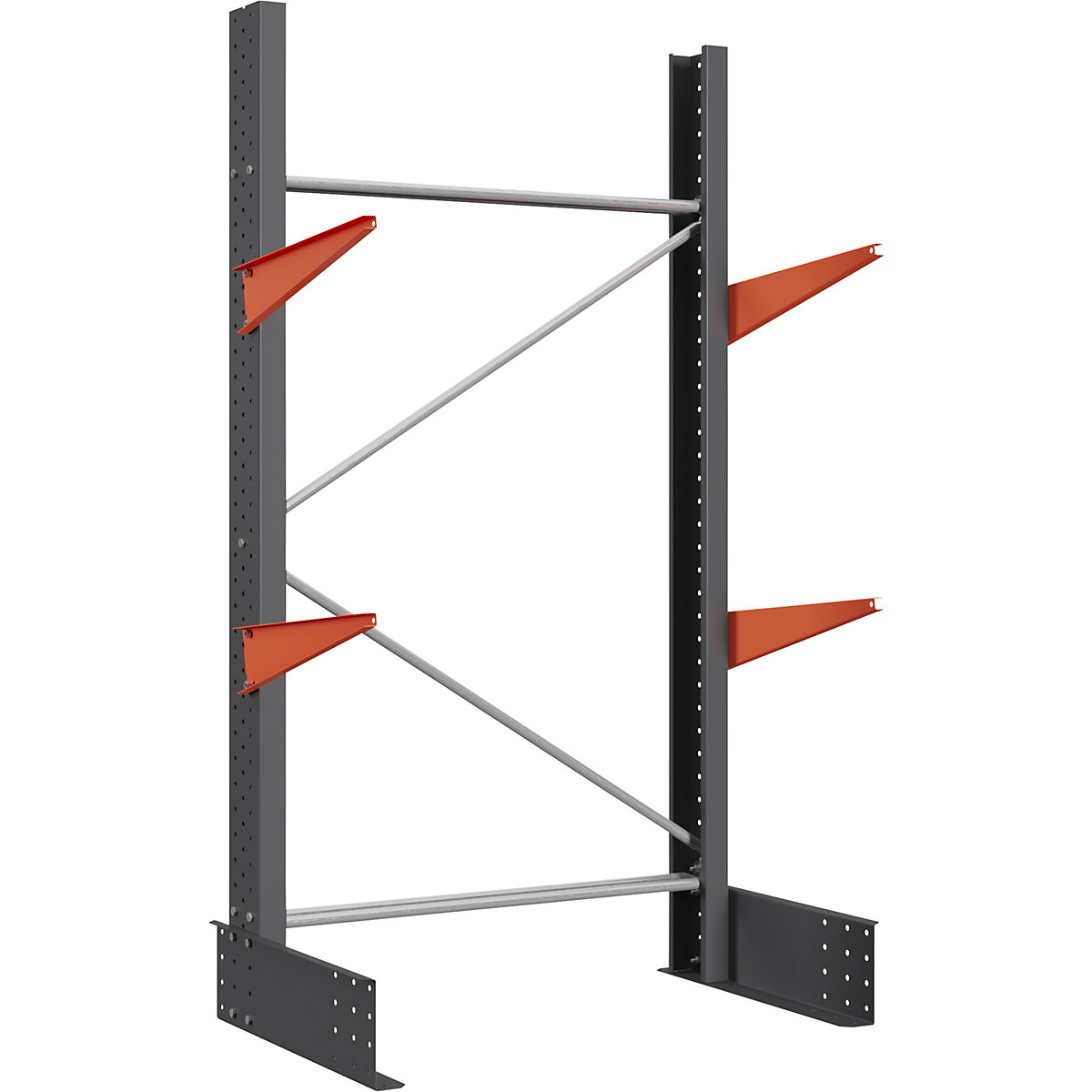

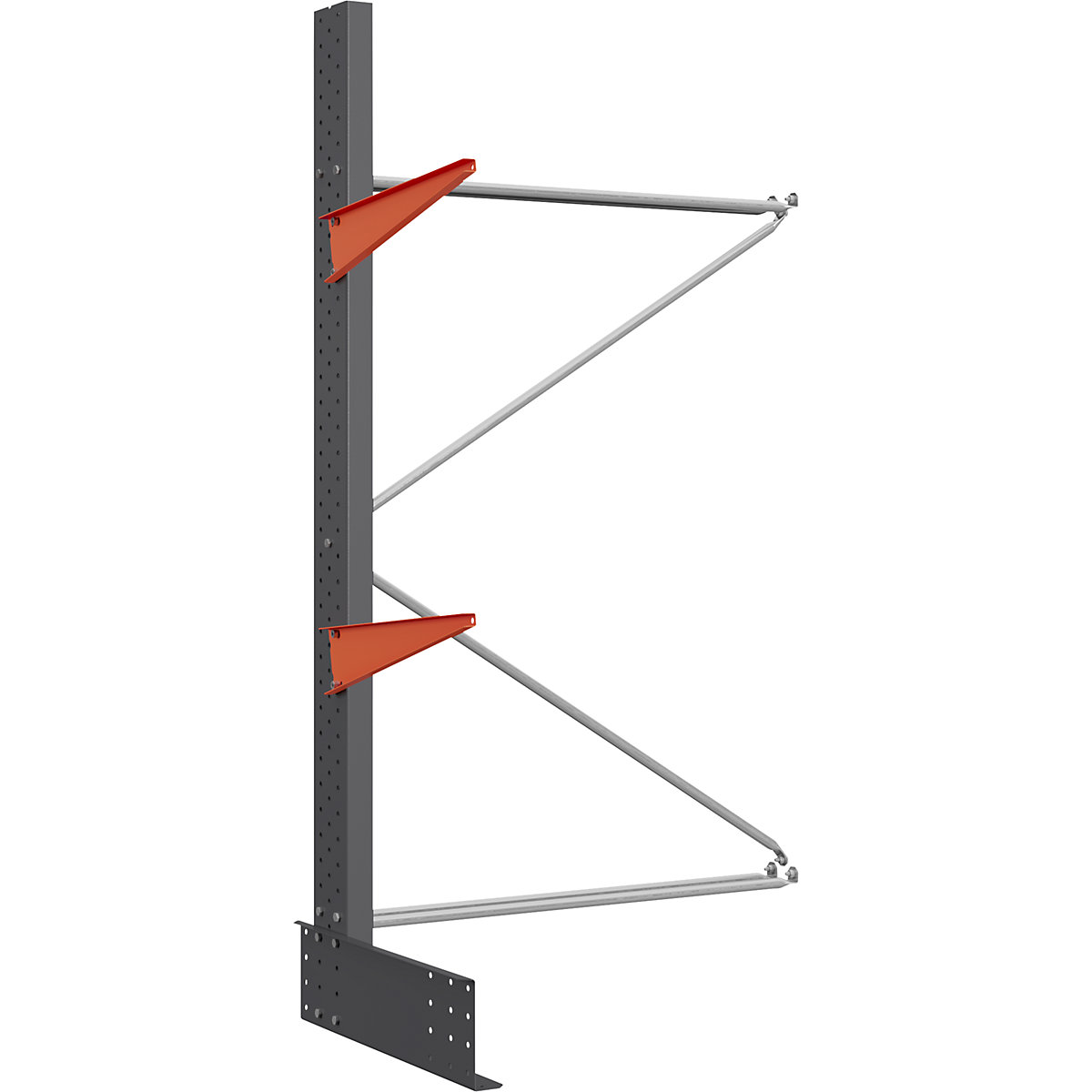

Light cantilever racking unit single-sided
HxW 2000 x 500 mm, upright spacing 800 mm, standard shelf unit
Shelf unit type
Height [mm]
Distance between uprights [mm]
Ref.: 878364 49
Light cantilever racking unit single-sided
HxW 2000 x 500 mm, upright spacing 800 mm, standard shelf unit
HxW 2000 x 500 mm, upright spacing 800 mm, standard shelf unit
Score: 2.8/5.9Shelf unit type
Height [mm]
Distance between uprights [mm]
Ref.: 878364 49
Product not available
Currently not availableRef.: 878364 49
Product not available
Currently not availableProduct description
- For light long goods, of the highest quality, fulfils applicable safety requirements FEM10.2.09
- The cantilever arms are easily adjustable in height and can be adapted as required
- With impact-resistant plastic coating
Complete cantilever shelf unit with uprights, feet, cantilever arms, longitudinal and cross connectors and concrete screws for anchoring to the floor. Specified max. load per support including foot beams.
Technical data
| Cantilever arm length | 500 mm |
|---|---|
| Effective depth | 500 mm |
| Width of upright profile | 60 mm |
| Depth of upright profile | 150 mm |
| Adjustment grid | 50 mm |
| Max. cantilever arm load | 150 kg |
| Max. load | 150 kg |
| Material | steel |
| Colour | graphite grey RAL 7024 vermilion RAL 2002 |
| Shelf unit design | single sided |
| Shelf unit fittings | with cantilever arms of the same length |
| Design of cantilever shelving | single sided |
| Depth | 700 mm |
| Product type | complete cantilever racking units |
| Supplied | flat pack |
| Shelf unit type | standard unit |
| Height | 2000 mm |
| Distance between uprights | 800 mm |
| Shelf unit length | 900 mm |
| Max. bay load | 900 kg |
| Number of storage levels incl. foot | 3 pcs. |
| Number of uprights | 2 pcs. |
| Width | 900 mm |
| Weight | 40.21 kg |
