Ref.: 532830 49

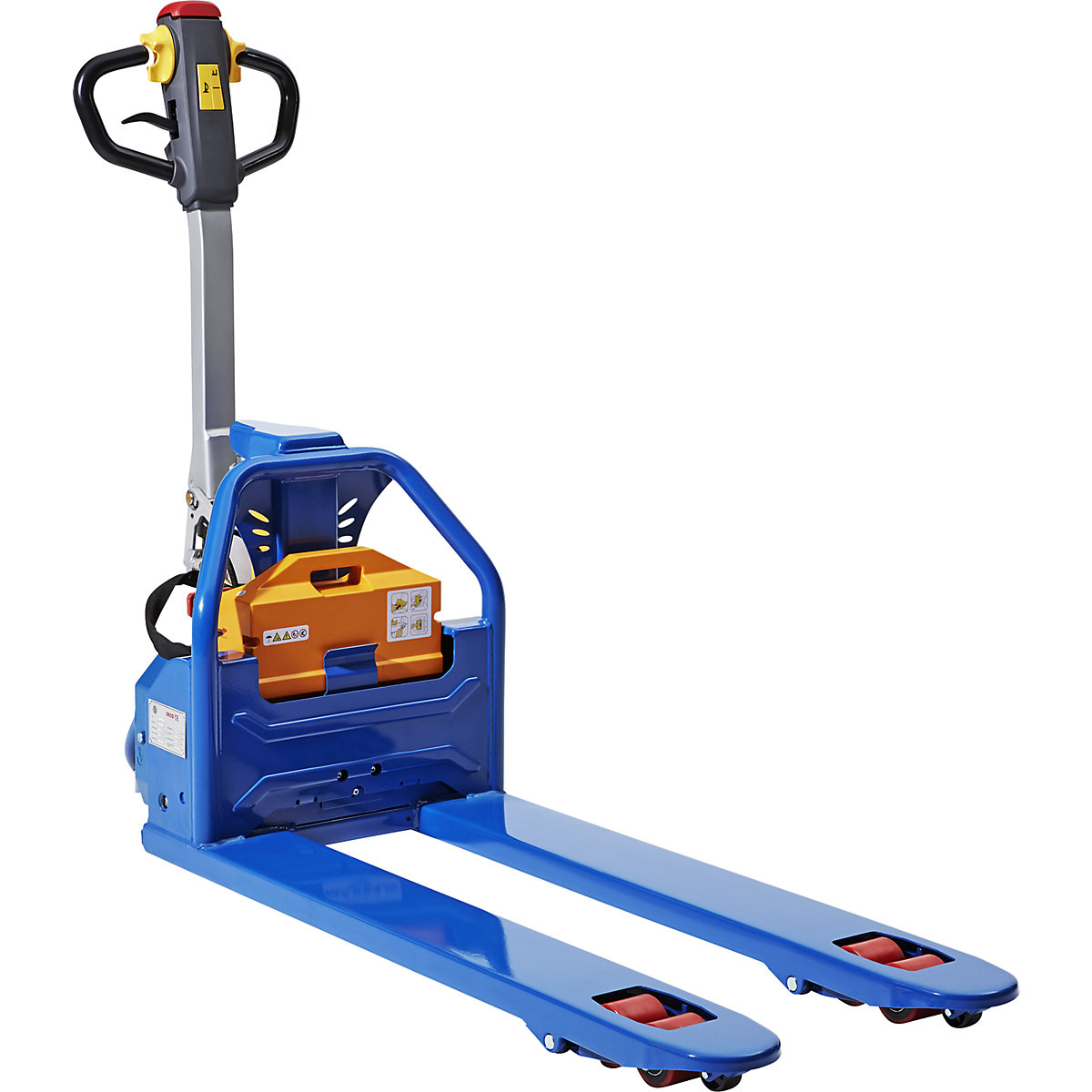

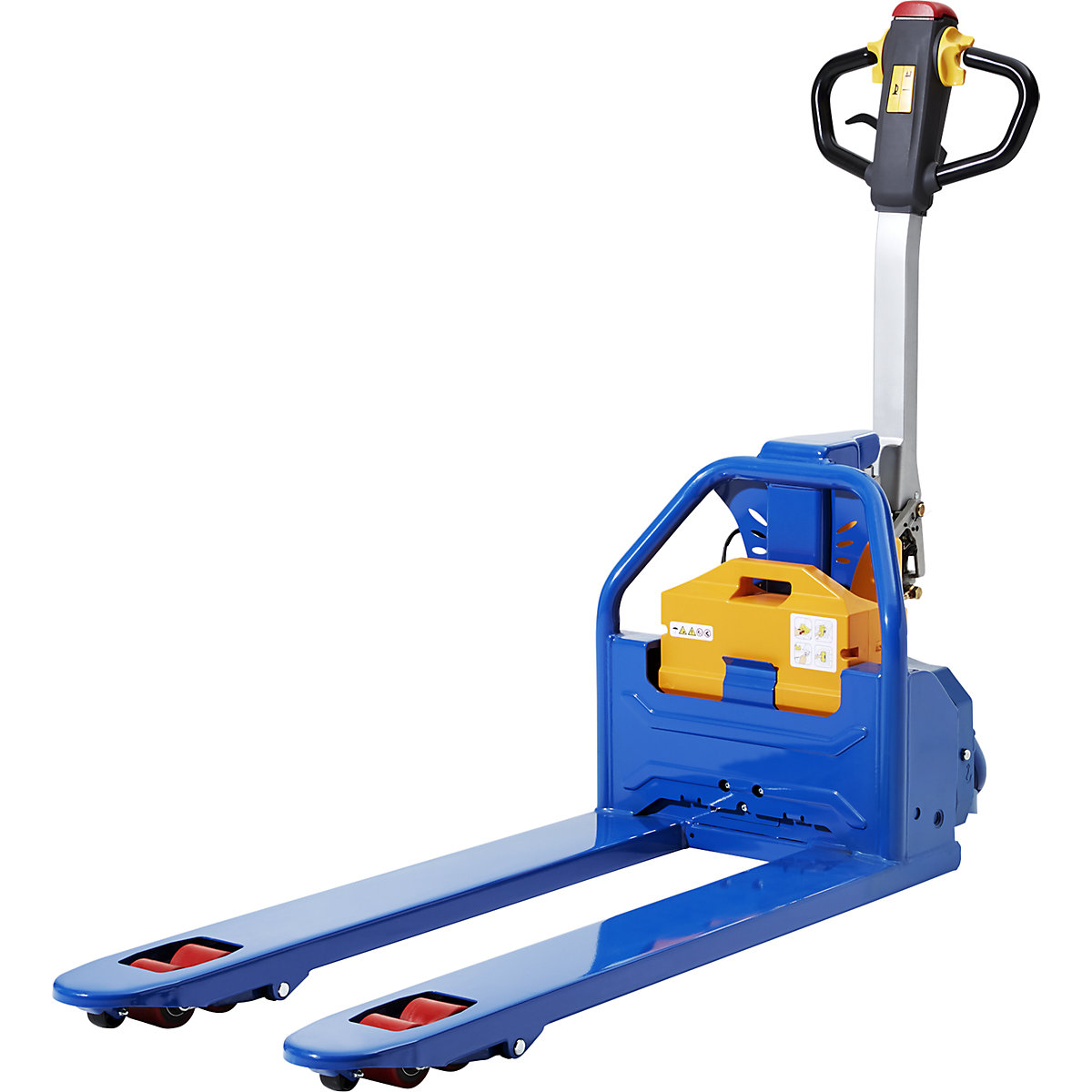

Electric pallet truck E15 max. load 1500 kg
fork dimensions LxW 1150 x 550 mm
Ref.: 532830 49
Electric pallet truck E15 max. load 1500 kg
fork dimensions LxW 1150 x 550 mm
fork dimensions LxW 1150 x 550 mm
£2,125.00
Price / item (Excl. VAT)
Only 5 available
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£2,125.00
Price / item (Excl. VAT)
Product description
- Electric lift and drive

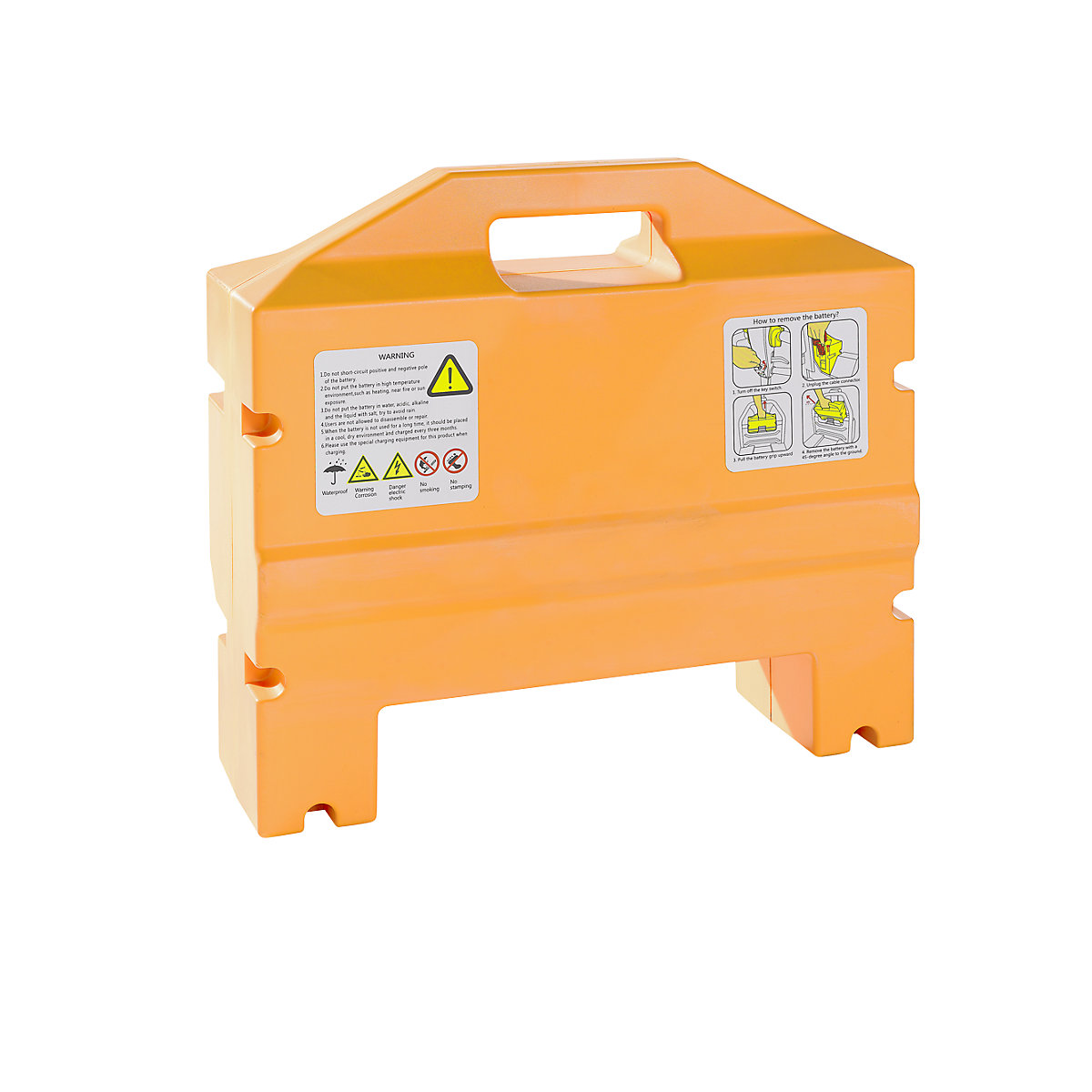

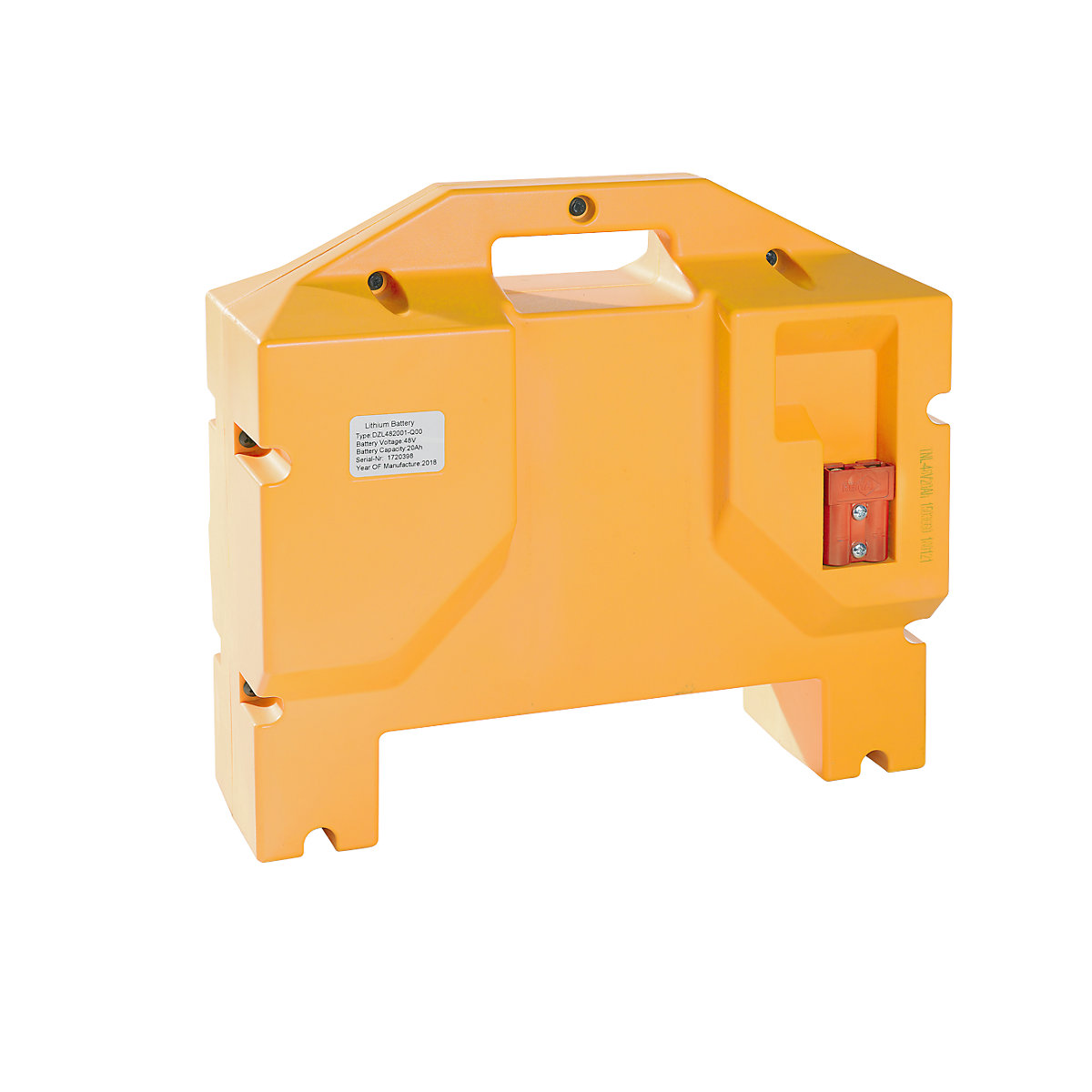

- Lithium interchangeable battery 48 V / 20 Ah – maintenance free
- Charging time max. 3 hours

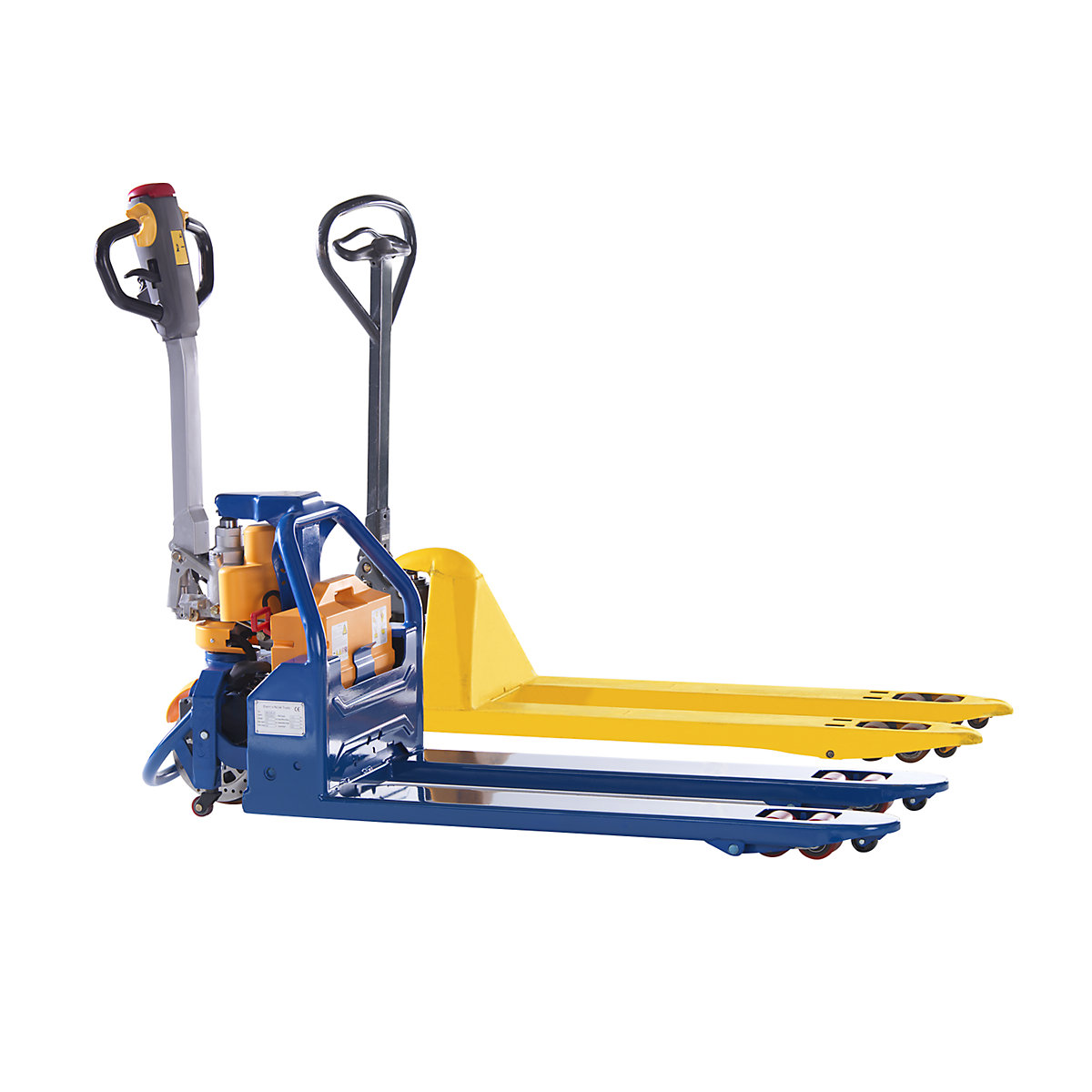

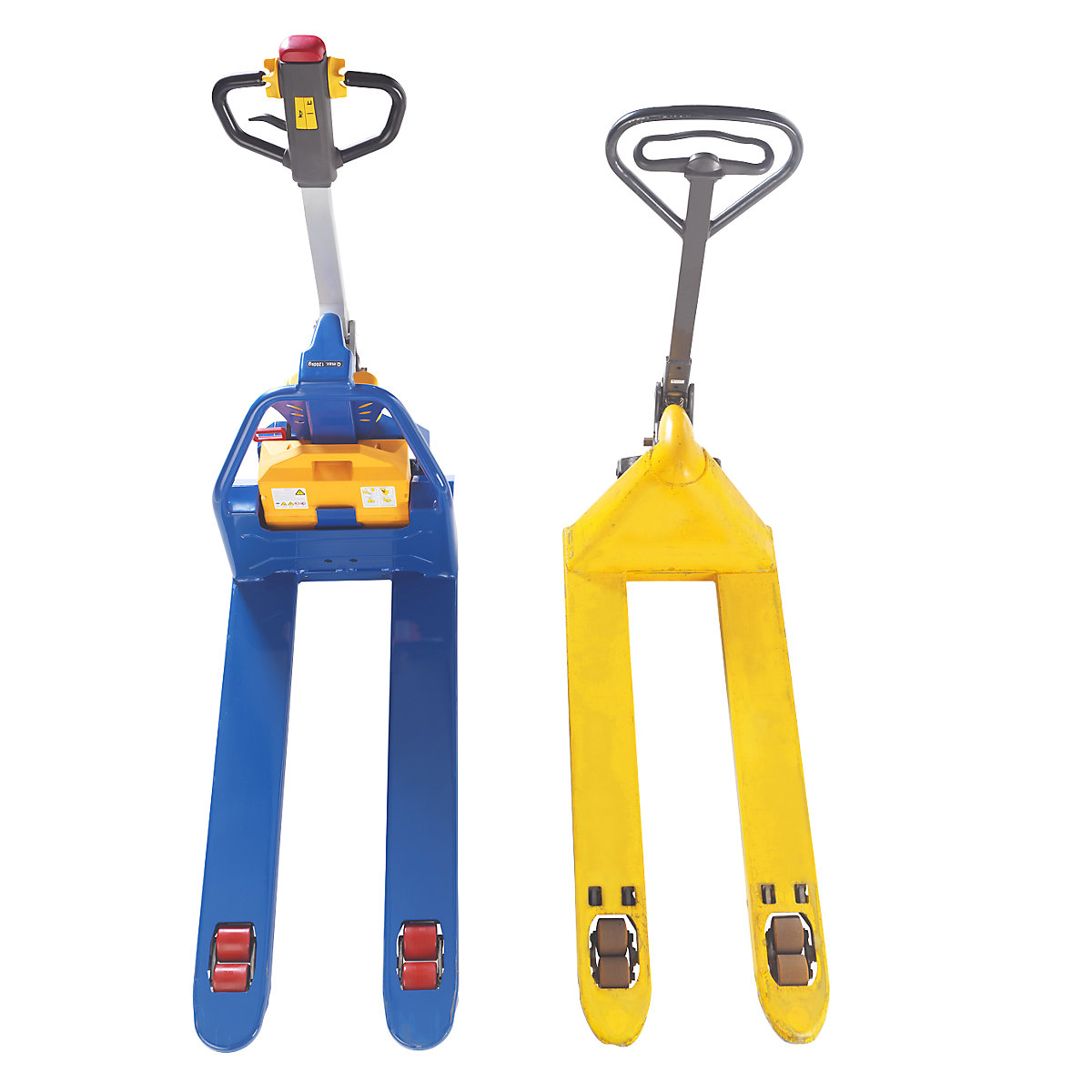

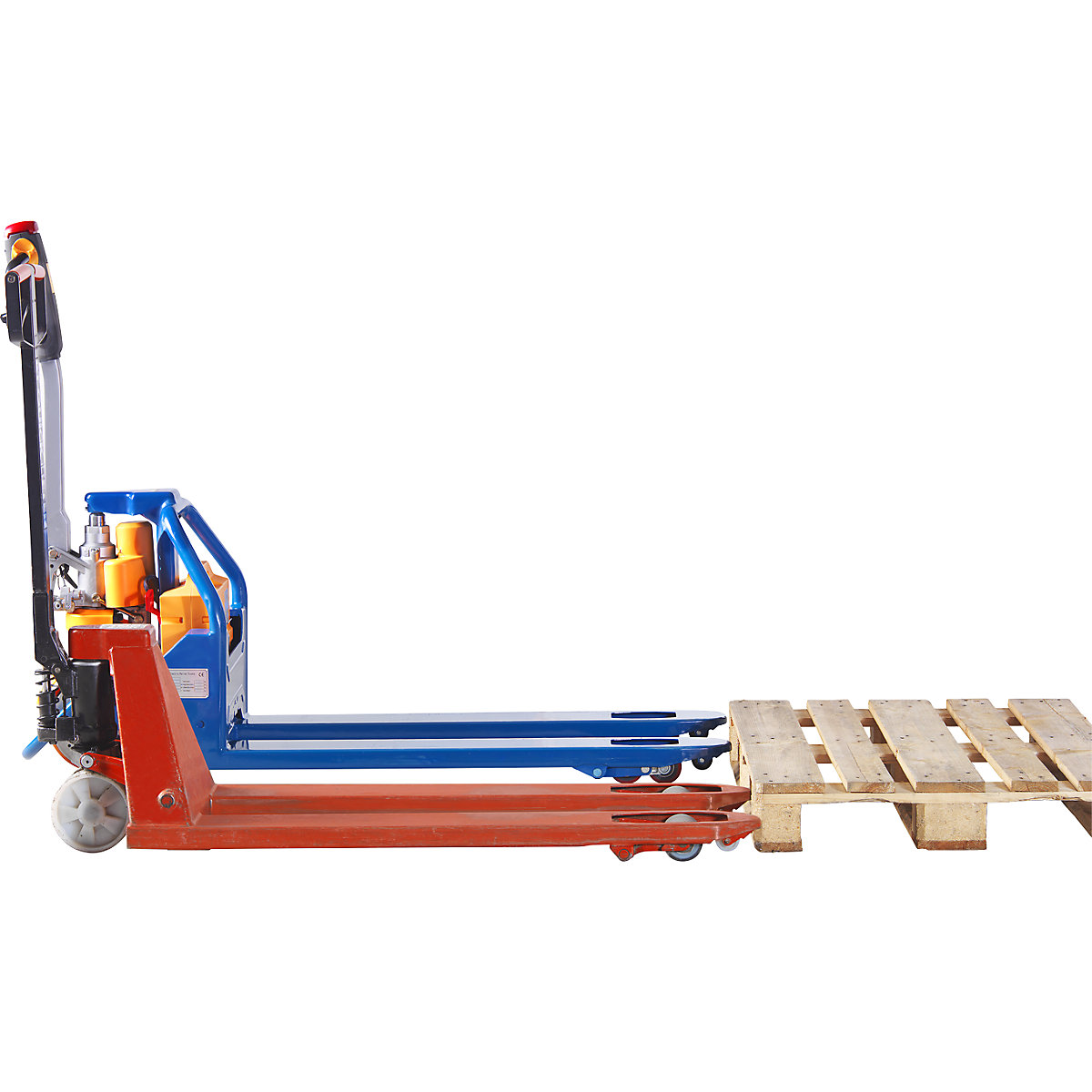

The electric pallet truck E15 is the worthy successor to the classic pallet truck. It combines its robustness and flexibility with modern drive and lifting technology with similar dimensions.

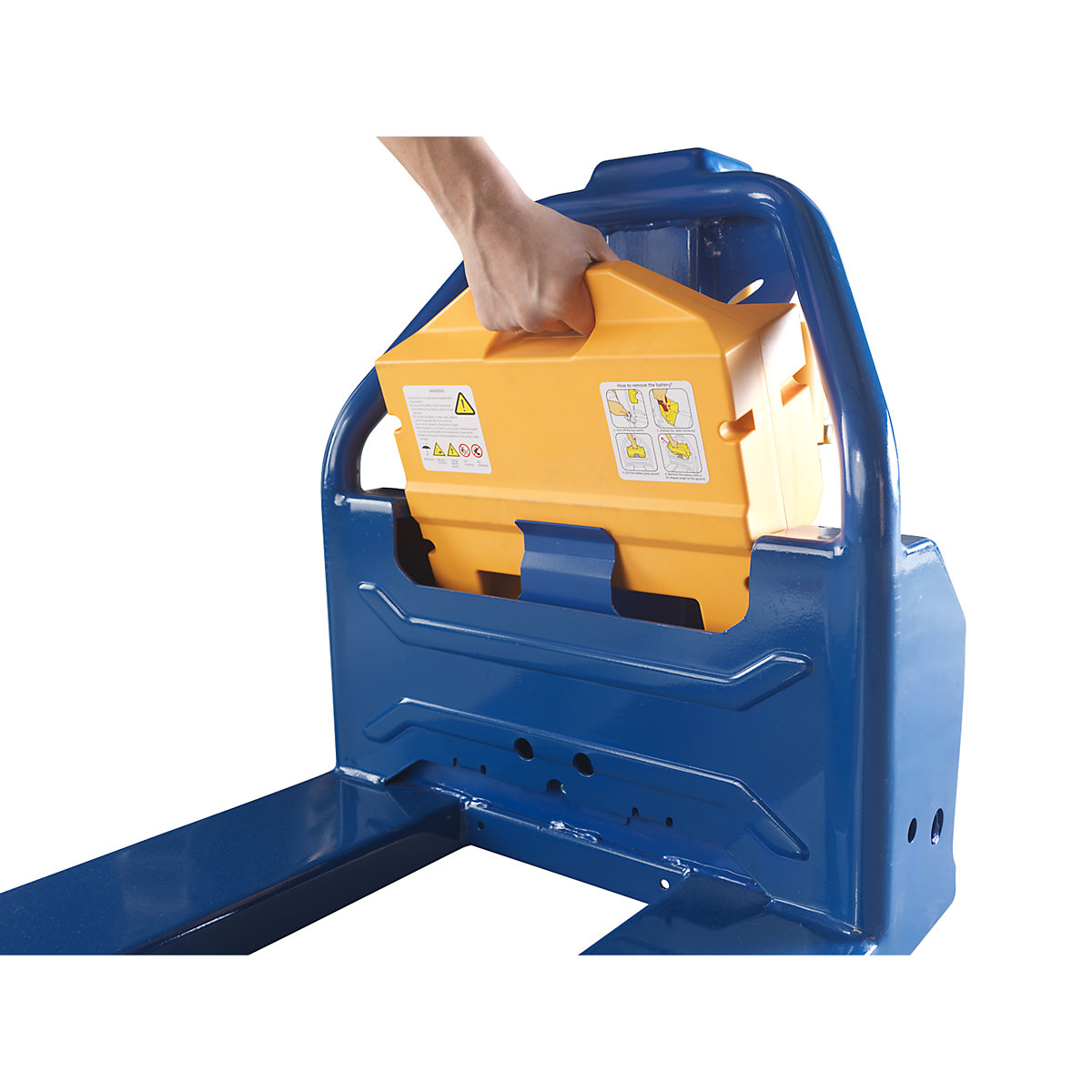

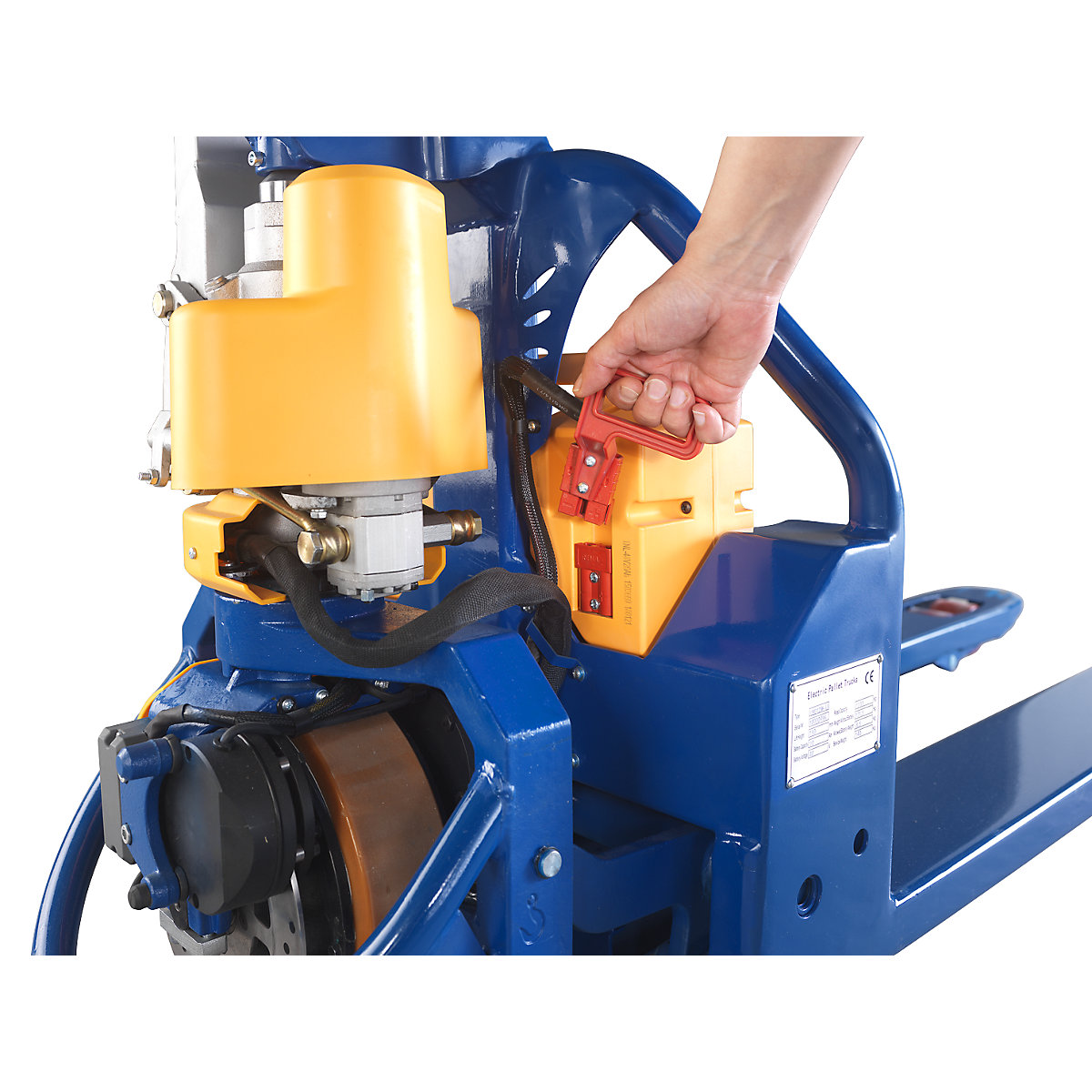

Little physical effort is required from operators, thereby protecting their backs and joints, reducing sickness levels and increasing productivity. The maintenance free lithium-ion battery can be swapped in a flash, therefore also enabling multiple shift operation. External charger. Interim recharging of the innovative 48 V/20 Ah battery possible at any time. Short charging time of 3 hours. Can be used for up to 6 hours on one battery. Long service life.

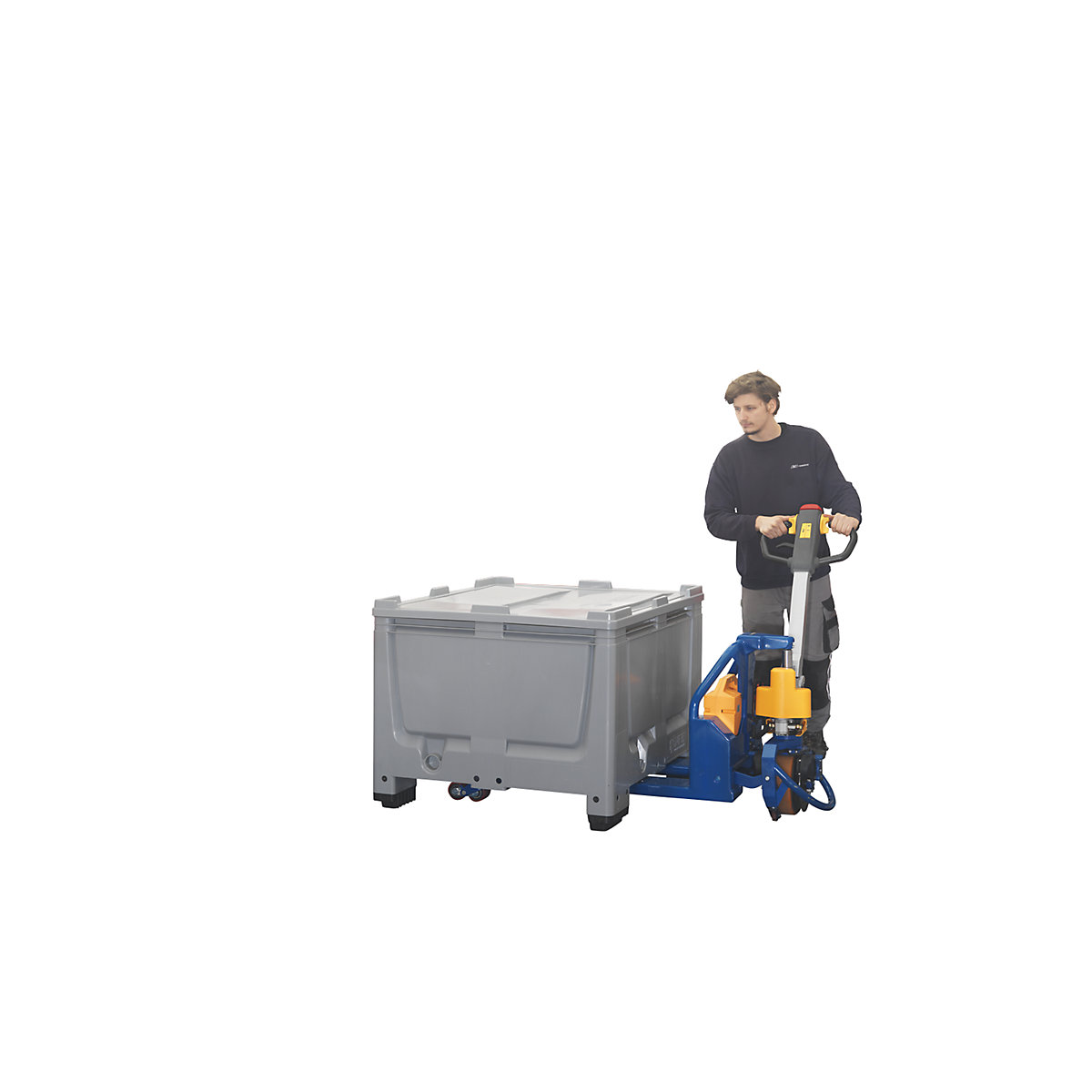

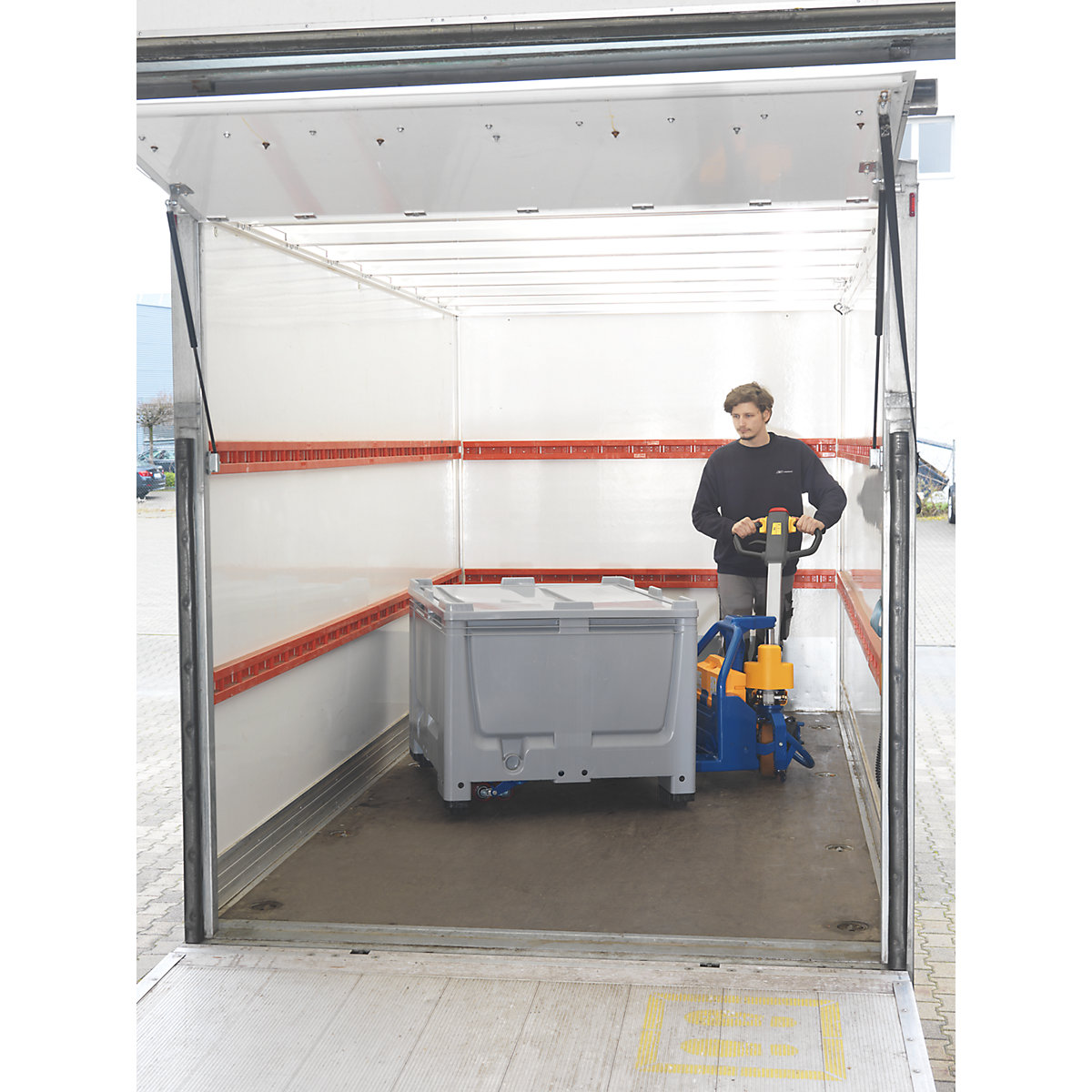

Application: in multiple shift operation, warehouses and branches, on lorries, for long routes and frequent lifting.
High torque drive motor for excellent climbing capability on ramps and reinforced brake.

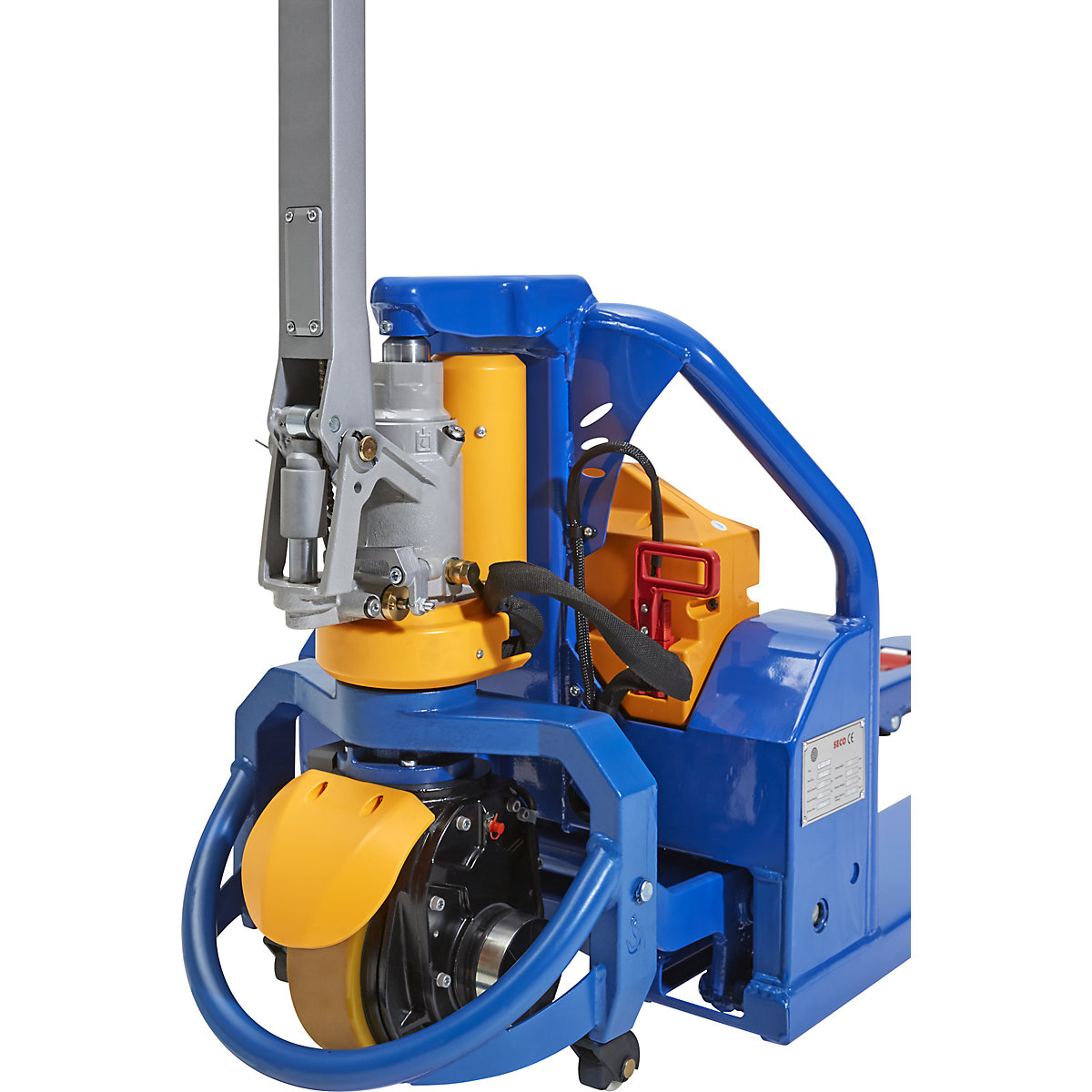

Maintenance free and brushless motor integrated in the drive wheel. Maintenance free battery. Service-friendly construction. Steel protection bar on the motor and in front of the battery.

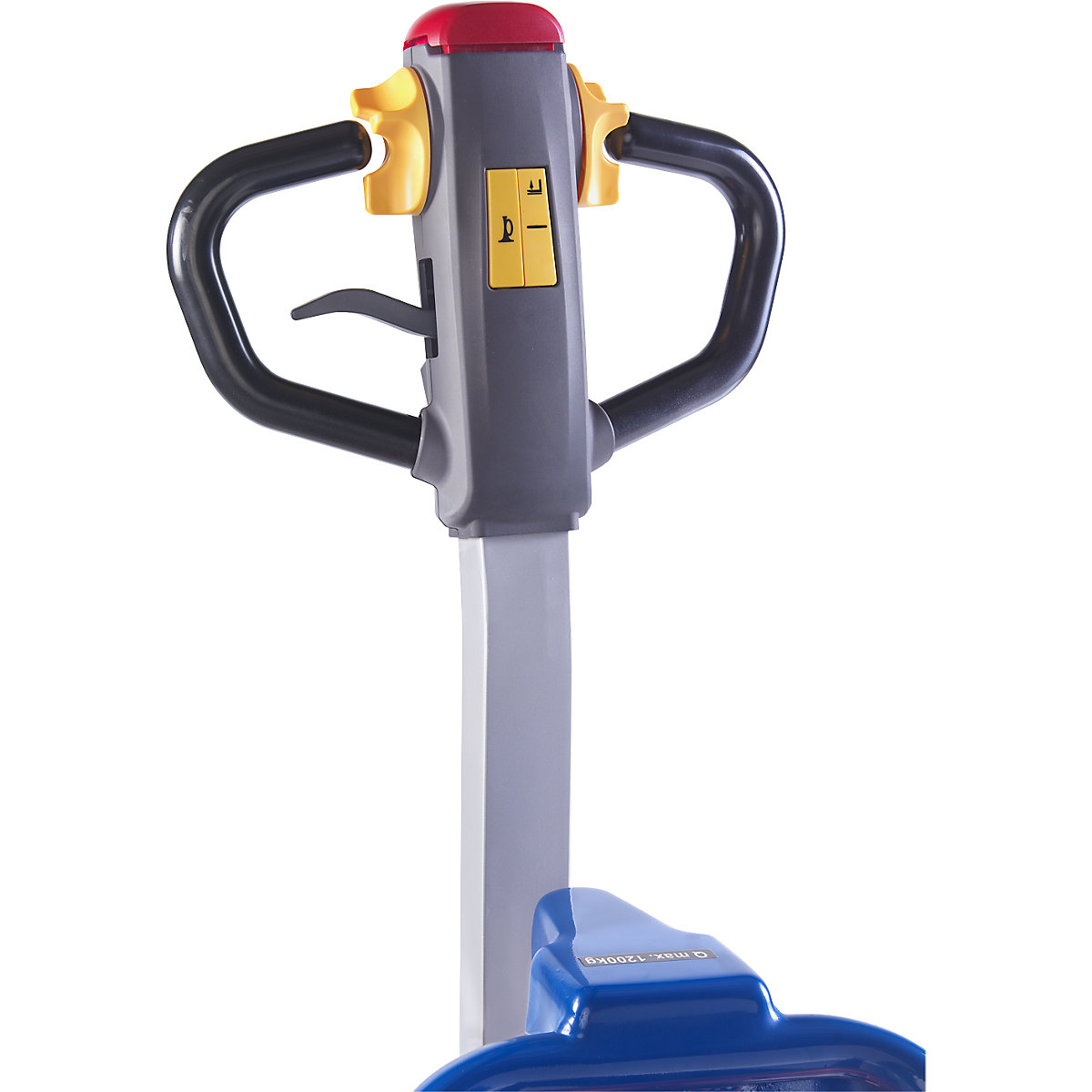

Operation: butterfly switches designed for left and right handed operators for infinitely adjustable speed control. Forwards and backwards travel. Lift/lower switches in the centre. Horn.
Time for something new – a new era for backs and joints. Why not buy now!
Little physical effort is required from operators, thereby protecting their backs and joints, reducing sickness levels and increasing productivity. The maintenance free lithium-ion battery can be swapped in a flash, therefore also enabling multiple shift operation. External charger. Interim recharging of the innovative 48 V/20 Ah battery possible at any time. Short charging time of 3 hours. Can be used for up to 6 hours on one battery. Long service life.
Application: in multiple shift operation, warehouses and branches, on lorries, for long routes and frequent lifting.
High torque drive motor for excellent climbing capability on ramps and reinforced brake.
Maintenance free and brushless motor integrated in the drive wheel. Maintenance free battery. Service-friendly construction. Steel protection bar on the motor and in front of the battery.
Operation: butterfly switches designed for left and right handed operators for infinitely adjustable speed control. Forwards and backwards travel. Lift/lower switches in the centre. Horn.
Time for something new – a new era for backs and joints. Why not buy now!
Technical data
| Lifting range | 80 – 190 mm |
|---|---|
| Fork length | 1150 mm |
| Fork width | 160 mm |
| Distance across forks | 550 mm |
| Length | 1651 mm |
| Width | 550 mm |
| Overall height | 1300 mm |
| Min. lifting speed | 35 mm/s |
| Max. lifting speed | 43 mm/s |
| Min. driving speed | 4.8 km/h |
| Max. driving speed | 5 km/h |
| Climbing performance with load | 8 % |
| Climbing performance without load | 20 % |
| Turning radius | 1494 mm |
| Thickness of fork prong | 45 mm |
| Battery | 48 V / 20 Ah |
| Battery charger | 6 A impulse charger |
| Working gangway for pallet length | 1900 mm |
| Roller material | polyurethane |

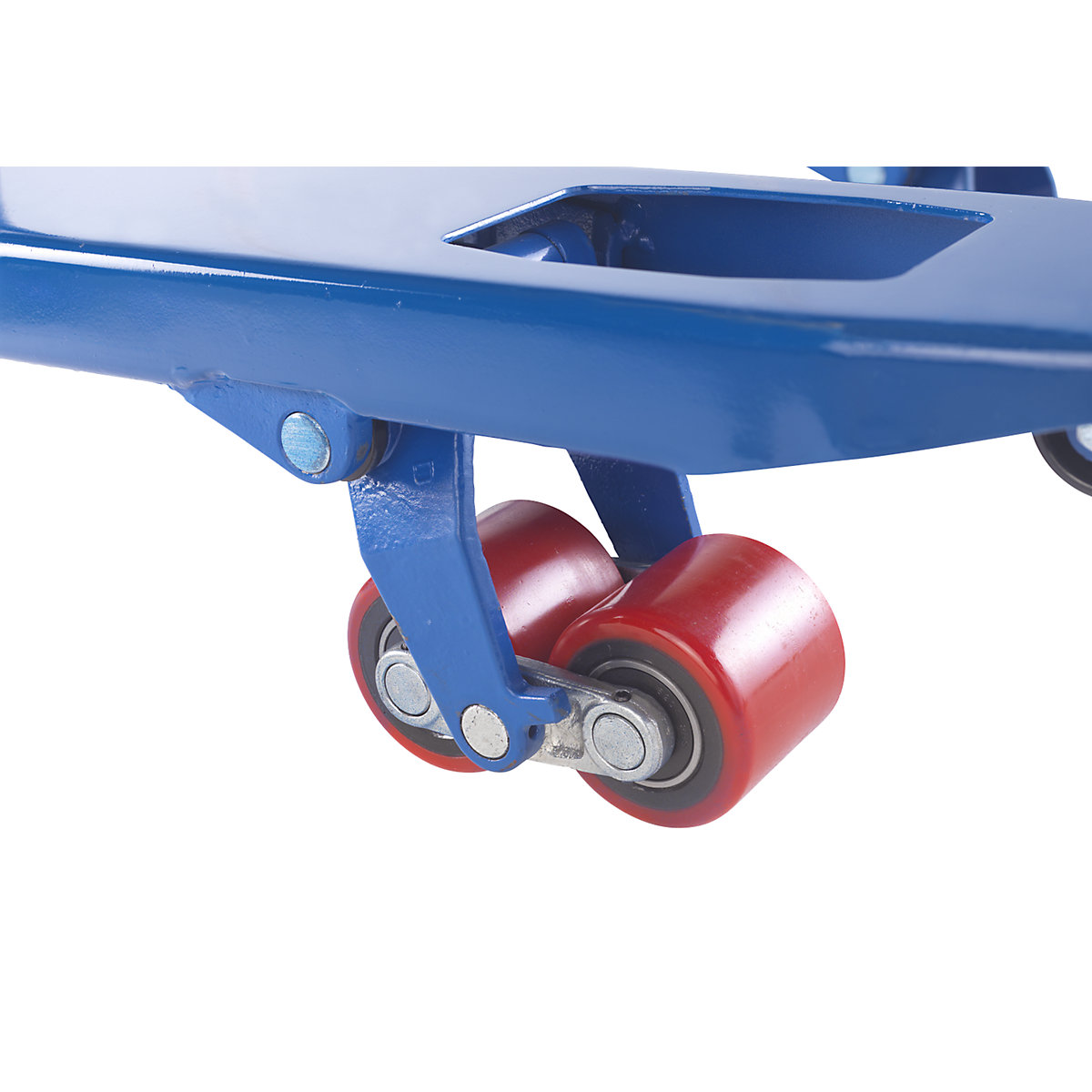

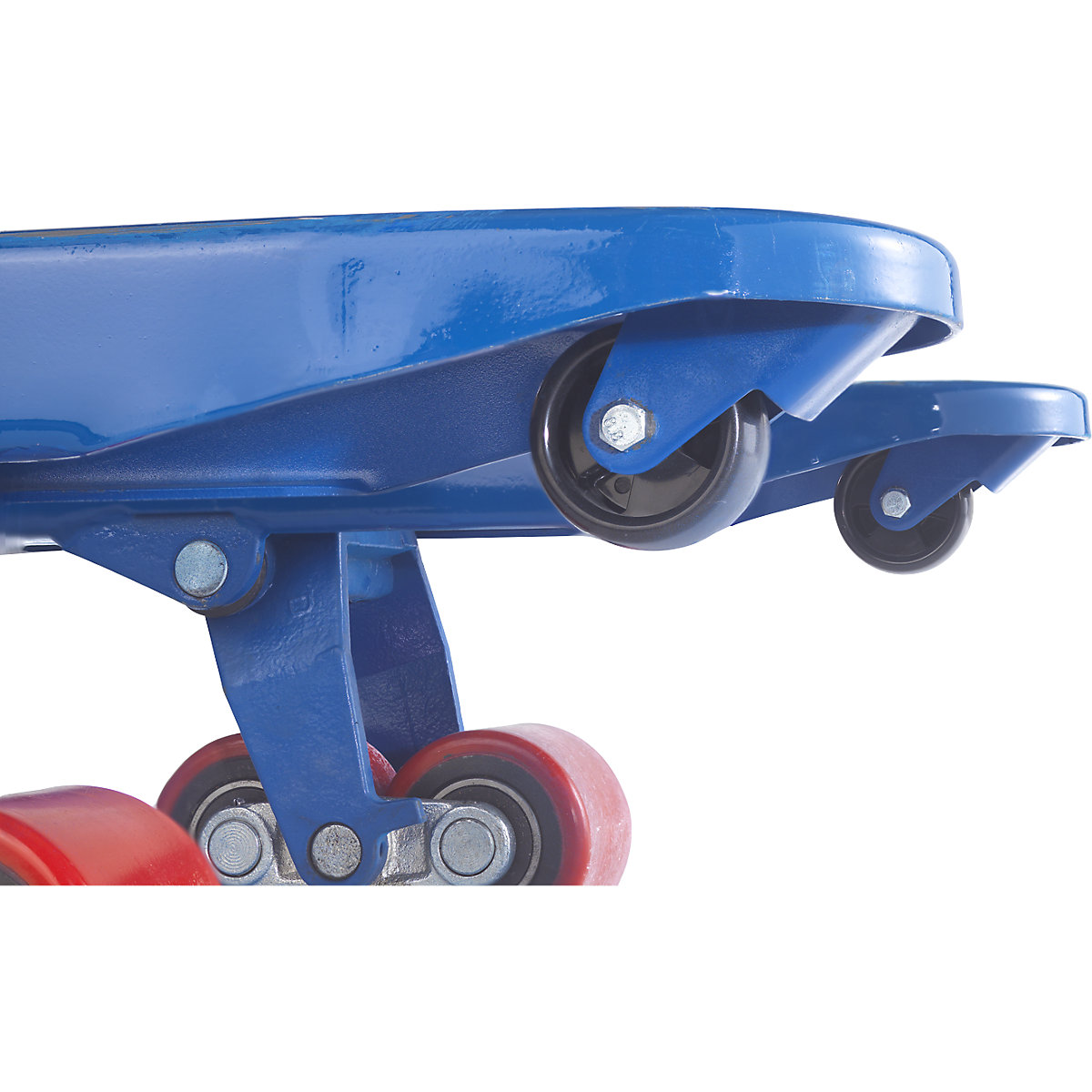

| Fork roller version | tandem |
| Fork roller diameter | 80 mm |
| Fork roller width | 70 mm |
| Steering wheel width | 75 mm |
| Steering wheel diameter | 250 mm |
| Travel motor | 0.65 kW |
| Lifting motor | 0.8 kW |
| Max. load | 1500 kg |
| Colour | blue |
| Product type | electric lift trucks |
| Supplied | assembled |
| Weight | 135 kg |
| Instructions |
