Ref.: 532830 49

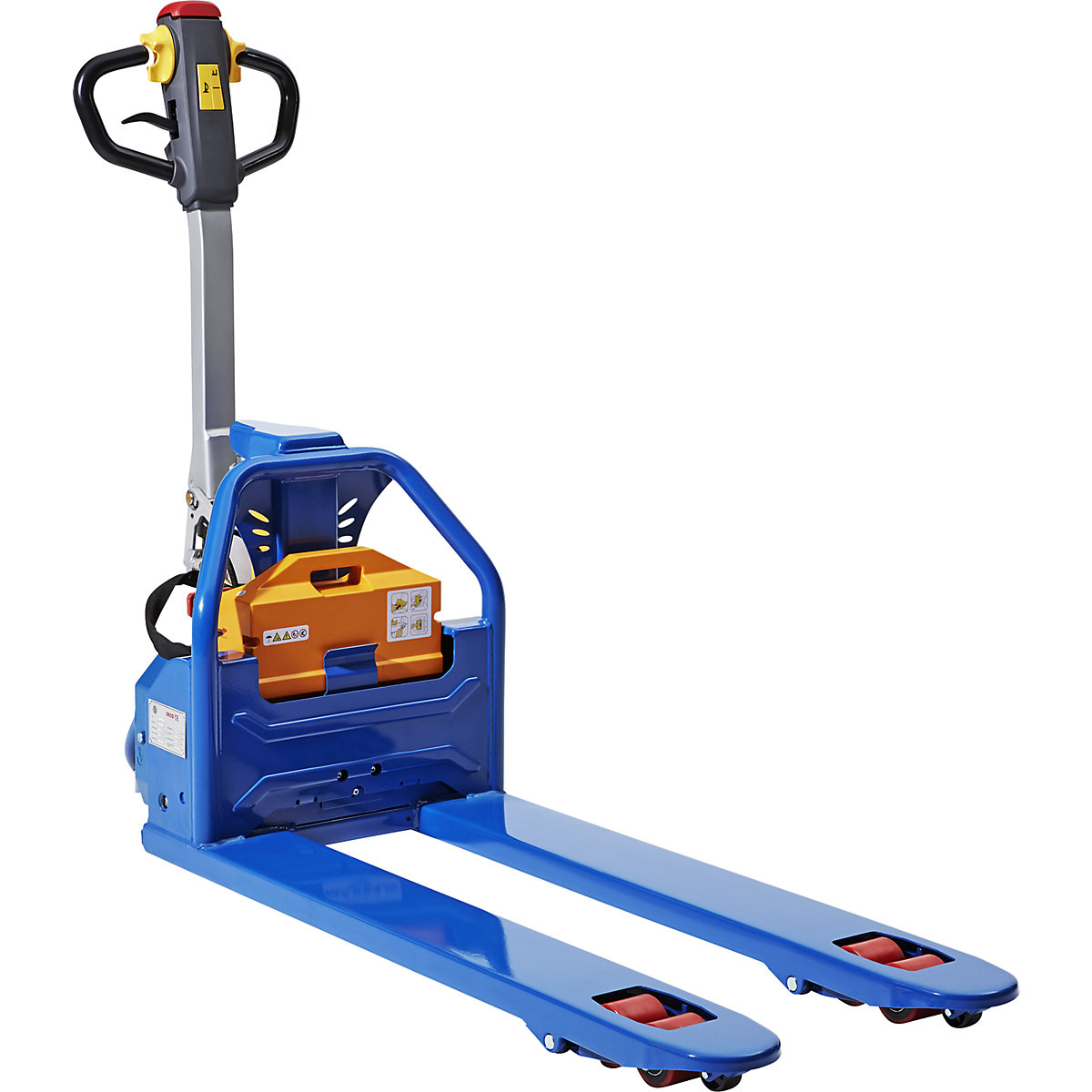

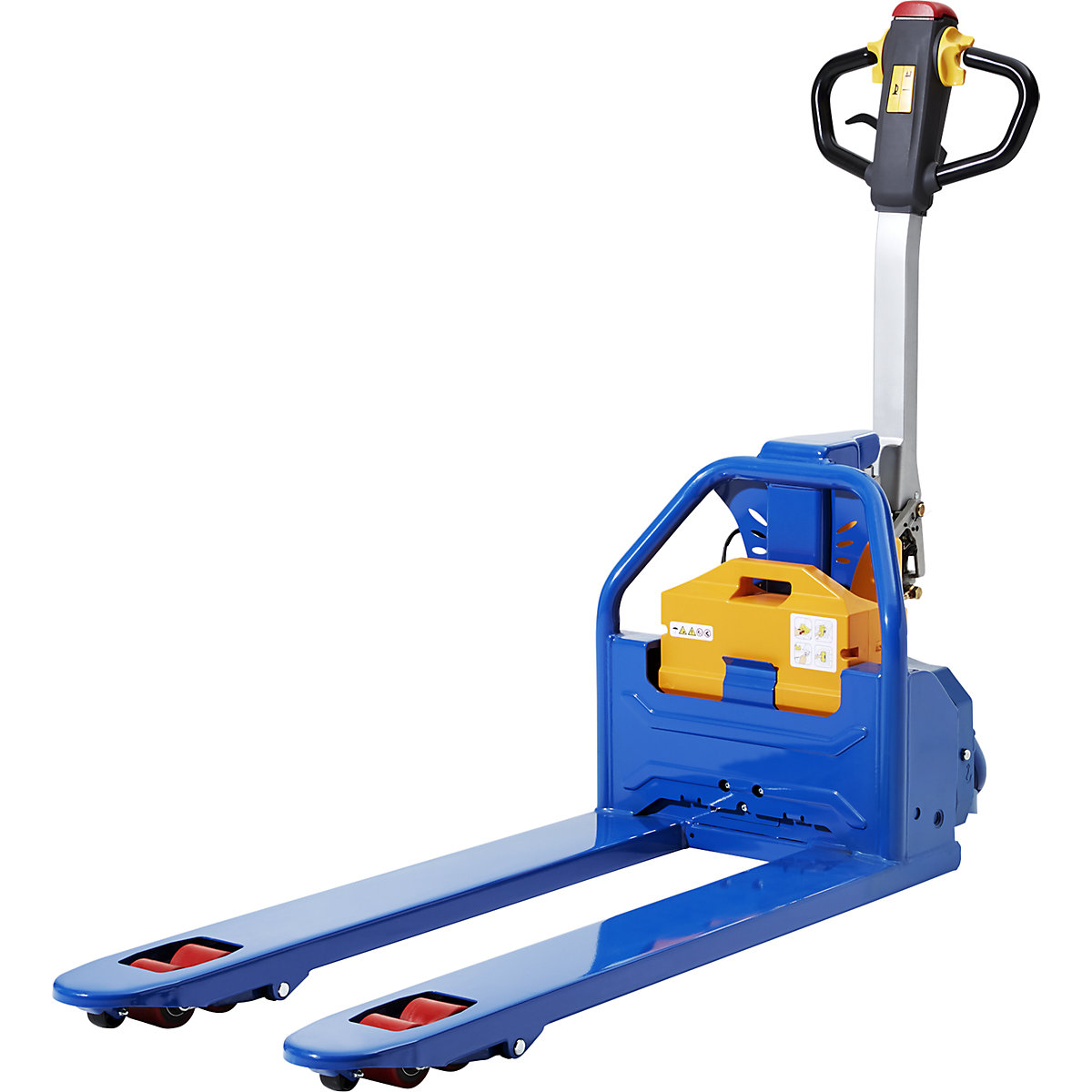

Electric pallet truck E15 max. load 1500 kg

Electric pallet truck E15

fork dimensions LxW 1150 x 550 mm

£2,129.00
Price / item (Excl. VAT)

Only 10 available
Delivery time: 5-7 Working days
Product description

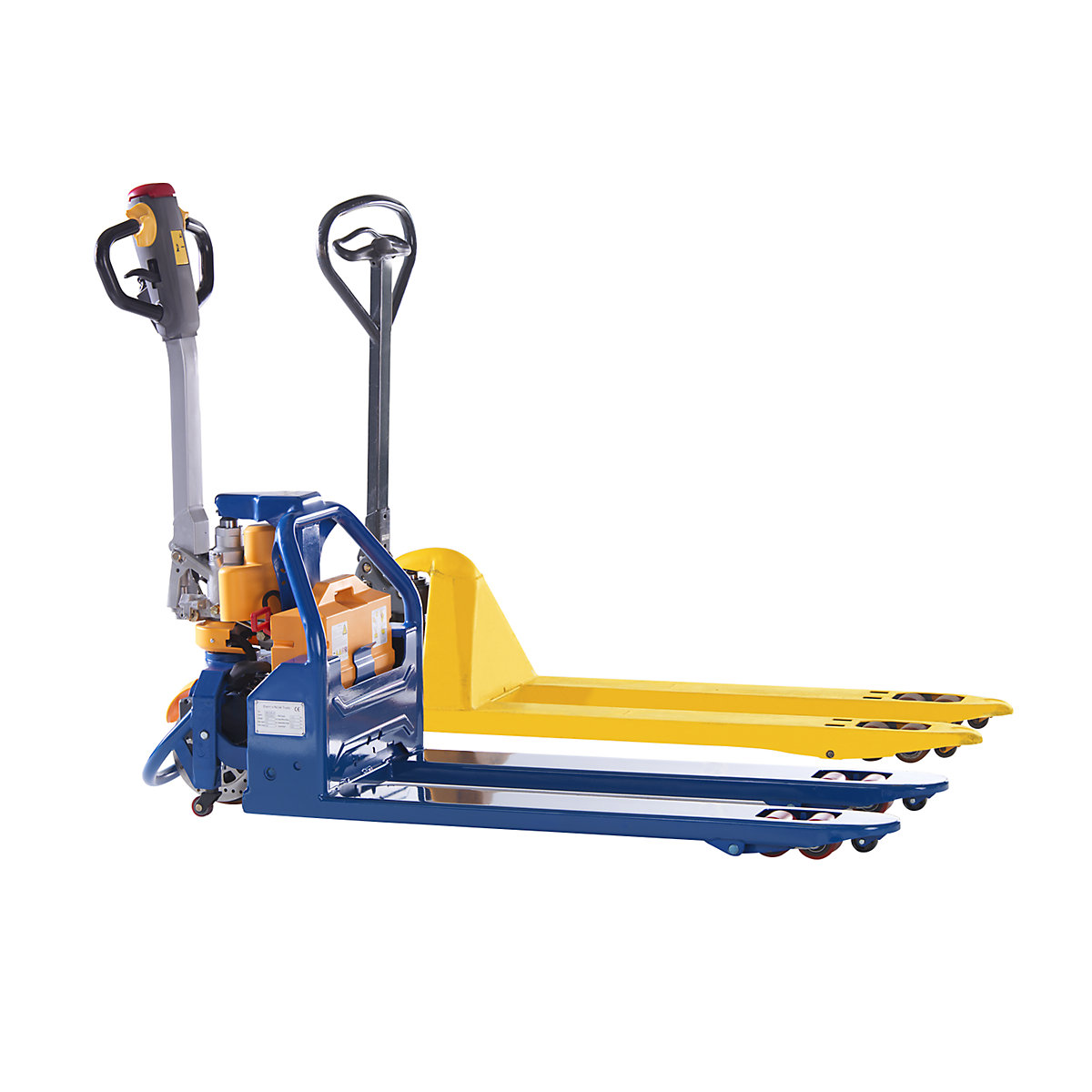

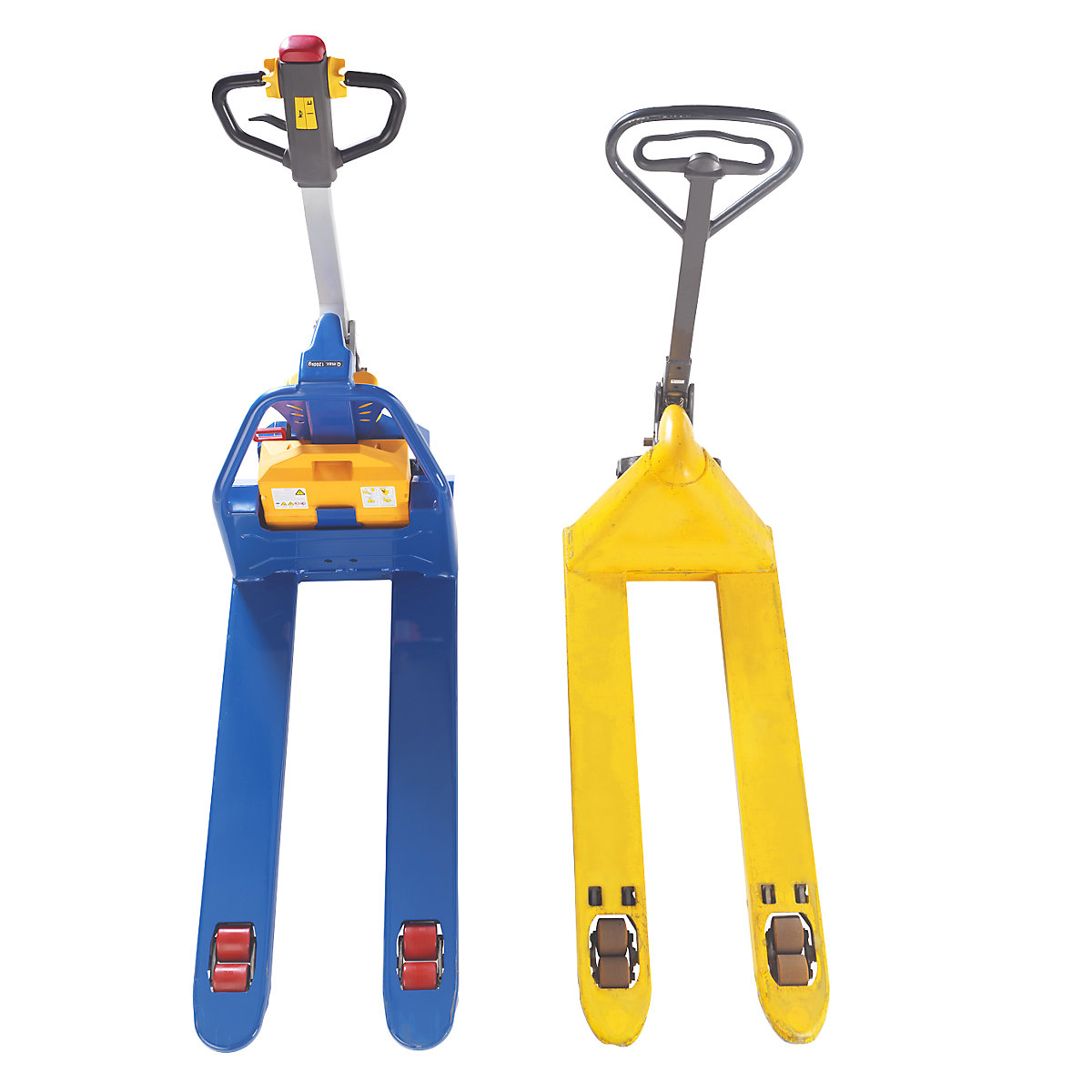

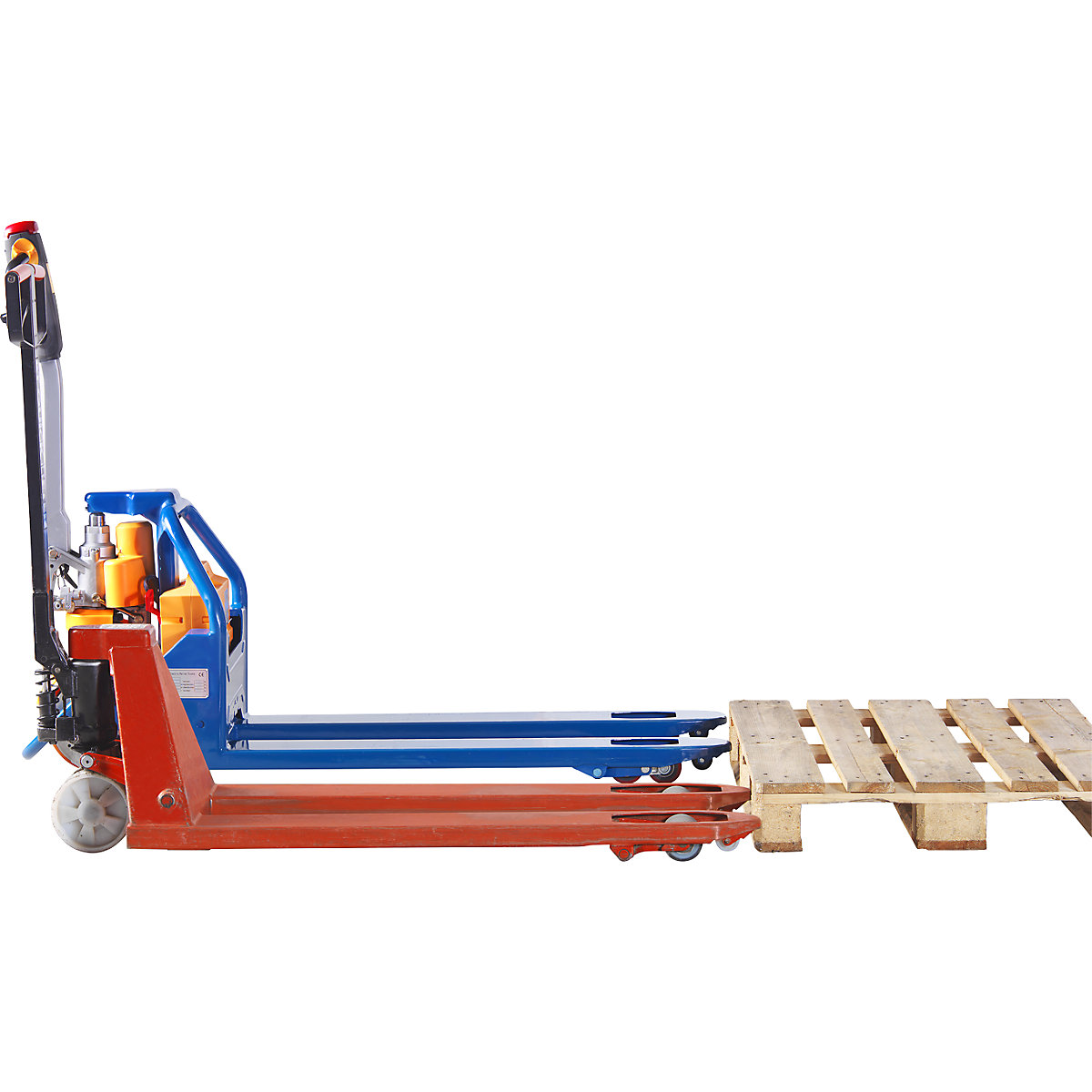

The electric pallet truck E15 is the worthy successor to the classic pallet truck. It combines its robustness and flexibility with modern drive and lifting technology with similar dimensions.

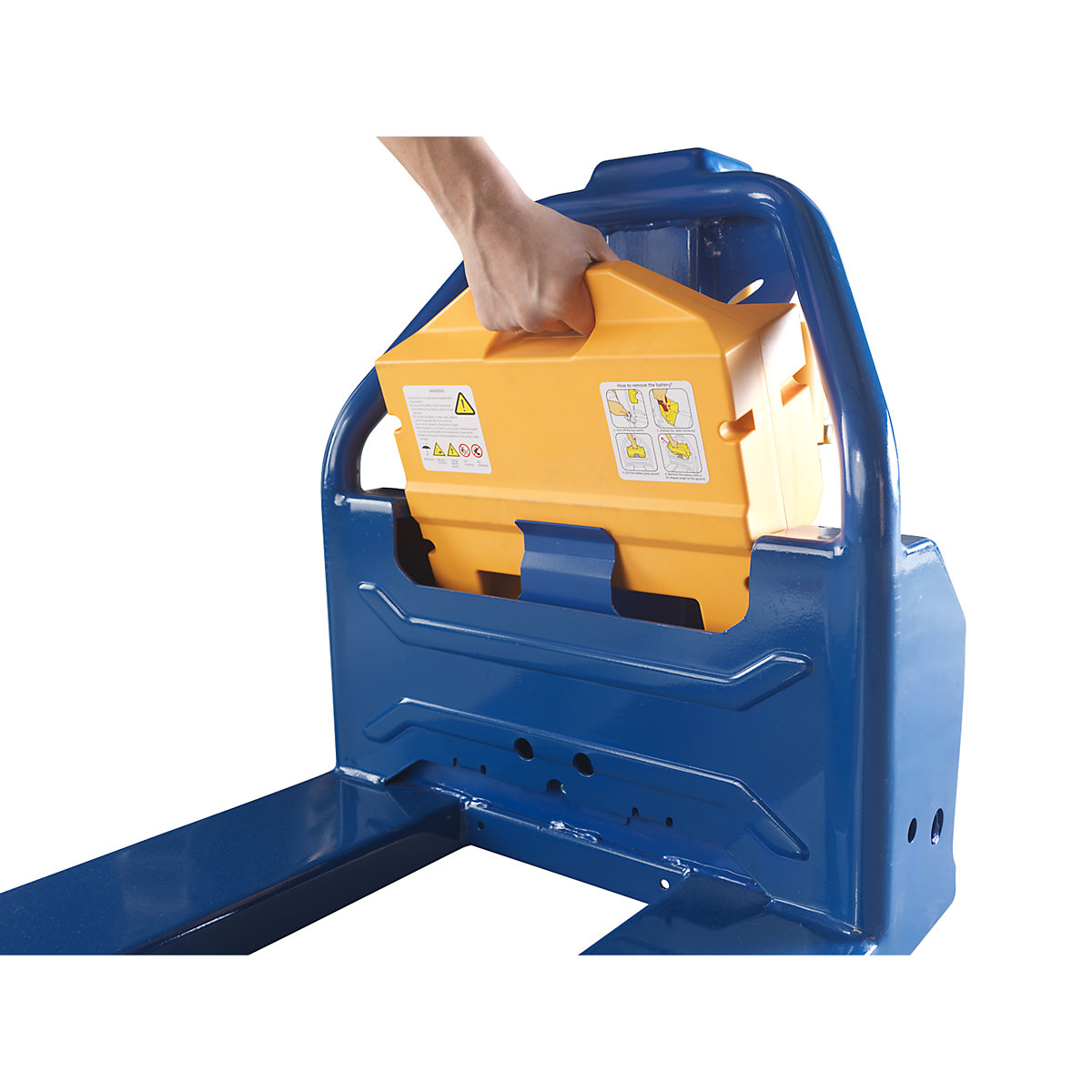

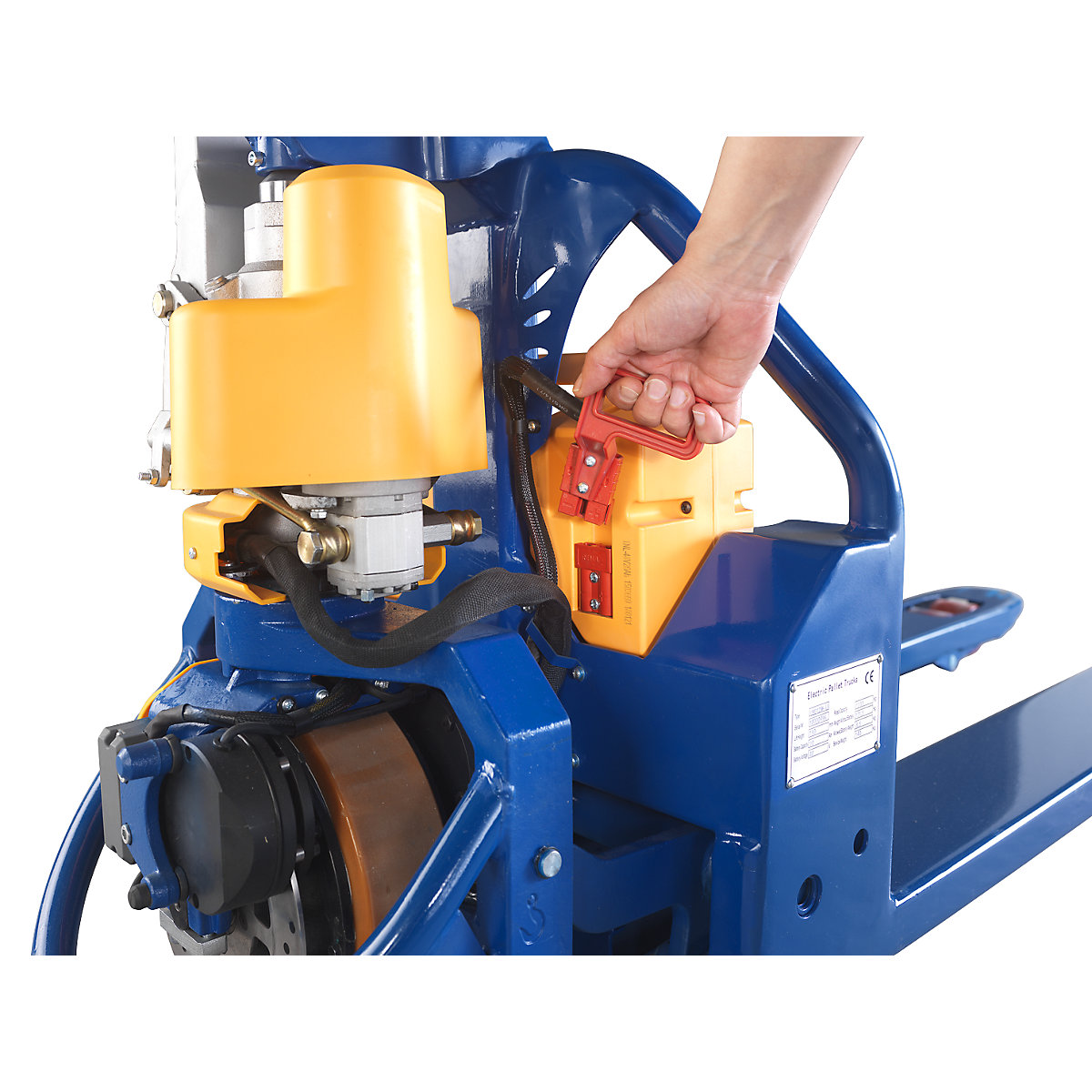

Little physical effort is required from operators, thereby protecting their backs and joints, reducing sickness levels and increasing productivity. The maintenance free lithium-ion battery can be swapped in a flash, therefore also enabling multiple shift operation. External charger. Interim recharging of the innovative 48 V/20 Ah battery possible at any time. Short charging time of 3 hours. Can be used for up to 6 hours on one battery. Long service life.

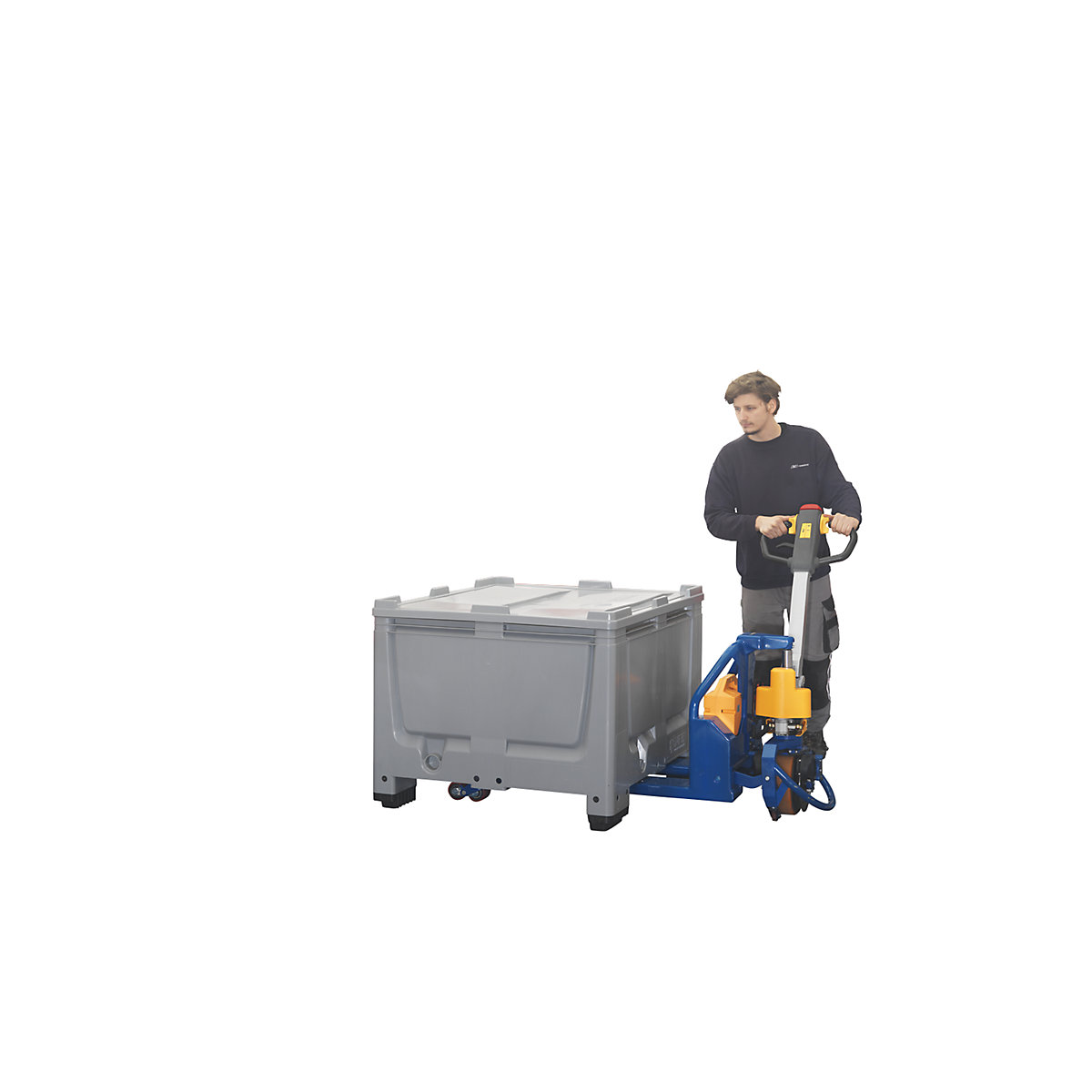

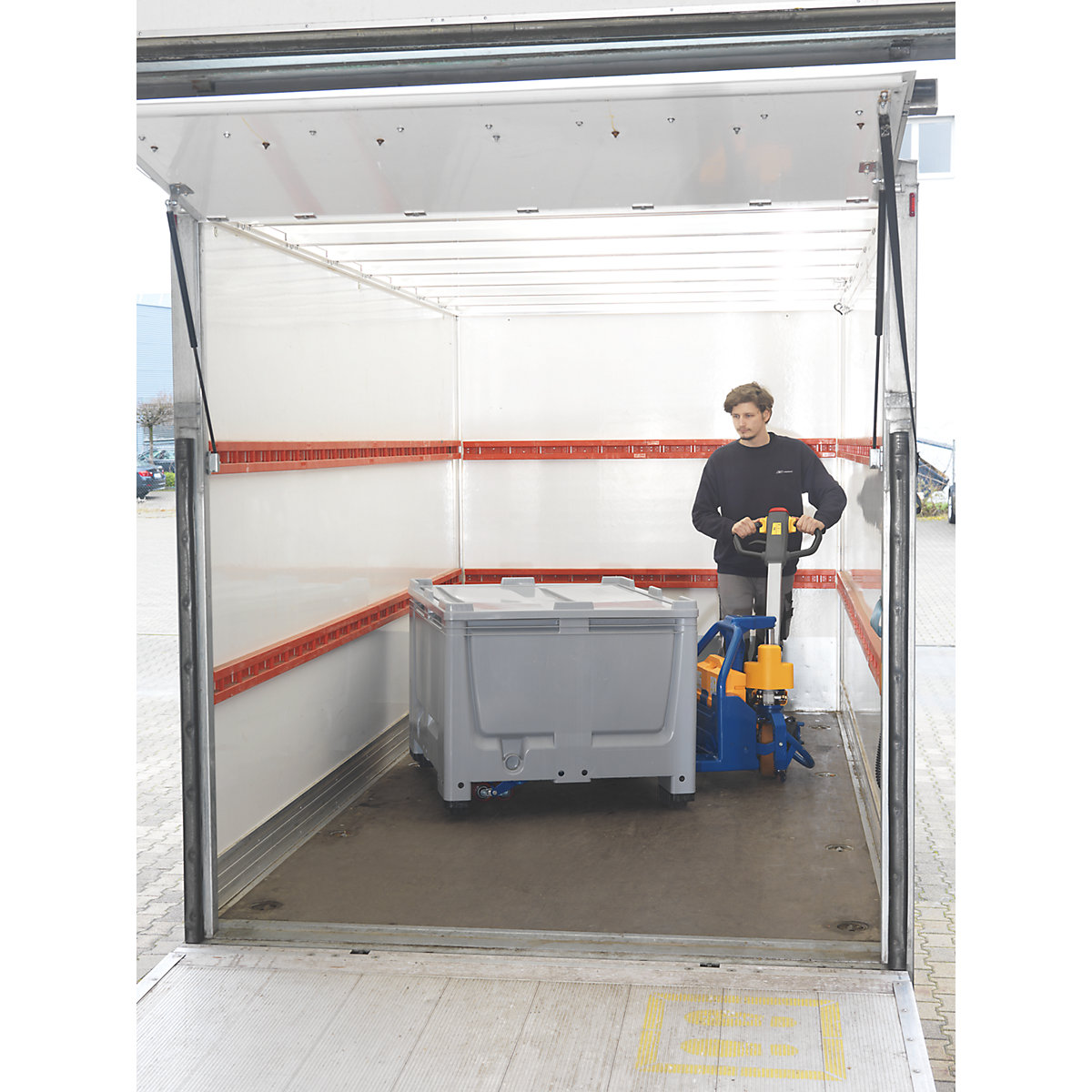

Application: in multiple shift operation, warehouses and branches, on lorries, for long routes and frequent lifting.
High torque drive motor for excellent climbing capability on ramps and reinforced brake.

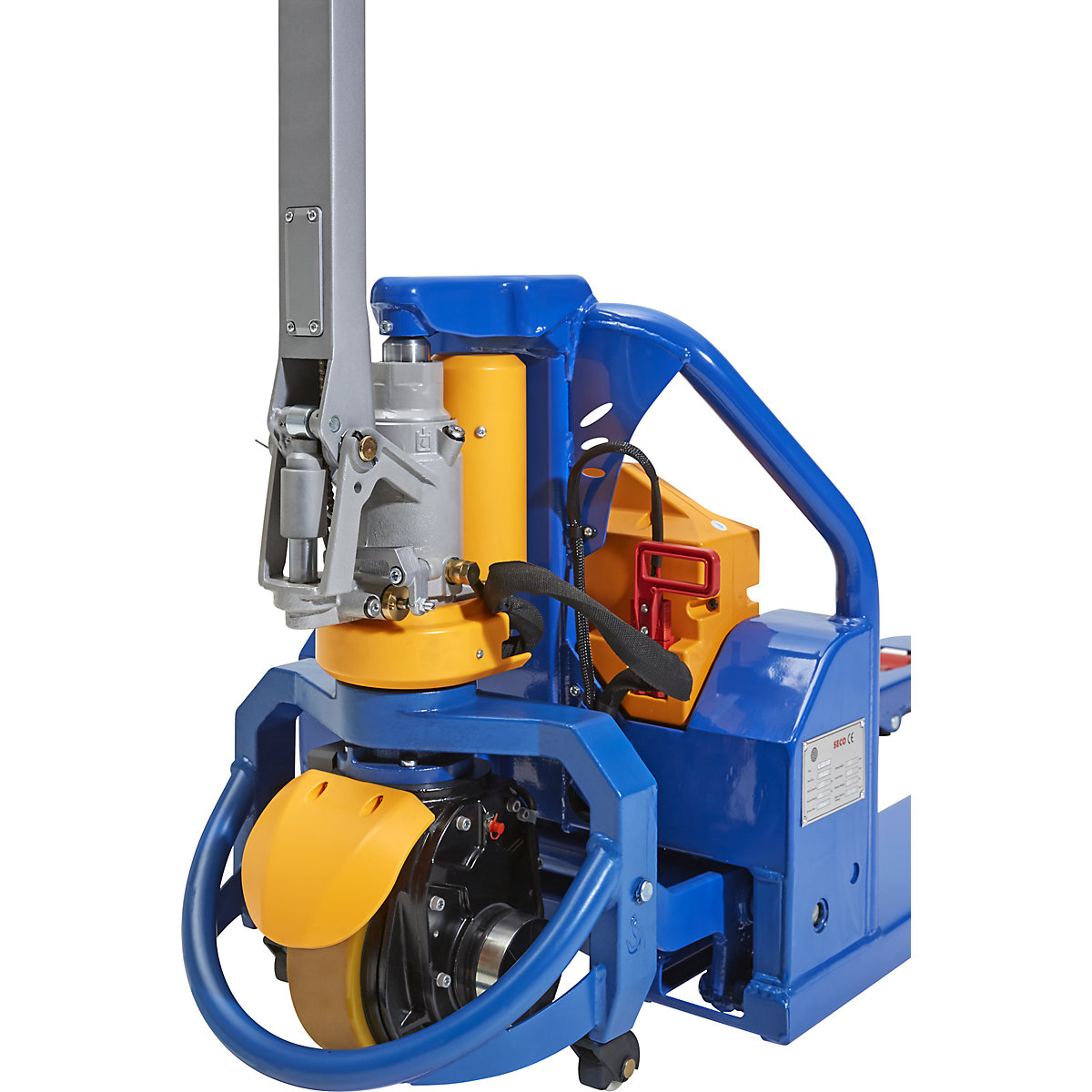

Maintenance free and brushless motor integrated in the drive wheel. Maintenance free battery. Service-friendly construction. Steel protection bar on the motor and in front of the battery.

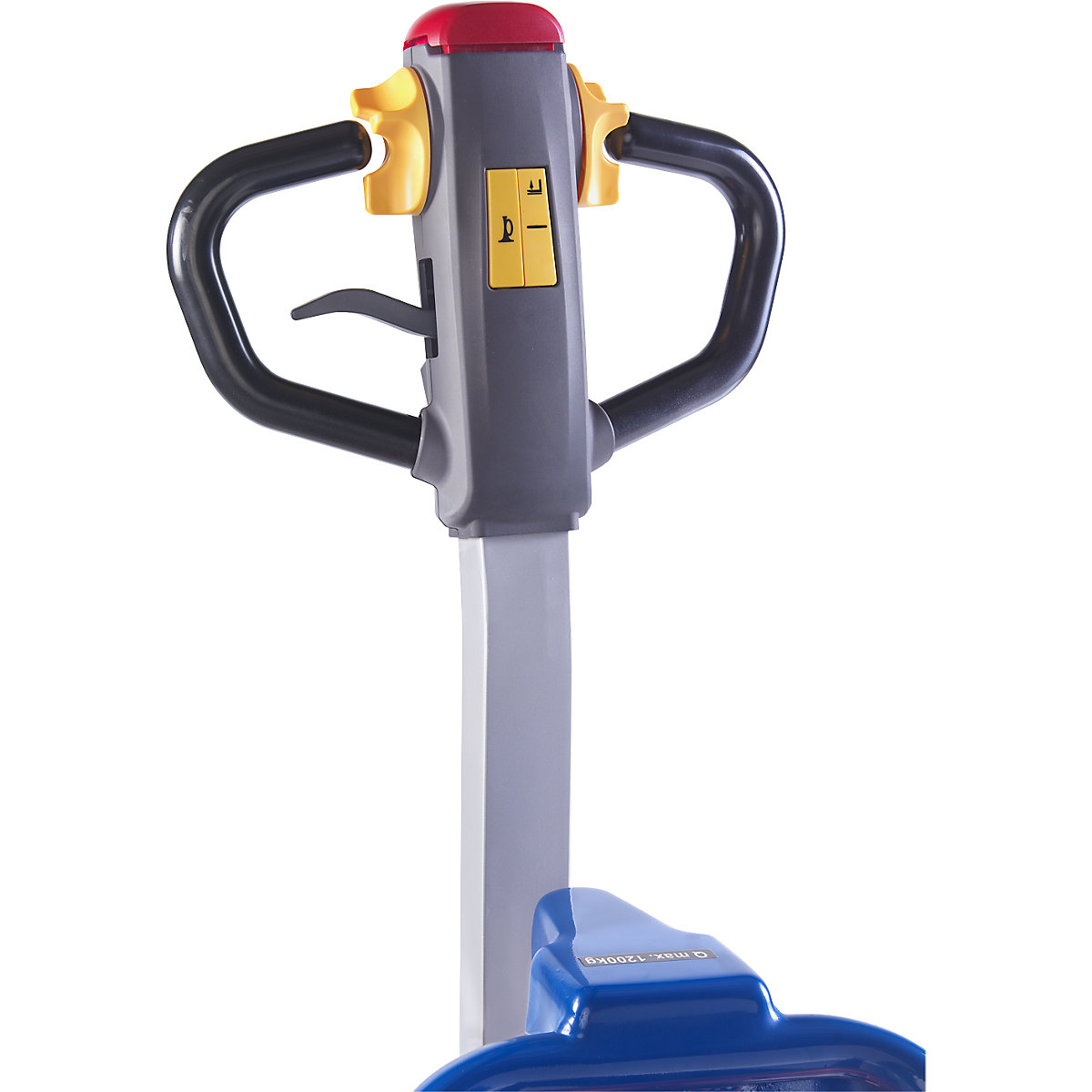

Operation: butterfly switches designed for left and right handed operators for infinitely adjustable speed control. Forwards and backwards travel. Lift/lower switches in the centre. Horn.
Time for something new – a new era for backs and joints. Why not buy now!
  • Electric lift and drive

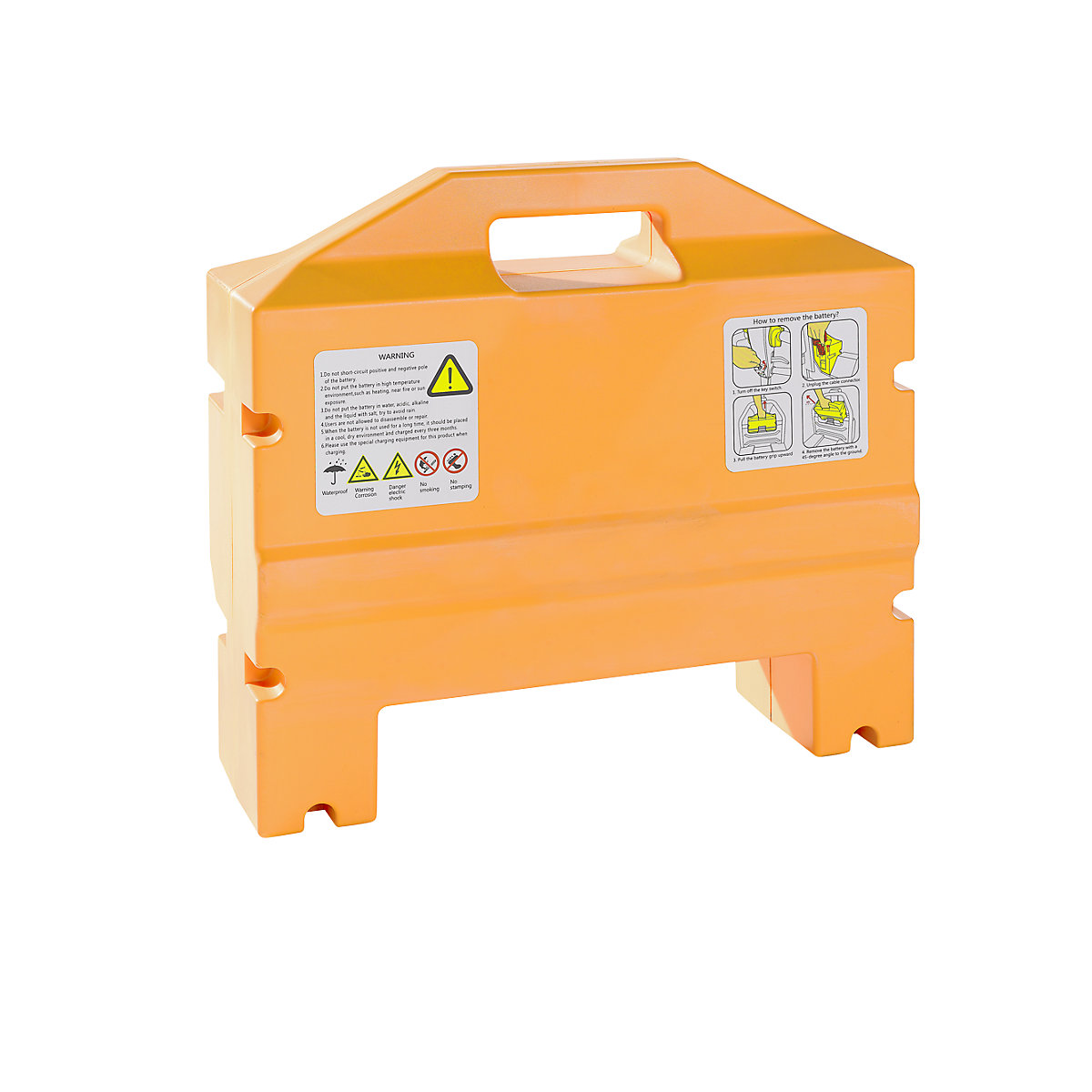

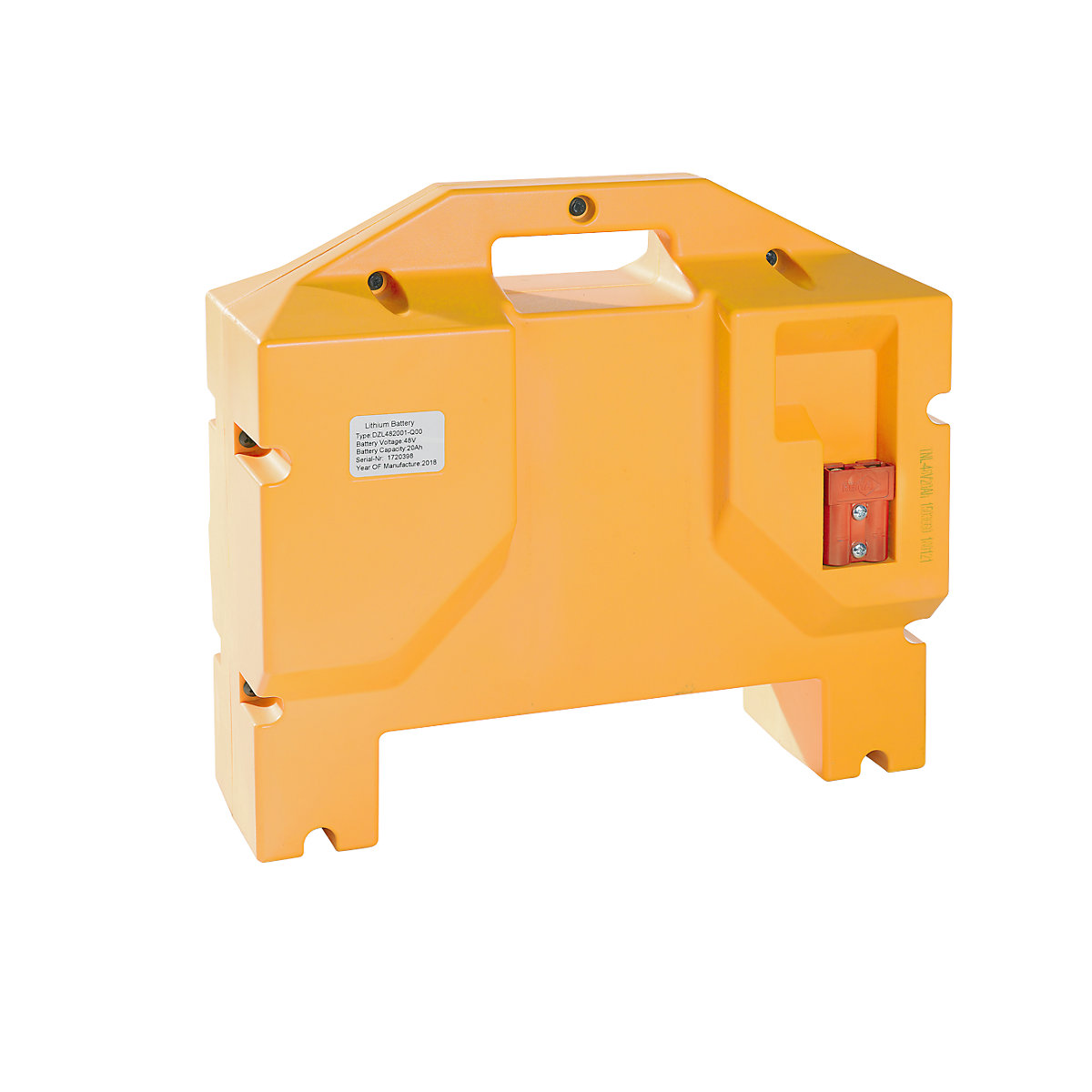

  • Lithium interchangeable battery 48 V / 20 Ah – maintenance free
  • Charging time max. 3 hours
Technical data
Lifting range80 – 190 mm
Fork length1150 mm
Fork width160 mm
Distance across forks550 mm
Length1651 mm
Width550 mm
Overall height1300 mm
Min. lifting speed35 mm/s
Max. lifting speed43 mm/s
Min. driving speed4.8 km/h
Max. driving speed5 km/h
Climbing performance with load8 %
Climbing performance without load20 %
Turning radius1494 mm
Thickness of fork prong45 mm
Battery48 V / 20 Ah
Battery charger6 A impulse charger
Working gangway for pallet length1900 mm

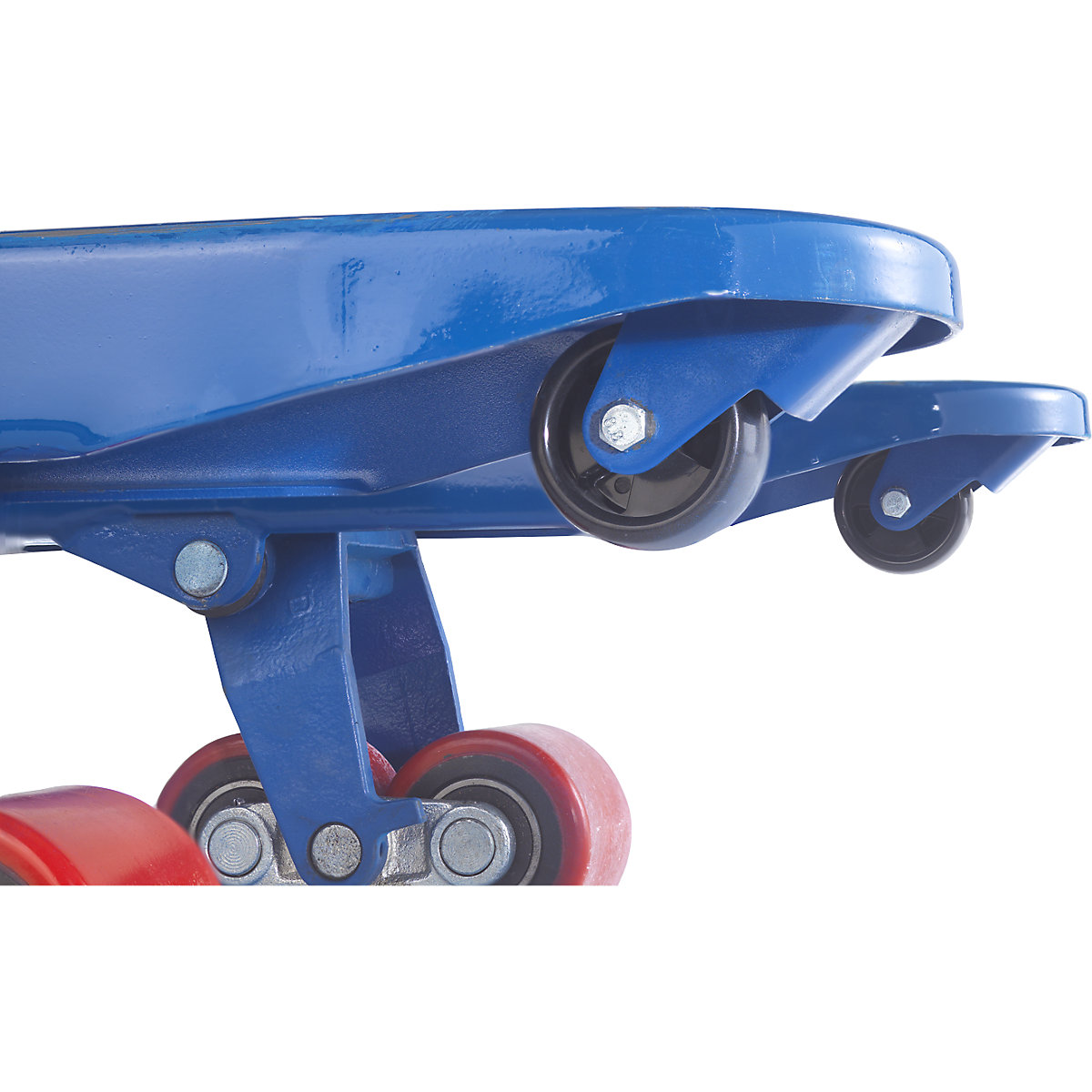

Fork roller materialpolyurethane

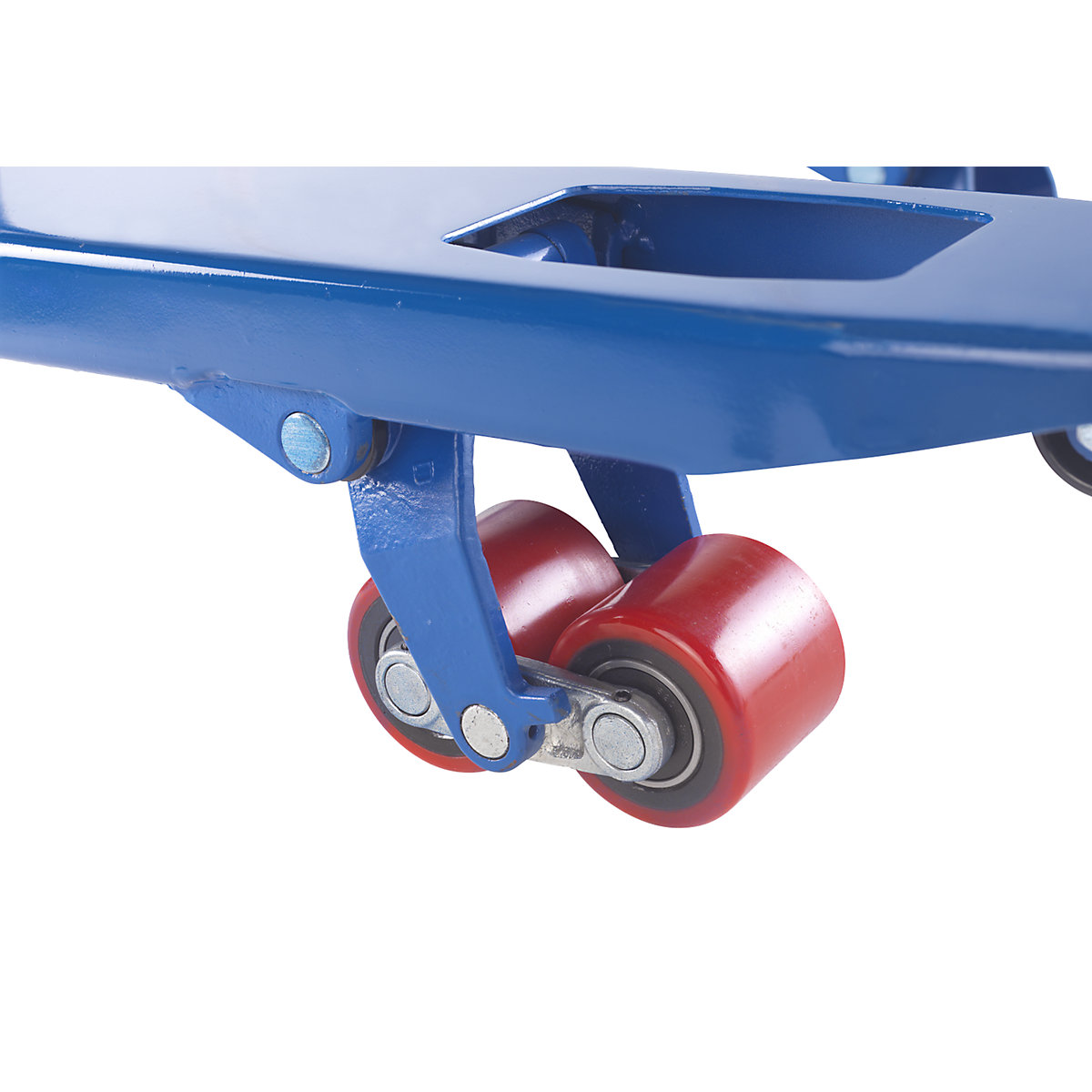

Fork roller versiontandem
Fork roller diameter80 mm
Fork roller width70 mm
Steering wheel width75 mm
Steering wheel diameter250 mm
Travel motor0.65 kW
Lifting motor0.8 kW
Product typeelectric lift trucks
Max. load1500 kg
Suppliedassembled
Weight135 kg
