Drawbar stacker – Pramac telescopic mast, max. load 1200 kg
(1)
lifting range 90 – 2500 mm
Lifting range [mm]

This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 453906 49
Drawbar stacker – Pramac telescopic mast, max. load 1200 kg
(1)
lifting range 90 – 2500 mm


lifting range 90 – 2500 mm
£9,990.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Product description
Stacker with equivalent to pallet width of 800 mm – ideal for narrow aisles and passageways in pallet racks.
Completely new generation of devices. Developed for a long lifespan with moderate maintenance costs.
Energy saving MOS-FET drive control with proportional speed regulation. Creep speed possible with drawbar in upright position when space is tight.
Solid steel frame all round for protection in the event of collisions.
Drive unit easily accessible from above after raising the ABS plastic housing. The machine does not have to be raised.
Multifunction display for operating hours, battery status and charge indicator.
The devices are fully compliant with the requirements of directive 2006/42/EC. CE compliant.
With horn, emergency stop switch and all-round foot protection.
Maintenance free AGM batteries ensure operation for up to 3 hours.

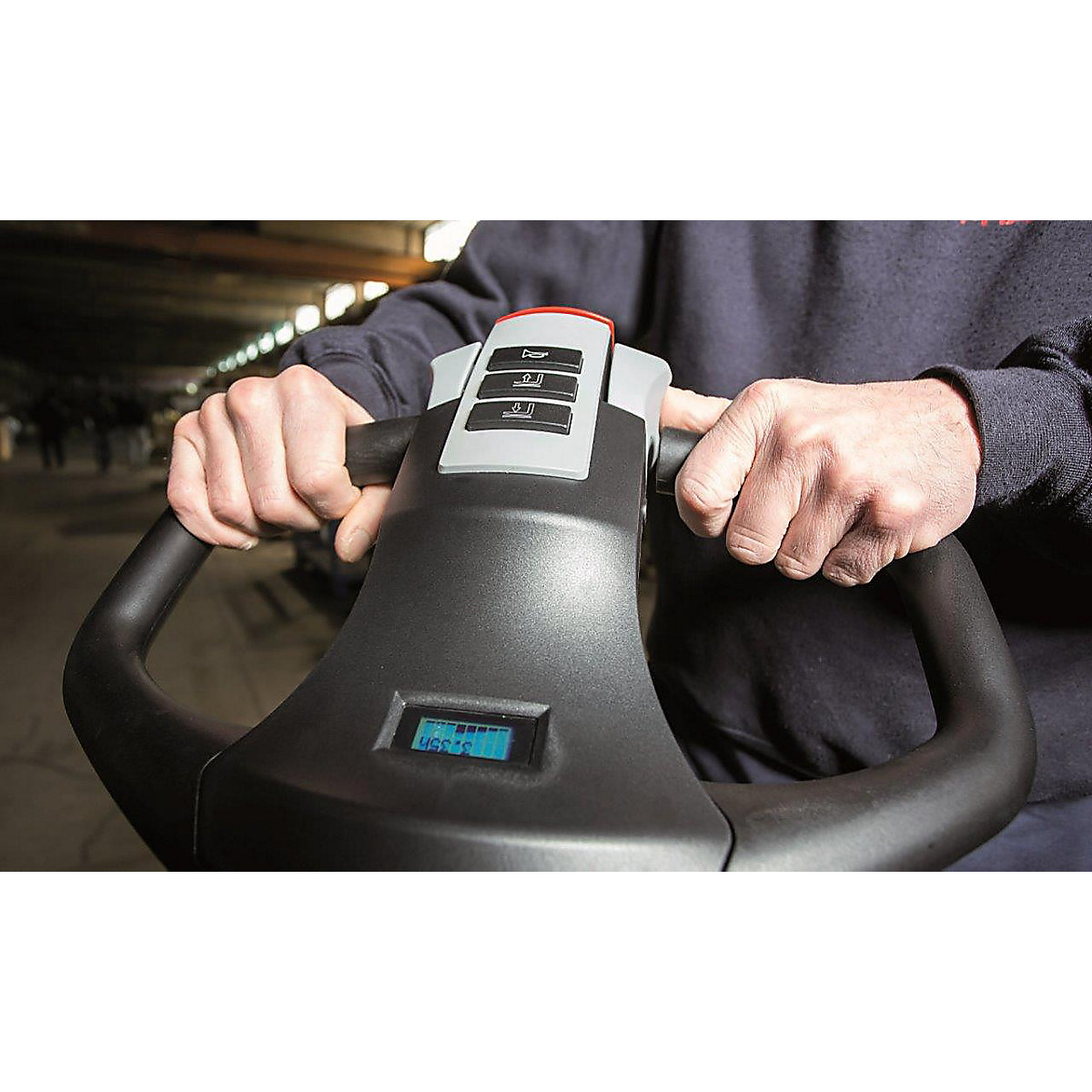

Safety steering unit with ergonomic controls
All functions can be controlled from the steering unit. Precise, infinite speed control and braking. Soft valve switch for smooth lifting and lowering when moving. Horn button. Safety switch to protect the driver. Activated by counter force from change in direction of travel.
Creep speed: Drive with drawbar in upright position at slower speeds.
Eccentric steering: For a clear view past the mast. Practical in narrow aisles. Brakes automatically when the drawbar is released.
Symmetrical traversing gear: DC motor. Constant speed proportional to rotary wing movement. High stability.
Electronic steering: Increased safety. Energy saving MOS steering, starts, accelerates and brakes smoothly and precisely. Load remains steady, no danger for the operator or the stacked goods. Manoeuvres exactly to the millimetre. Diagnostic system.
Polyurethane single fork rollers.
Completely new generation of devices. Developed for a long lifespan with moderate maintenance costs.
Energy saving MOS-FET drive control with proportional speed regulation. Creep speed possible with drawbar in upright position when space is tight.
Solid steel frame all round for protection in the event of collisions.
Drive unit easily accessible from above after raising the ABS plastic housing. The machine does not have to be raised.
Multifunction display for operating hours, battery status and charge indicator.
The devices are fully compliant with the requirements of directive 2006/42/EC. CE compliant.
With horn, emergency stop switch and all-round foot protection.
Maintenance free AGM batteries ensure operation for up to 3 hours.
Safety steering unit with ergonomic controls
All functions can be controlled from the steering unit. Precise, infinite speed control and braking. Soft valve switch for smooth lifting and lowering when moving. Horn button. Safety switch to protect the driver. Activated by counter force from change in direction of travel.
Creep speed: Drive with drawbar in upright position at slower speeds.
Eccentric steering: For a clear view past the mast. Practical in narrow aisles. Brakes automatically when the drawbar is released.
Symmetrical traversing gear: DC motor. Constant speed proportional to rotary wing movement. High stability.
Electronic steering: Increased safety. Energy saving MOS steering, starts, accelerates and brakes smoothly and precisely. Load remains steady, no danger for the operator or the stacked goods. Manoeuvres exactly to the millimetre. Diagnostic system.
Polyurethane single fork rollers.
Available on request:
– Greater lifting heights
– Different fork lengths
– Custom load support equipment and much more
– Greater lifting heights
– Different fork lengths
– Custom load support equipment and much more
Technical data
Max. load | 1200 kg |
---|---|
Fork length | 1150 mm |
Fork width | 150 mm |
Distance across forks | 560 mm |
Length | 1760 mm |
Width | 800 mm |
Min. lifting speed | 110 mm/s |
Max. lifting speed | 190 mm/s |
Min. driving speed | 4.7 km/h |
Max. driving speed | 5.2 km/h |
Climbing performance with load | 5 % |
Climbing performance without load | 10 % |
Design of mast | telescopic mast |
Turning radius | 1430 mm |
Thickness of fork prong | 70 mm |
Battery | 2 x 12 V / 110 Ah |
Battery charger | 1.5 A impulse charger |
Working gangway for pallet length | 2210 mm |
Roller material | polyurethane |
Fork roller version | single |
Fork roller diameter | 82 mm |
Fork roller width | 70 mm |
Travel motor | 0.7 kW |
Lifting motor | 2.2 kW |
Product type | drawbar stackers |
Supplied | assembled |
Lifting range | 90 – 2500 mm |
Overall height | 1787 mm |
Weight | 570 kg |
Instructions |
