Ref.: 118455 49

Electric drawbar stacker – Pramac max. load 1000 kg

Electric drawbar stacker – Pramac
Electric drawbar stacker – Pramac, max. load 1000 kg, fork dimensions LxW 1153 x 150 mm

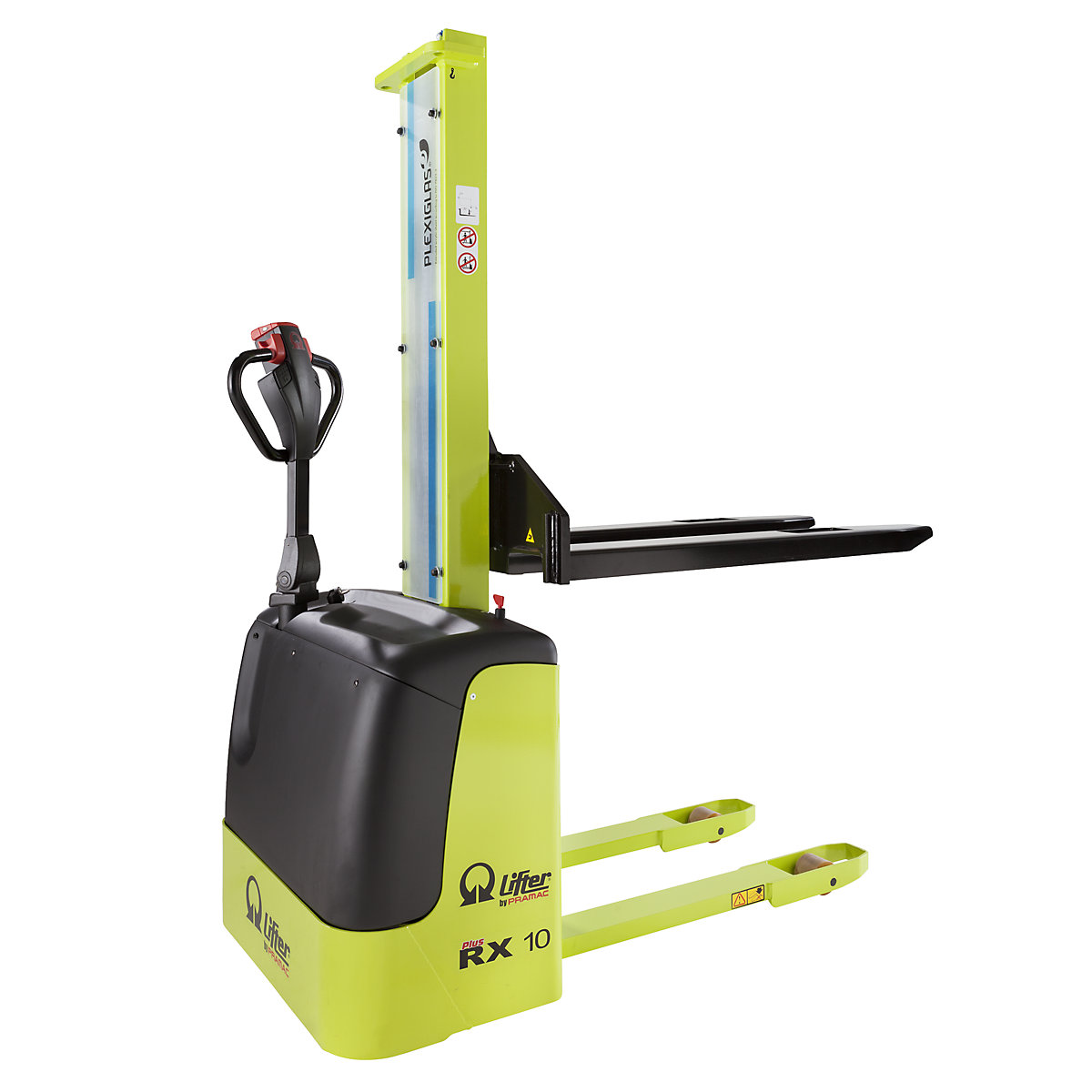

Electric drawbar stacker – Pramac (Product illustration 2)

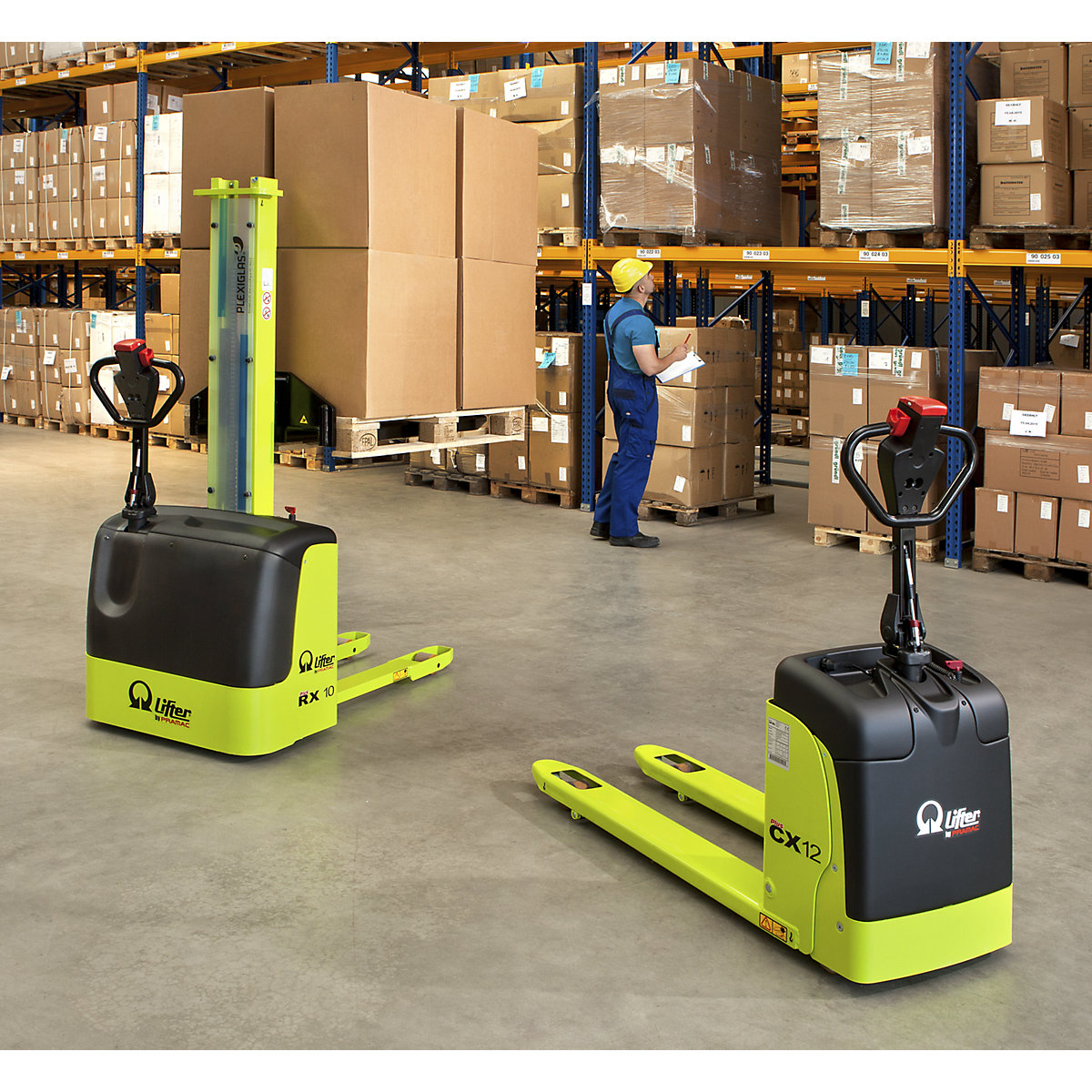

Electric drawbar stacker – Pramac (Product illustration 3)
Electric drawbar stacker – Pramac (Product illustration 4)
Electric drawbar stacker – Pramac (Product illustration 5)

fork dimensions LxW 1153 x 150 mm

£6,090.00
Price / item (Excl. VAT)

Delivery time: 4 Week delivery
Product description
0.35 kW drive motor and 2.2 kW DC lifting motor. Energy saving MOS-FET drive control with proportional speed regulation. Creep speed possible with drawbar in upright position when space is tight.
Drive unit with robust sheet steel frame. The devices are fully compliant with the requirements of directive 2006/42/EC. CE conformity. With horn, emergency stop switch and all-round foot protection.
Maintenance free AGM batteries ensure operation for approx. 2 hours.

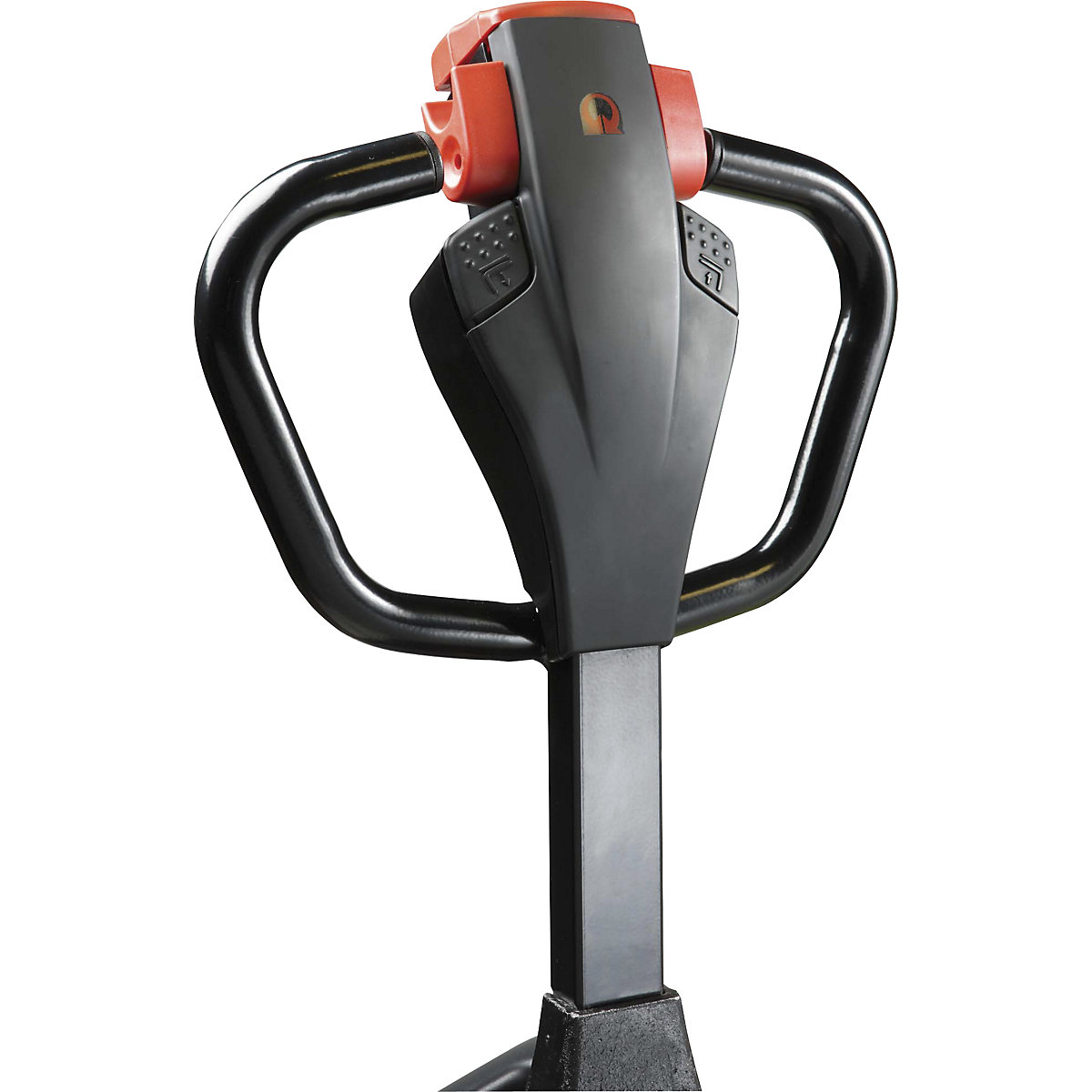

Safety steering unit with ergonomic controls
Direction controller in butterfly design for sensitive, stepless start-up and stop. Raising and lowering activated on the drawbar handle. LED display for battery status. Button for horn. Security key to protect the driver.
Changes direction when counterpressure is applied.

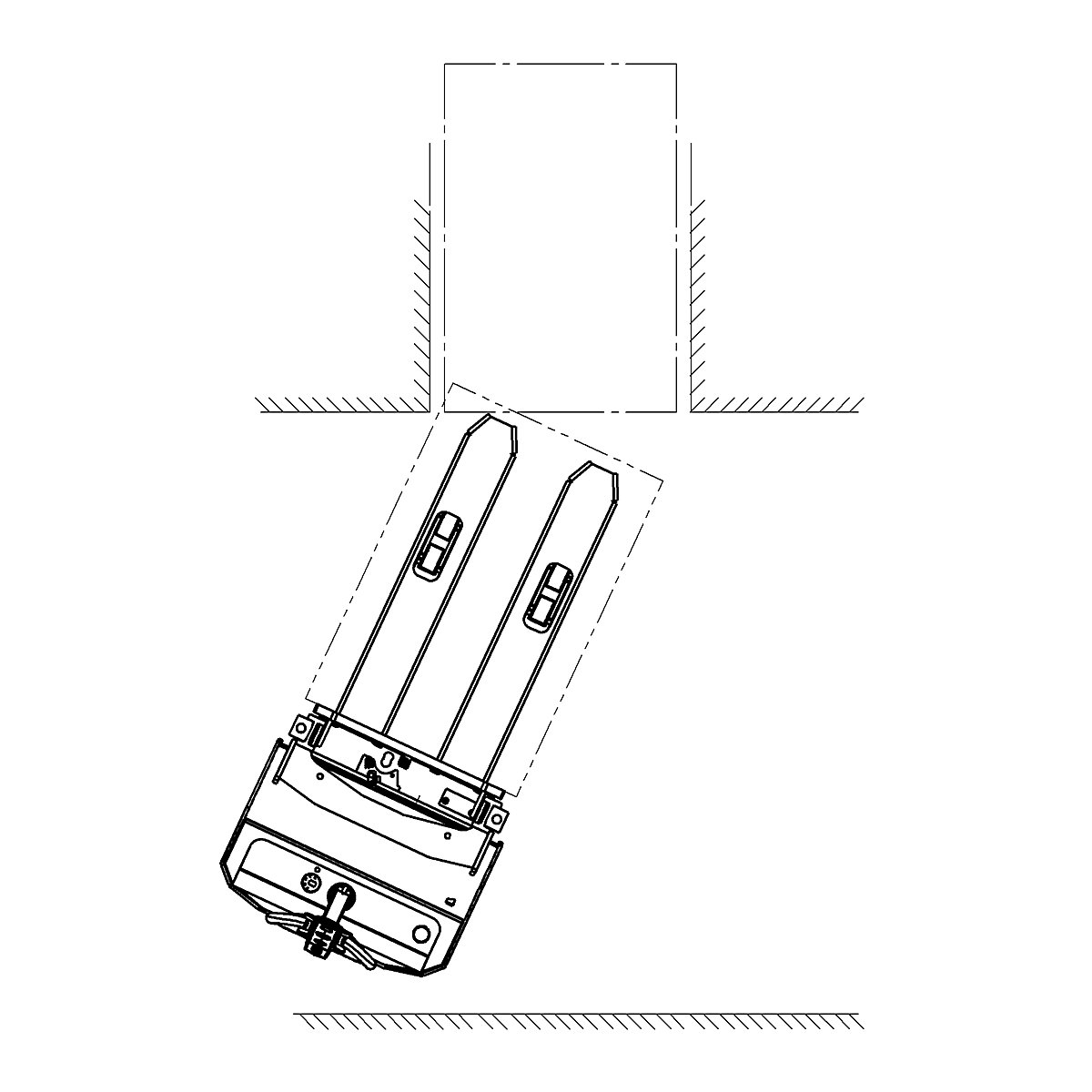

Can be used in passageways with a width of 2120 mm with 800 x 1200 mm, lengthwise.
On request
– Max. load up to 1600 kg
– Lifting height up to 5000 mm
– Wide gauge chassis possible
  • Electric drive – electro-hydraulic lifting
  • Maintenance free AGM batteries
  • Operates for approx 2 hours
Technical data
Lifting range90 – 1600 mm
Fork length1153 mm
Fork width150 mm
Distance across forks560 mm
Length1675 mm
Width794 mm
Overall height1970 mm
Min. lifting speed110 mm/s
Max. lifting speed180 mm/s
Min. driving speed3.7 km/h
Max. driving speed4.3 km/h
Climbing performance with load9 %
Climbing performance without load25 %
Design of mastsingle mast
Turning radius1344 mm
Thickness of fork prong60 mm
Battery2 x 12 V / 70 Ah
Battery charger8 A impulse charger
Working gangway for pallet length2120 mm
Fork roller materialpolyurethane
Fork roller versionsingle
Fork roller diameter82 mm
Fork roller width70 mm
Steering wheel width50 mm
Steering wheel diameter186 mm
Travel motor0.35 kW
Lifting motor2.2 kW
Product typedrawbar stackers
Max. load1100 kg
Suppliedassembled
Weight371 kg
