Ref.: 968750 49
High-lift pallet truck electric
max. load 1000 kg
This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 968750 49
High-lift pallet truck electric
max. load 1000 kg
max. load 1000 kg
£2,379.00
Price / item (Excl. VAT)
Only 2 available
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Product description
- Convenient electro-hydraulic system
- Lift, move and deploy loads
- Ergonomic work at the ideal height
- With QuickLift
- Robust and durable single cylinder telescopic hydraulic unit
- Additional supports for stability when forks are lifted

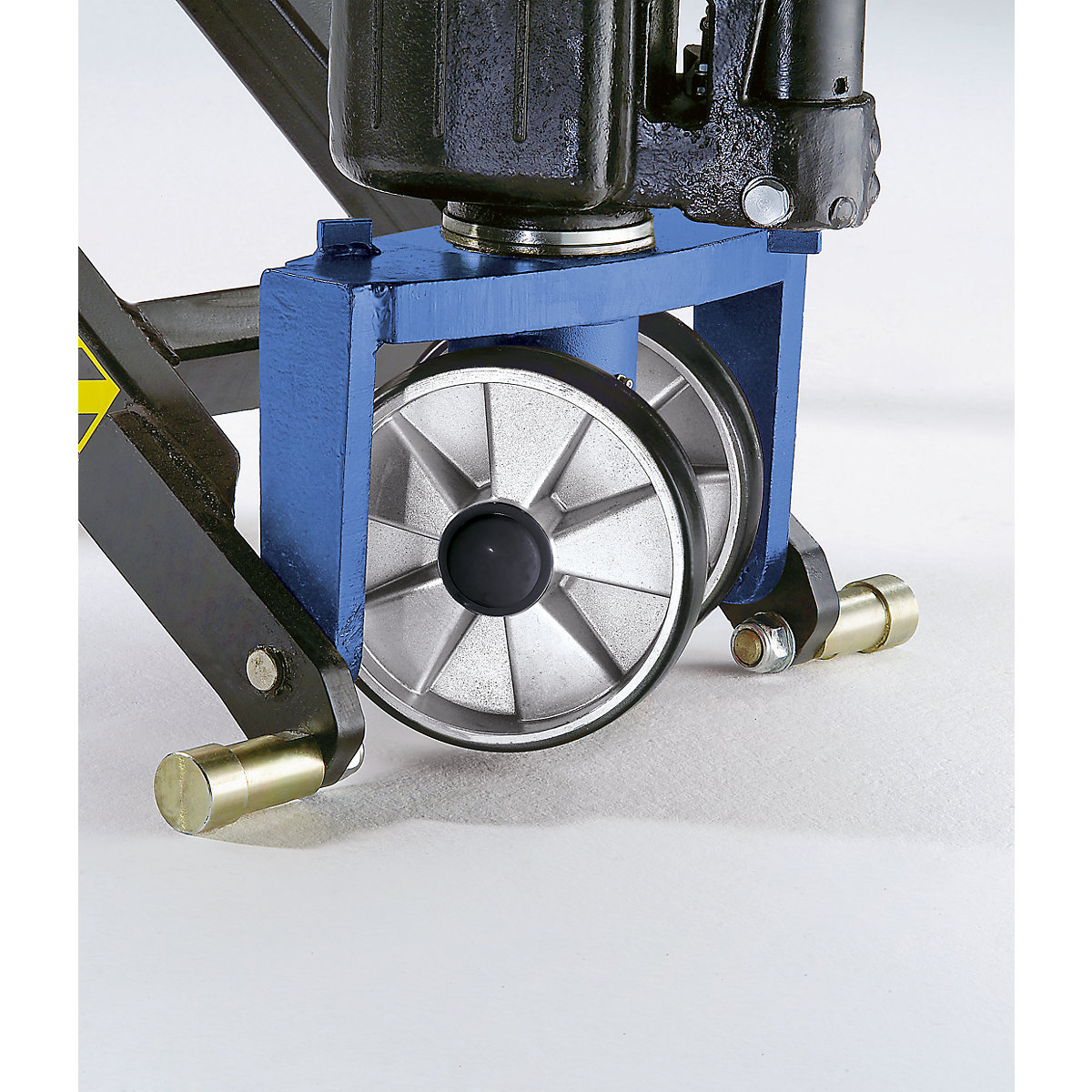

- Non-marking polyurethane wheels for sensitive floors
Efficient load management and ergonomic working in warehouses, production and mailing logistics: the high-lift pallet truck combines load handling, load provision and load lifting functions. Easily lift pallets with goods to an ergonomic working height without straining your back.
The integrated QuickLift function saves you valuable time and energy. Active up to a max. load of 100 kg, light loads are lifted quickly. Heavier loads are lifted more slowly, but less effort is required. For additional safety, the high-lift pallet truck features an automatic lowering speed control and an overload pressure valve to protect the device. The additional supports ensure a stability when the forks are raised, while the polyurethane wheels enable non-marking operation without damaging the floor. The high-lift pallet truck is equipped with a single cylinder telescopic hydraulic system that is robust and hardwearing.
This versatile device can also be used as a pallet truck. The high-lift pallet truck is a practical combination of a pallet truck and lift table that will optimise your warehouse logistics and work processes. Use it for practical lifting and movement of pallets and heavy loads, for storing and retrieving materials, or for loading machines.
With an electro-hydraulic unit for quick lifting with minimal effort. Adjust height smoothly and evenly at the push of a button when working at frequently changing heights. Integrated 6 A impulse charger. Manual hydraulics are also fully functional at all times.
The integrated QuickLift function saves you valuable time and energy. Active up to a max. load of 100 kg, light loads are lifted quickly. Heavier loads are lifted more slowly, but less effort is required. For additional safety, the high-lift pallet truck features an automatic lowering speed control and an overload pressure valve to protect the device. The additional supports ensure a stability when the forks are raised, while the polyurethane wheels enable non-marking operation without damaging the floor. The high-lift pallet truck is equipped with a single cylinder telescopic hydraulic system that is robust and hardwearing.
This versatile device can also be used as a pallet truck. The high-lift pallet truck is a practical combination of a pallet truck and lift table that will optimise your warehouse logistics and work processes. Use it for practical lifting and movement of pallets and heavy loads, for storing and retrieving materials, or for loading machines.
With an electro-hydraulic unit for quick lifting with minimal effort. Adjust height smoothly and evenly at the push of a button when working at frequently changing heights. Integrated 6 A impulse charger. Manual hydraulics are also fully functional at all times.
QUICKLIFT
Lifts faster – saves effort and time!
Lifts faster – saves effort and time!
Technical data
Max. load | 1000 kg |
---|---|
Lifting range | 85 – 800 mm |
Lift drive | electro-hydraulic |
Fork length | 1190 mm |
Fork width | 160 mm |
Distance across forks | 560 mm |
Length | 1676 mm |
Width | 560 mm |
Height | 1286 mm |
Steering radius | 210 ° |
Lift per pump stroke with QuickLift | 19 mm |
Lift per pump stroke | 11 mm |
Steering wheel material | polyurethane |
Steering wheel diameter | 180 mm |
Steering wheel width | 55 mm |
Roller material | polyurethane |
Fork roller version | single |
Fork roller diameter | 75 mm |
Fork roller width | 75 mm |
Colour | melon yellow RAL 1028 |
Finish | powder coated |
Battery | 12 V / 70 Ah |
Battery charger | 6 A impulse charger |
Lifting time without load | 13 sec |
Lifting time with full load | 22 sec |
Feature | manual mobile up to 400 mm lifting height |
Fittings | QuickLift |
Product type | high-lift pallet trucks |
Supplied | assembled |
Weight | 175 kg |
Instructions |
