Ref.: 754970 49

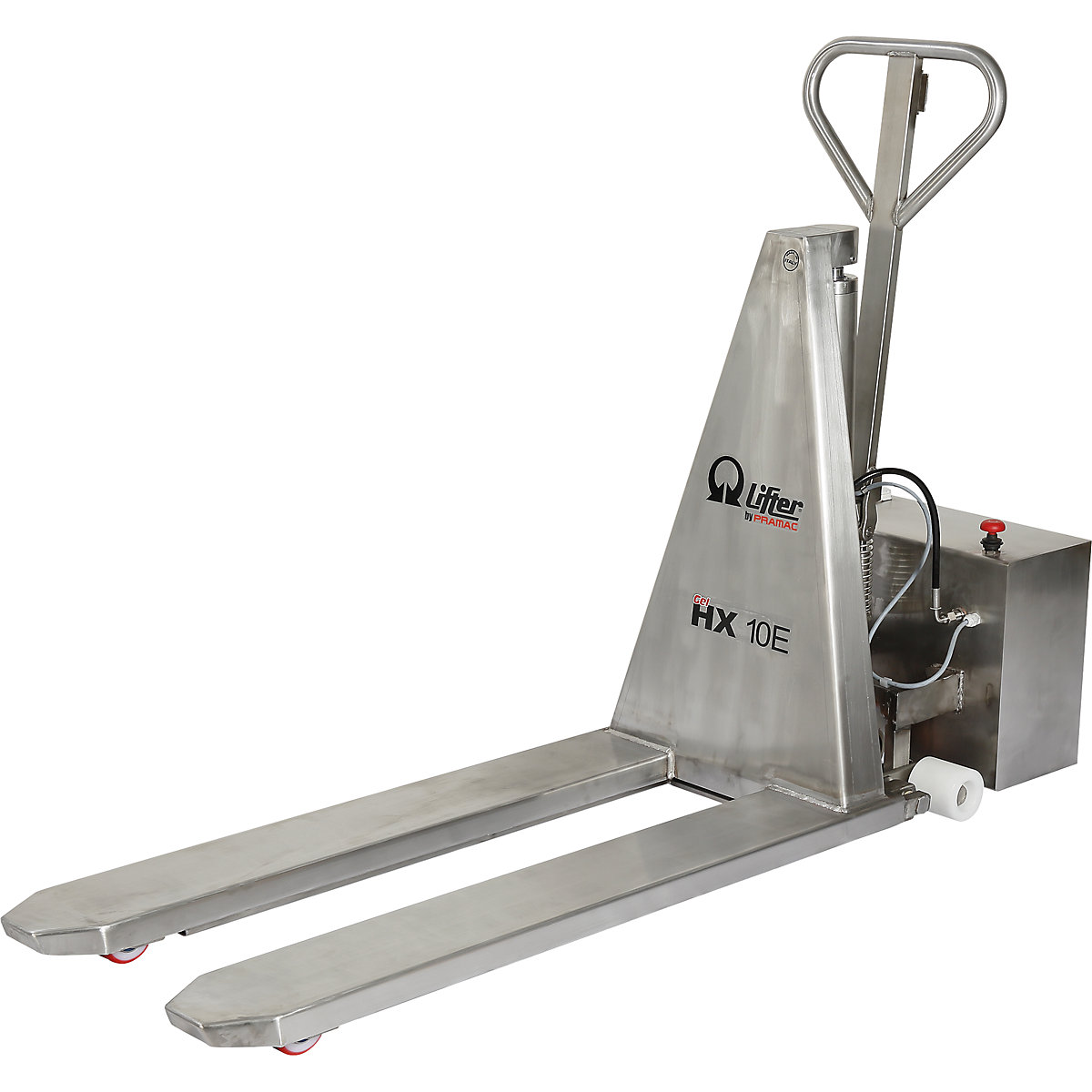

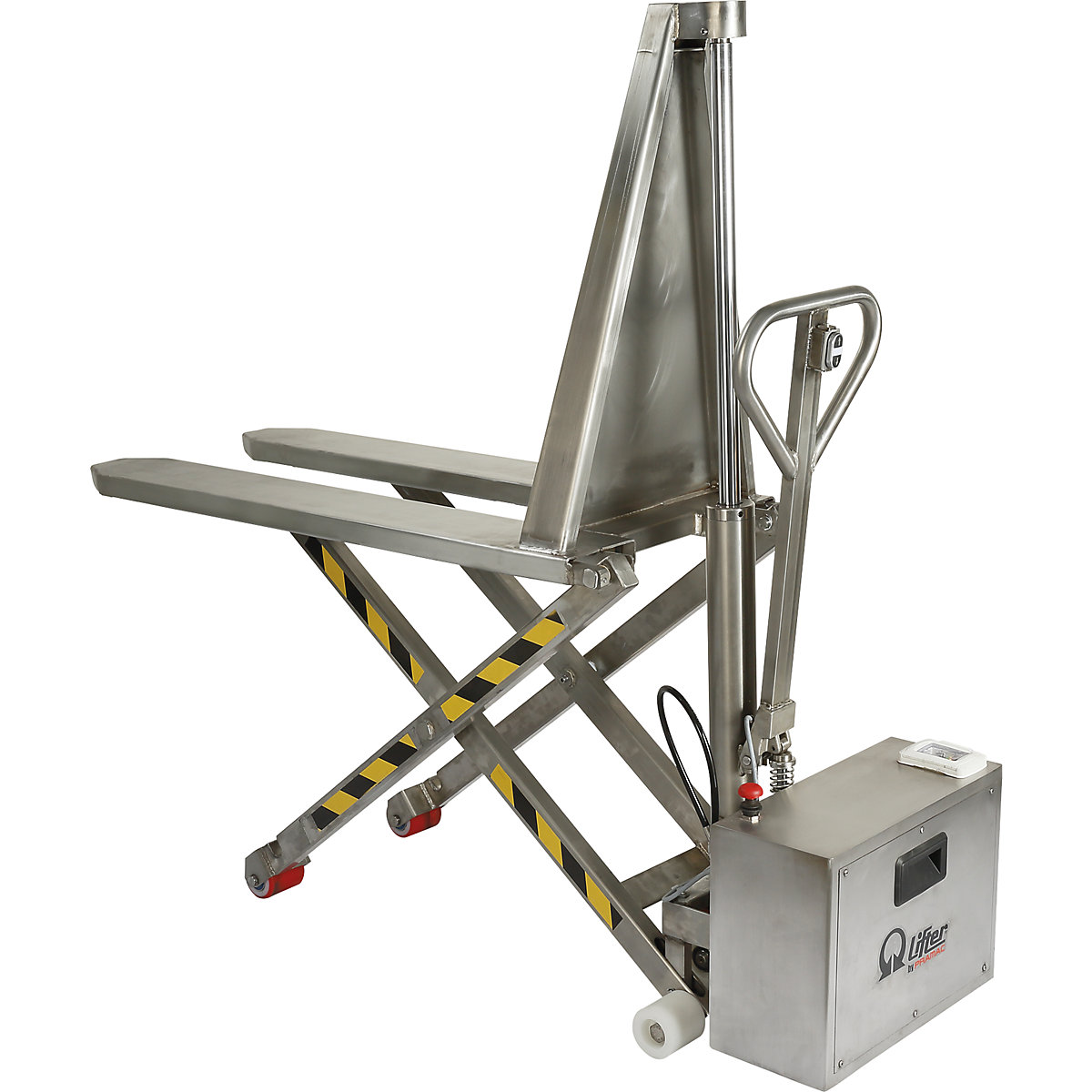

Stainless steel high-lift pallet truck – Pramac electric
max. load 1000 kg
This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 754970 49
Stainless steel high-lift pallet truck – Pramac electric
max. load 1000 kg
max. load 1000 kg
New
£8,190.00
Price / item (Excl. VAT)
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Product description
The stainless steel high-lift pallet truck features a reliable electric motor and powerful gel battery that make lifting to a height of 800 mm simple and easy to do. Made entirely of AISI 304 stainless steel (including the pump and hydraulic components), it is suitable for work in damp environments where cleanliness and hygiene are key requirements and where corrosion could also occur if corrosive acids or saline solutions are used.
Ingress protection IP65 (dustproof and protected from jets of water from any angle), electro-polished AISI 304 stainless steel, waterproof bearings and nylon bushings ensure that this stainless steel high-lift pallet truck complies with food industry regulations. It is the ideal and clean solution for use in the agricultural, chemical and pharmaceutical industries. It is corrosion resistant, easy to manoeuvre, ergonomic and can withstand regular, high pressure cleaning and disinfection that satisfies the strictest hygiene regulations.
The handle is very ergonomic, providing more comfort for the operator, and includes an electric switch for raising and lowering the forks.
The control unit enables the forks to enter the closed side of the pallet by lifting it slightly, which makes subsequent work steps easier to complete. In addition, greater machine stability is achieved by using loading rollers and front stabilisers as standard features. The rear stabilisers make work even safer, even when the working height of 400 mm is exceeded or very heavy objects are lifted as well.
The EMERGENCY STOP button, with a function that disconnects the battery, and the lowering valve, which ensures the load is lowered gently, are just two of the benefits that make work safer and more efficient when this device is used.
Gel battery 12 V / 75 Ah: long service life, even at low ambient temperatures. Maintenance free. Integrated battery charger. Battery status indicator visible from the operating position.
Simple consttruction with a design that makes maintenance very easy: access to the lift motor, battery and battery charger only requires a few screws to be undone, and the device does not have to be lifted.
The machine is equipped with an adjustable valve that regulates the oil flow rate during the lowering process. This means that the lowering speed is easy to regulate according to use by using a lever in the battery compartment.
The design of the stainless steel scissor lift platform truck is certified in accordance with:
UNI EN 1672-1: 2014 (Food processing machinery – Safety requirements)
UNI EN 1672-2: 2009 (Food processing machinery – Hygiene requirements)
Ingress protection IP65 (dustproof and protected from jets of water from any angle), electro-polished AISI 304 stainless steel, waterproof bearings and nylon bushings ensure that this stainless steel high-lift pallet truck complies with food industry regulations. It is the ideal and clean solution for use in the agricultural, chemical and pharmaceutical industries. It is corrosion resistant, easy to manoeuvre, ergonomic and can withstand regular, high pressure cleaning and disinfection that satisfies the strictest hygiene regulations.
The handle is very ergonomic, providing more comfort for the operator, and includes an electric switch for raising and lowering the forks.
The control unit enables the forks to enter the closed side of the pallet by lifting it slightly, which makes subsequent work steps easier to complete. In addition, greater machine stability is achieved by using loading rollers and front stabilisers as standard features. The rear stabilisers make work even safer, even when the working height of 400 mm is exceeded or very heavy objects are lifted as well.
The EMERGENCY STOP button, with a function that disconnects the battery, and the lowering valve, which ensures the load is lowered gently, are just two of the benefits that make work safer and more efficient when this device is used.
Gel battery 12 V / 75 Ah: long service life, even at low ambient temperatures. Maintenance free. Integrated battery charger. Battery status indicator visible from the operating position.
Simple consttruction with a design that makes maintenance very easy: access to the lift motor, battery and battery charger only requires a few screws to be undone, and the device does not have to be lifted.
The machine is equipped with an adjustable valve that regulates the oil flow rate during the lowering process. This means that the lowering speed is easy to regulate according to use by using a lever in the battery compartment.
The design of the stainless steel scissor lift platform truck is certified in accordance with:
UNI EN 1672-1: 2014 (Food processing machinery – Safety requirements)
UNI EN 1672-2: 2009 (Food processing machinery – Hygiene requirements)
- Lift, move and deliver loads up to 1000 kg in damp environments
- Made entirely of AISI 304 stainless steel
- Suitable for the food processing industry
- Makes lifting up to 800 mm easy
Technical data
| Max. load | 1000 kg |
|---|---|
| Lifting range | 85 – 800 mm |
| Lift drive | electro-hydraulic |
| Fork length | 1150 mm |
| Fork width | 170 mm |
| Distance across forks | 550 mm |
| Width | 1740 mm |
| Height | 1190 mm |
| Mobile up to lifting height | 400 mm |
| Steering wheel material | nylon |
| Steering wheel diameter | 175 mm |
| Fork roller material | polyurethane |
| Fork roller version | single |
| Fork roller diameter | 90 mm |
| Fork roller width | 85 mm |
| Colour | stainless steel |
| Finish | stainless steel |
| Load centre | 600 mm |
| Turning radius | 1345 mm |
| Battery | 12 V / 60 Ah |
| Feature | mobile rust free electro-hydraulic |
| Product type | high-lift pallet trucks |
| Supplied | assembled |
| Weight | 149 kg |
