Ref.: 515999 49

High lift stacker lifting range 90 – 1200 mm, max. load 1000 kg

High lift stacker

overall height 1730 mm

£2,075.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Product description
  • Max. load 1000 kg
  • Environmentally friendly: manual transport and lifting

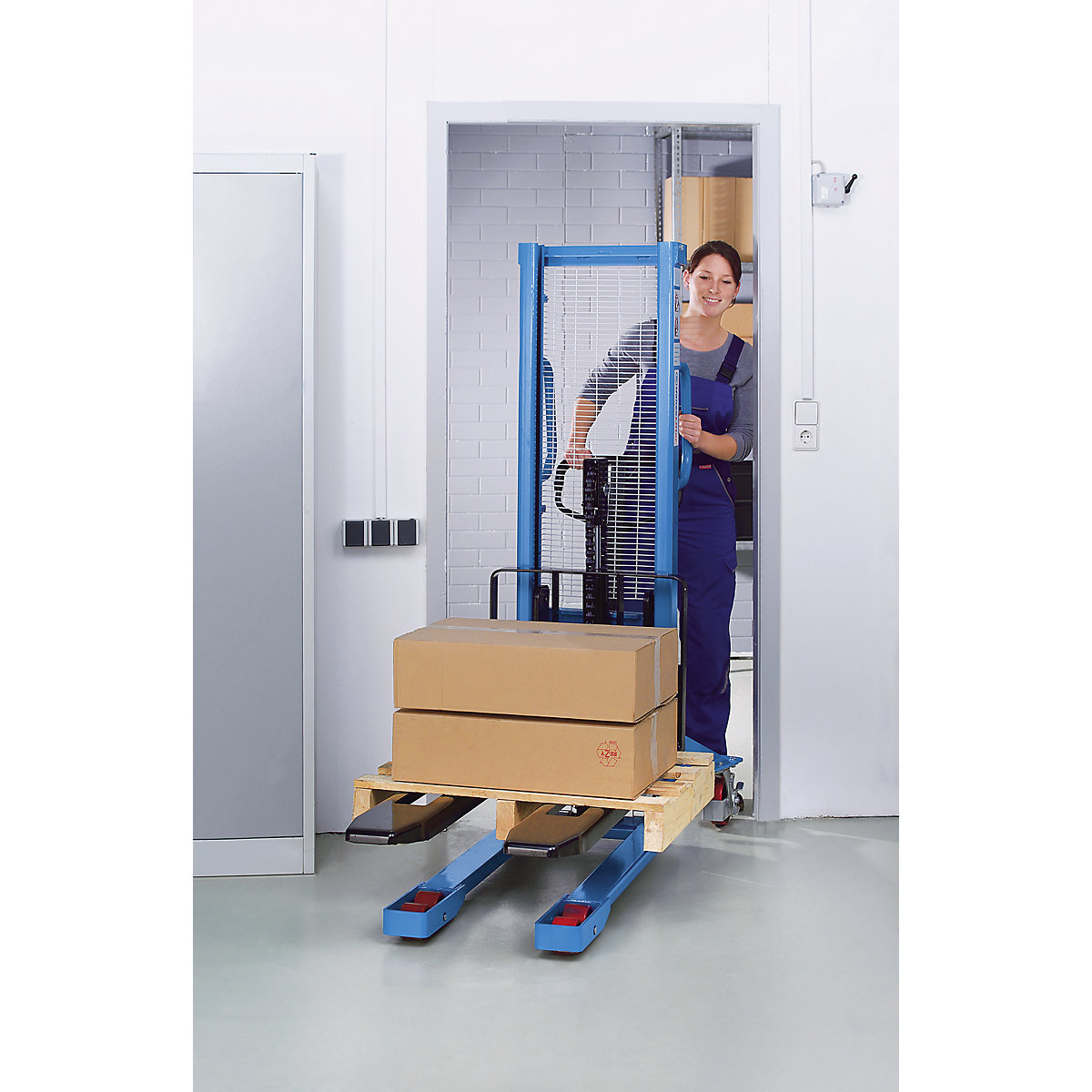

  • Fits through most doors
Robust construction with reinforced mast profile. Load chain and hydraulic cylinder with guard screen for safety.
Excellent stability due to wheel stops on the steering wheels – even under full load.
High quality powder coating in light blue RAL 5012.
Lifting and lowering
Energy saving lifting via drawbar or pedal. Hardened, chrome plated hydraulic ram.
Progressive lowering via rubberised, ergonomically shaped drawbar handle. Safety overload valve ensures a long service life.
Technical data
Max. load1000 kg
Load centre600 mm
Lifting range90 – 1200 mm
Fork length1150 mm
Distance across forks550 mm
Fork width170 mm
Length1705 mm
Width755 mm
Overall height1730 mm
Design of mastsingle mast
Lift per pump stroke20 mm
Wheel fittings2 swivel castors with wheel stops
Wheel materialpolyurethane
Castor diameter front / rear83 / 150 mm
Steering wheel width40 mm
Fork roller versiontandem
Fork roller width60 mm
Finishpowder coated
Colourlight blue RAL 5012
Materialsteel
Product typehigh lift stackers
Suppliedassembled
Weight200 kg
Instructions
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
0
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

1,688kg CO₂e
LCA Raw Material Extraction & Processing
65.8%
LCA packaging production
0.7%
LCA Product Manufacturing
25.5%
LCA Inbound and Outbound Transportation
8.1%
‌
‌
‌
‌
‌
