Ref.: 986301 49

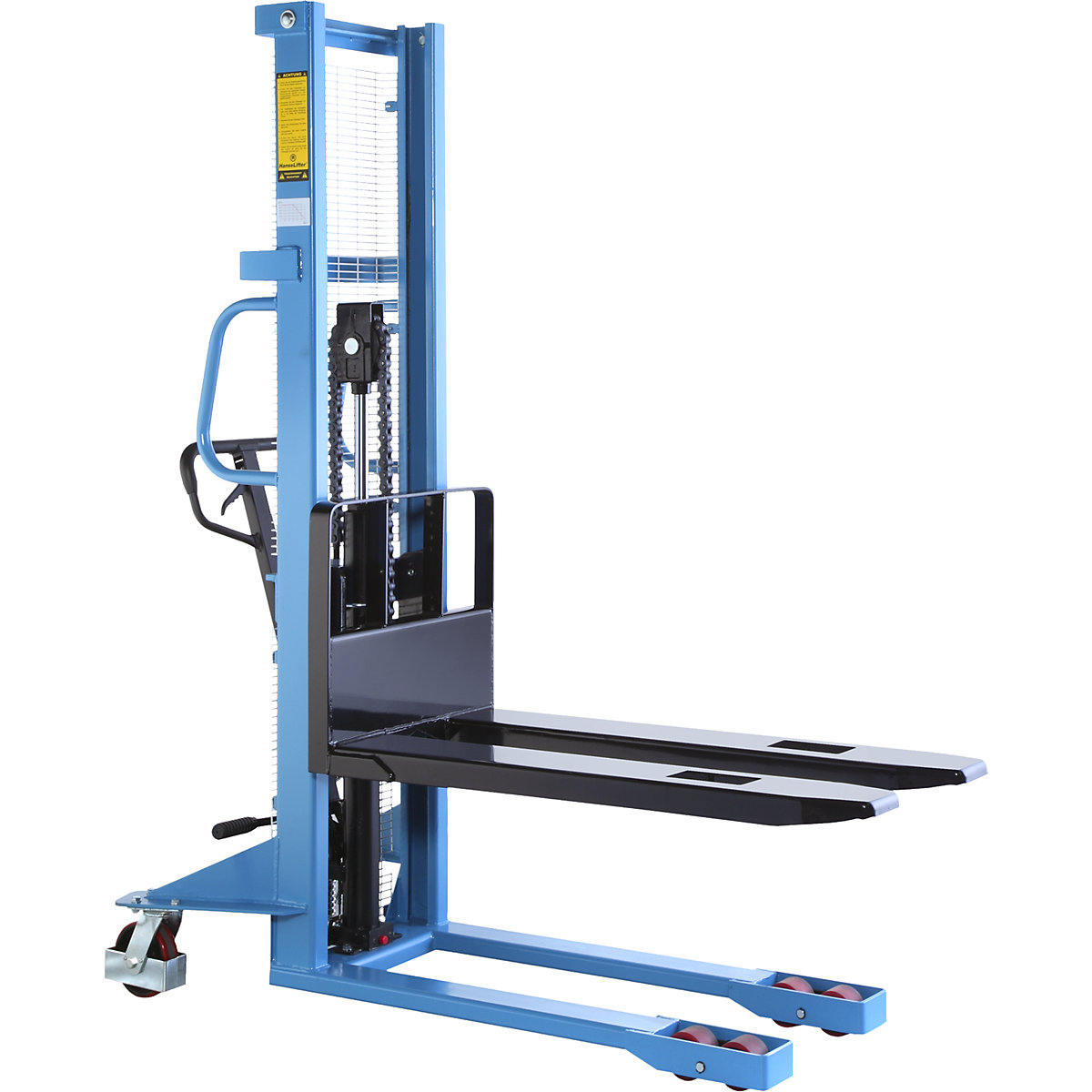

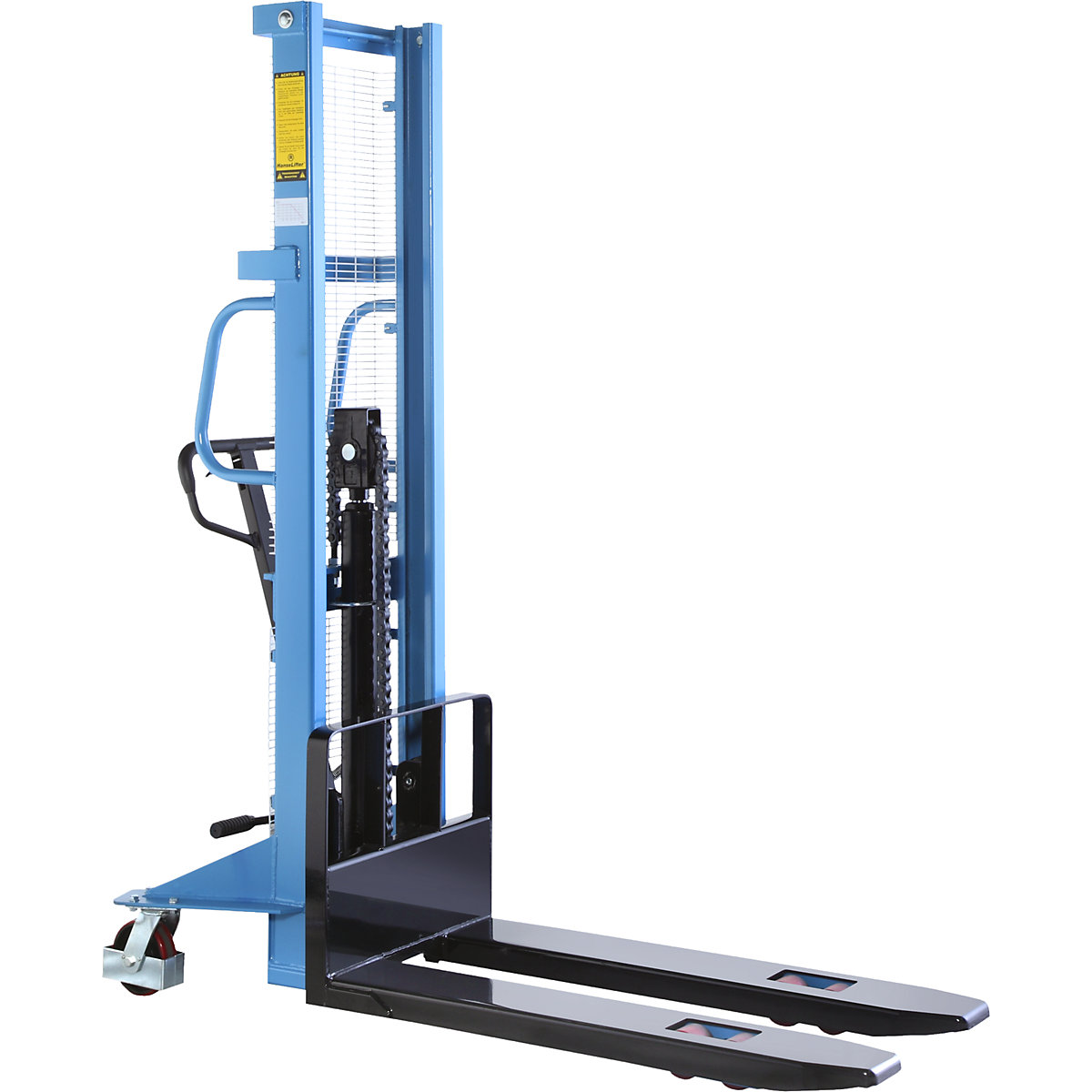

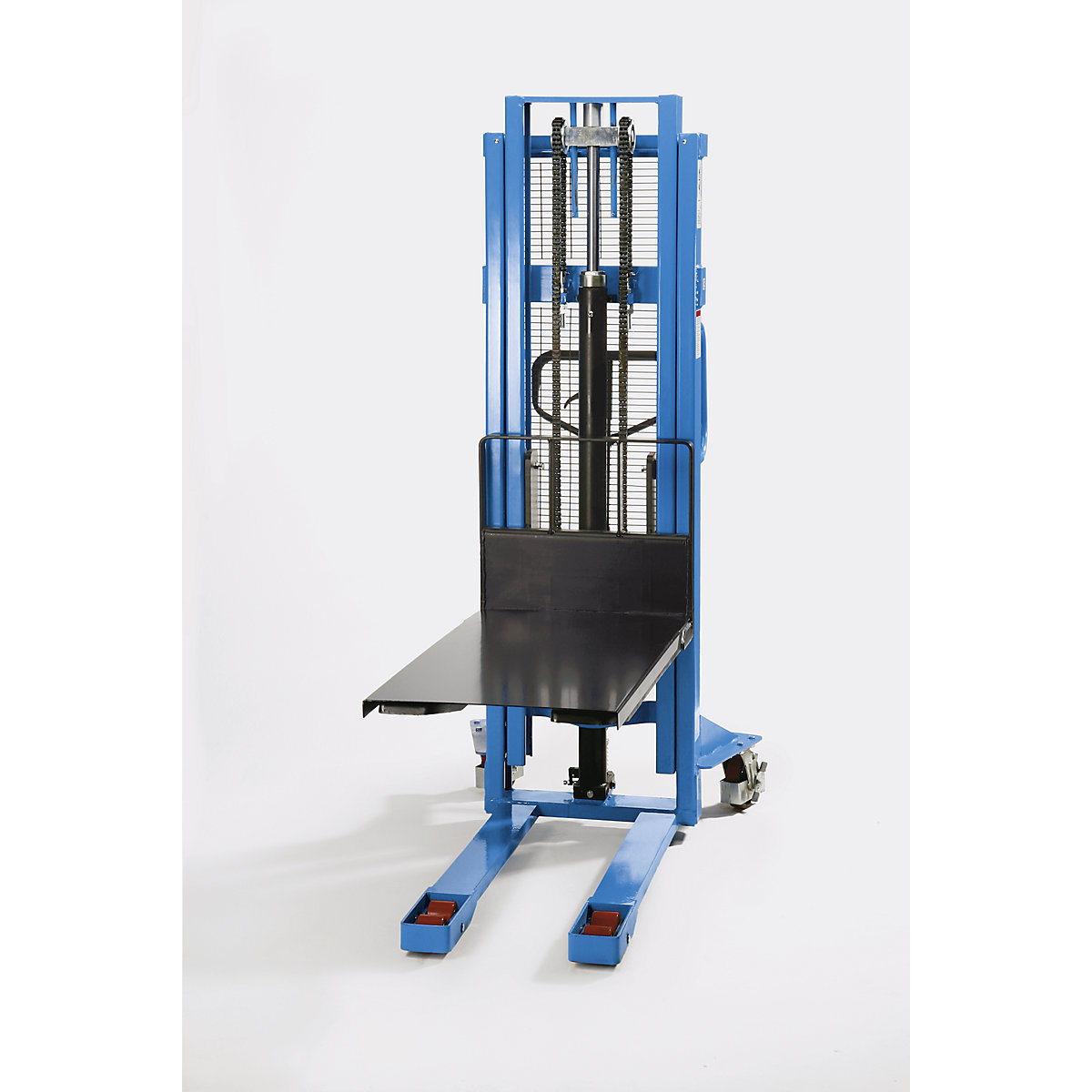

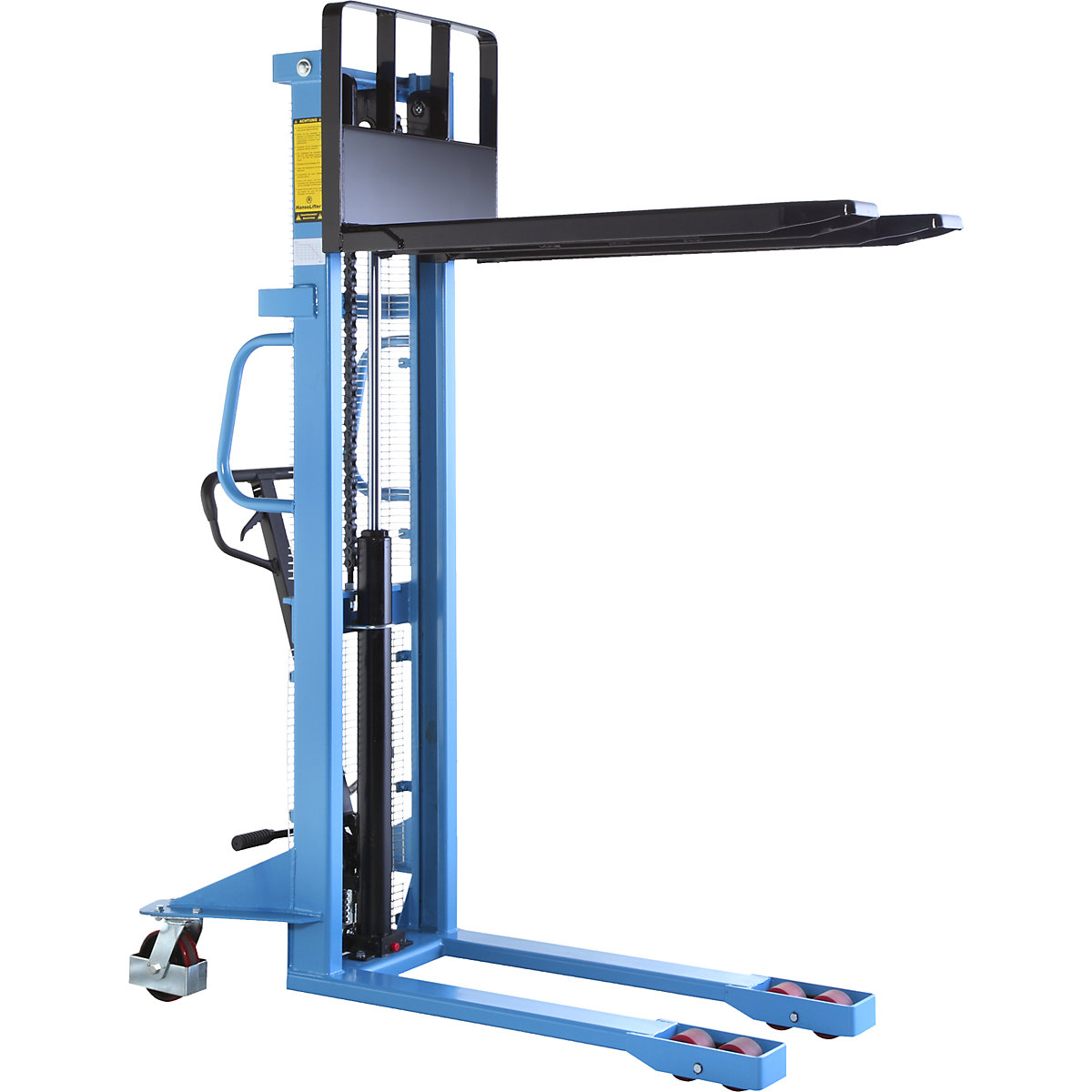

High lift stacker lifting range 90 – 2500 mm, max. load 1000 kg

High lift stacker

overall height 1850 mm

£2,950.00
Price / item (Excl. VAT)

Delivery time: 2 Week delivery
Product description

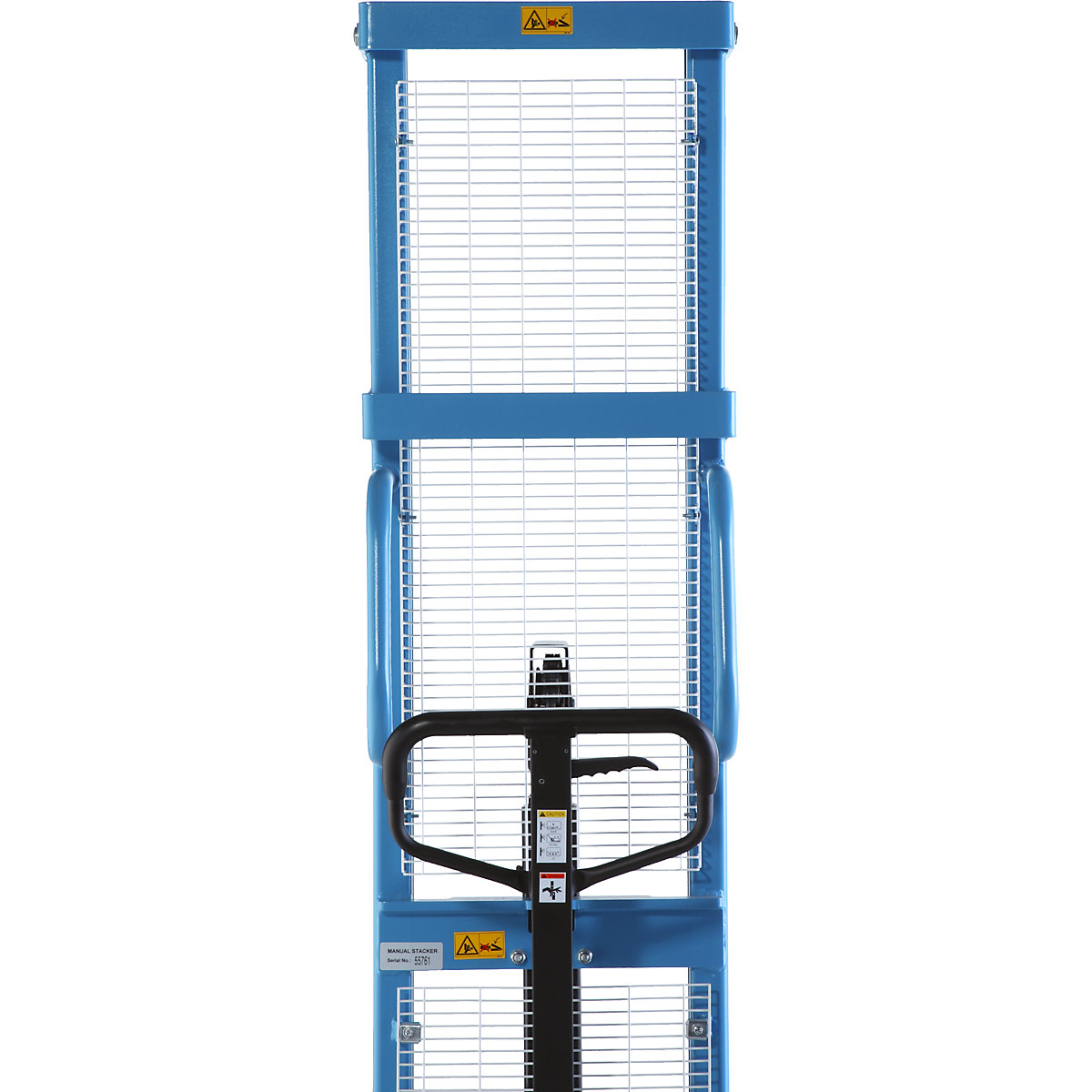

Robust construction with reinforced mast profile. Load chain and hydraulic cylinder with guard screen for safety.
Excellent stability due to wheel stops on the steering wheels – even under full load.
High quality powder coating in light blue RAL 5012.
Lifting and lowering
Energy saving lifting via drawbar or pedal. Hardened, chrome plated hydraulic ram.

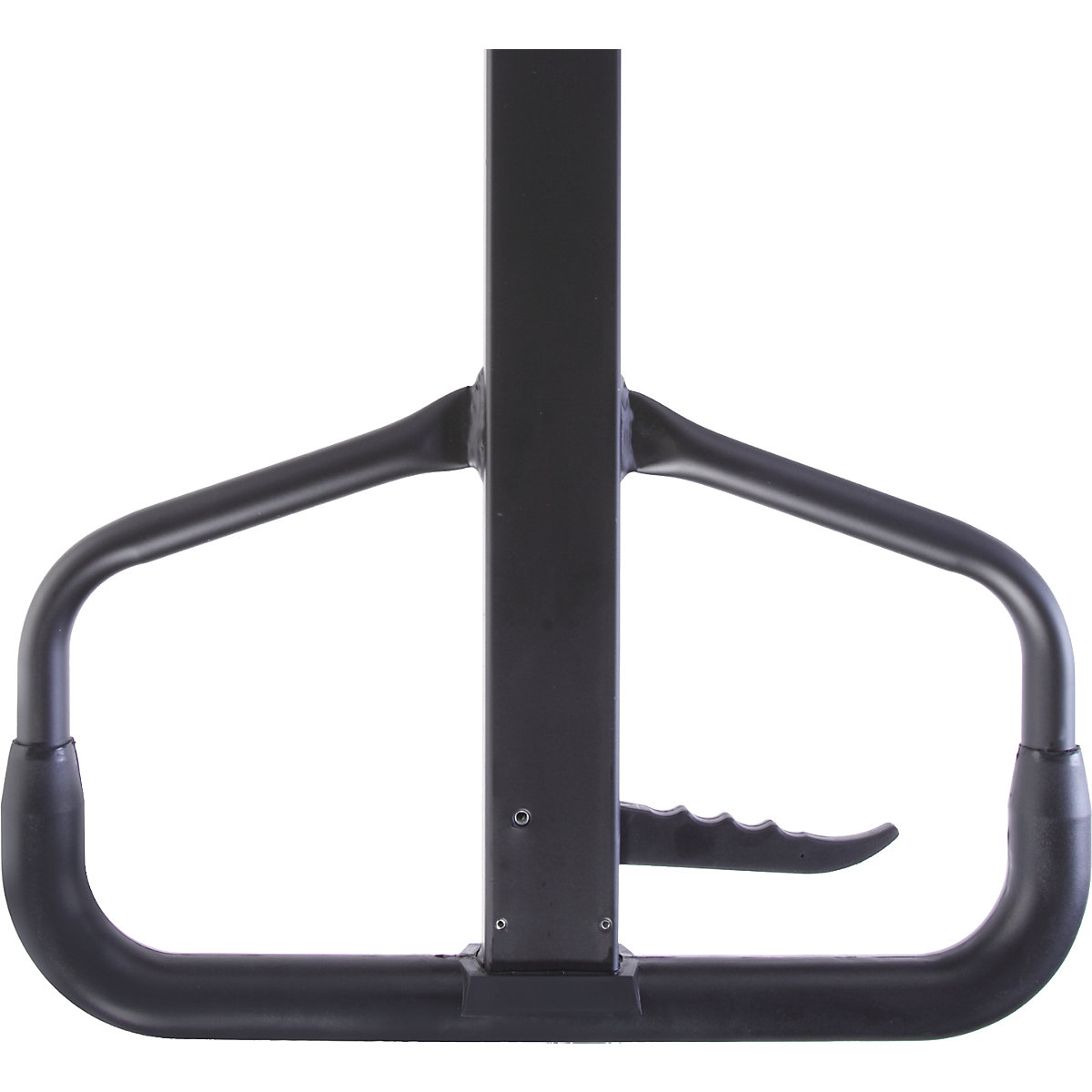

Progressive lowering via rubberised, ergonomically shaped drawbar handle. Safety overload valve ensures a long service life.
  • Max. load 1000 kg
  • Environmentally friendly: manual transport and lifting
  • Fits through most doors
Technical data
Max. load1000 kg
Load centre500 mm
Lifting range90 – 2500 mm
Fork length1150 mm
Distance across forks550 mm
Fork width170 mm
Length1705 mm
Width860 mm
Overall height1850 mm
Design of masttelescopic mast
Lift per pump stroke20 mm
Wheel fittings2 swivel castors with wheel stops
Wheel materialpolyurethane
Castor diameter front / rear83 / 150 mm
Steering wheel width40 mm
Fork roller versiontandem
Fork roller width60 mm
Finishpowder coated
Colourlight blue RAL 5012
Product typehigh lift stackers
Suppliedassembled
Weight276 kg
