Ref.: 986311 49

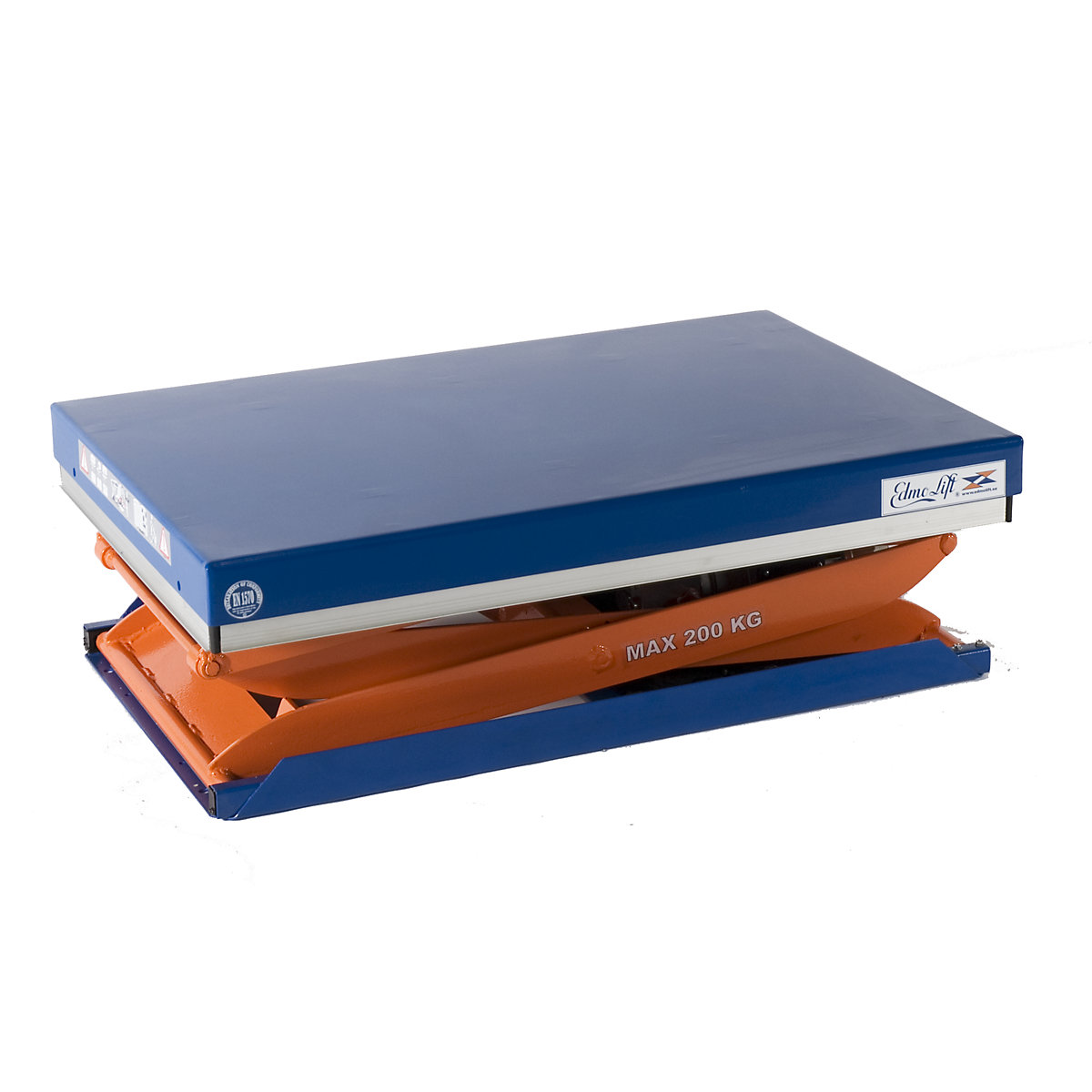

Compact lift table, static – Edmolift max. load 200 kg

Compact lift table, static – Edmolift

platform LxW 900 x 600 mm, effective lift 1170 mm

£3,529.00
Price / item (Excl. VAT)

Only 4 available
Delivery time: 5-7 Working days
Product description
Compact lift tables can be either used free standing or built-in, so that the platform is level with the ground. The table is smoothly and quickly raised to the desired height at the touch of a button. The electro-hydraulic motor is integrated in the device. High quality powder coating, platform and frame in ultramarine blue RAL 5002, scissor mechanism in signal orange RAL 2010.
Operating voltage 400 V. Control voltage 24 V.

With double scissor mechanism.
230 V model on request.
The static compact lift tables are fitted with safety skirting and electrically controlled safety valves, and are compliant with EN 1570-1 as well as VDE requirements. Operated using a hand switch with 3 m cable and emergency off switch.

Lifting capacity at full load: 3 – 4 cycles per hour in 1 shift operation.
Accessories for static compact lift tables on request.
  • Low price due to high volume production
  • Tested and proven for daily, 8 hour operation
  • Sturdy construction
Technical data
Max. load200 kg
Lifting range280 – 1450 mm
Platform designclosed
Lifting time12 sec
Power0.37 kW
Operating voltage400 V 3-phase AC
Control voltage24 V
Lift driveelectro-hydraulic
Platform colourultramarine blue RAL 5002
Platform materialsheet metal
Platform finishpowder coated
Scissor mechanism coloursignal orange RAL 2010
Finishpowder coated
Frame colourultramarine blue RAL 5002
Product typecompact lift tables
Lift1170 mm
Lifting capacity at full load in 1 shift operations3 – 4 cycles per hour
Platform width600 mm
Platform length900 mm
Featurestationary
electro-hydraulic
Suppliedassembled
Weight85 kg
