Ref.: 969082 49

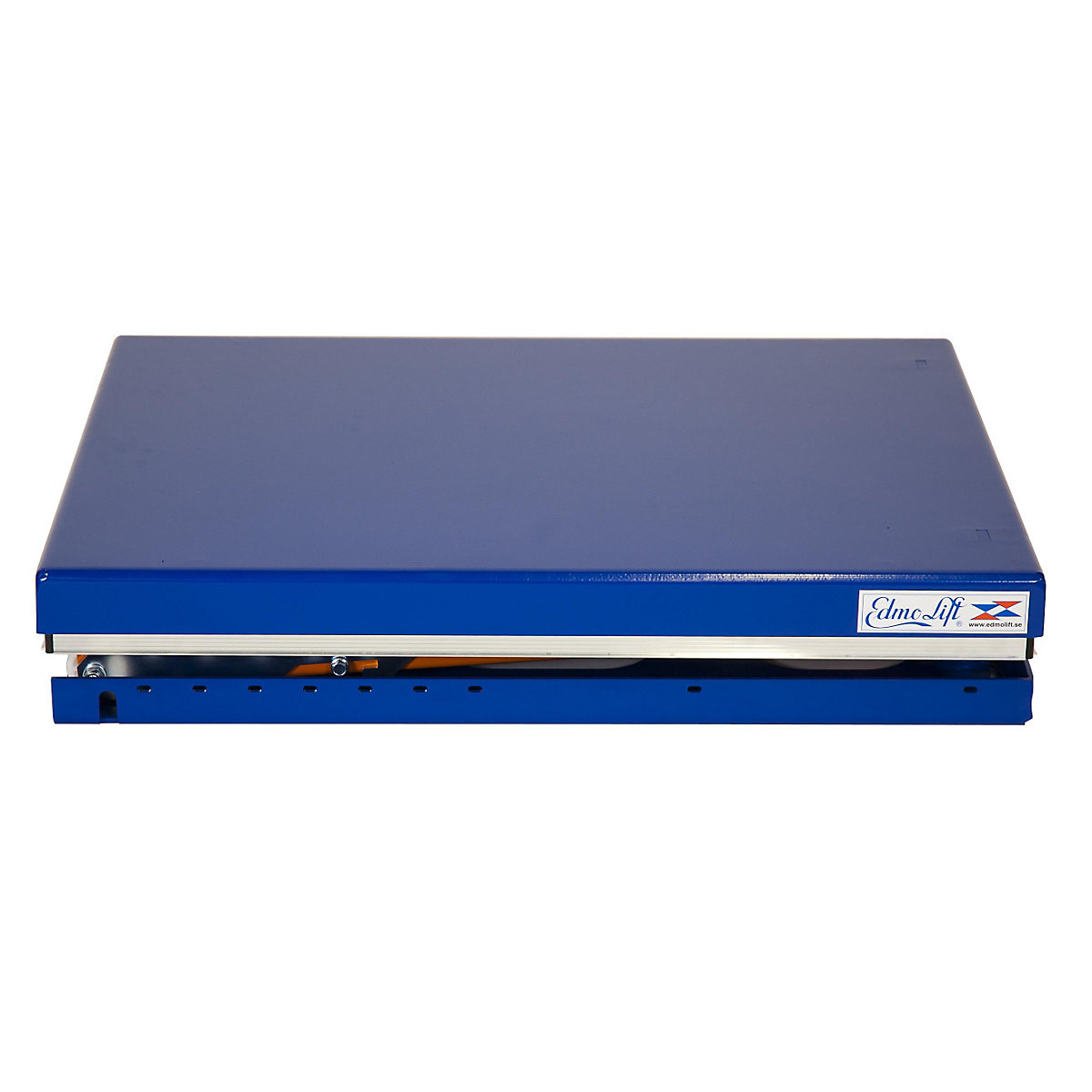

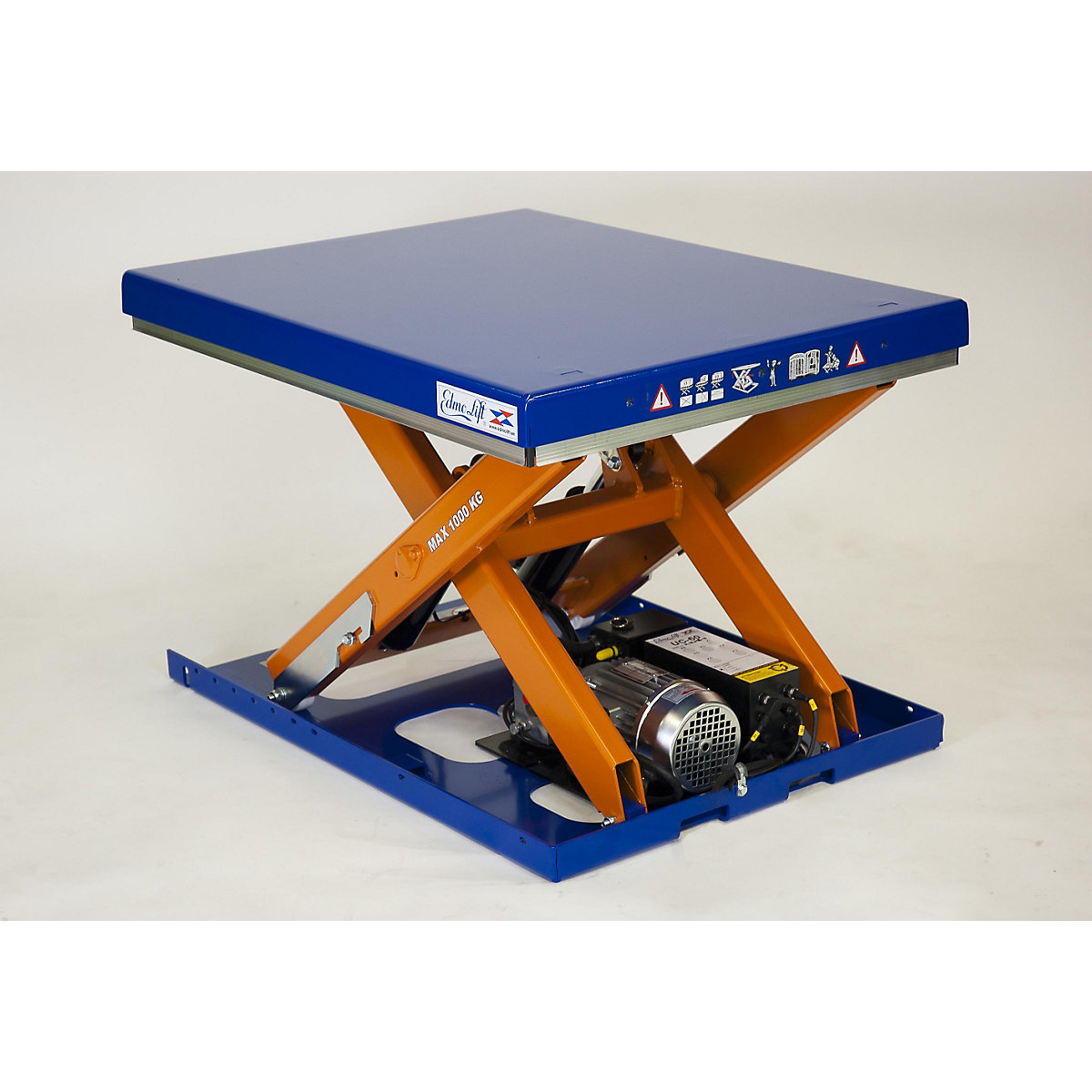

Compact lift table – Edmolift max. load 1000 kg

Compact lift table – Edmolift

platform LxW 900 x 700 mm, effective lift 600 mm

£3,979.00
Price / item (Excl. VAT)

Delivery time: Over 4 weeks
Product description
Compact lift tables can be used either free standing or built-in, so that the platform is level with the ground.

The table is smoothly and quickly raised to the desired height at the touch of a button. The electro-hydraulic motor is integrated into the device.
230 V model on request.
Accessories for static compact lift tables on request.
The static compact lift tables are fitted with safety skirting and electrically controlled safety valves, making them compliant with EN 1570-1 as well as VDE requirements.
Controlled via hand switch with 3 m cable, emergency off switch.

Lifting capacity at full load: max. 10 cycles per hour in 2 shift operation (= max. 10000 cycles per year).
  • Manufactured in Europe
  • Scissors made of stiff rectangular tubing
  • Tested in multiple shift operations
  • Components are laser cut and robotically welded
Technical data
Max. load1000 kg
Platform designclosed
Operating voltage400 V 3-phase AC
Control voltage24 V
Lift driveelectro-hydraulic
Platform coloursignal blue RAL 5005
Platform finishpowder coated
Scissor mechanism coloursignal orange RAL 2010
Finishpowder coated
Frame coloursignal blue RAL 5005
Fittingswith hand operated control unit
Product typecompact lift tables
Lifting capacity at full load in multiple-shift operationsmax. 10 cycles per hour
Featurestationary
electro-hydraulic
Lifting range160 – 760 mm
Lifting time22 sec
Power0.37 kW
Lift600 mm
Platform width700 mm
Platform length900 mm
Suppliedassembled
Weight135 kg
