Ref.: 969081 49

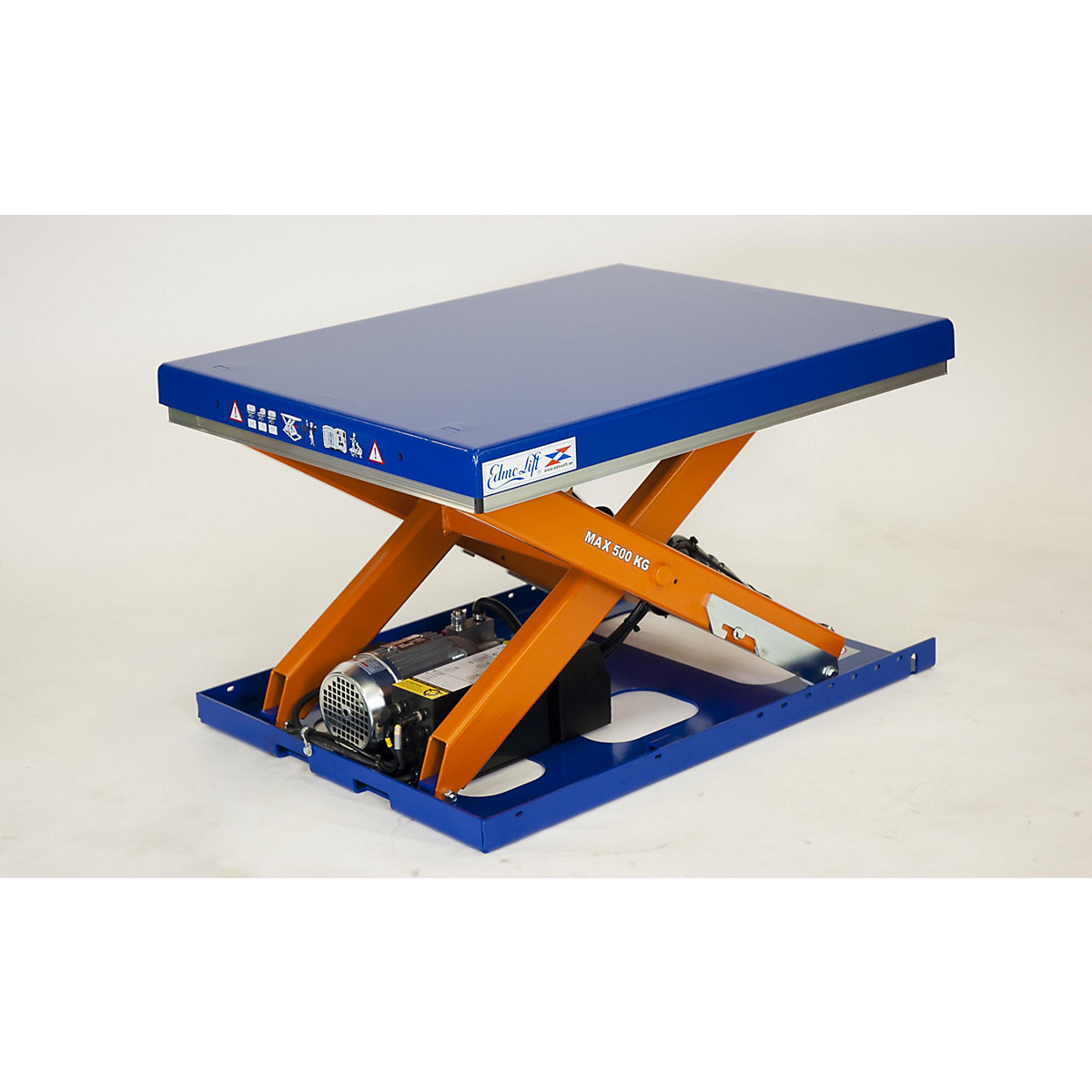

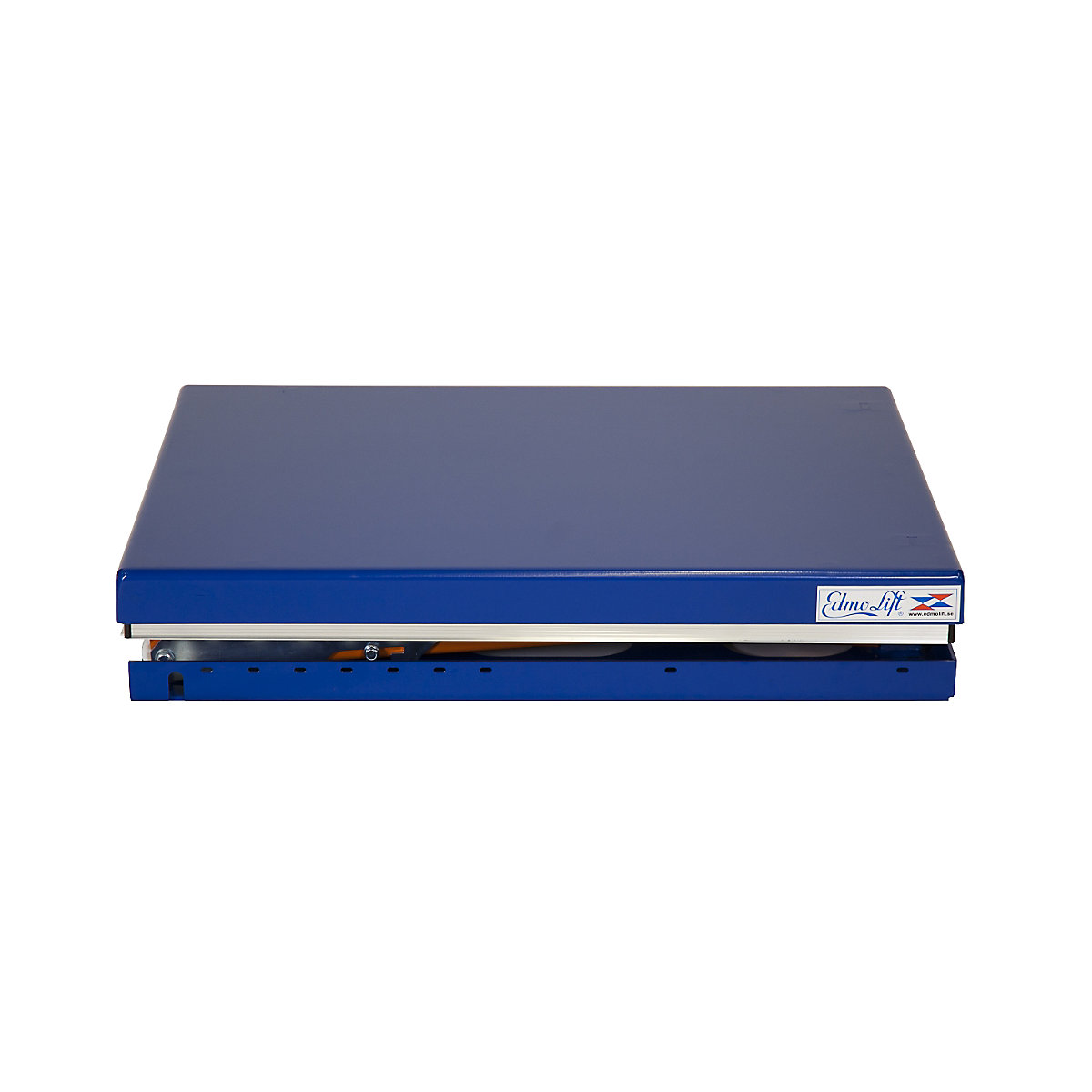

Compact lift table – Edmolift max. load 500 kg

Compact lift table – Edmolift

platform LxW 900 x 700 mm, effective lift 600 mm

£3,679.00
Price / item (Excl. VAT)

Only 1 available
Delivery time: 5-7 Working days
Product description
Compact lift tables can be used either free standing or built-in, so that the platform is level with the ground.

The table is smoothly and quickly raised to the desired height at the touch of a button. The electro-hydraulic motor is integrated into the device.
230 V model on request.
Accessories for static compact lift tables on request.
The static compact lift tables are fitted with safety skirting and electrically controlled safety valves, making them compliant with EN 1570-1 as well as VDE requirements.
Controlled via hand switch with 3 m cable, emergency off switch.

Lifting capacity at full load: max. 10 cycles per hour in 2 shift operation (= max. 10000 cycles per year).
  • Manufactured in Europe
  • Scissors made of stiff rectangular tubing
  • Tested in multiple shift operations
  • Components are laser cut and robotically welded
Technical data
Max. load500 kg
Lifting range160 – 760 mm
Platform designclosed
Lifting time12 sec
Power0.37 kW
Operating voltage400 V 3-phase AC
Control voltage24 V
Lift driveelectro-hydraulic
Platform coloursignal blue RAL 5005
Platform finishpowder coated
Scissor mechanism coloursignal orange RAL 2010
Finishpowder coated
Frame coloursignal blue RAL 5005
Fittingswith hand operated control unit
Product typecompact lift tables
Lift600 mm
Lifting capacity at full load in multiple-shift operationsmax. 10 cycles per hour
Platform width700 mm
Platform length900 mm
Featurestationary
electro-hydraulic
Suppliedassembled
Weight130 kg
