Ref.: 658791 49
Lift table – eurokraft basic max. load 500 kg
platform LxW 900 x 600 mm
Ref.: 658791 49
Lift table – eurokraft basic max. load 500 kg
platform LxW 900 x 600 mm
platform LxW 900 x 600 mm
£2,850.00
Price / item (Excl. VAT)
Only 3 available
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Product description

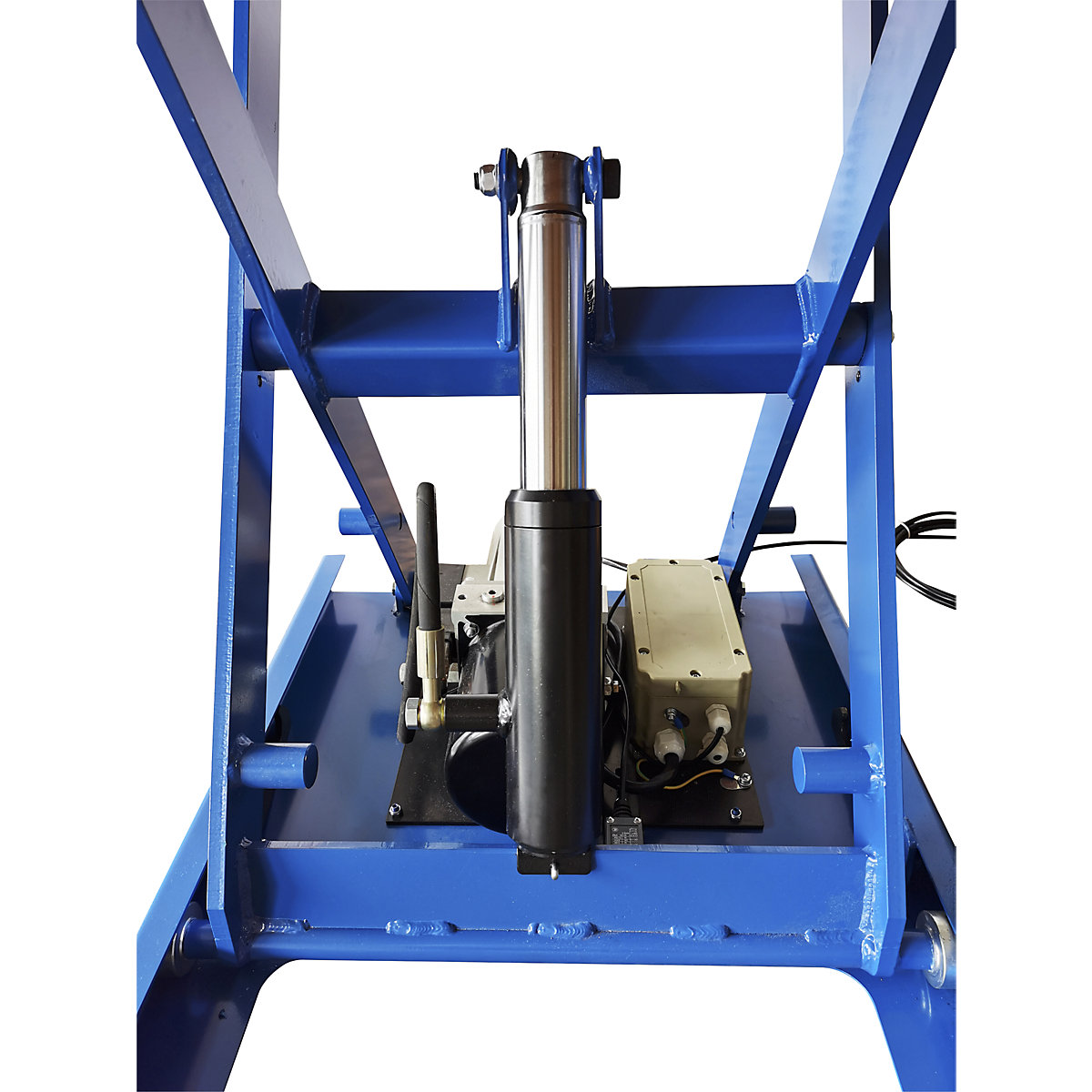

- Reliable Bucher hydraulics
- Reliable, sensitive, fast

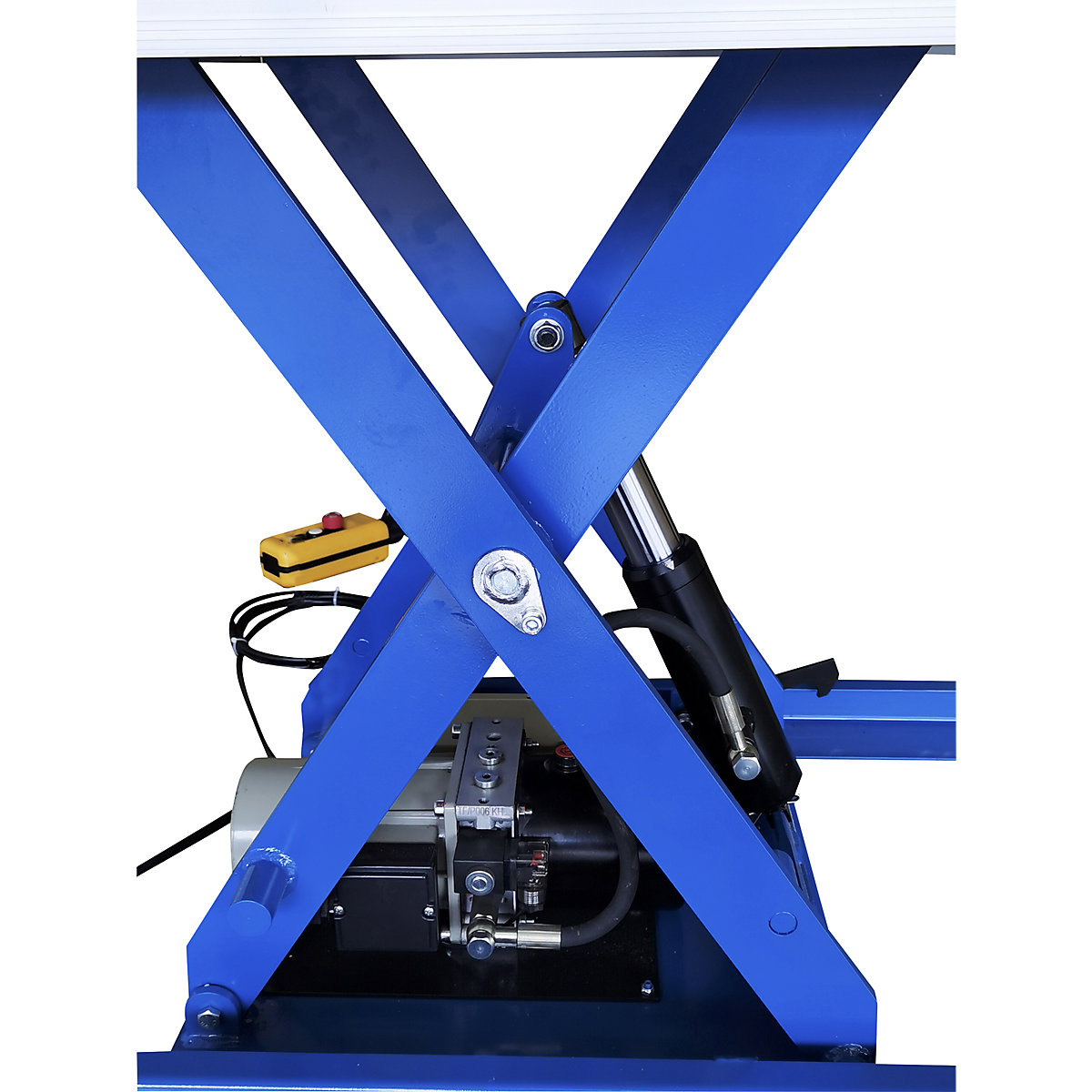

- Torsion resistant scissor mechanism
Solidly built, stationary lift table. Torsion resistant scissor mechanism made of rectangular tubing for high lateral stability.

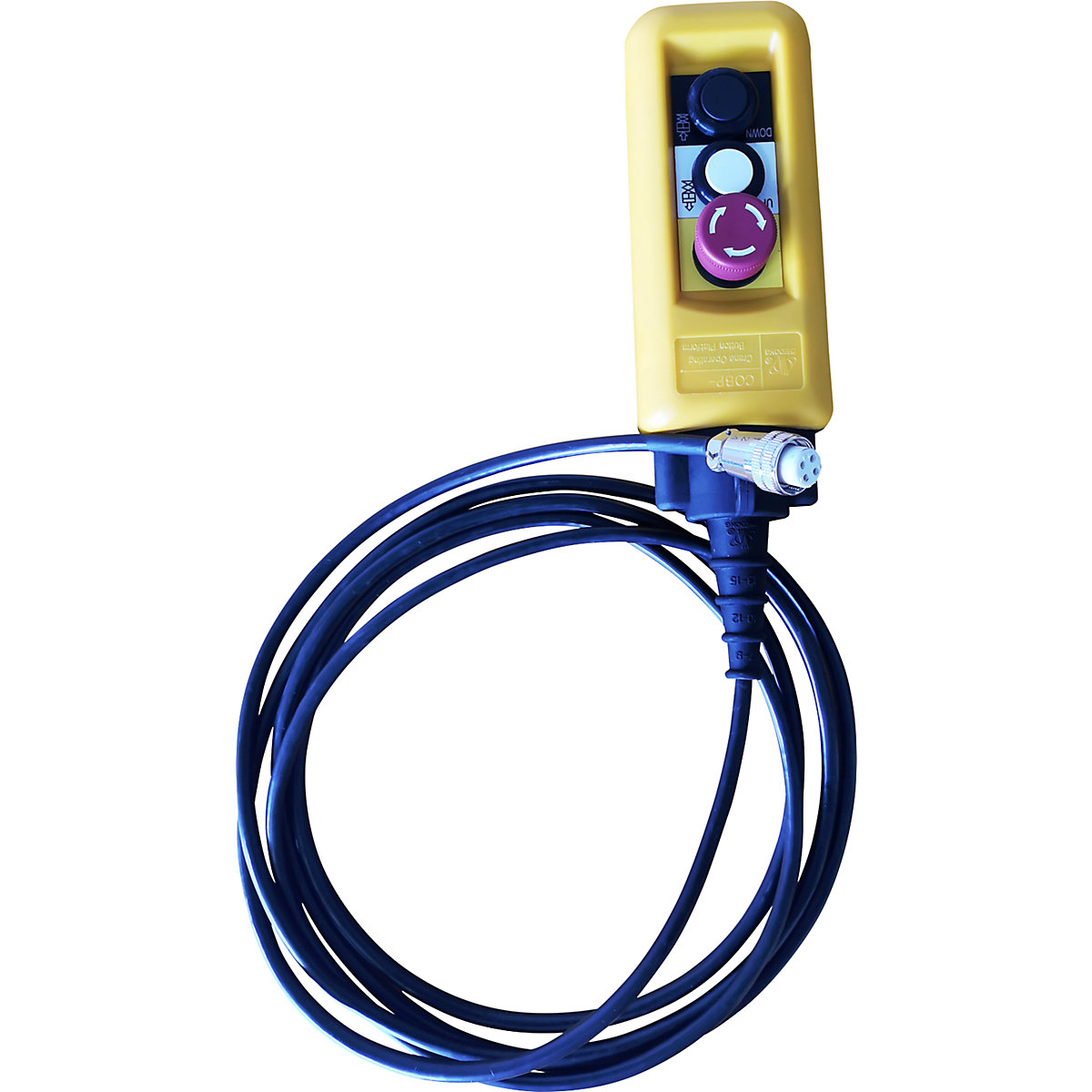

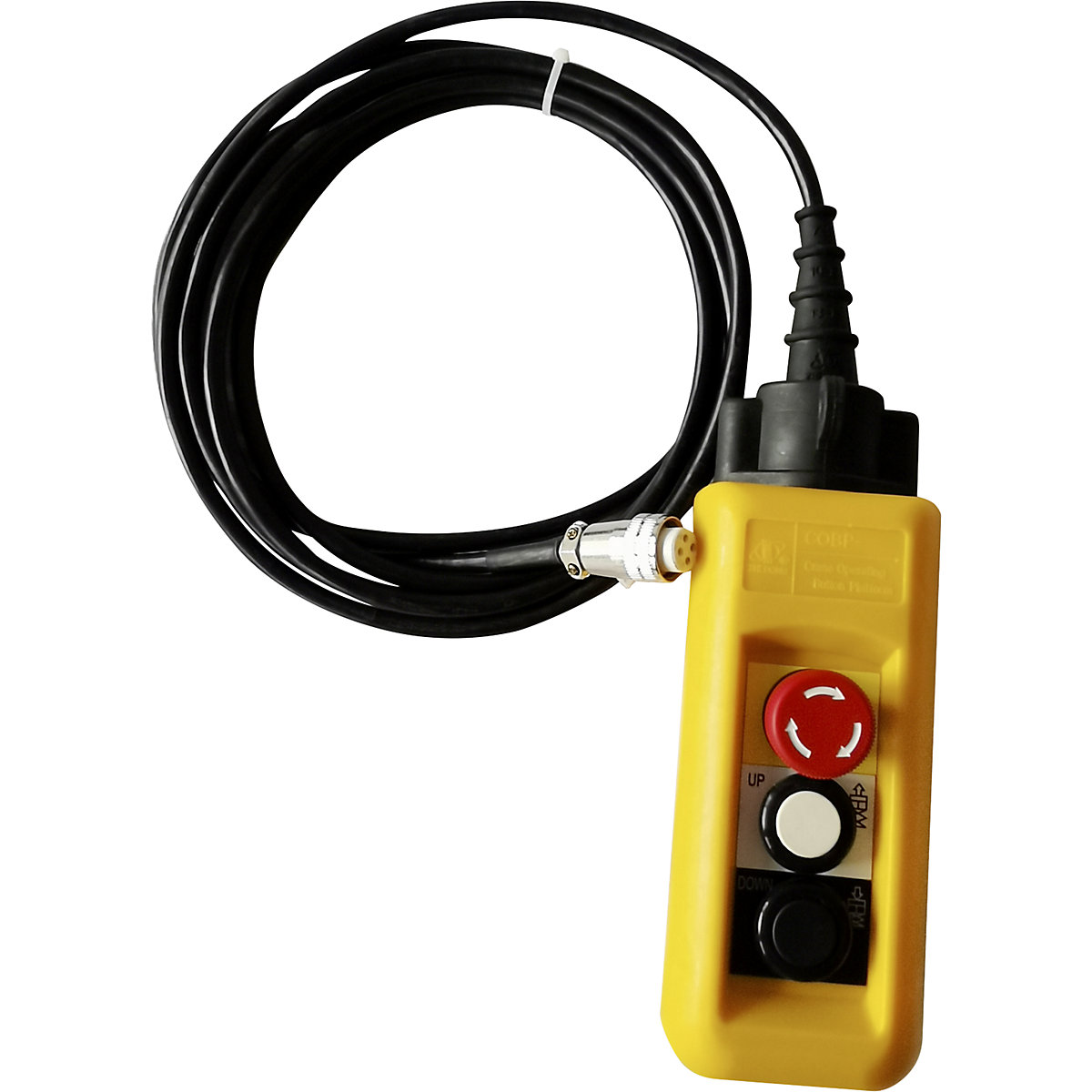

Manual control unit with up-down button and emergency off. Infinite lifting and lowering.

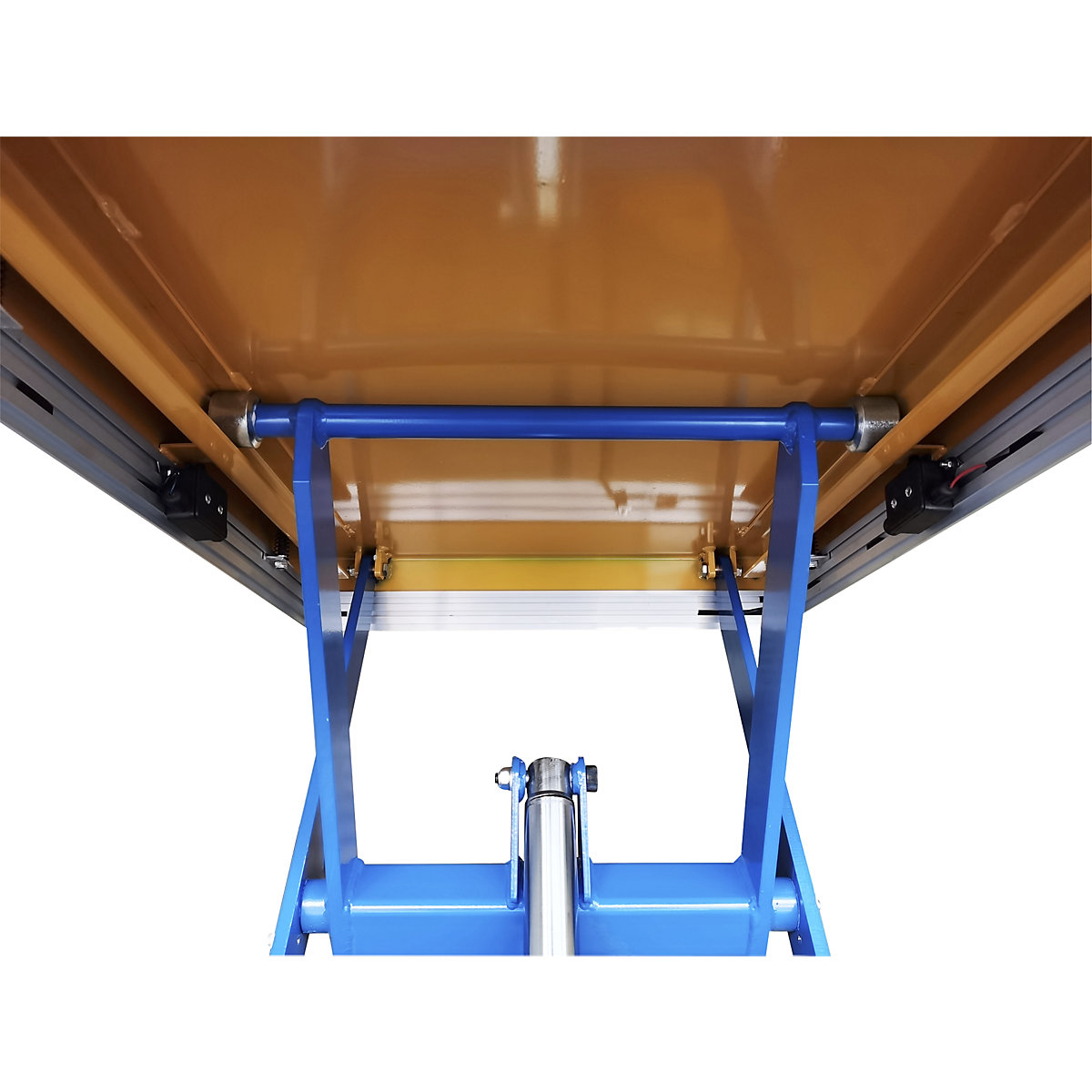

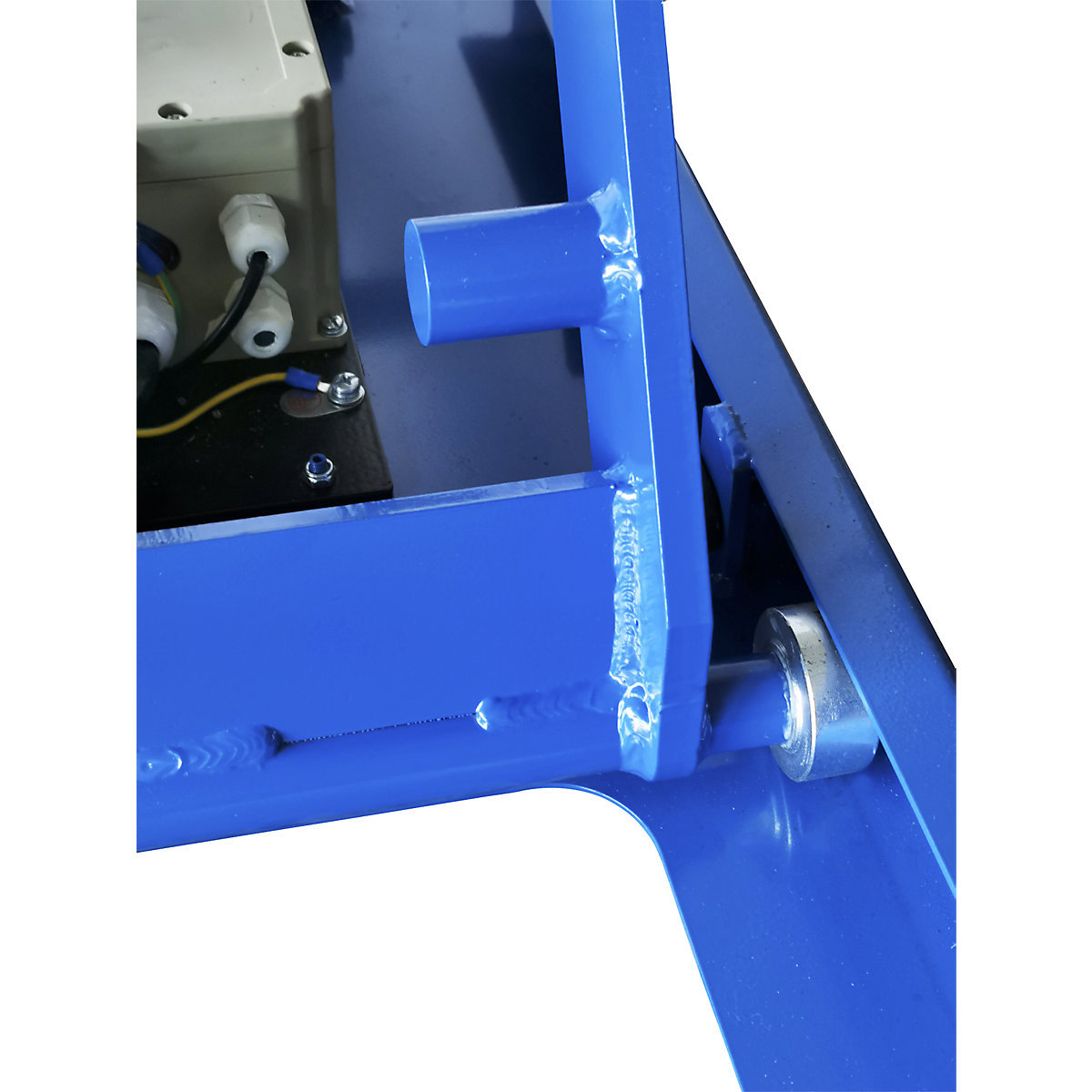

Smooth running due to safe guidance of the scissor mechanism by means of nylon rollers on the smooth lower frame.
Complete safety equipment in compliance with EN 1570-1. CE compliant. Ambient temperature of indoor area 0 – 40 °C.
Connection using 4.5 m cable and a red 16 A CEE plug.
500 kg model with laser cut flat scissor mechanism.
Manual control unit with up-down button and emergency off. Infinite lifting and lowering.
Smooth running due to safe guidance of the scissor mechanism by means of nylon rollers on the smooth lower frame.
Complete safety equipment in compliance with EN 1570-1. CE compliant. Ambient temperature of indoor area 0 – 40 °C.
Connection using 4.5 m cable and a red 16 A CEE plug.
500 kg model with laser cut flat scissor mechanism.
Technical data
Max. load | 500 kg |
---|---|
Lifting range | 160 – 760 mm |
Platform design | closed |
Lifting time | 15 sec |
Power | 0,37 kW |
Operating voltage | 400 V / 50 Hz |
Control voltage | 24 V |
Lift drive | electro-hydraulic |
Platform colour | melon yellow RAL 1028 |
Platform material | steel |
Scissor mechanism colour | signal blue RAL 5005 |
Finish | powder coated |
Fittings | with hand operated control unit |
Product type | compact lift tables |
Lifting capacity at full load in multiple-shift operations | 6 cycles per hour |
Platform width | 600 mm |
Platform length | 900 mm |
Feature | stationary electro-hydraulic |
Supplied | assembled |
Weight | 115 kg |
Instructions |
