Ref.: 724227 49

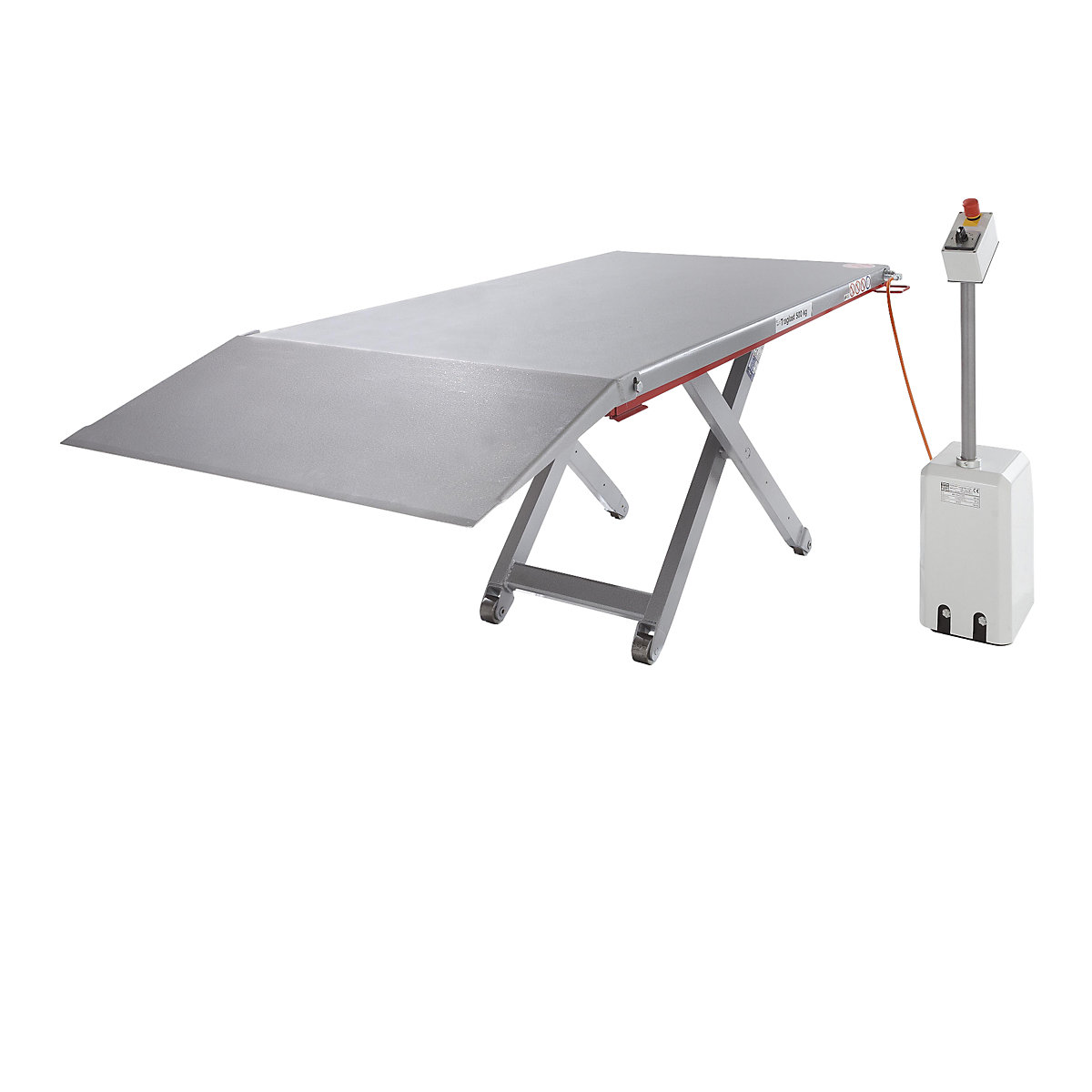

Low profile lift table, G series – Flexlift max. load 1000 kg, lifting range 80 – 750 mm

Low profile lift table, G series – Flexlift

LxW 1450 x 900 mm, 400 V 3-phase

£7,700.00
Price / item (Excl. VAT)

Delivery time: 2 Week delivery
Product description
  • Made in Germany by FLEXLIFT

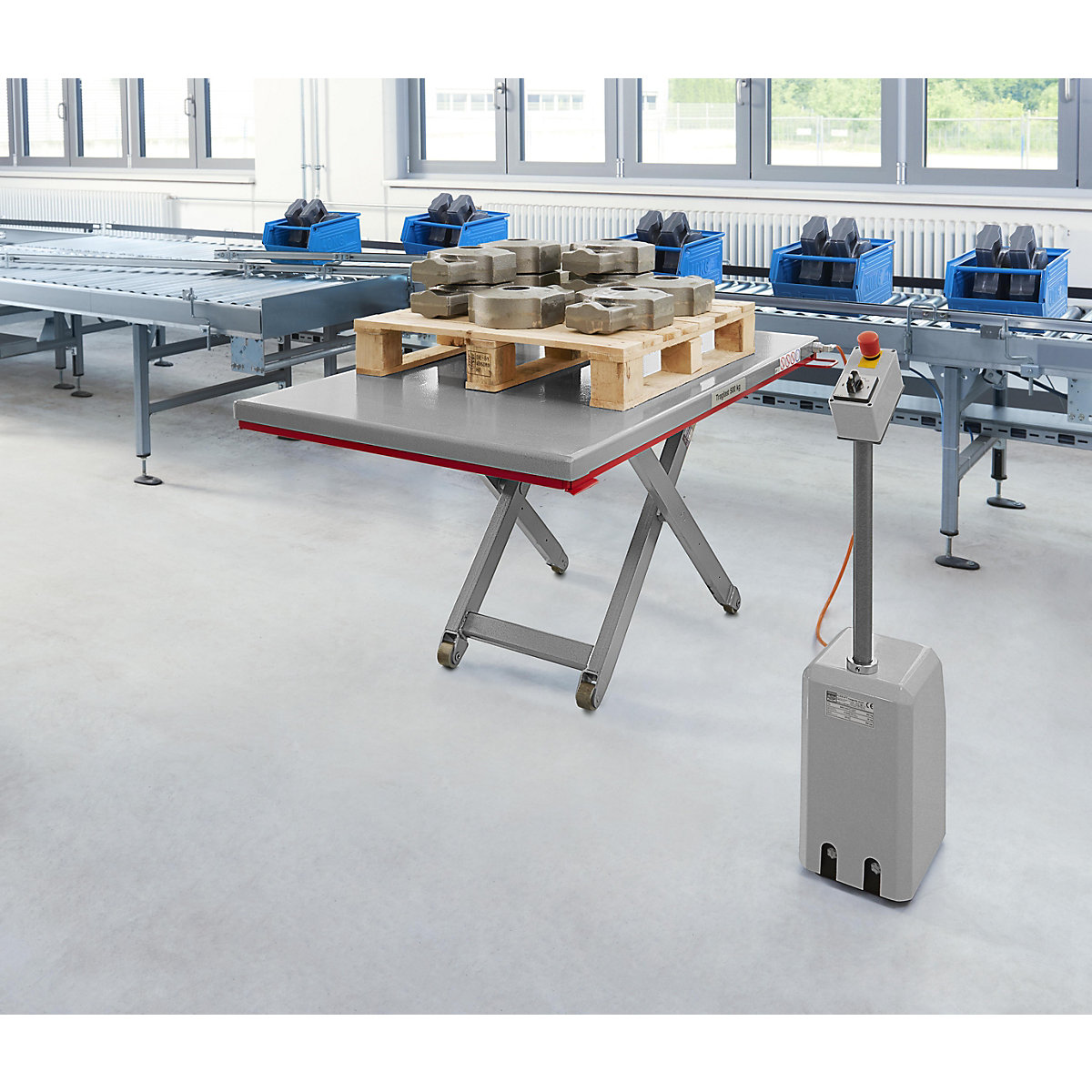

  • For Euro pallets, industrial pallets, mesh pallets
  • All-round foot clearance without a floor frame for top ergonomics

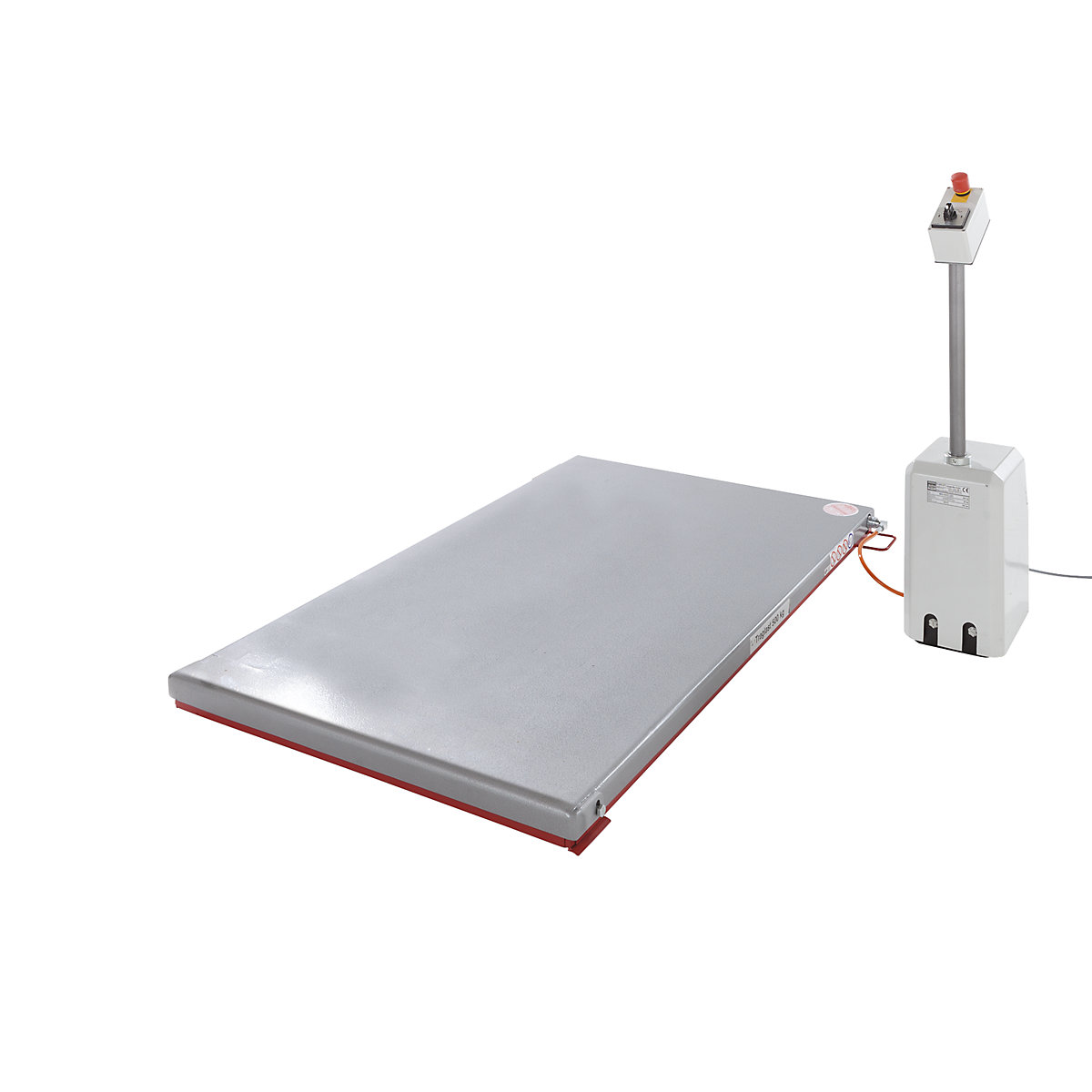

  • Portable compact hydraulic power unit with manual operation on the stand

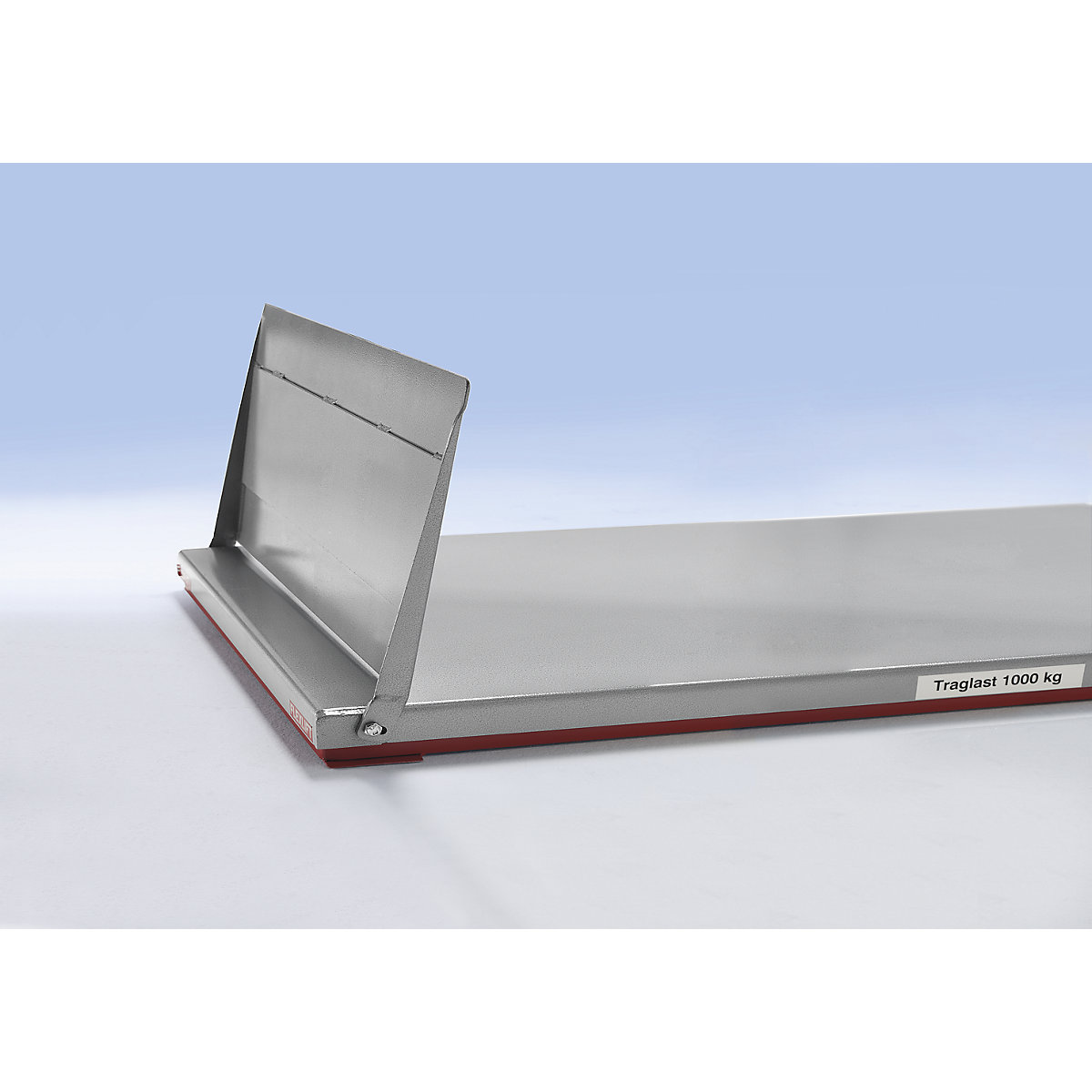

  • Closed platform
  • Ideally suited for loose items, crates, boxes and stacks of paper
  • Supplied with 4 castors for transport as standard

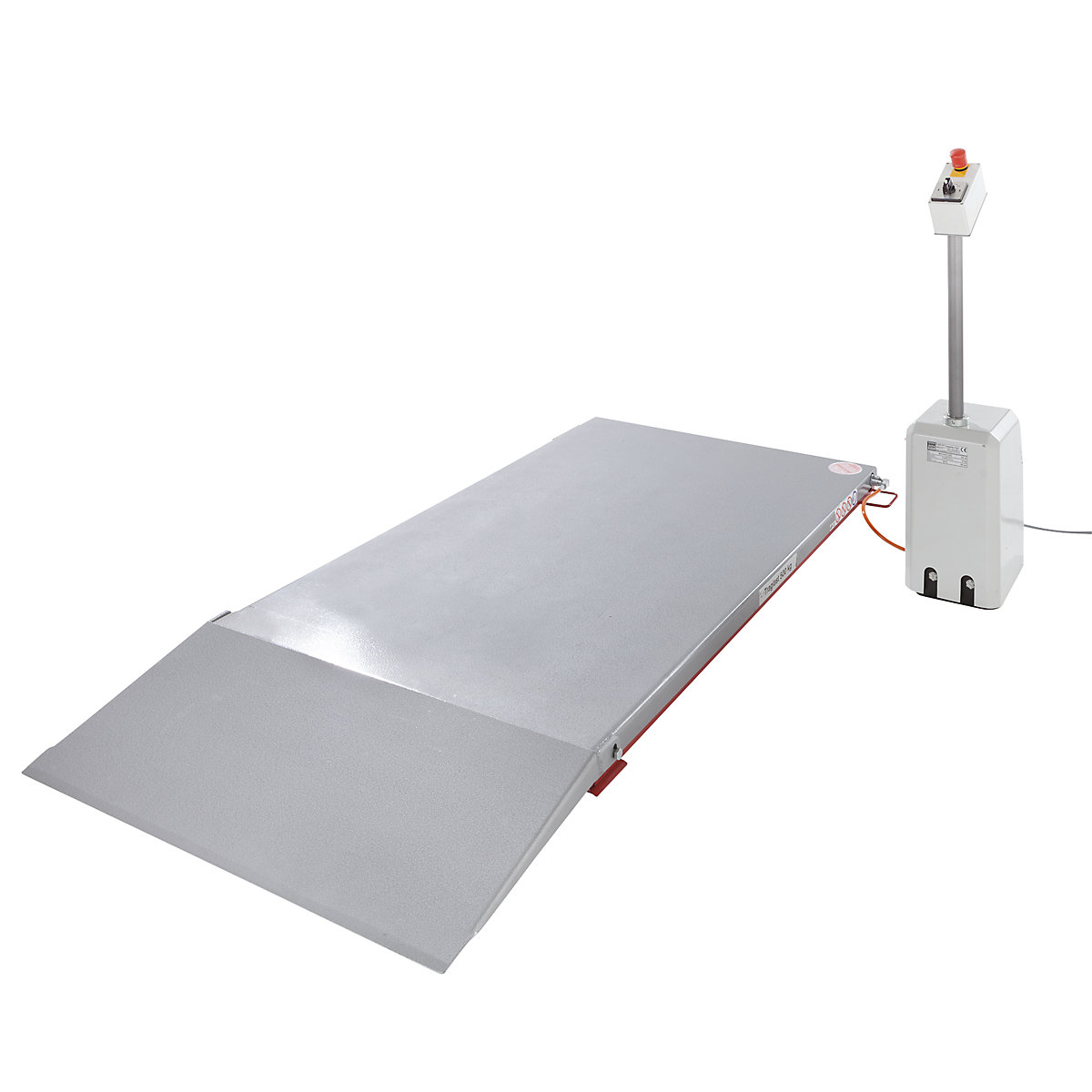

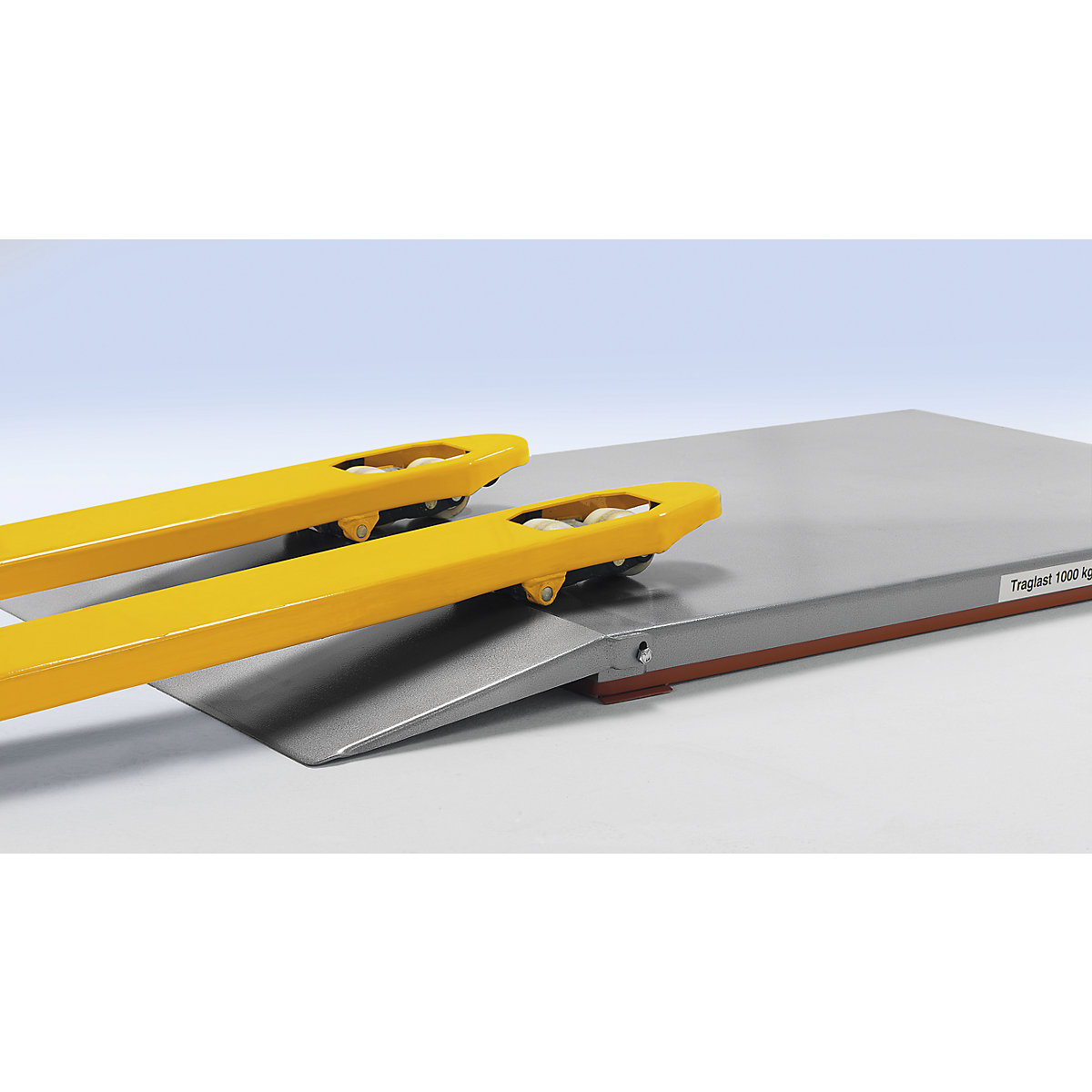

  • Loaded with pallets using counterbalance forklift or with optional ramp element and pallet truck
Premium quality hydraulic components.

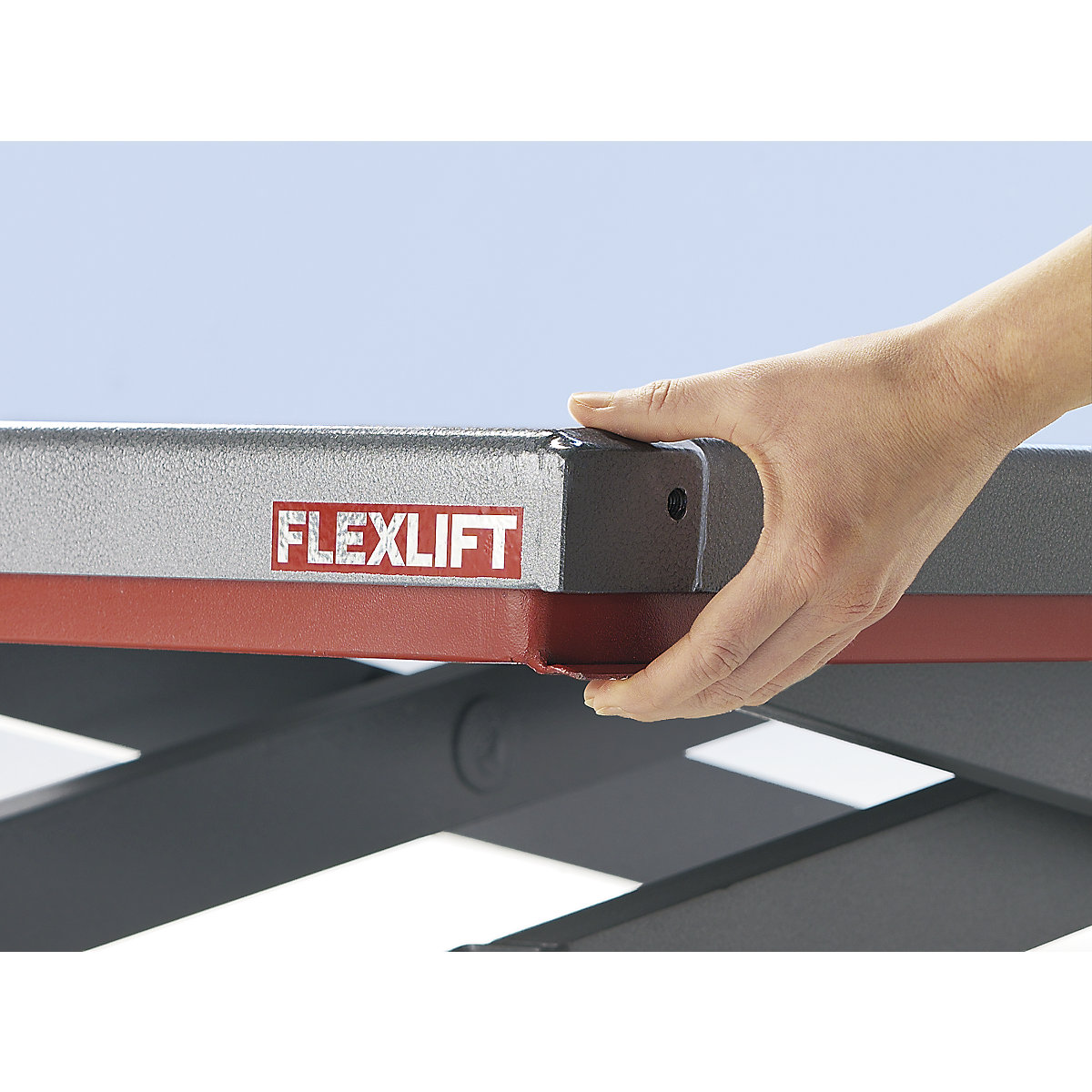

Non-electric foot protection contact rail, completely hydraulic operation.

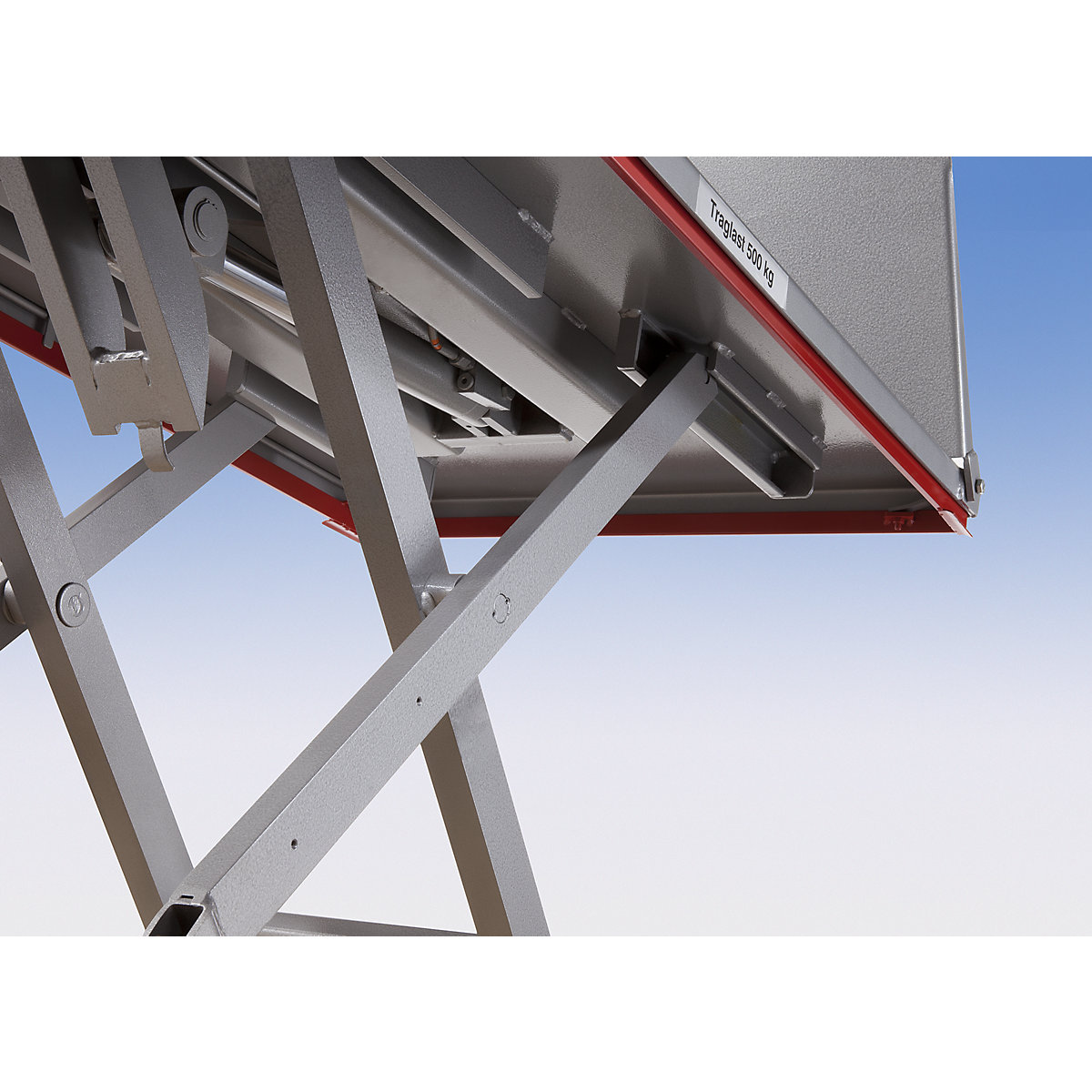

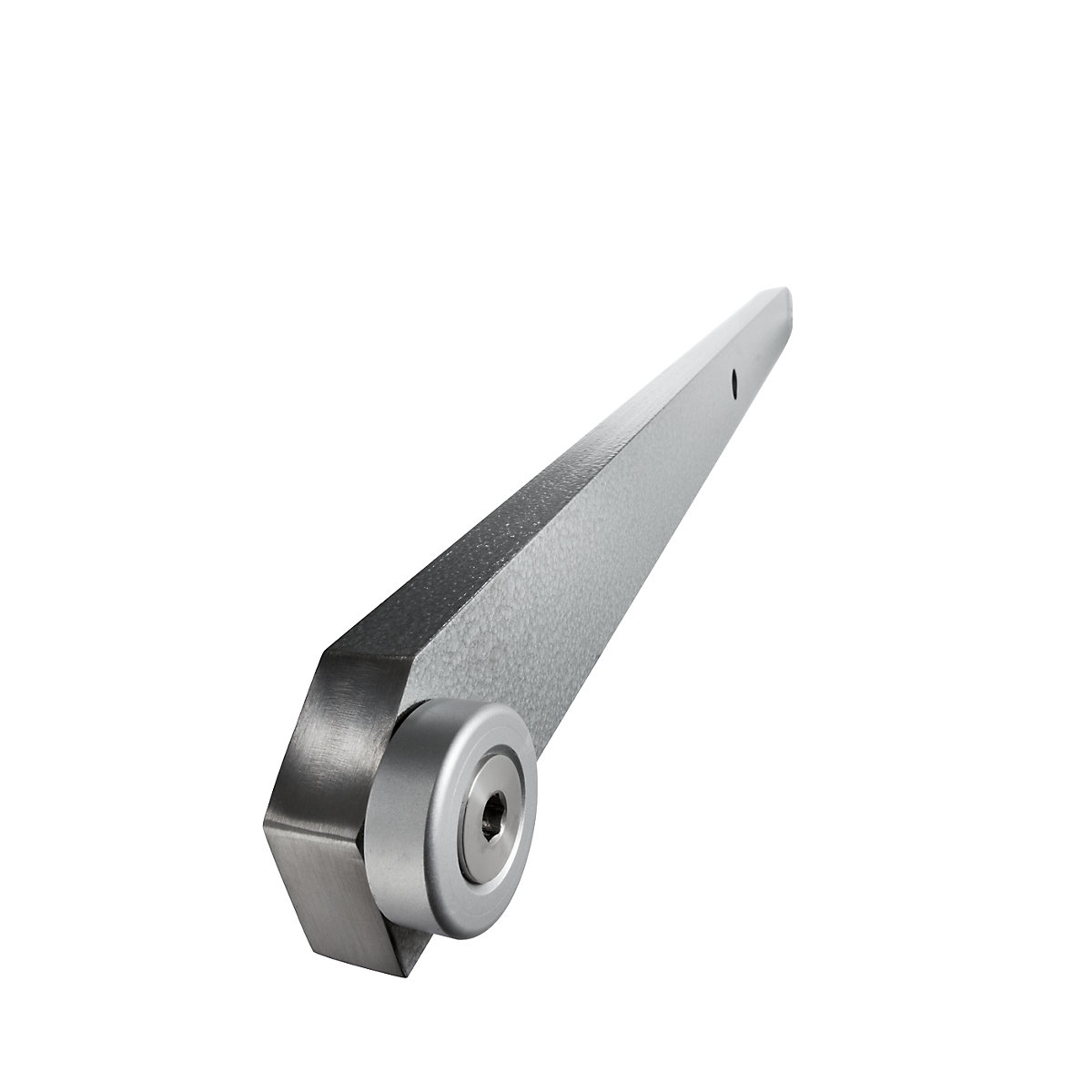

Extraordinarily stable! Solid full steel scissor mechanism made of ST-52 tool steel.
The entire drive technology and the hydraulic cylinders are protected from shock and dirt by a 5 or 6 mm thick sheet metal platform.
High quality 2 layer paint finish in Hammerite silver.

Compliant with the Machinery Directive, EN 1570-1.

Mobile delivery, also stationary upon request. Fix point bearing upon request, please specify when ordering.

Options available at no extra cost:

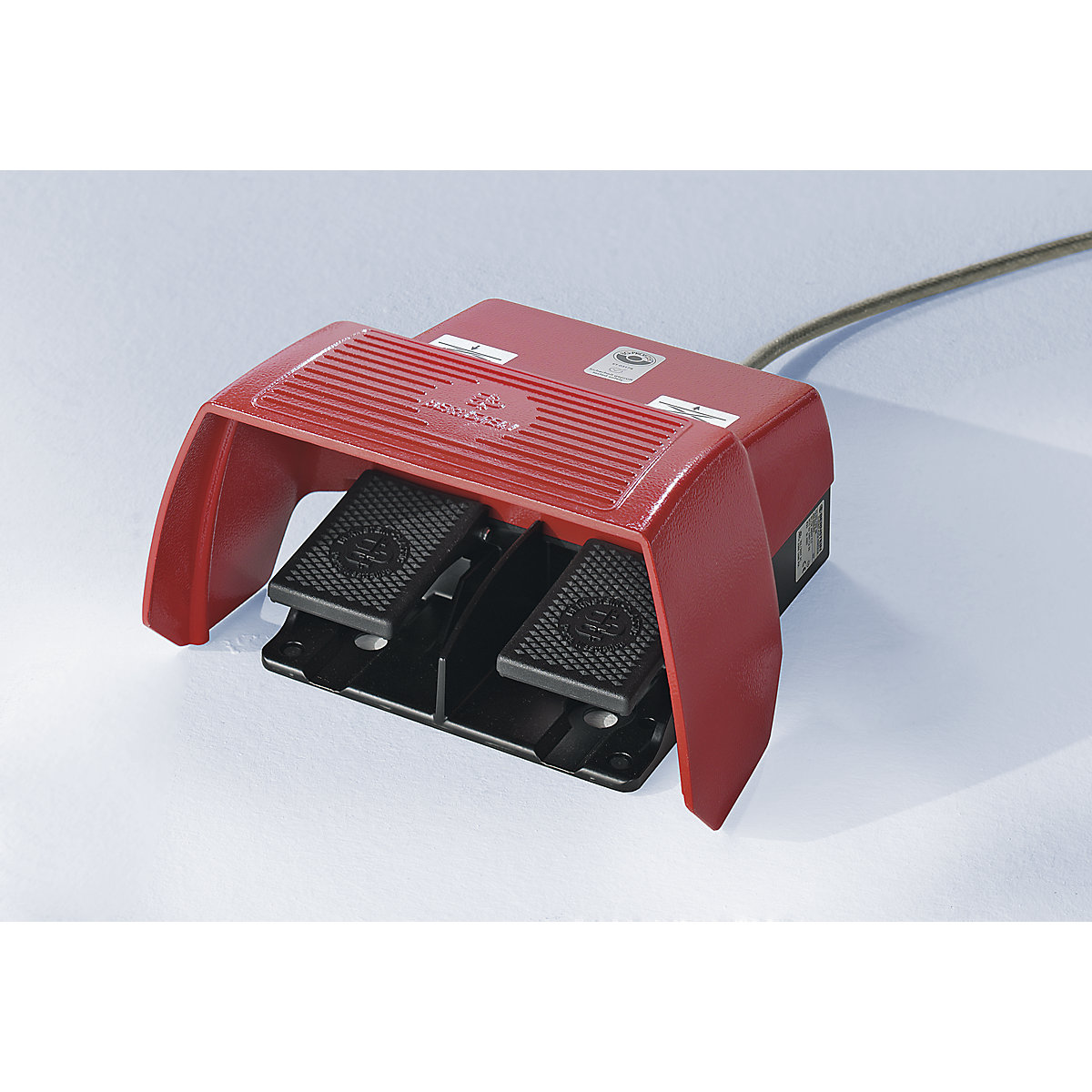

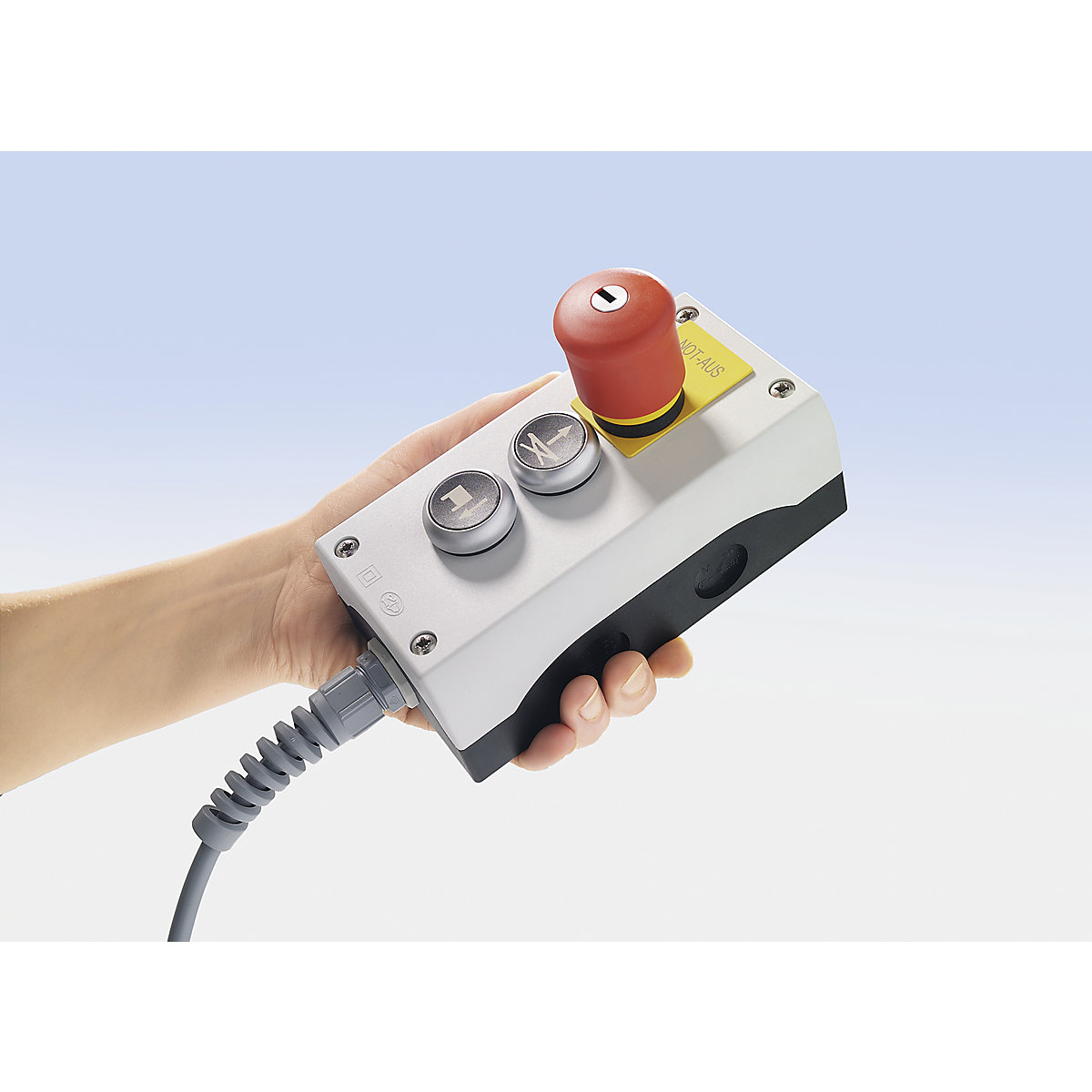

Hand control with 3 m cable or foot switch. Stationary model can also be made mobile by means of a fixed point bearing. Alternatively using 4 fixed castors.
On request:
Other dimensions, lifting heights, max. loads, reduced lifting time, zinc plated or made of V2A stainless steel, ribbed sheet steel platform, ATEX compliant explosion protection.
10 year guaranteed provision with replacement parts for all FLEXLIFT lifting tables.
4 year guarantee
4 year guarantee
Technical data
Max. load1000 kg
Lifting range80 – 750 mm
Platform designclosed
Lifting time19 sec
Operating voltage400 V 3-phase AC
Lift drivecompact hydraulics
Platform colourhammer tone silver
Platform materialsheet metal
Scissor mechanism colourhammer tone silver
Scissor materialST 52 tool steel
Finishpainted
Fittingswith 4 rollers in base
Product typelow profile lift tables
Lifting capacity at full load in 1 shift operationsmax. 20 cycles per hour
Lifting capacity at full load in multiple-shift operationsmax. 10 cycles per hour
Platform width900 mm
Platform length1450 mm
Featurestationary electro-hydraulic
Suppliedassembled
Weight280 kg
