Low profile lift table – eurokraft basic G shaped, max. load 1200 kg
hand operated control unit
Fittings
Ref.: 658802 49
Low profile lift table – eurokraft basic G shaped, max. load 1200 kg
hand operated control unit
hand operated control unit
£3,375.00
Price / item (Excl. VAT)
Only 5 available
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Product description
- Supplied complete with ramp element
- Reliable Bucher hydraulics

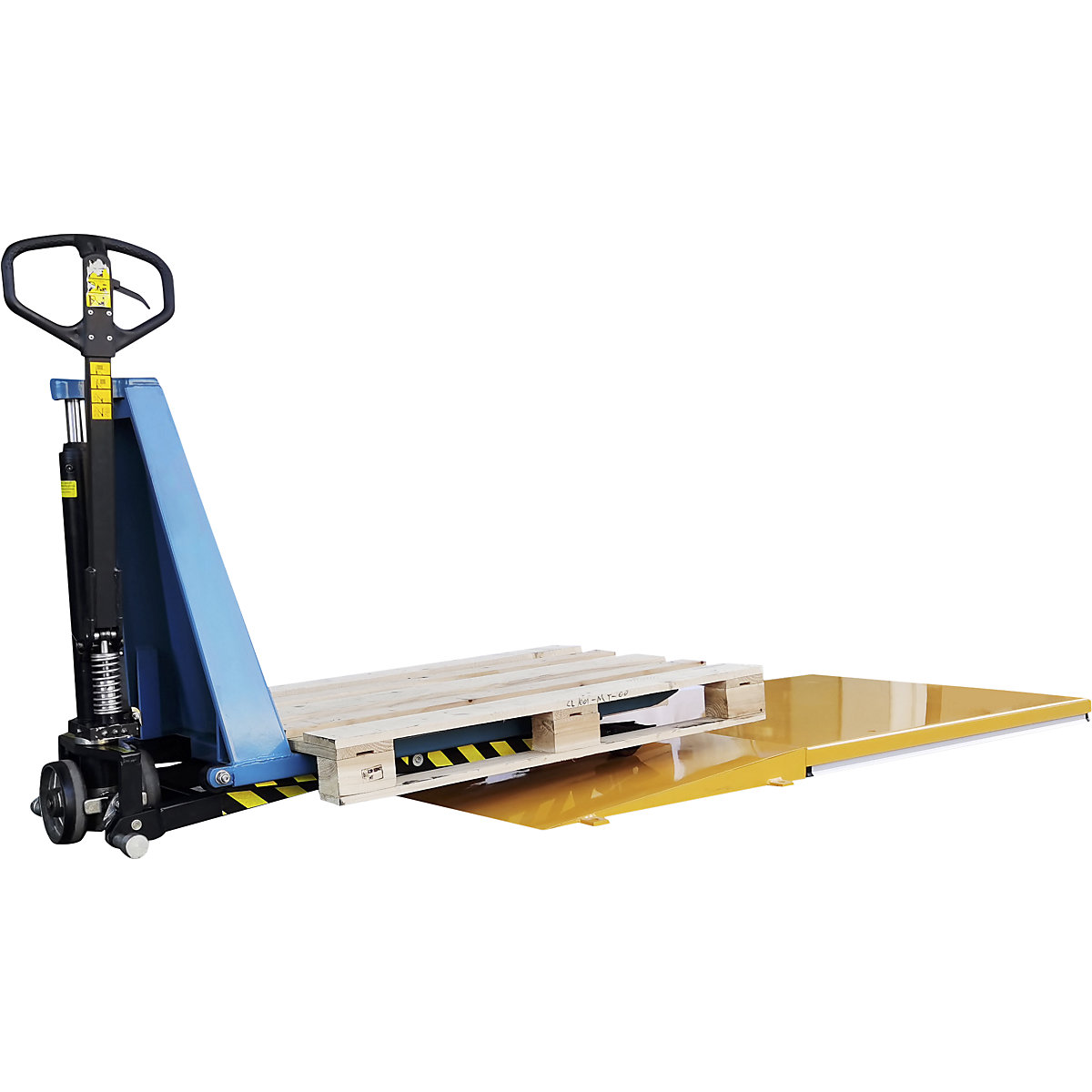

- Loaded using pallet truck or counterbalance crane

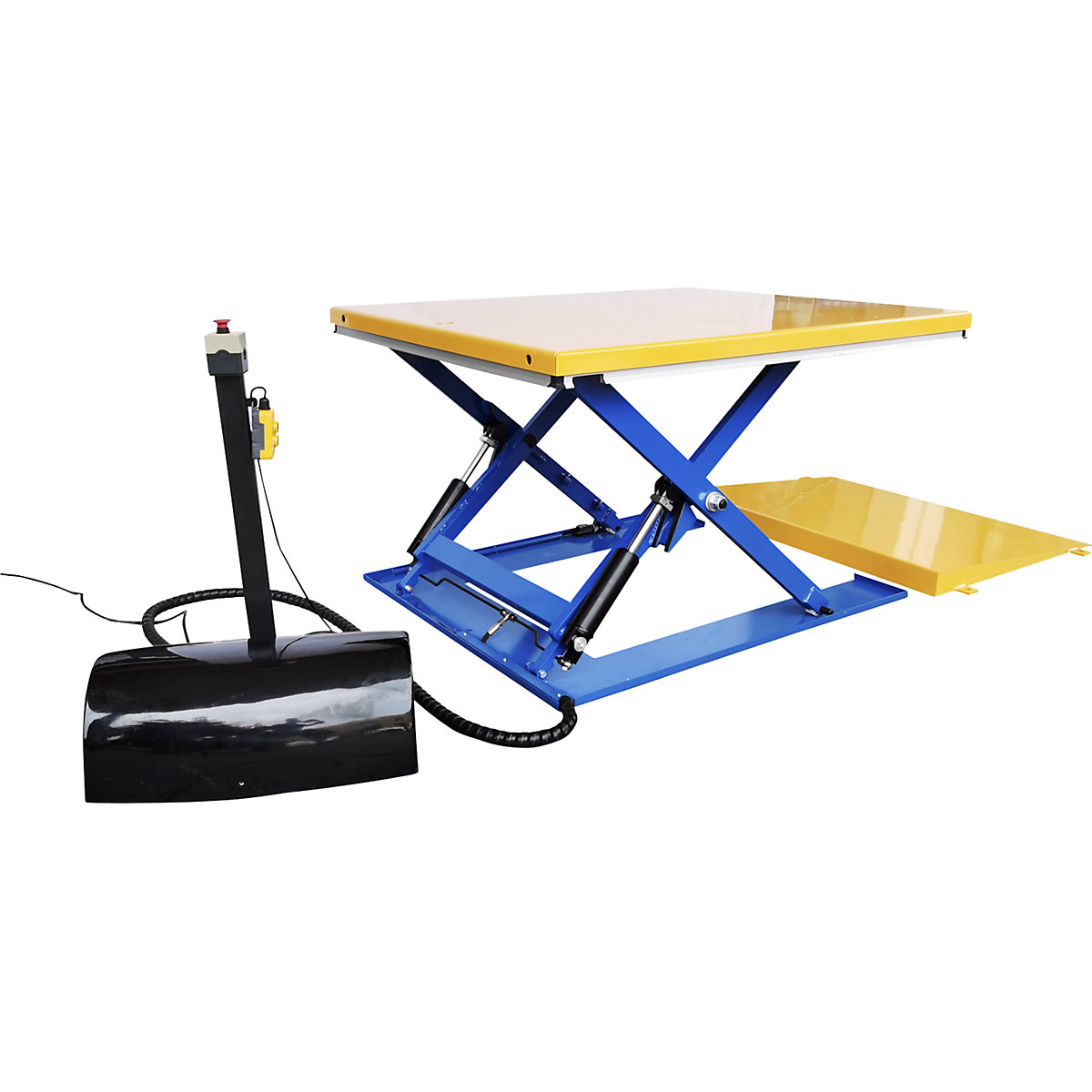

Low profile lift table, max. load 1200 kg, for lifting Euro and industrial pallets.

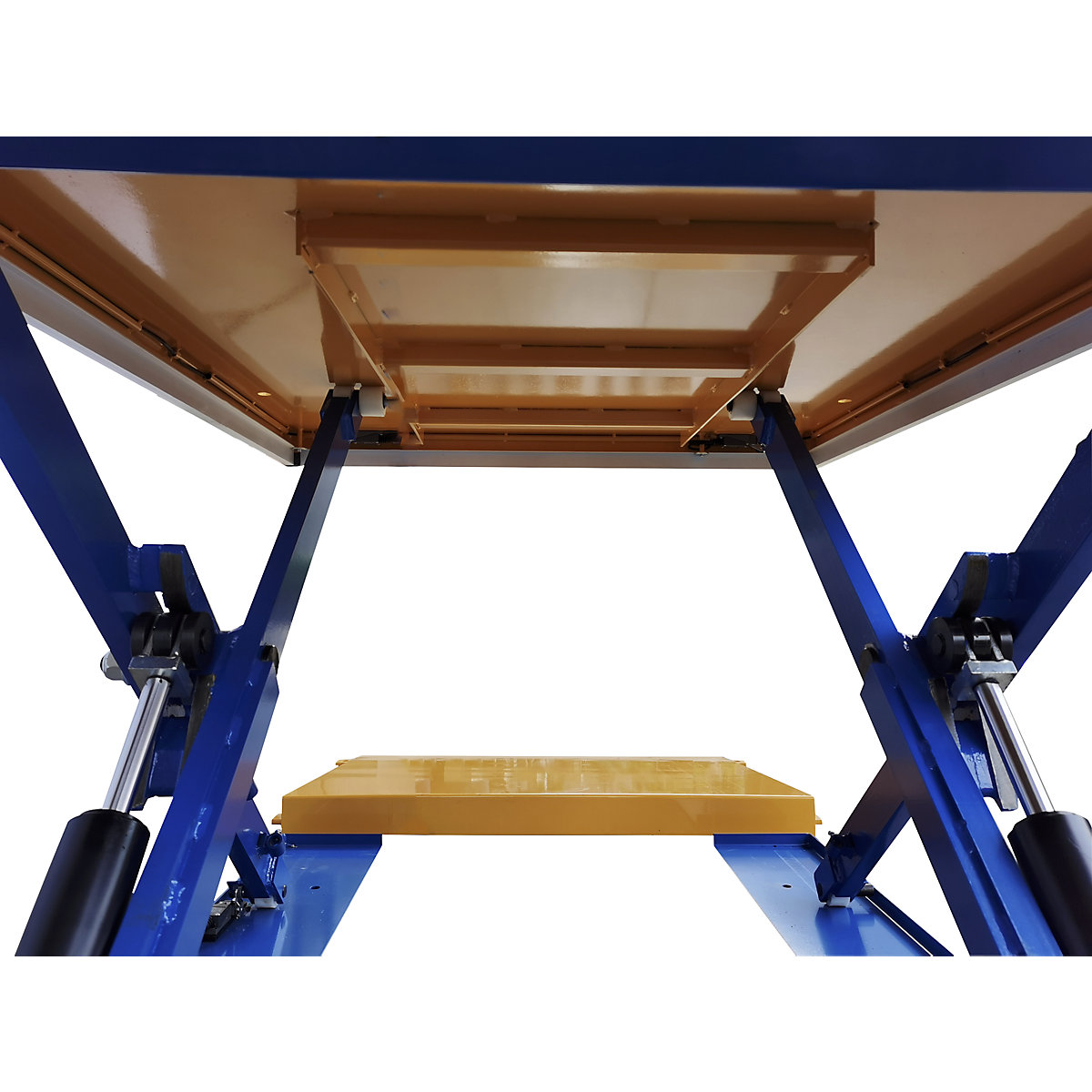

Excellent quality hydraulics, foot operated control unit with up-down button. Emergency off switch. Infinite lifting and lowering. Smooth running due to safe guidance of the scissor mechanism by means of nylon rollers on the smooth lower frame.
Complete safety equipment in compliance with EN 1570-1. CE compliant. Ambient temperature of indoor area 0 – 40 °C.
Connection using 4.5 m cable and a red 16 A CEE plug.

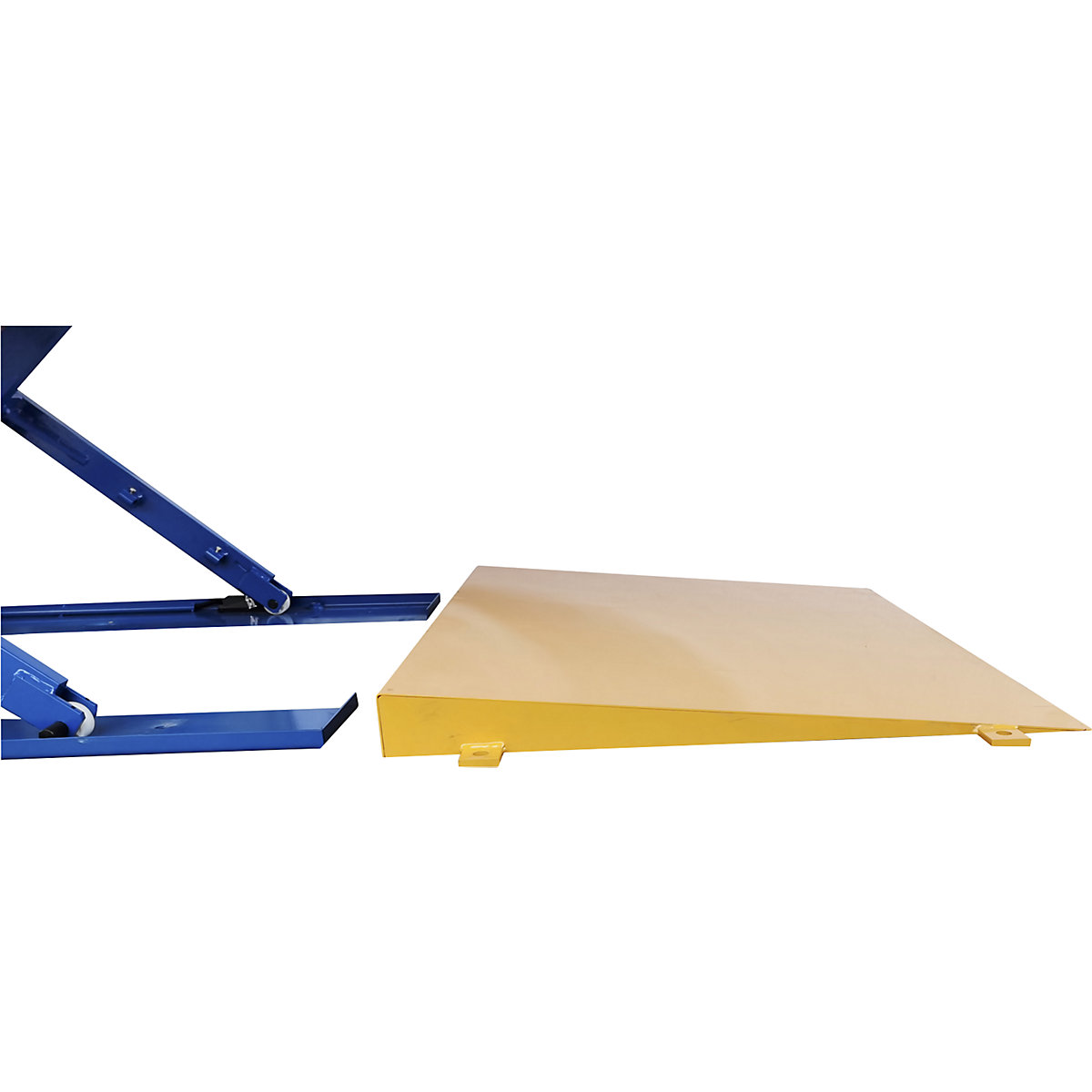

With 900 mm long ramp element to make loading easy.
Excellent quality hydraulics, foot operated control unit with up-down button. Emergency off switch. Infinite lifting and lowering. Smooth running due to safe guidance of the scissor mechanism by means of nylon rollers on the smooth lower frame.
Complete safety equipment in compliance with EN 1570-1. CE compliant. Ambient temperature of indoor area 0 – 40 °C.
Connection using 4.5 m cable and a red 16 A CEE plug.
With 900 mm long ramp element to make loading easy.
Technical data
Max. load | 1200 kg |
---|---|
Lifting range | 85 – 860 mm |
Platform design | closed |
Lifting time | 15 sec |
Power | 0,37 kW |
Operating voltage | 400 V / 50 Hz |
Control voltage | 24 V |
Lift drive | electro-hydraulic |
Platform colour | melon yellow RAL 1028 |
Platform material | steel |
Scissor mechanism colour | signal blue RAL 5005 |
Finish | powder coated |
Product type | low profile lift tables |
Lifting capacity at full load in multiple-shift operations | 6 cycles per hour |
Platform width | 1140 mm |
Platform length | 1450 mm |
Feature | stationary electro-hydraulic |
Supplied | pre-assembled, final assembly by customer |
Fittings | with hand operated control unit |
Weight | 298 kg |
Instructions |
