Low profile lift table – Edmolift LxW 1450 x 900 mm, lifting range up to 800 mm, E-shaped platform

Low profile lift table – Edmolift
Low profile lift table – Edmolift, LxW 1450 x 900 mm, lifting range up to 800 mm, E-shaped platform, 400 V, with hand operated control unit
Low profile lift table – Edmolift, LxW 1450 x 900 mm, lifting range up to 800 mm, E-shaped platform, 400 V, with foot operated control unit
Low profile lift table – Edmolift (Product illustration 3)
Low profile lift table – Edmolift (Product illustration 4)
Low profile lift table – Edmolift (Product illustration 5)

230 V, with hand operated control unit

£5,590.00
Price / item (Excl. VAT)

Delivery time: Over 4 weeks
Product description

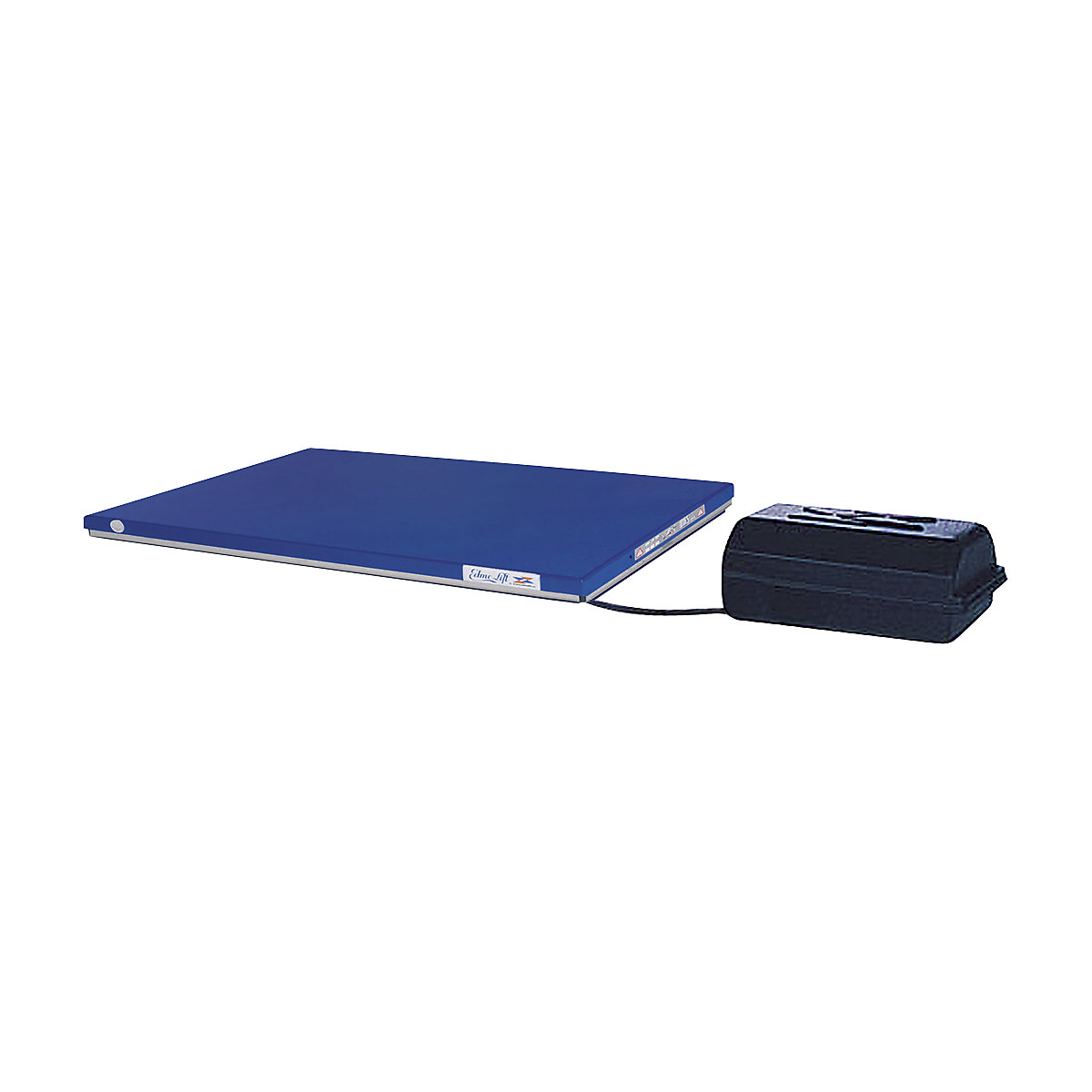

The newly developed, patented lifting mechanism enables an extremely low height when collapsed.
Pushing a button drives the table smoothly and quickly to the ergonomically correct height.
The hydraulic motor is in a robust, easy to transport plastic box and is connected to the table via quick connectors.
High quality powder coating, frame and platform in ultramarine blue RAL 5002, scissor mechanism in signal orange RAL 2010.

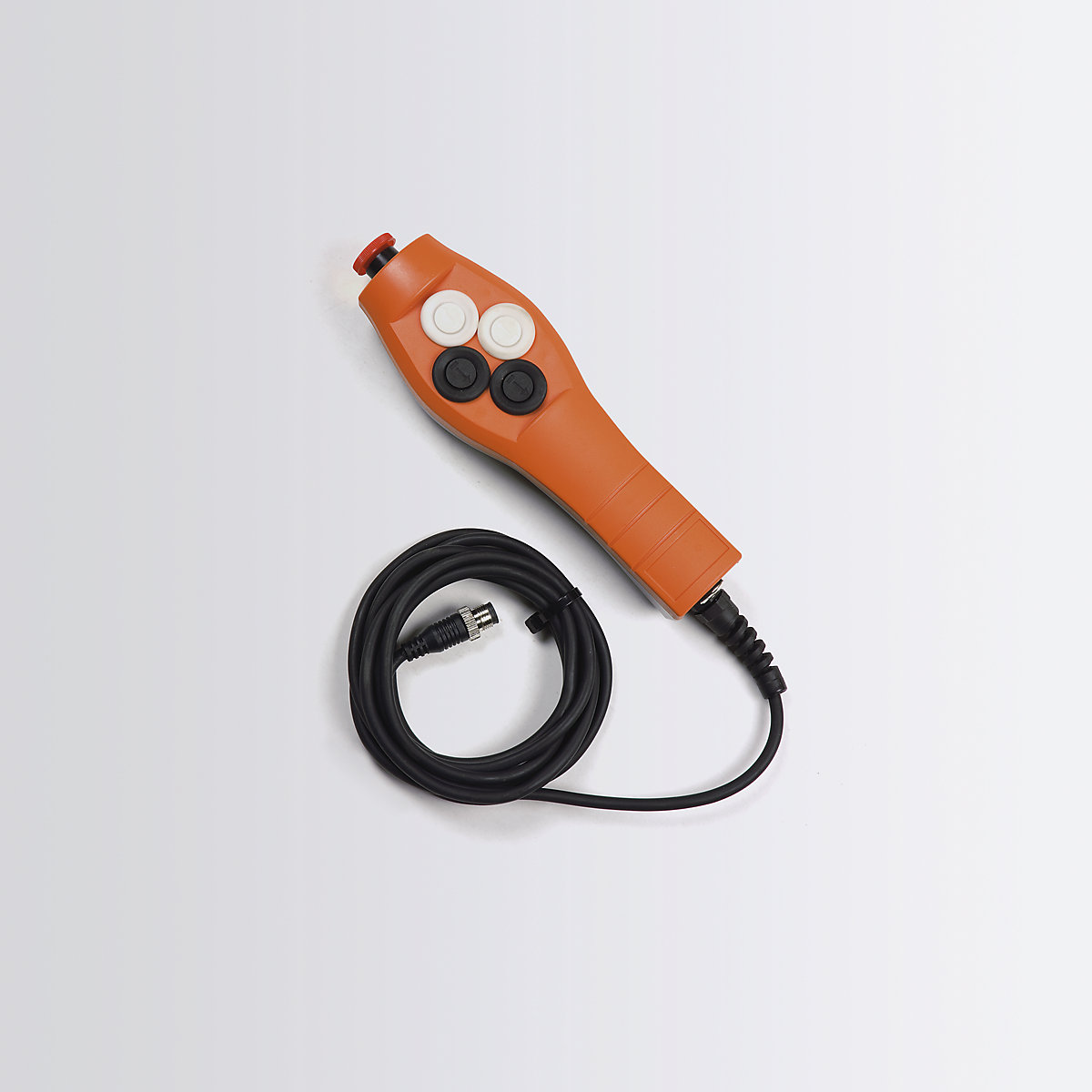

Supplied complete with control unit. With emergency off switch. Control voltage 24 V, 3 m long cable.
Alternative models available on request.

Other max. loads up to 2000 kg available in the webshop.
All lift tables are fitted with safety rails and safety valves, and comply with EN 1570-1 as well as VDE requirements.
  • Increased lift range from a shorter platform
  • No pit required
  • Lifting eyelets in the base frame for problem free transport and installation
  • Overload protection
  • Maintenance free bearings
Technical data
Max. load600 kg
Lifting range85 – 800 mm
Platform designE-shaped
Lifting time13 sec
Control voltage24 V
Platform colourultramarine blue RAL 5002
Scissor mechanism coloursignal orange RAL 2010
Finishpowder coated
Frame colourultramarine blue RAL 5002
Internal width580 mm
Product typelow profile lift tables
Lifting capacity at full load in multiple-shift operations3 – 4 cycles per hour
Platform width900 mm
Platform length1450 mm
Featurestationary
electro-hydraulic
Suppliedflat pack
Power1.5 kW
Operating voltage230 V
Fittingswith hand operated control unit
