Ref.: 547703 49

LTT 750 lift and tilt table – Edmolift platform LxW 1200 x 550 mm

LTT 750 lift and tilt table – Edmolift
LTT 750 lift and tilt table – Edmolift, platform LxW 1200 x 550 mm, max. load 750 kg

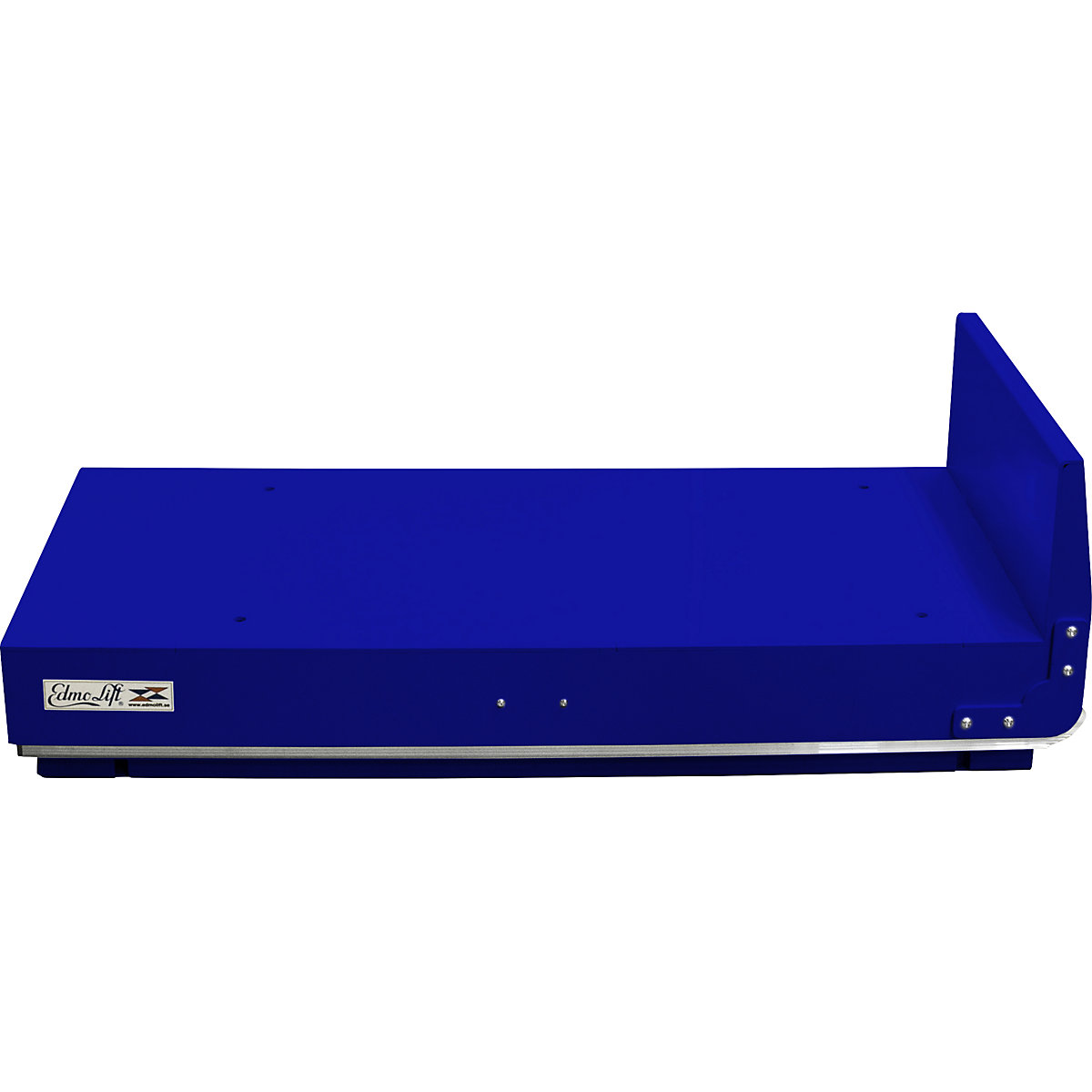

LTT 750 lift and tilt table – Edmolift (Product illustration 2)

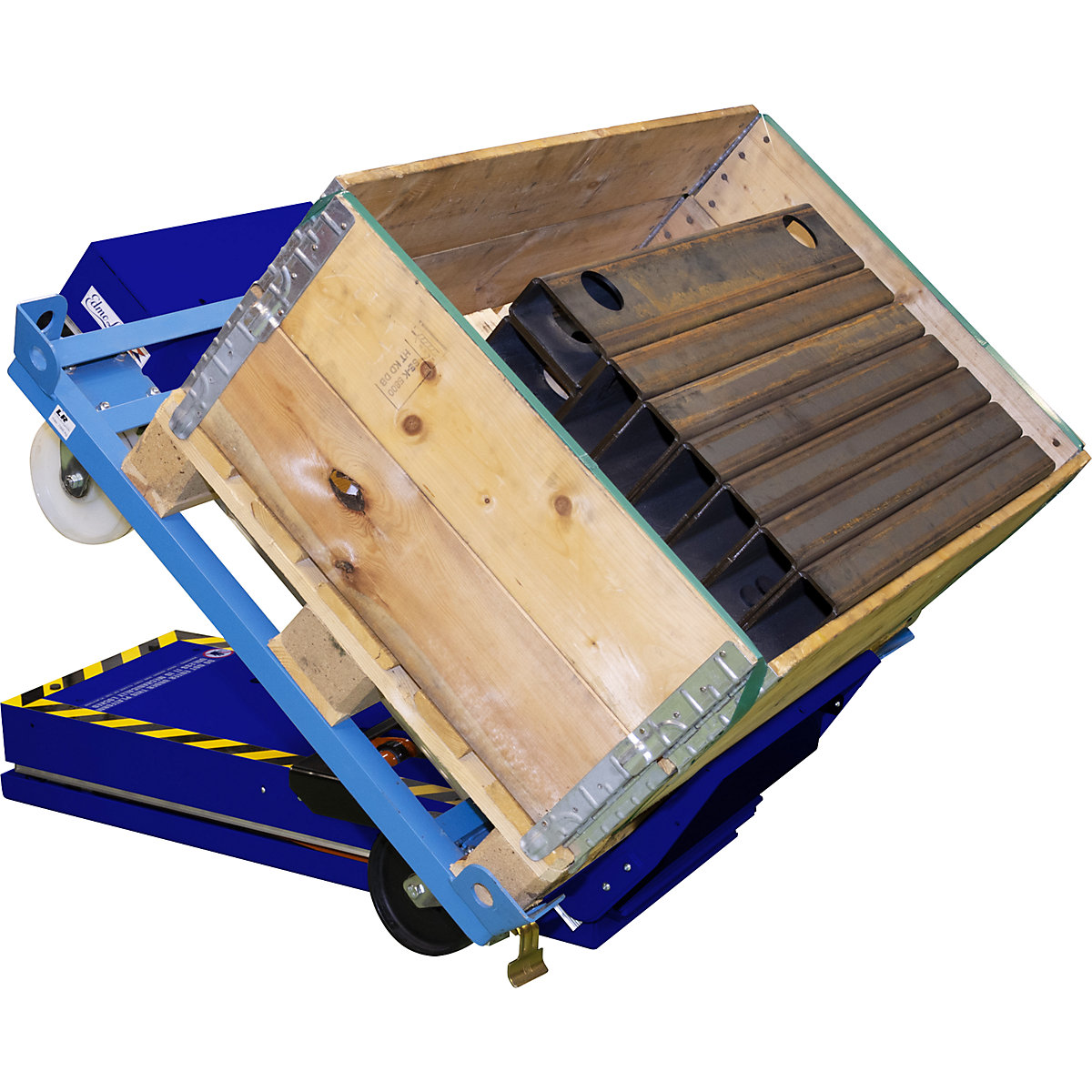

LTT 750 lift and tilt table – Edmolift (Product illustration 3)

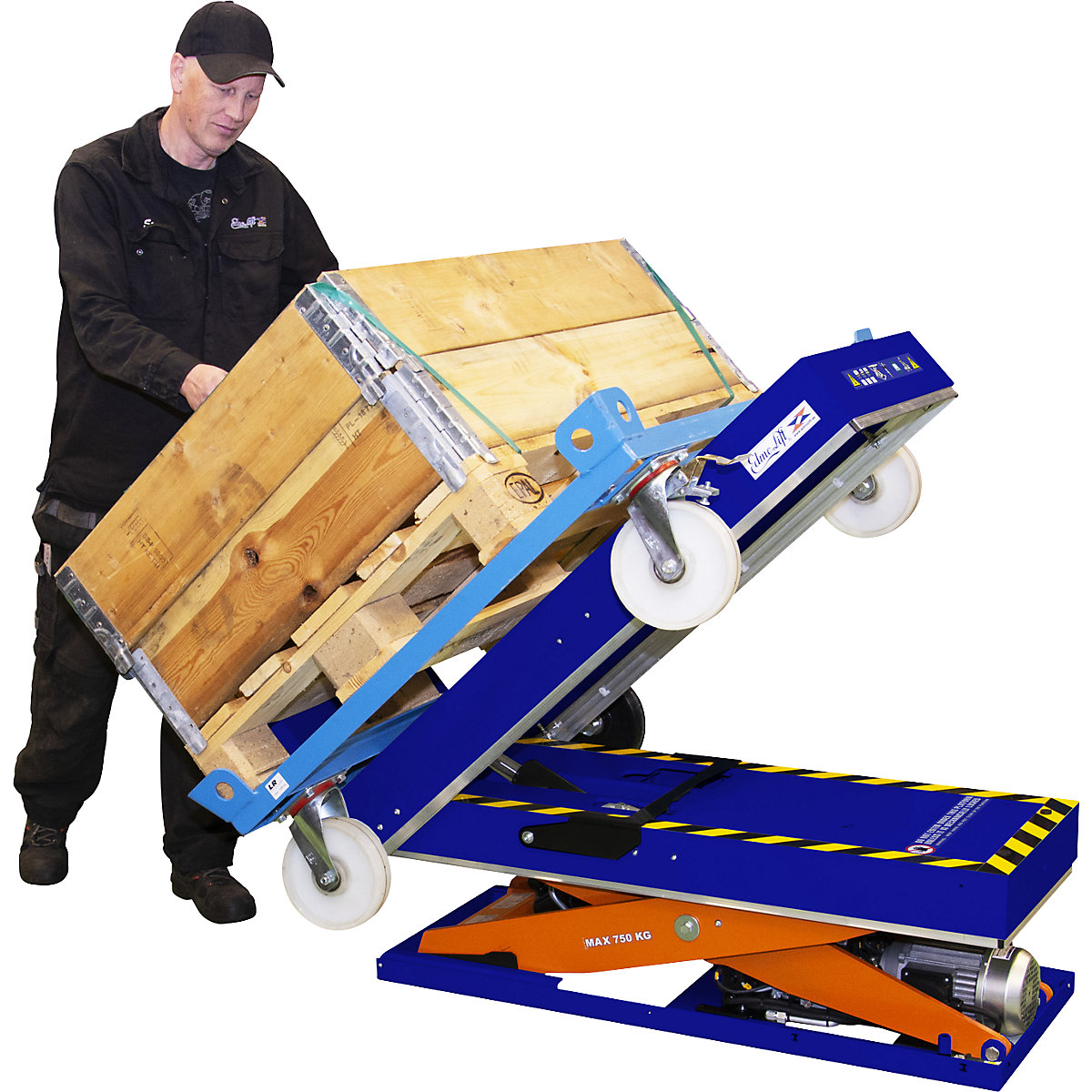

LTT 750 lift and tilt table – Edmolift (Product illustration 4)

max. load 750 kg

£11,990.00
Price / item (Excl. VAT)

Delivery time: Over 4 weeks
Product description
Lift and table tables for raising and tilting almost any type of platform trolleys. This makes a low width of 550 mm and a low height of 190 mm possible. A hydraulic unit and controller are installed in the handle to prevent damage and to save space. Our new lifting and tilting solution creates an ideal ergonomic window in which operators can adapt the lift and tilt function to their individual requirements and preferences. This makes better ergonomics possible, as well as a more efficient material handling process. Material that has been raised and tilted towards the worker reduces strain on the spine, and helps reduce absenteeism. A new trend is emerging to use forklift trucks less frequently in industry, as many companies now prefer to transport goods on trolleys or with the aid of tugger trains. This why we have designed the LTT as the ideal, ergonomic tool for operators loading and unloading goods from trucks or tugger trains at their workplace.
  • Smallest dimensions for most transport trolleys
  • Perfectly straight lifting motion – no horizontal movement
  • Needs very little space
Technical data
Max. load750 kg
Lifting range190 – 840 mm
Lifting time16 sec
Power0.75 kW
Operating voltage400 V
Control voltage24 V
Lift driveelectro-hydraulic
Platform colourultramarine blue RAL 5002
Platform materialsheet metal
Scissor mechanism coloursignal orange RAL 2010
Finishpowder coated
Product typelifting/tilting devices
Lift650 mm
Lifting capacity at full load in 1 shift operations5 – 6 cycles per hour
Platform width550 mm
Platform length1200 mm
Protection classIP54
Featureelectro-hydraulic
Slope40° on one side
Suppliedpre-assembled, final assembly by customer
Weight325 kg
