Ref.: 986205 49

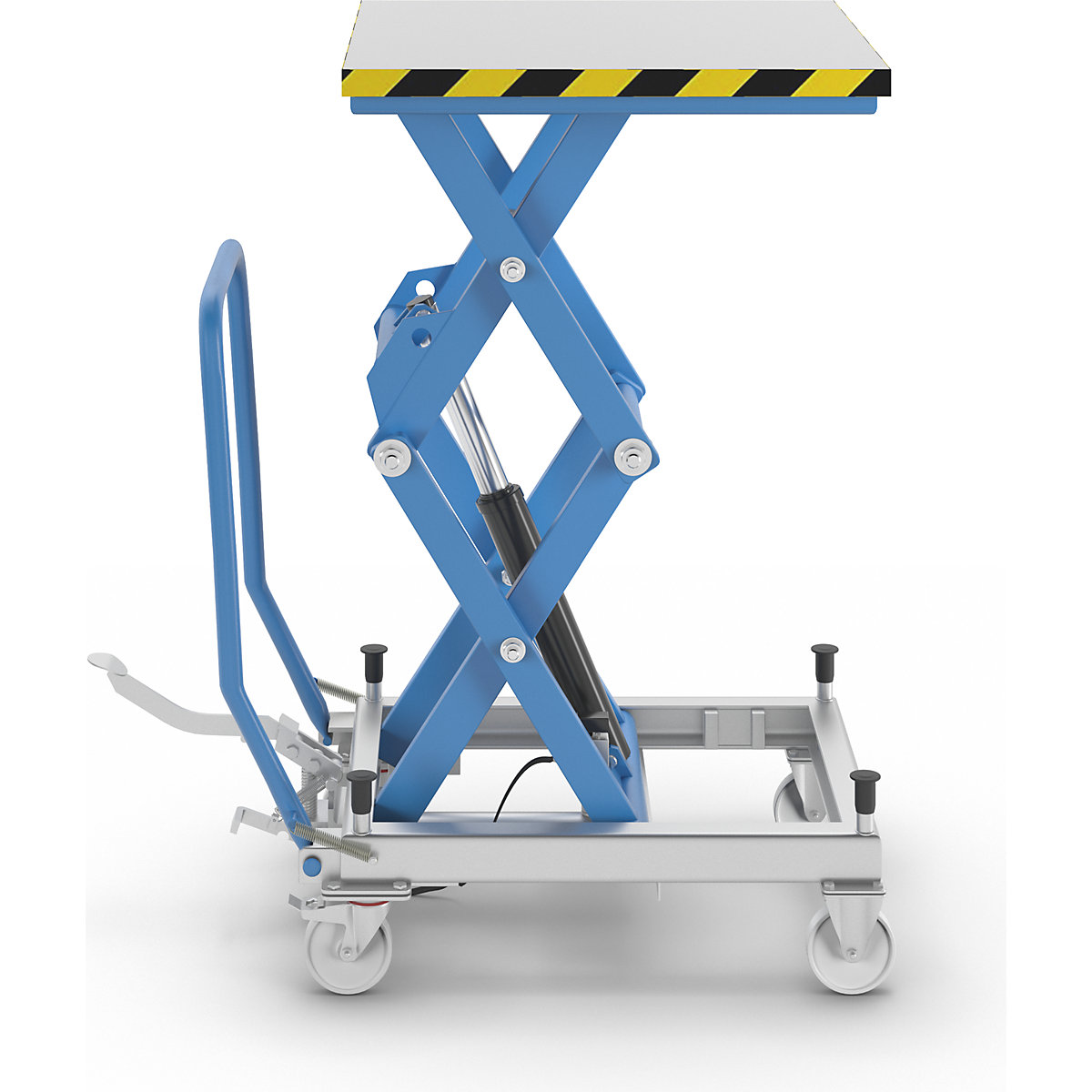

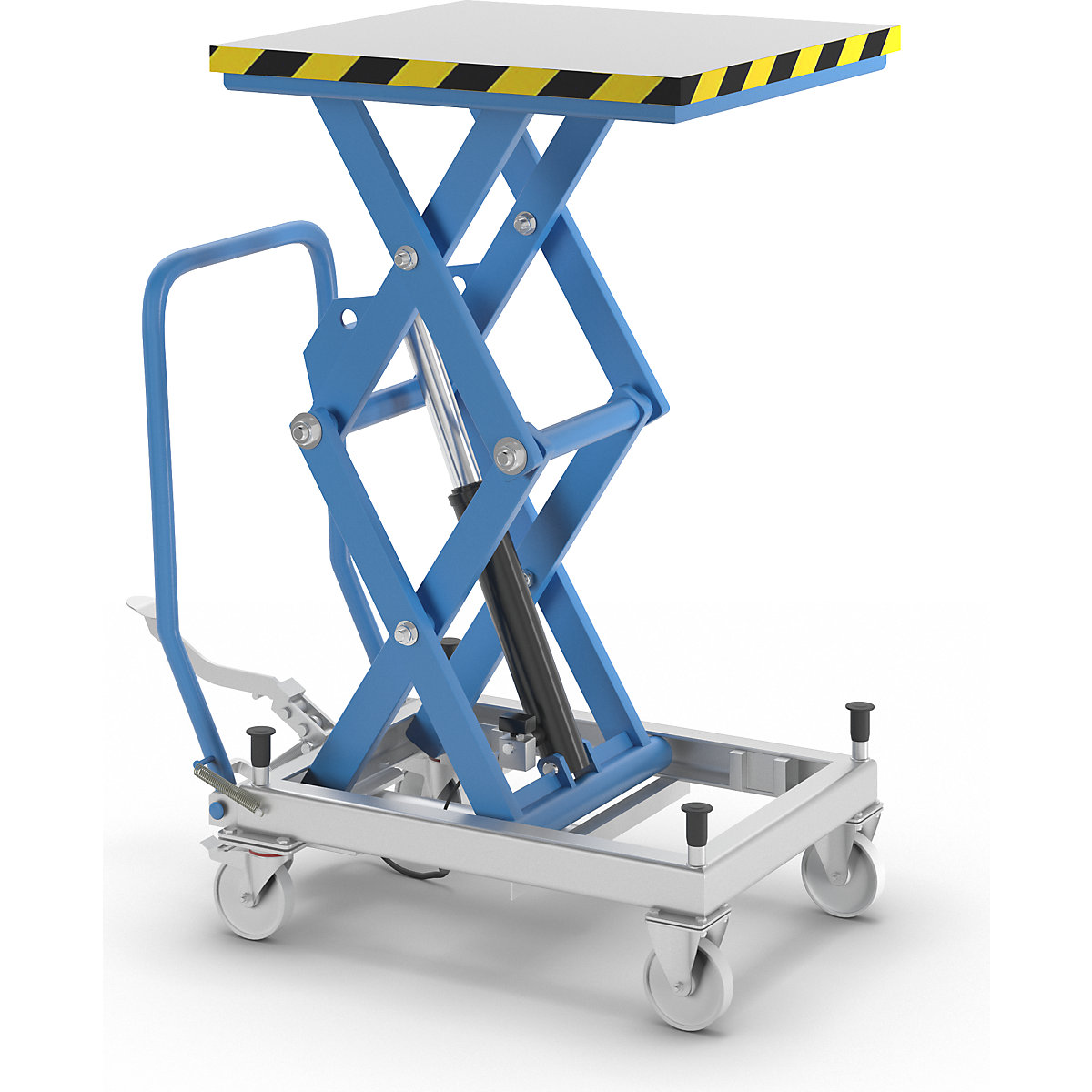

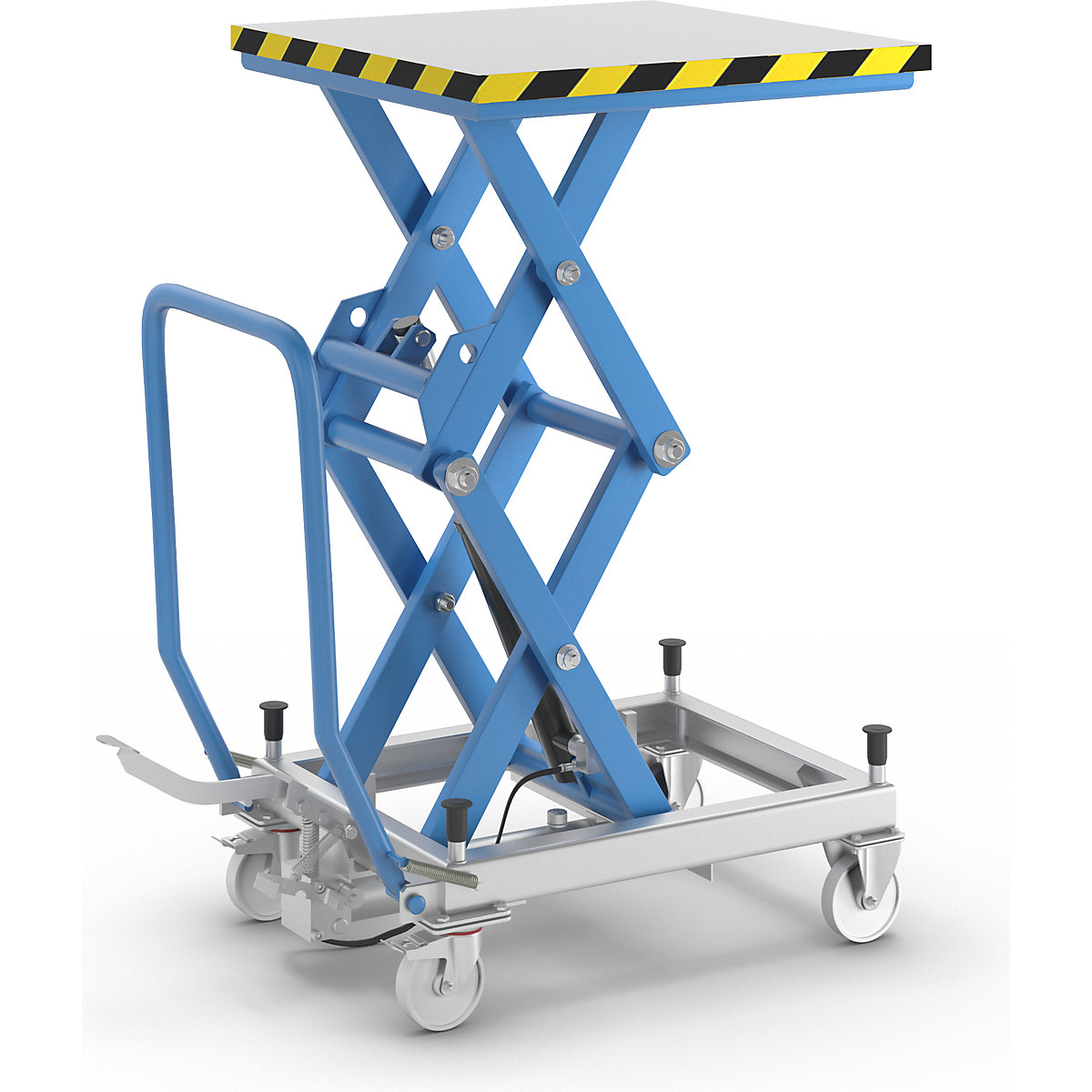

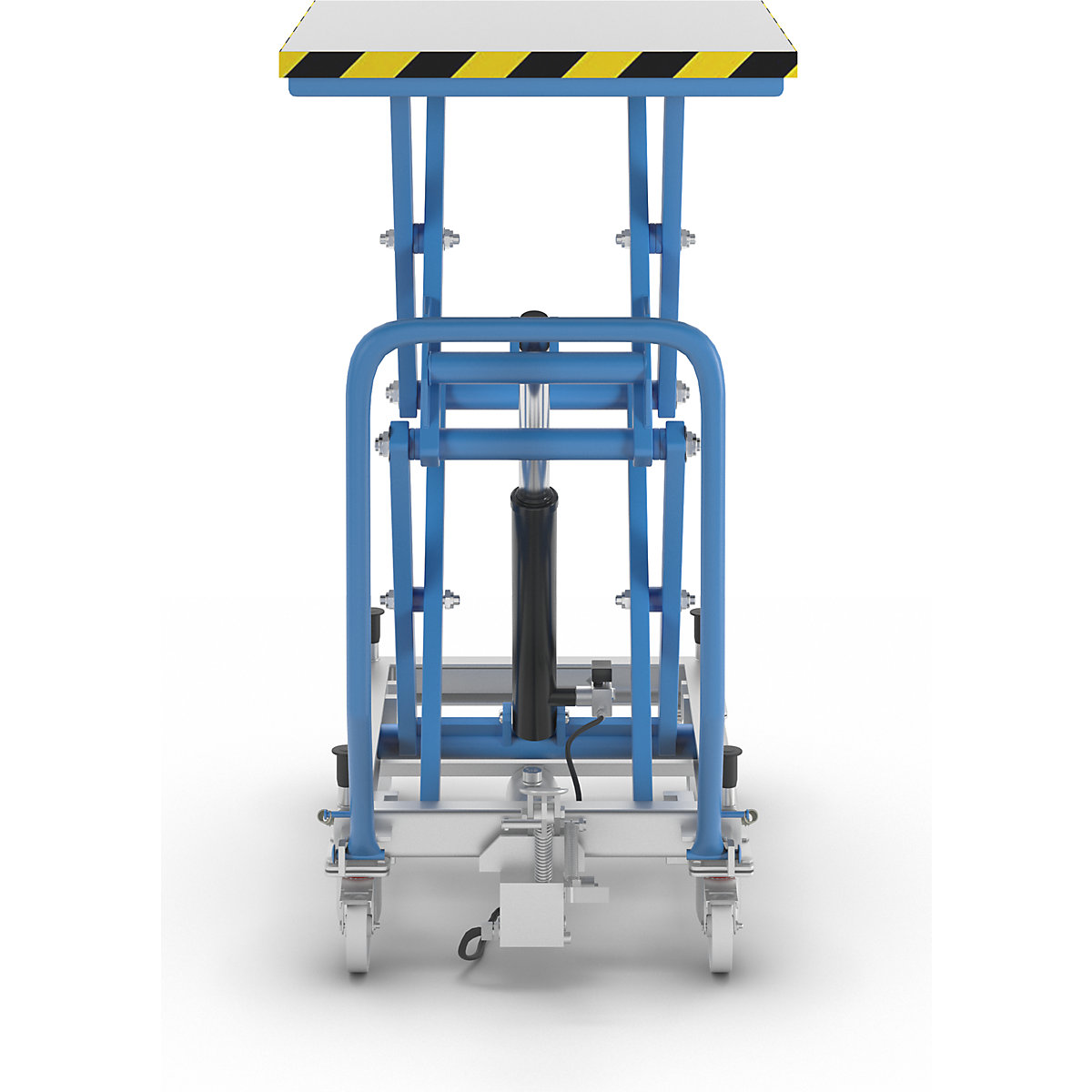

Double scissor lifting platform truck – eurokraft pro max. load 500 kg, lifting range 380 – 1315 mm
nylon tyres
Preferred RAL colour*
*Available in almost all RAL colours – we will produce the product to suit your requirements for an extra charge of only 10%. Please note that the right of return does not apply. Colour representations on the monitor can deviate from the original. Products with a custom colour are not CO2 compensated.
Ref.: 986205 49
Double scissor lifting platform truck – eurokraft pro max. load 500 kg, lifting range 380 – 1315 mm
nylon tyres
nylon tyres
*Available in almost all RAL colours – we will produce the product to suit your requirements for an extra charge of only 10%. Please note that the right of return does not apply. Colour representations on the monitor can deviate from the original. Products with a custom colour are not CO2 compensated.
£3,929.00
Price / item (Excl. VAT)
Only 5 available
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Product description
- Quality products – Made in Germany
Rust free, zinc plated platform. Scissor lift mechanism and push handle powder coated in light blue RAL 5012, base frame in white aluminium RAL 9006.
2 swivel castors and 2 fixed castors, roller bearings. Swivel castors with double stops.
Hydraulic cylinder with biodegradable oil.
Hydraulic pedal devices
Infinite lifting and lowering with pedals.
2 swivel castors and 2 fixed castors, roller bearings. Swivel castors with double stops.
Hydraulic cylinder with biodegradable oil.
Hydraulic pedal devices
Infinite lifting and lowering with pedals.
For long term, intensive use in two-shift operation.
Drawbar not mounted on delivery – easy self-assembly.
Available in most RAL colours. Only 10 % extra.
10 year guarantee
Technical data
Max. load | 500 kg |
---|---|
Lifting range | 380 – 1315 mm |
Overall length | 990 mm |
Overall width | 760 mm |
Platform finish | zinc plated |
Push handle version | bolted on |
Push handle finish | powder coated |
Push handle colour | light blue RAL 5012 |
Lift per pedal stroke | 12 mm |
Lift drive | pedal hydraulics |
Product type | lifting platform trolleys |
Wheel fittings | 2 steering wheels with double stops, 2 fixed castors |
Wheel material | nylon |
Wheel diameter | 125 mm |
Wheel bearing | roller bearing |
Model | double scissors |
Frame finish | powder coated |
Frame colour | light blue RAL 5012 |
Weight | 150 kg |
Platform width | 760 mm |
Platform length | 760 mm |
Feature | mobile manual |
Supplied | assembled |
Instructions |
Sustainability
Enkelfähig
Enkelfähig product
Enkelfähig refers to multi-generational thinking, and reflects the extent to which a product or service contributes to the emergence of a sustainable, social and fair future in which our grandchildren will still be able to live. Enkelfähig asks the same question of every product: will this product help create a better tomorrow for future generations?
The 2 categories in which this product performs particularly well are listed below.
For more information about the product evaluation and the Enkelfähig Initiative, please visit our Enkelfähig information page.
Enkelfähig refers to multi-generational thinking, and reflects the extent to which a product or service contributes to the emergence of a sustainable, social and fair future in which our grandchildren will still be able to live. Enkelfähig asks the same question of every product: will this product help create a better tomorrow for future generations?
The 2 categories in which this product performs particularly well are listed below.
For more information about the product evaluation and the Enkelfähig Initiative, please visit our Enkelfähig information page.
Climate change
Climate change refers to changes in the climate on a global scale due to increased emissions of greenhouse gases caused by human activities, such as burning fossil fuels and deforestation.
This product has a less negative impact on climate change than comparable products. Reducing the negative impact on the environment is achieved by a combination of several factors: local, energy efficient production in Germany or Europe to the greatest extent possible, and, for example, the additional calculation, reduction and compensation of CO₂ emissions that occur during the production and shipping process by contributing to internationally recognised climate protection projects.
Circular economy
A circular economy is an economic system in which waste is avoided and resources are used efficiently by recirculating materials, products and waste in closed cycles and reusing them as raw materials or sources of energy for new products.
This product makes a greater contribution to achieving a circular economy. The greater contribution compared to other products is the result of several factors, including the use of hardwearing materials, the ability to be recycled, and the use of recycled materials in the product design. Sustainable packaging is also factored into any assessment within a circular economy.
