Ref.: 986384 49

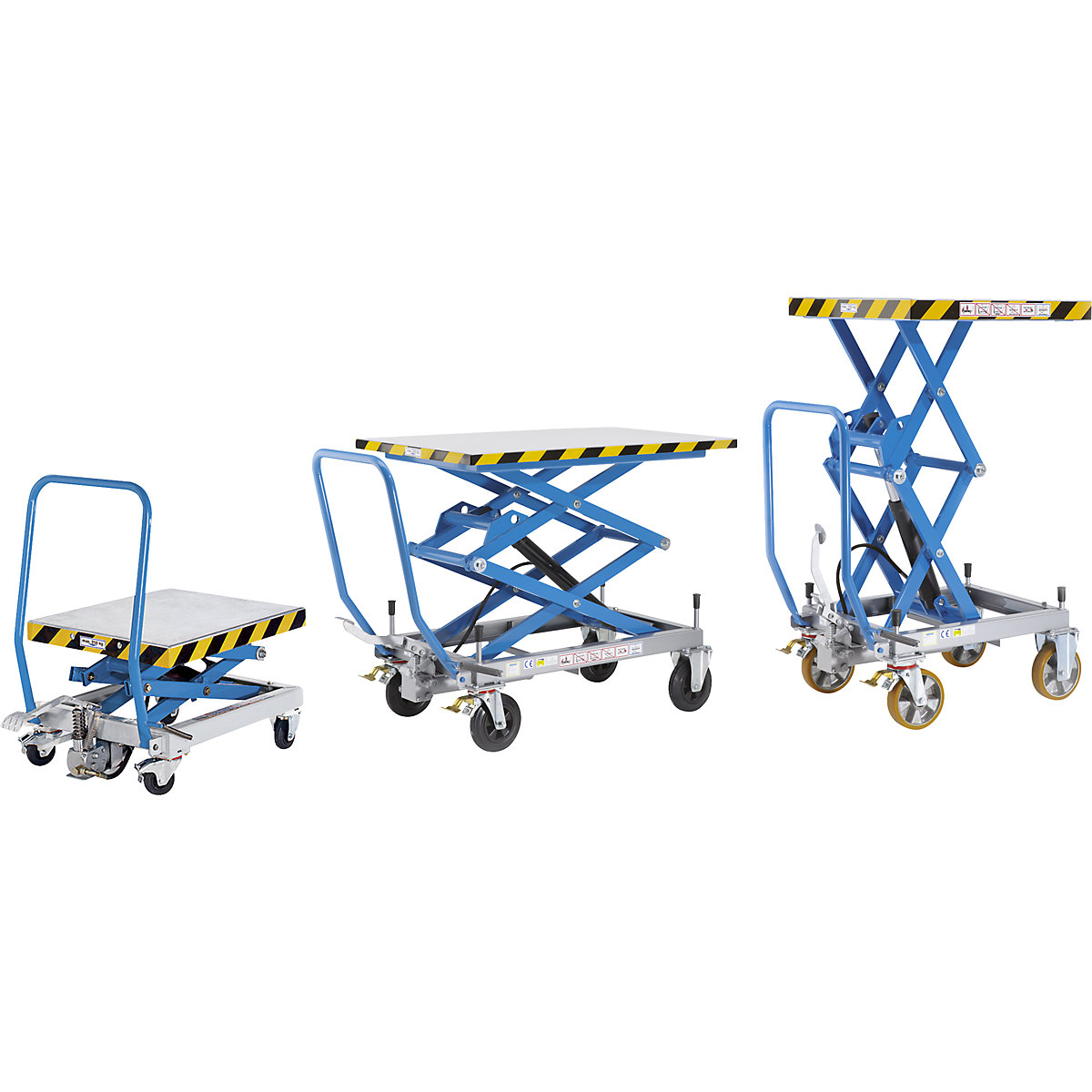

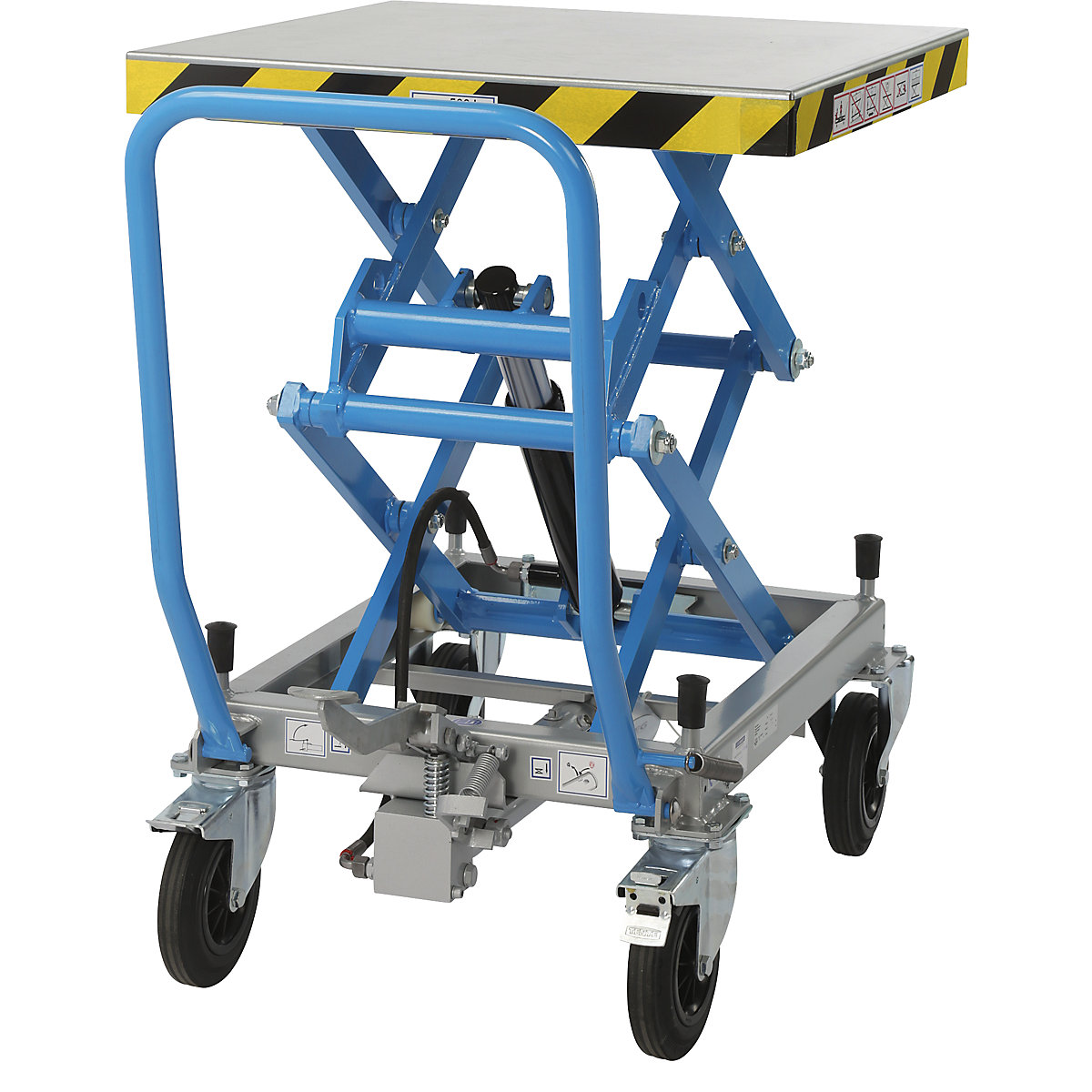

Double scissor lifting platform truck – eurokraft pro max. load 500 kg, lifting range 460 – 1400 mm
solid rubber tyres
Preferred RAL colour*
*Available in almost all RAL colours – we will produce the product to suit your requirements for an extra charge of only 10%. Please note that the right of return does not apply. Colour representations on the monitor can deviate from the original. Products with a custom colour are not CO2 compensated.
Ref.: 986384 49
Double scissor lifting platform truck – eurokraft pro max. load 500 kg, lifting range 460 – 1400 mm
solid rubber tyres
solid rubber tyres
*Available in almost all RAL colours – we will produce the product to suit your requirements for an extra charge of only 10%. Please note that the right of return does not apply. Colour representations on the monitor can deviate from the original. Products with a custom colour are not CO2 compensated.
£4,429.00
Price / item (Excl. VAT)
Only 5 available
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Product description
- Quality products – Made in Germany
Rust free, zinc plated platform. Scissor lift mechanism and push handle powder coated in light blue RAL 5012, base frame in white aluminium RAL 9006.
2 swivel castors and 2 fixed castors, roller bearings. Swivel castors with double stops.
Hydraulic cylinder with biodegradable oil.
Hydraulic pedal devices
Infinite lifting and lowering with pedals.
2 swivel castors and 2 fixed castors, roller bearings. Swivel castors with double stops.
Hydraulic cylinder with biodegradable oil.
Hydraulic pedal devices
Infinite lifting and lowering with pedals.
For long term, intensive use in two-shift operation.
Drawbar not mounted on delivery – easy self-assembly.
Available in most RAL colours. Only 10 % extra.
10 year guarantee
Technical data
Max. load | 500 kg |
---|---|
Lifting range | 460 – 1400 mm |
Length | 1005 mm |
Width | 760 mm |
Platform finish | zinc plated |
Push handle version | bolted on |
Push handle material | powder coated |
Frame colour | light blue RAL 5012 |
Lift per pedal stroke | 12 mm |
Lift drive | pedal hydraulics |
Product type | lifting platform trolleys |
Wheel fittings | 2 steering wheels with double stops, 2 fixed castors |
Wheel material | solid rubber |
Wheel diameter | 200 mm |
Wheel bearing | roller bearing |
Model | double scissors |
Frame material | powder coated |
Weight | 153 kg |
Platform width | 760 mm |
Platform length | 760 mm |
Feature | mobile manual |
Supplied | assembled |
Instructions |
