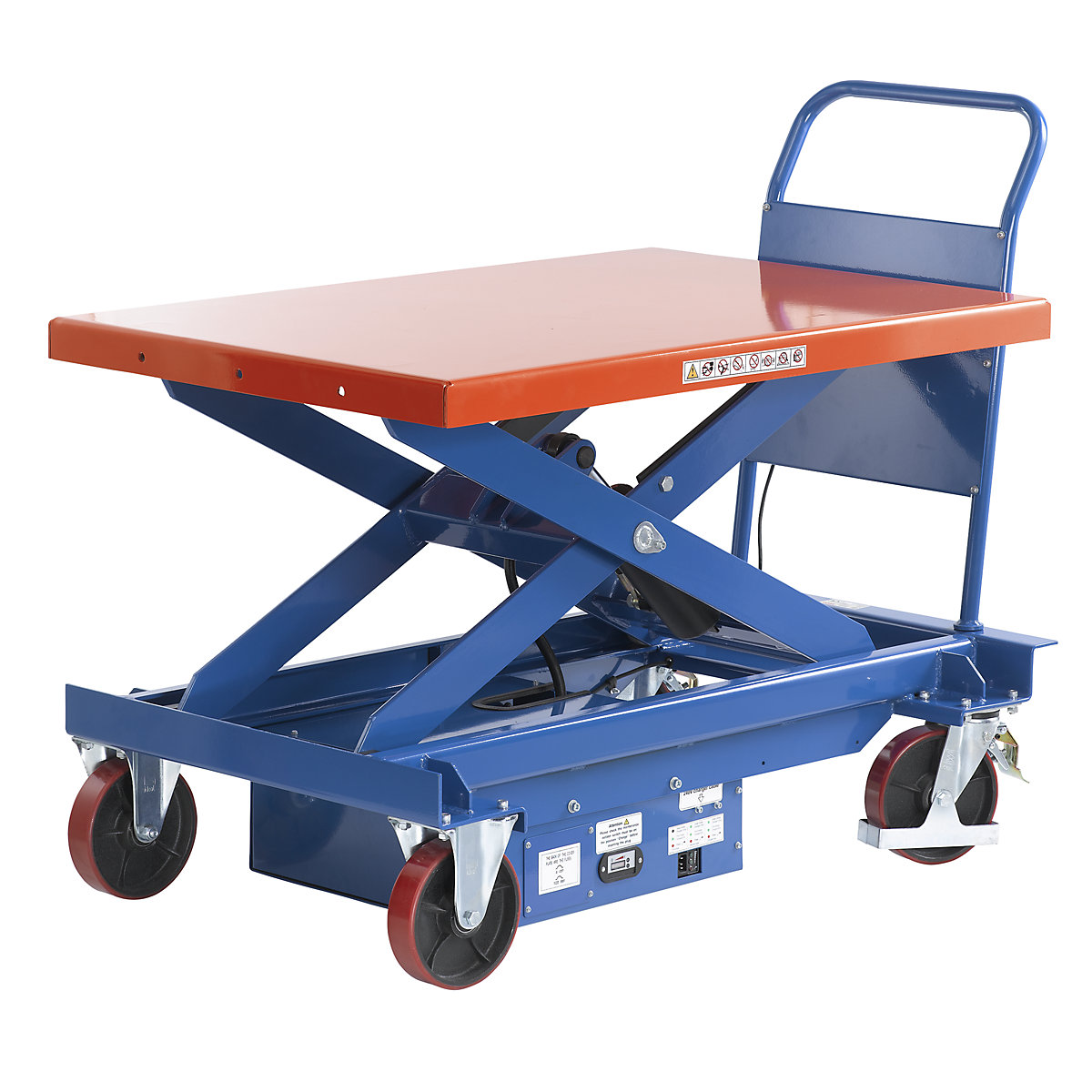

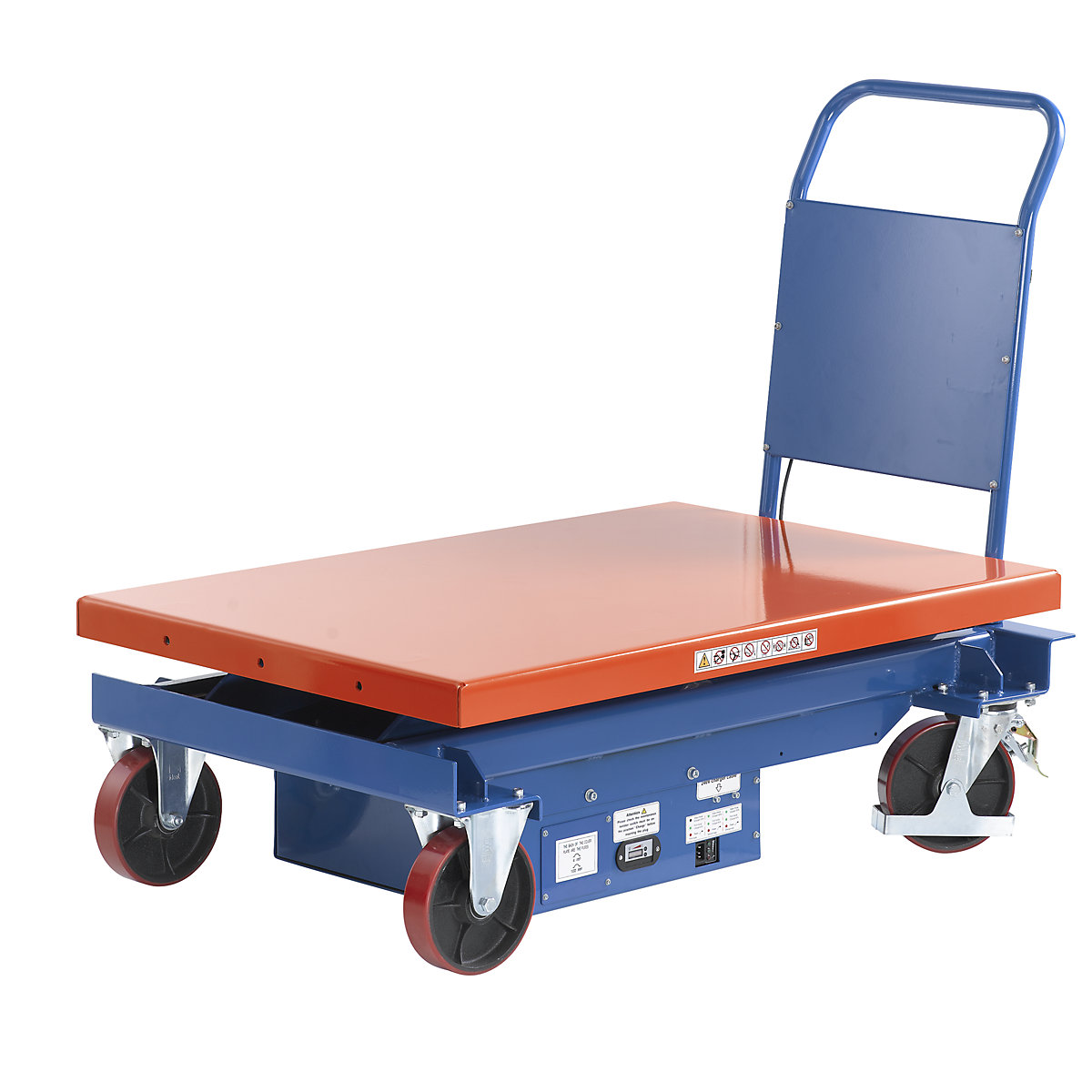

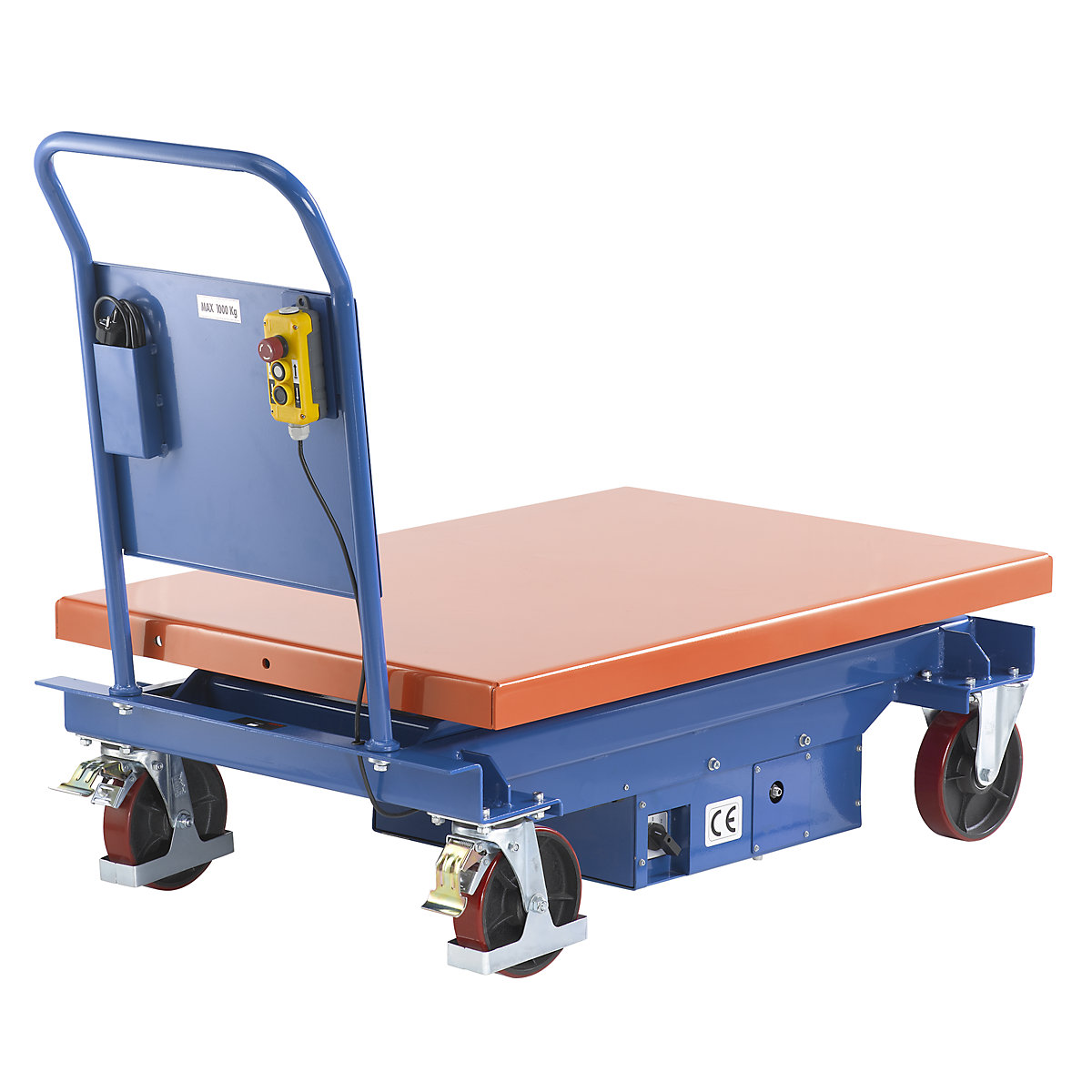

Lifting platform trolley, electric lifting range 430 – 1230 mm

  • Manual moving – electro-hydraulic lifting
  • Precise – fast – convenient
  • Built-in impulse charger, Varta battery, Bucher hydraulics
Ref.: 483916 49
Lifting platform trolley, electric, lifting range 430 – 1230 mm, max. load 1000 kg
Price / items (Excl. VAT)
£3,075.00

Product description

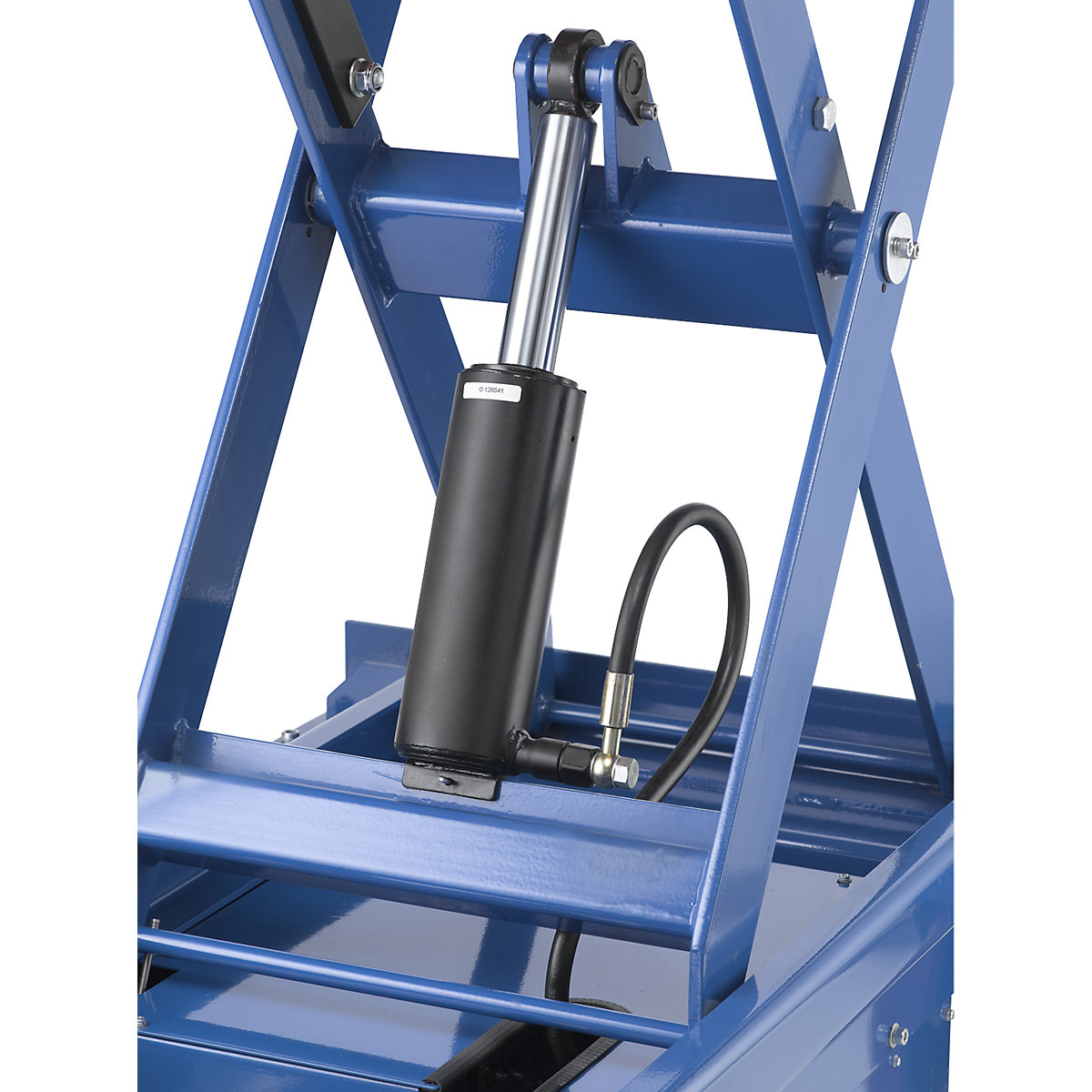

Durable and sophisticated equipment. Reliable Bucher hydraulics. Wheels with double stops for good stability.

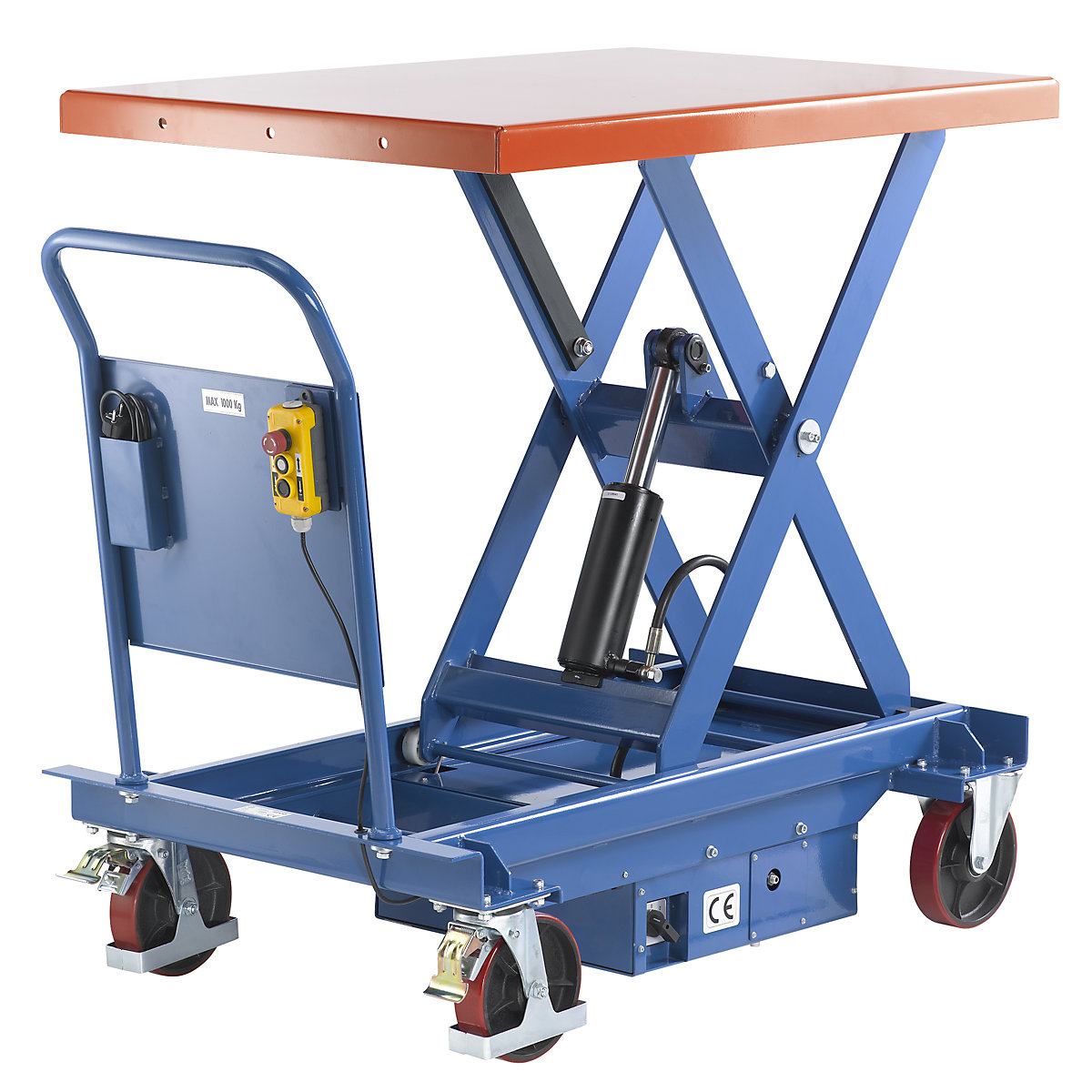

Control unit for raising and lowering is installed on the solid push handle, making it easy to reach.
Integrated impulse charger with charging status display, durable Varta batteries and a charge level display.

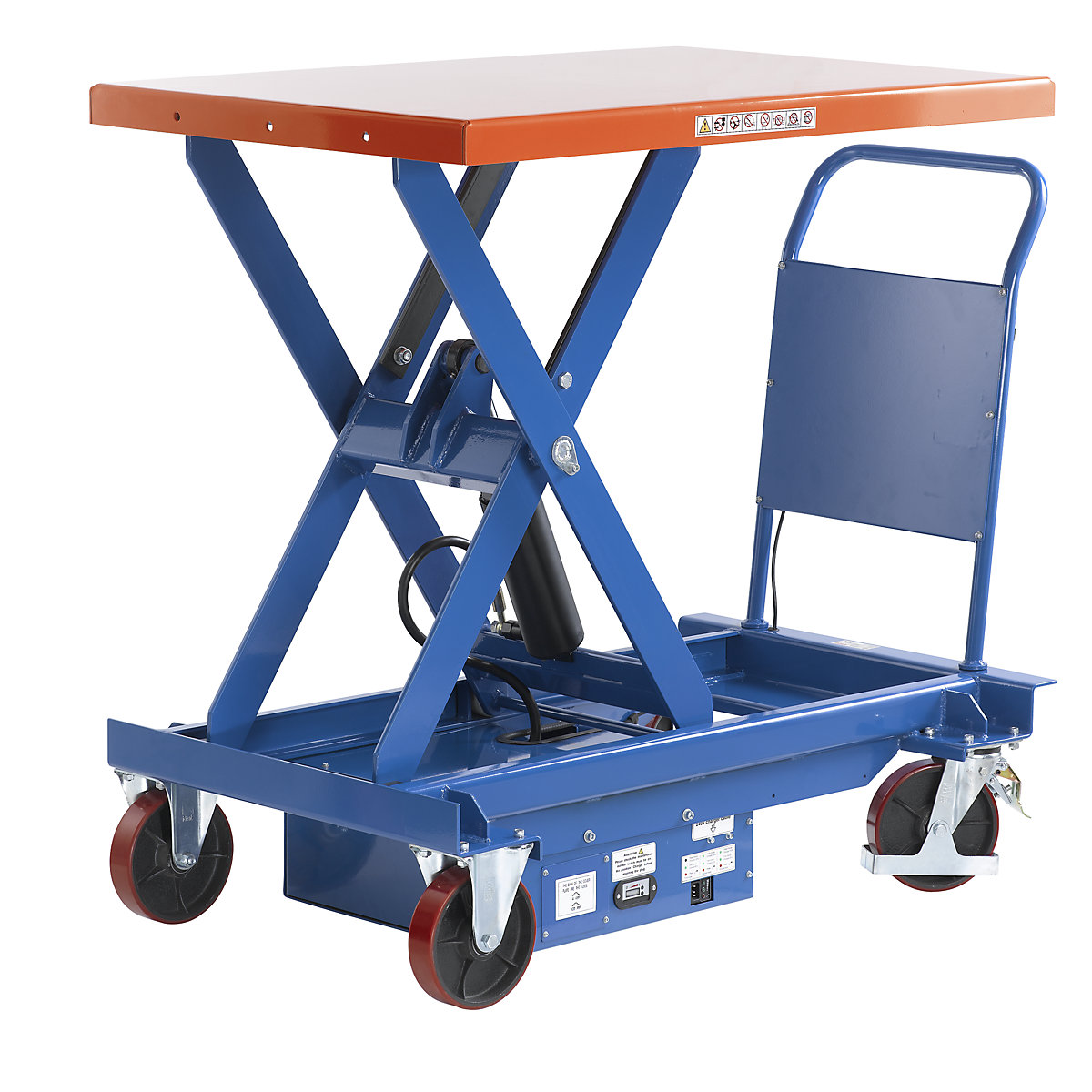

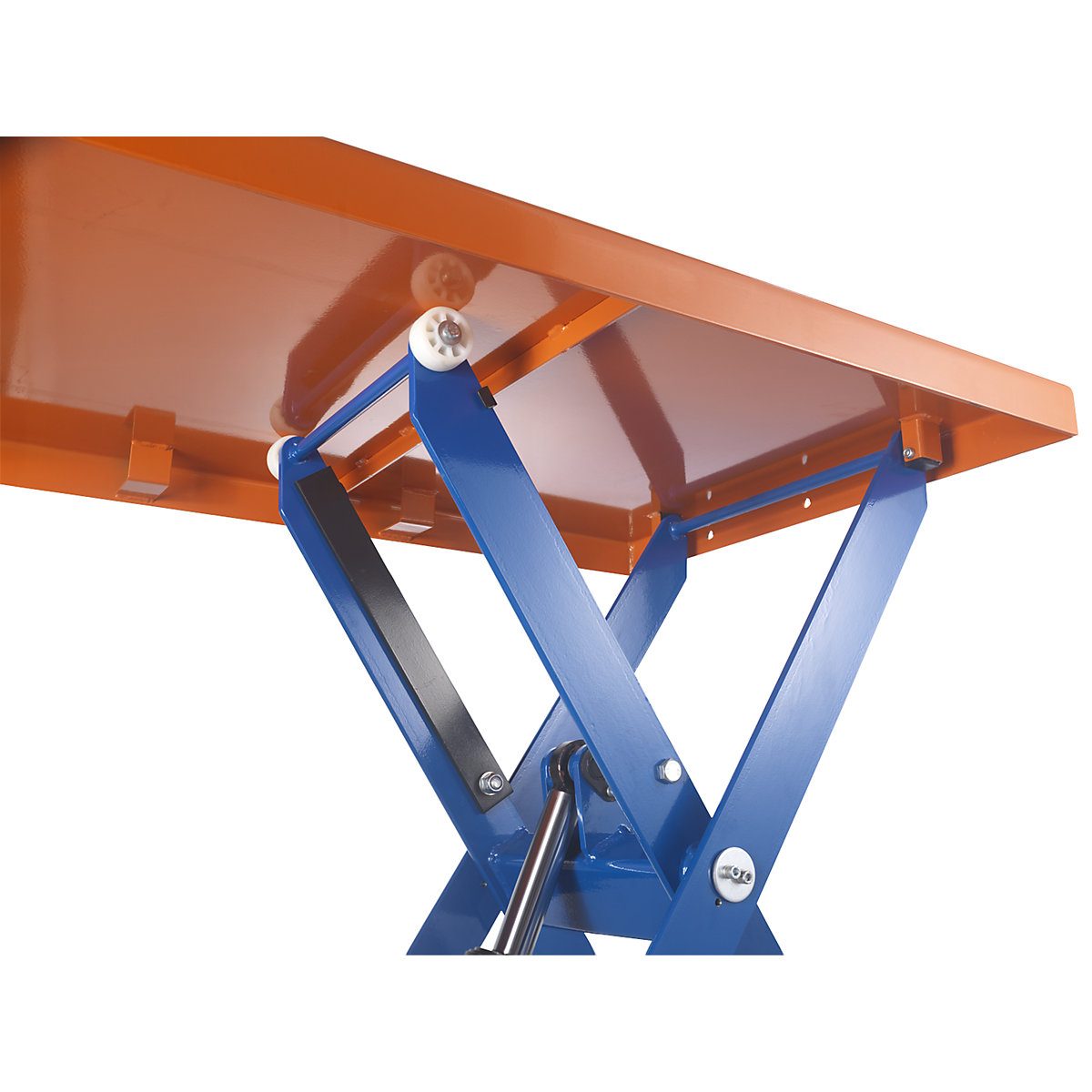

Double scissor mechanism with extra wide chassis and extra strong scissors, and therefore extremely stable even in lifted position. Soft stop valve for gentle placement.
  • Manual moving – electro-hydraulic lifting
  • Precise – fast – convenient
  • Built-in impulse charger, Varta battery, Bucher hydraulics
Technical data
Max. load1000 kg

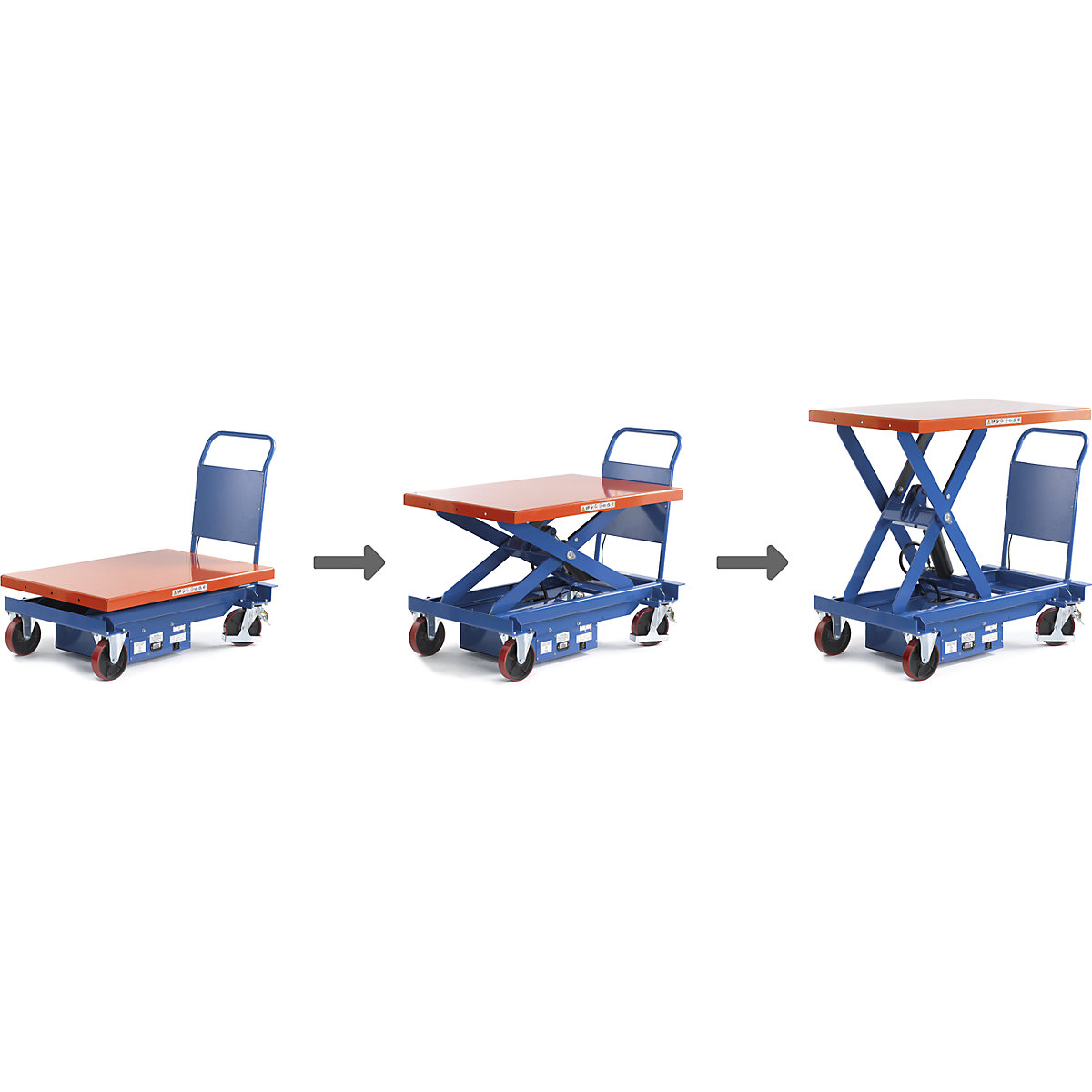

Lifting range430 – 1230 mm
Overall length1395 mm
Overall width800 mm
Platform colourpure orange RAL 2004
Lifting time24 sec
Battery12 V / 80 Ah
Product typelifting platform trolleys

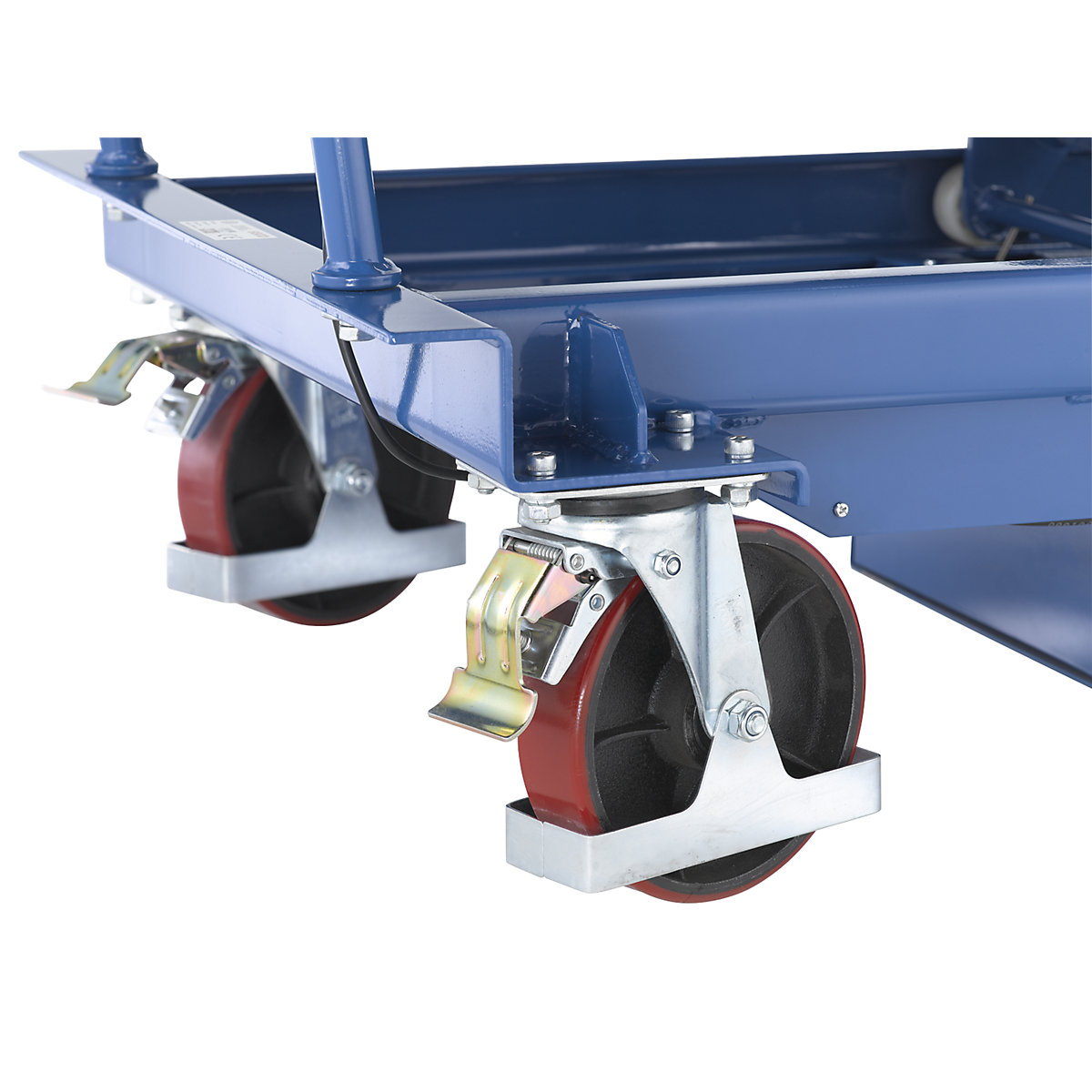

Wheel fittings2 steering wheels with double stops, 2 fixed castors
Wheel materialpolyurethane
Wheel diameter200 mm
Frame finishpowder coated
Frame coloursignal blue RAL 5005
Weight240 kg
Battery charger8 A impulse charger
Cycles70
Platform width800 mm
Platform length1200 mm
Featuremobile
electro-hydraulic
Suppliedflat pack
