Lifting platform trolley, electric lifting range 485 – 1000 mm

  • Manual moving – electro-hydraulic lifting
  • Precise – fast – convenient
  • Built-in impulse charger, Varta battery, Bucher hydraulics
Ref.: 483914 49

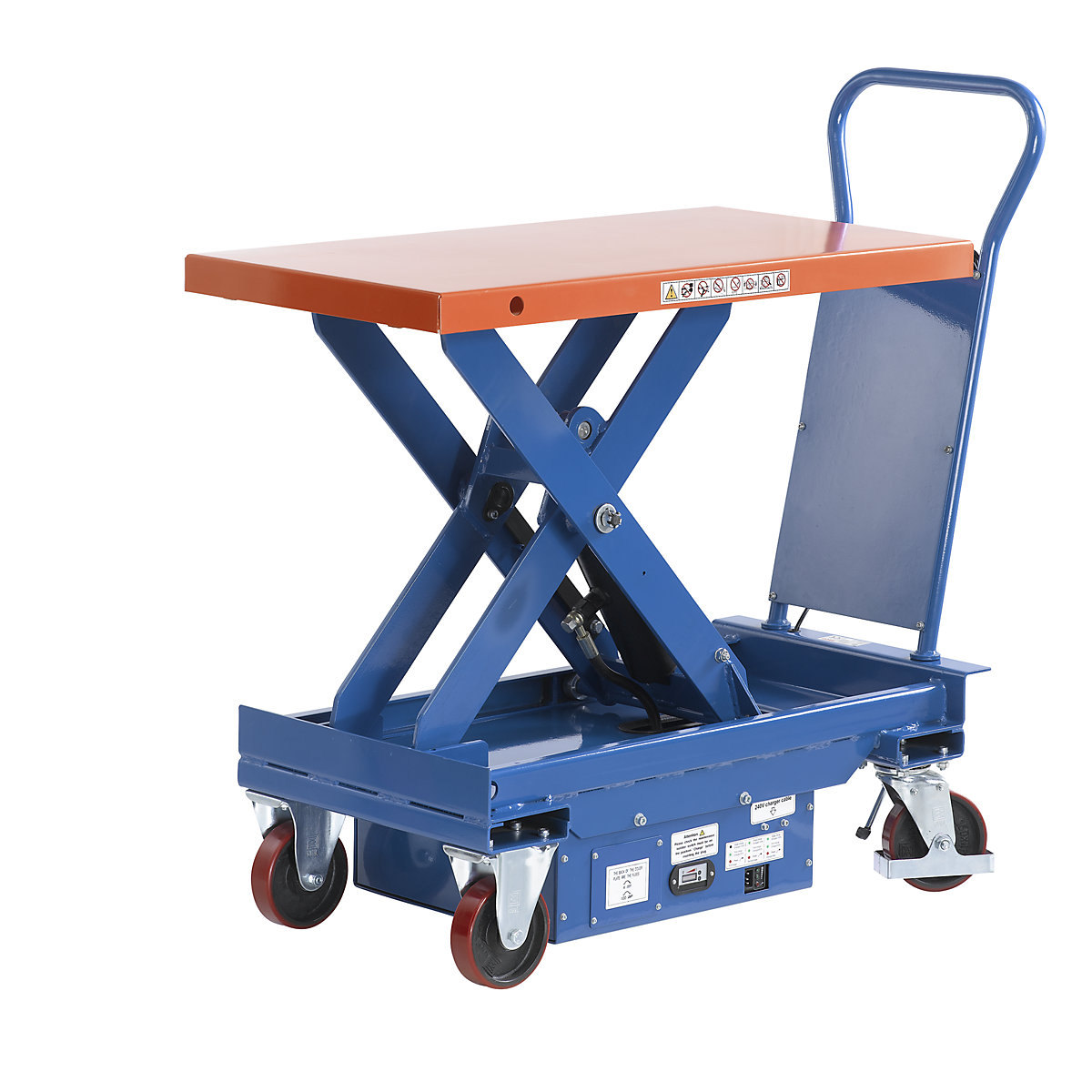

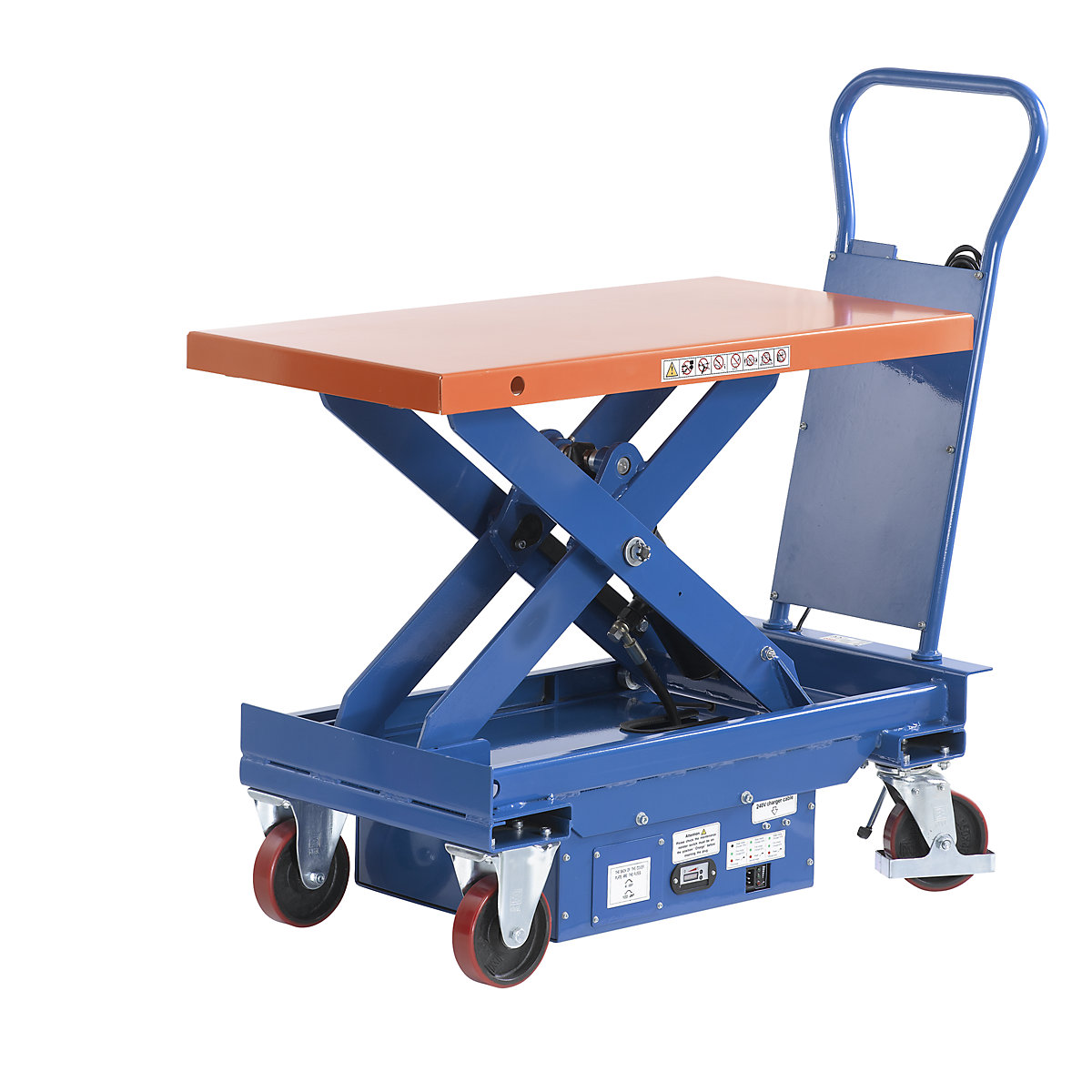

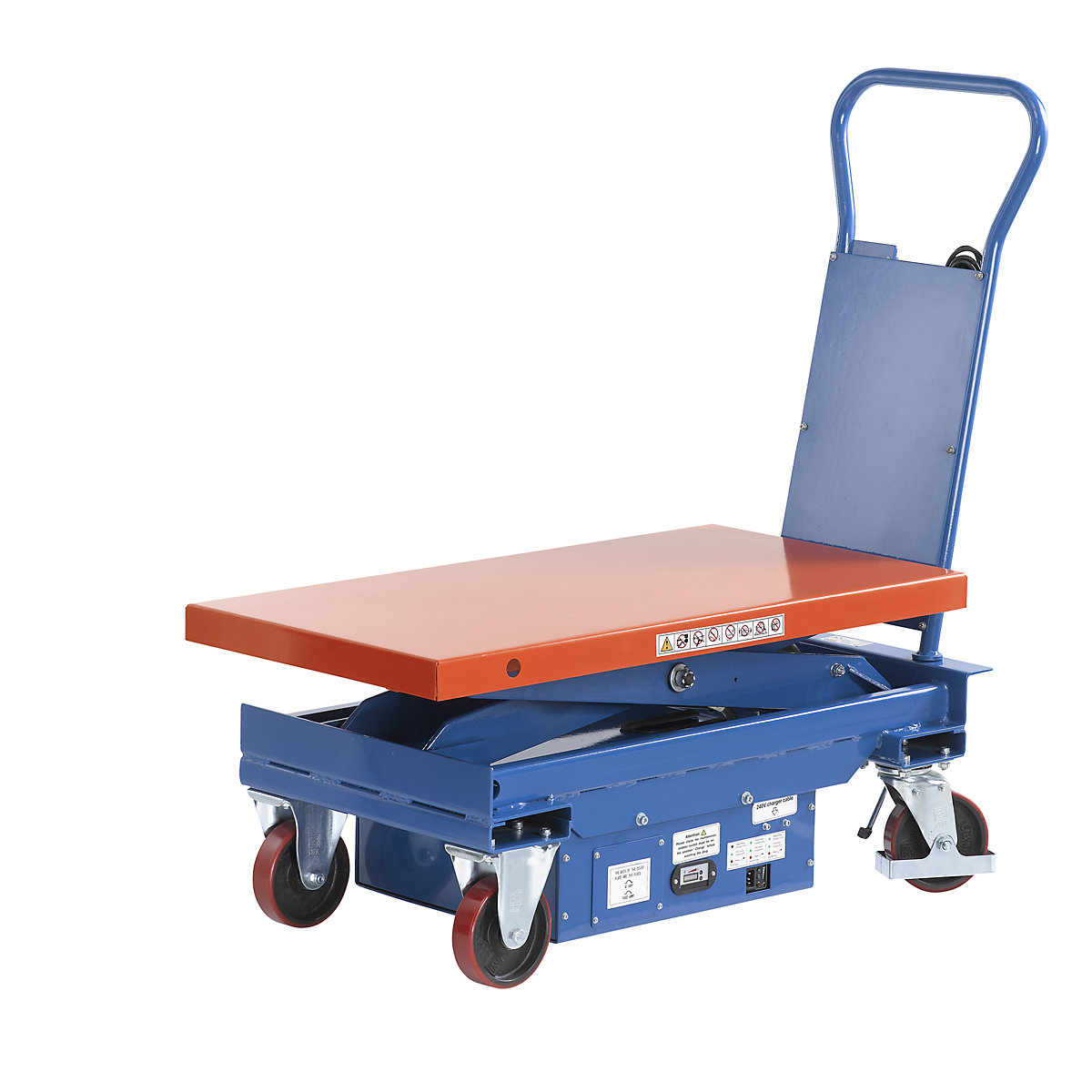

Lifting platform trolley, electric, lifting range 485 – 1000 mm, max. load 1000 kg
Only 2 available
Price / items (Excl. VAT)
£2,575.00

Product description
Durable and sophisticated equipment. Reliable Bucher hydraulics. Wheels with double stops for good stability.

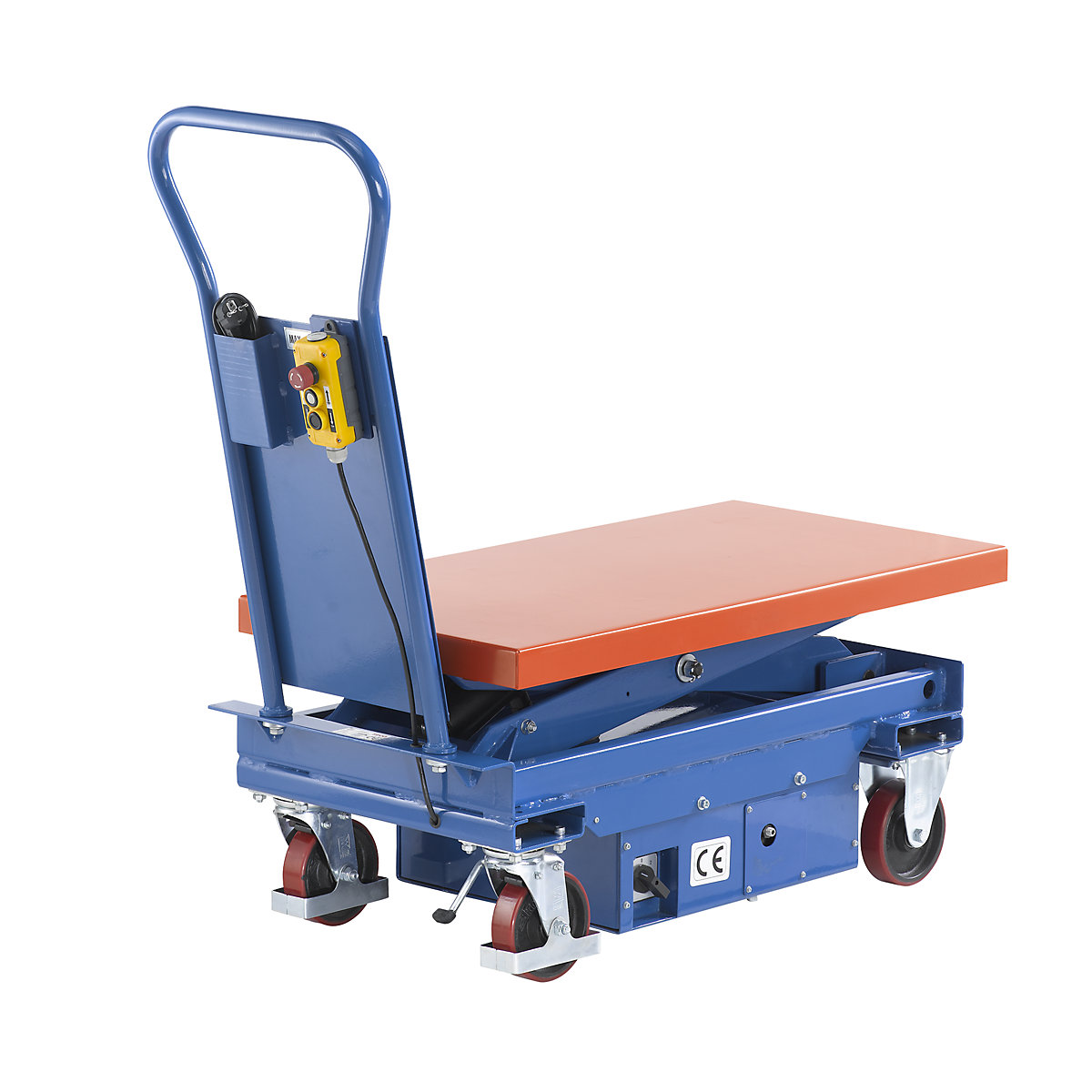

Control unit for raising and lowering is installed on the solid push handle, making it easy to reach.
Integrated impulse charger with charging status display, durable Varta batteries and a charge level display.

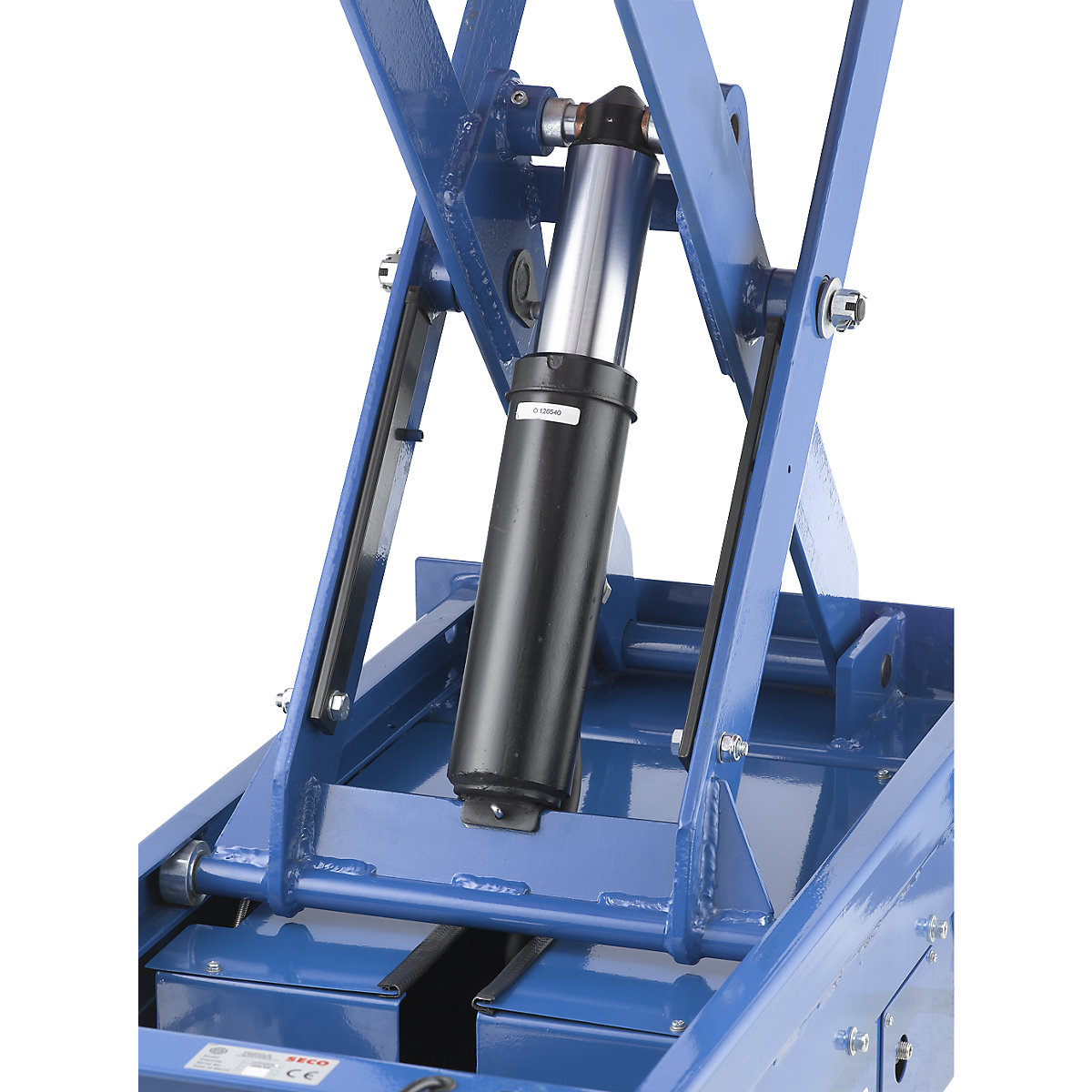

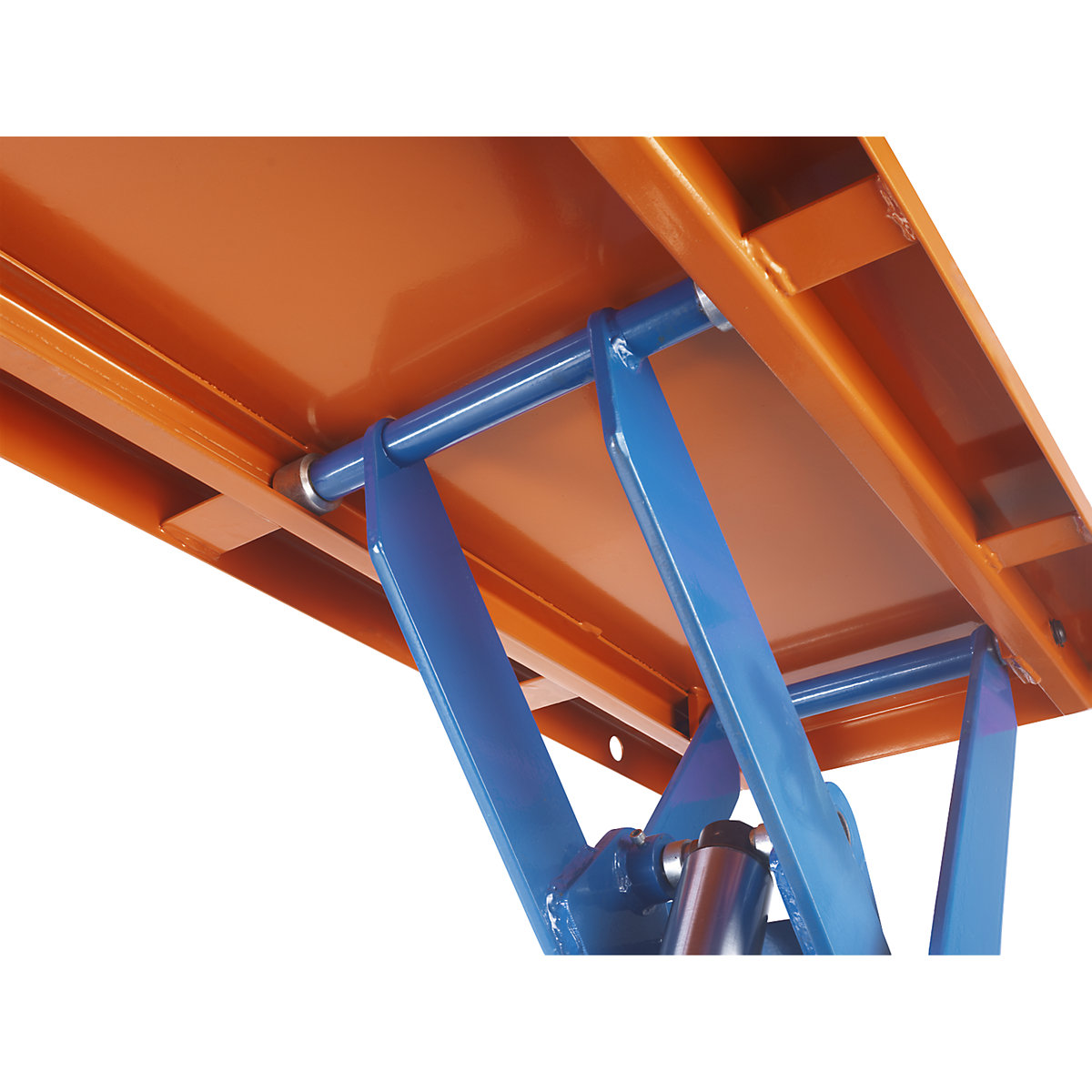

Double scissor mechanism with extra wide chassis and extra strong scissors, and therefore extremely stable even in lifted position. Soft stop valve for gentle placement.
  • Manual moving – electro-hydraulic lifting
  • Precise – fast – convenient
  • Built-in impulse charger, Varta battery, Bucher hydraulics
Technical data
Max. load1000 kg
Lifting range485 – 1000 mm
Overall length1225 mm
Overall width520 mm
Platform colourpure orange RAL 2004
Lifting time11 sec
Battery12 V / 54 Ah
Product typelifting platform trolleys

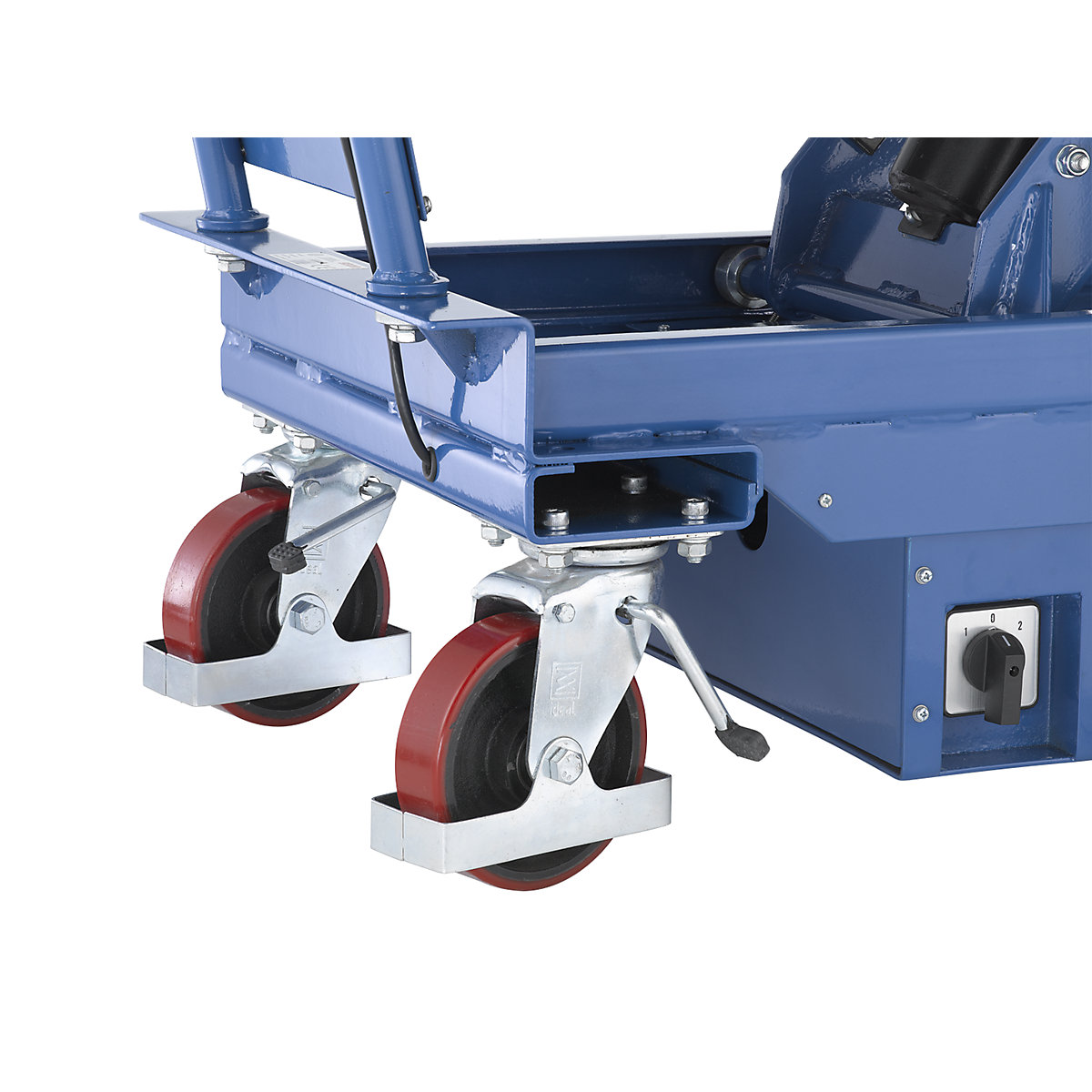

Wheel fittings2 steering wheels with double stops, 2 fixed castors
Wheel materialpolyurethane
Wheel diameter150 mm
Frame finishpowder coated
Frame coloursignal blue RAL 5005
Weight169 kg
Battery charger8 A impulse charger
Cycles90
Platform width520 mm
Platform length1010 mm
Featuremobile
electro-hydraulic
Suppliedflat pack
