EUROKRAFTbasic – Lifting platform trolley lifting range 265 – 755 mm

3.8 stars out of 5
  • Standard units in reliable quality
  • Lift, lower, transport
  • Ergonomic work at the right working height
EUROKRAFTbasic
3 year guarantee
3 year guarantee
Ref.: 480565 49

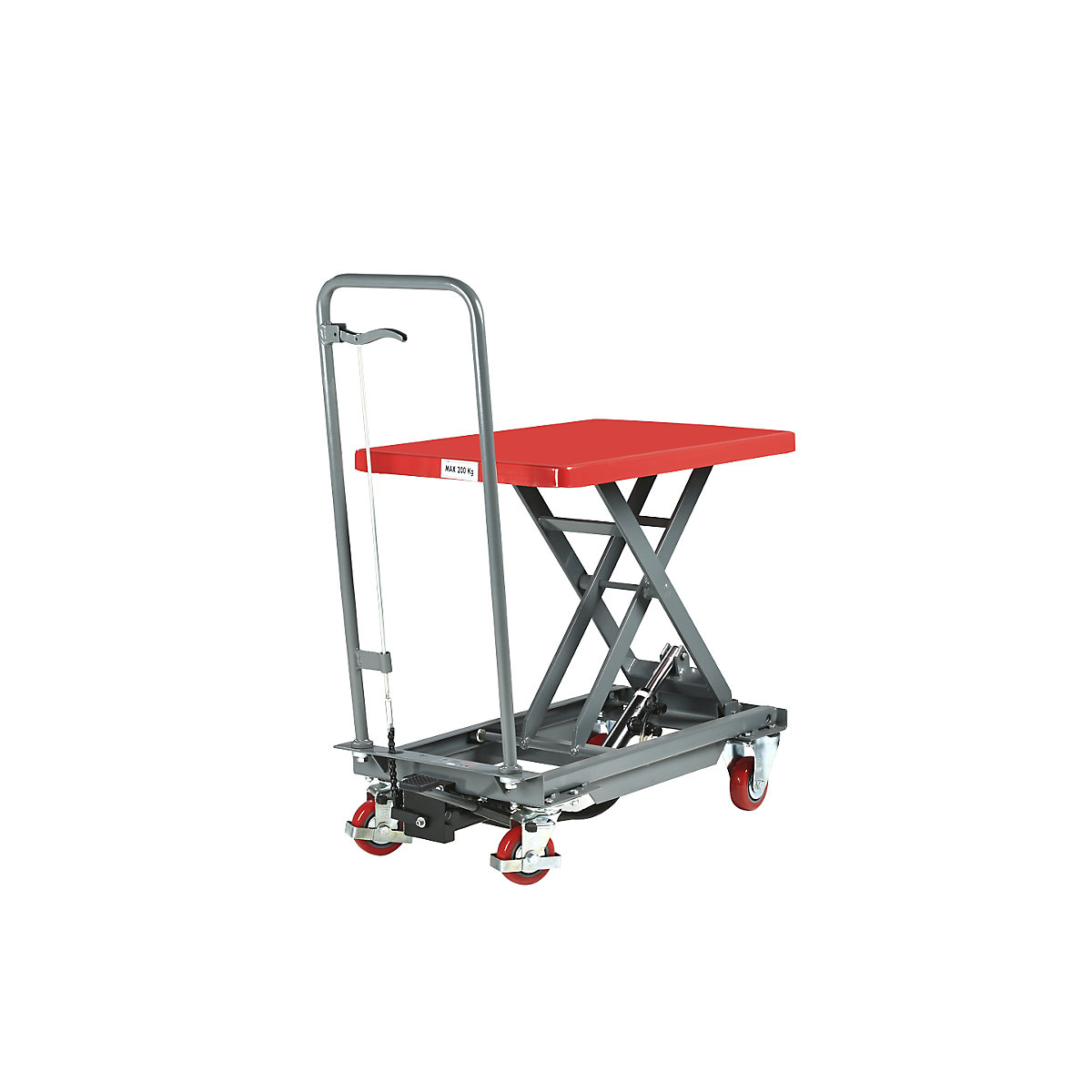

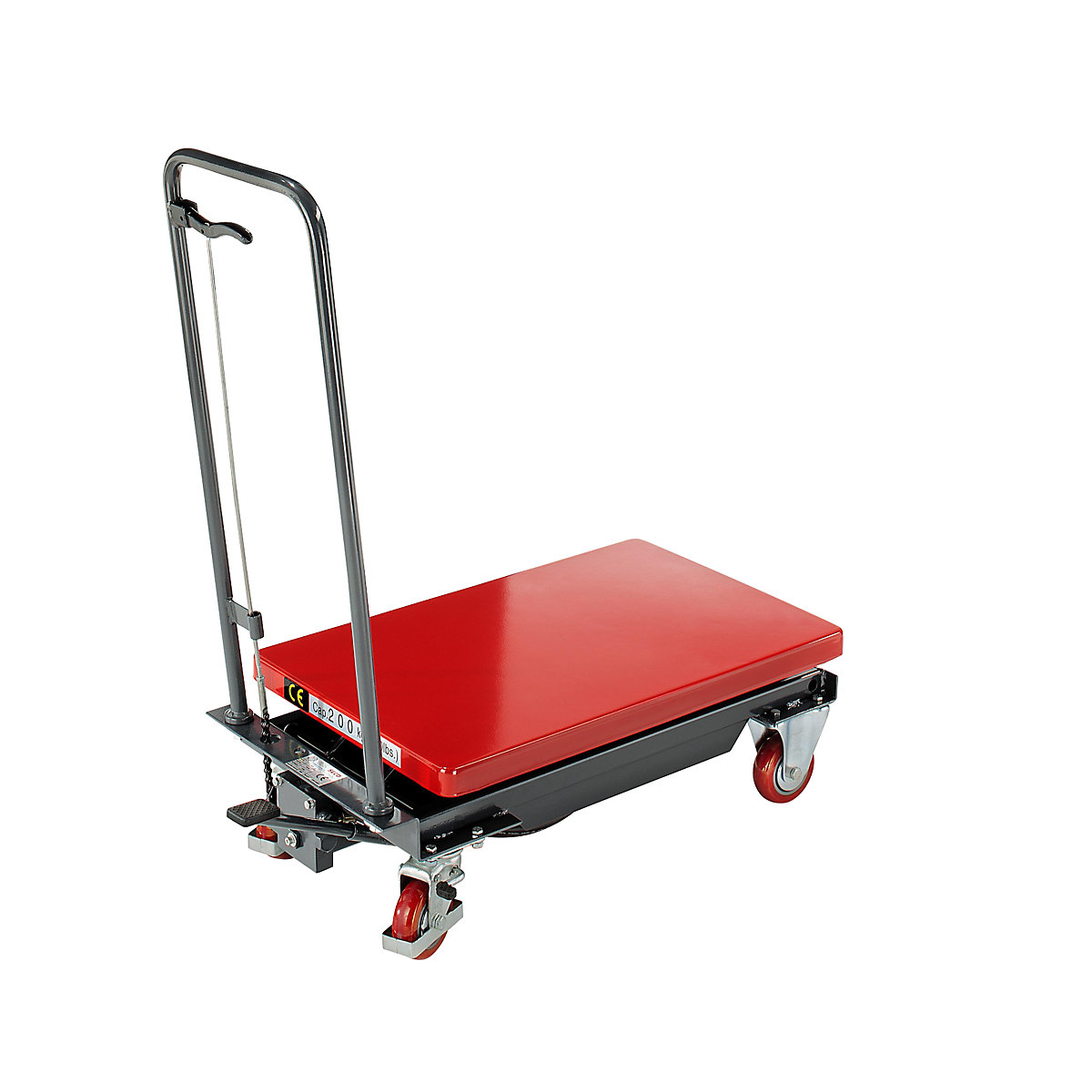

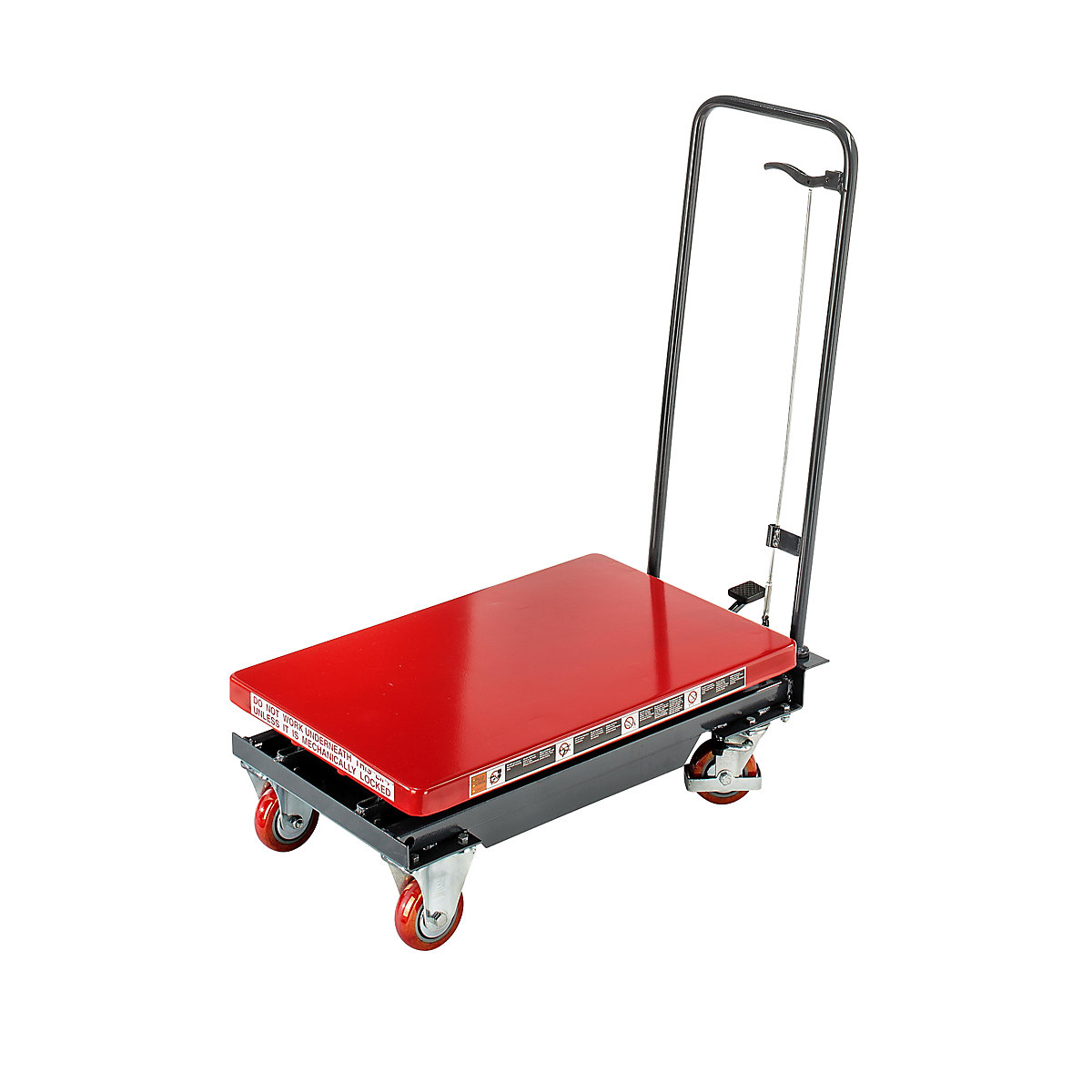

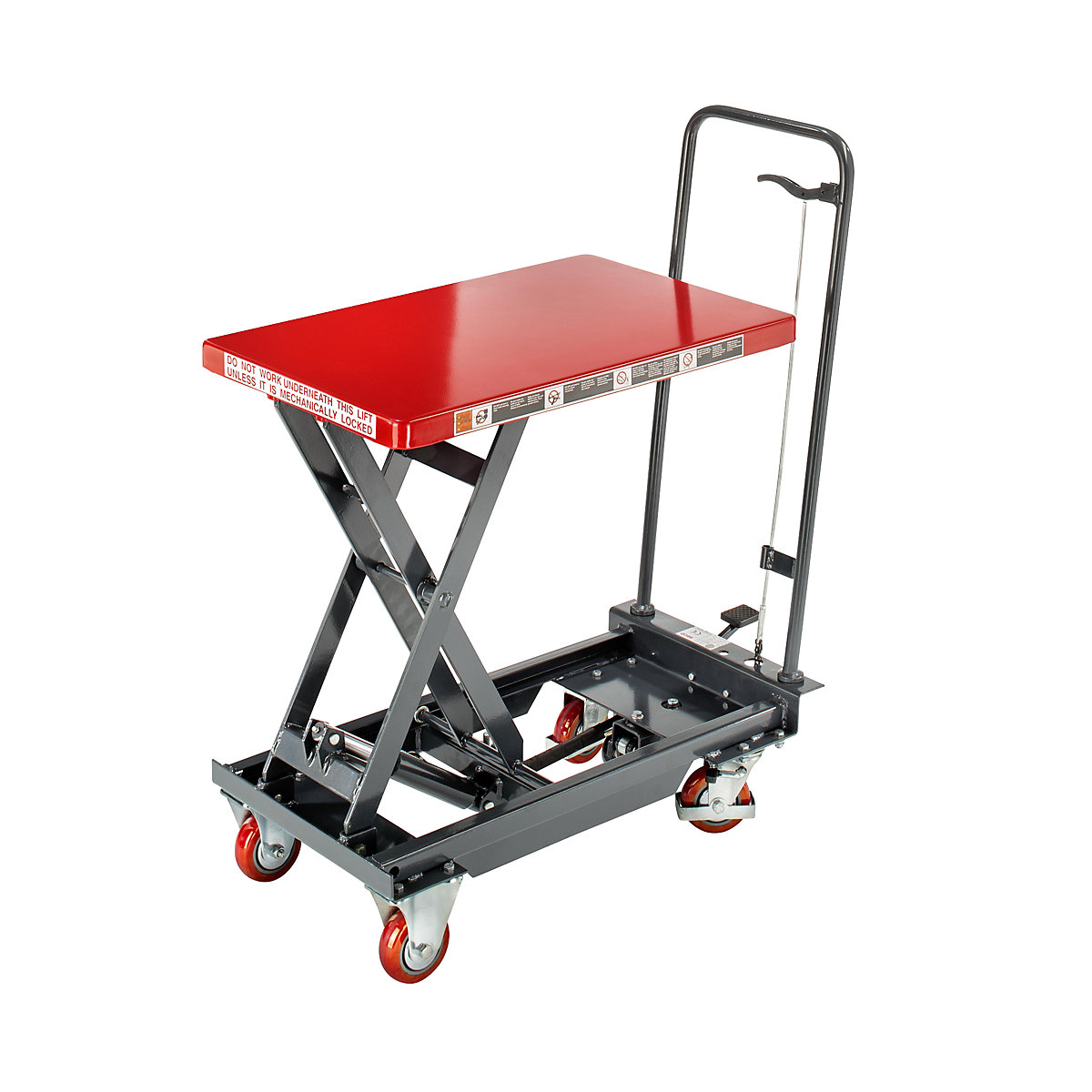

EUROKRAFTbasic – Lifting platform trolley, lifting range 265 – 755 mm, max. load 200 kg
Price / items (Excl. VAT)
£329.00

Product description

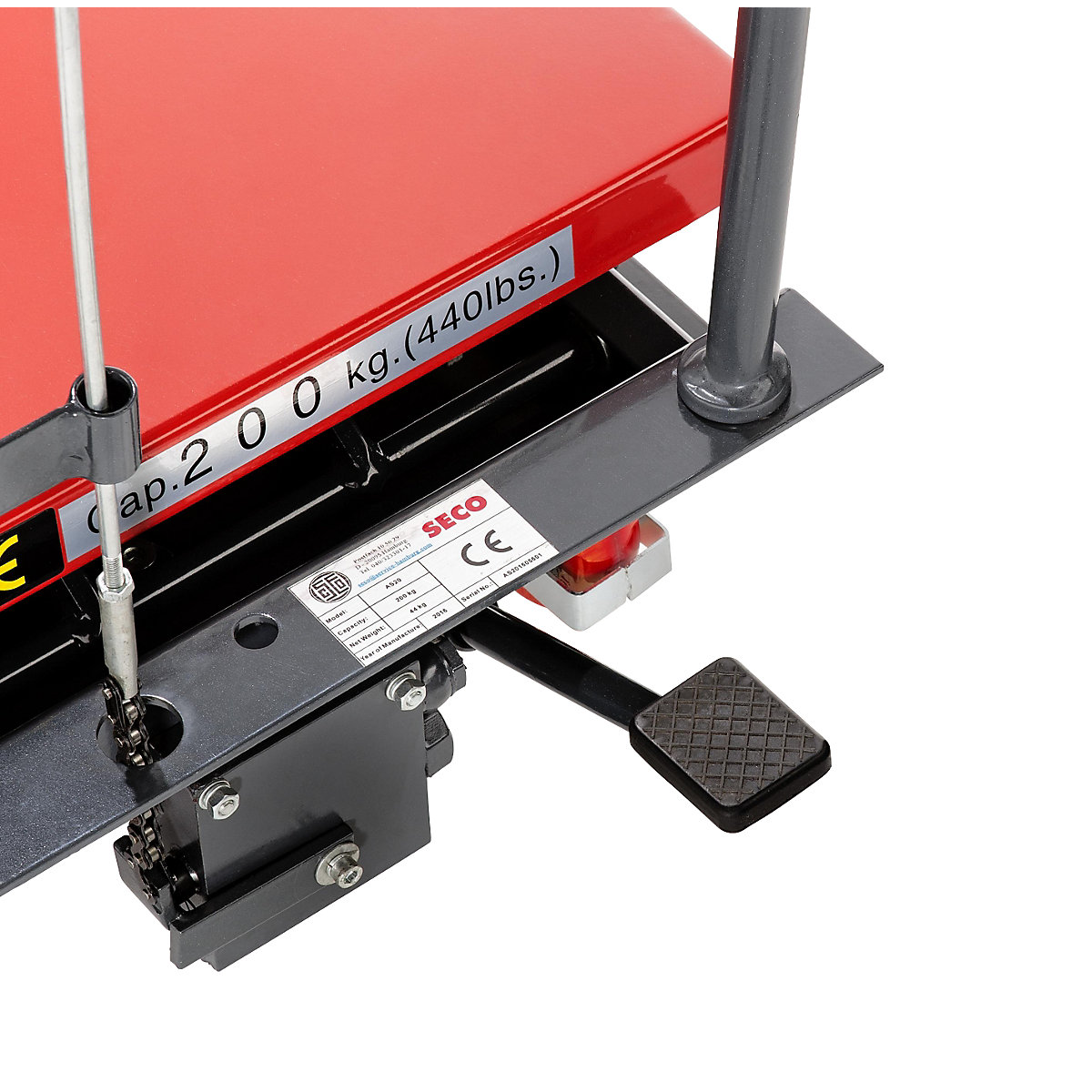

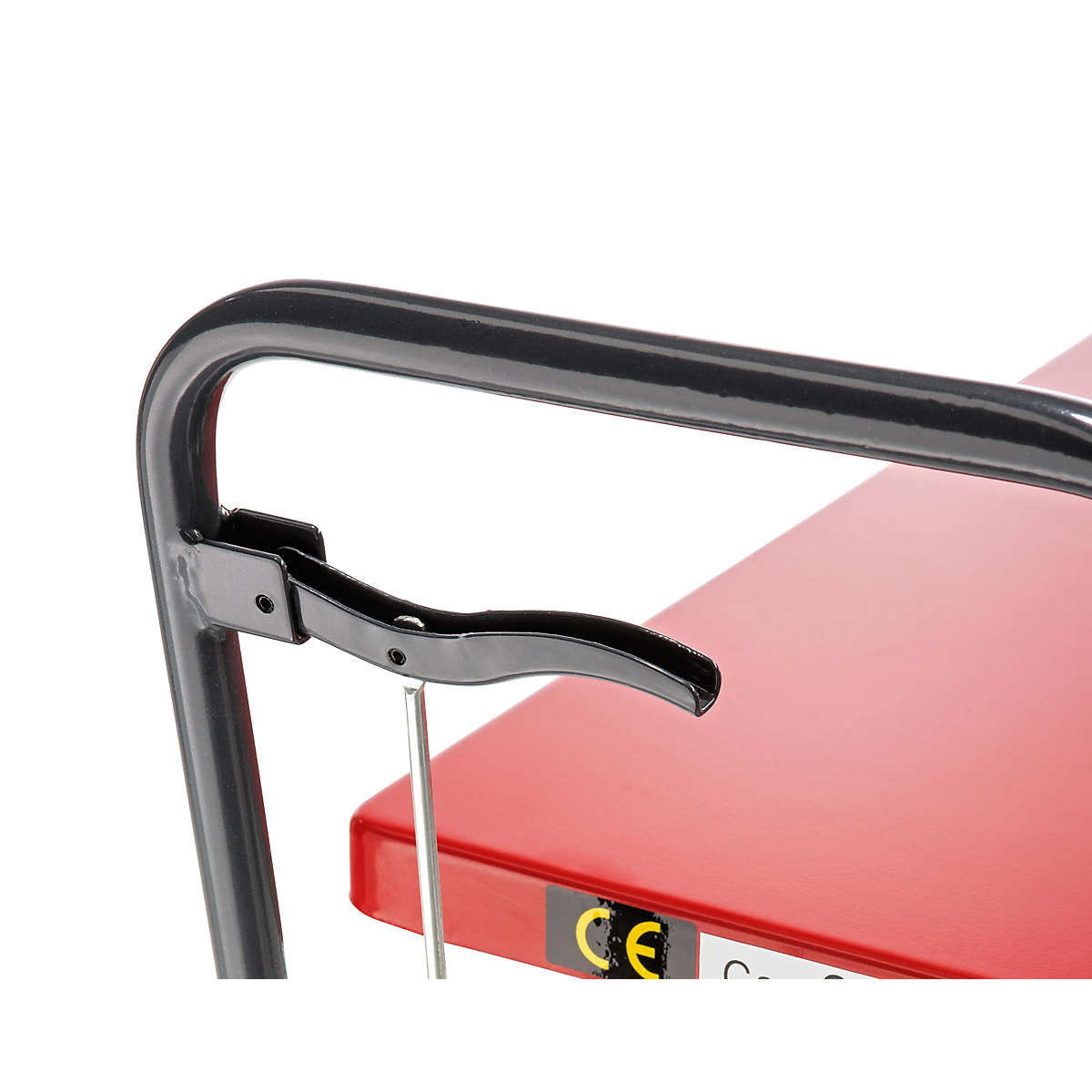

Lift with pump pedal, precise manual control of lowering. Durable and sophisticated devices. Service-friendly, with inspection supports. Powder coated in basalt grey RAL 7012 and signal red RAL 3001.
Wheels

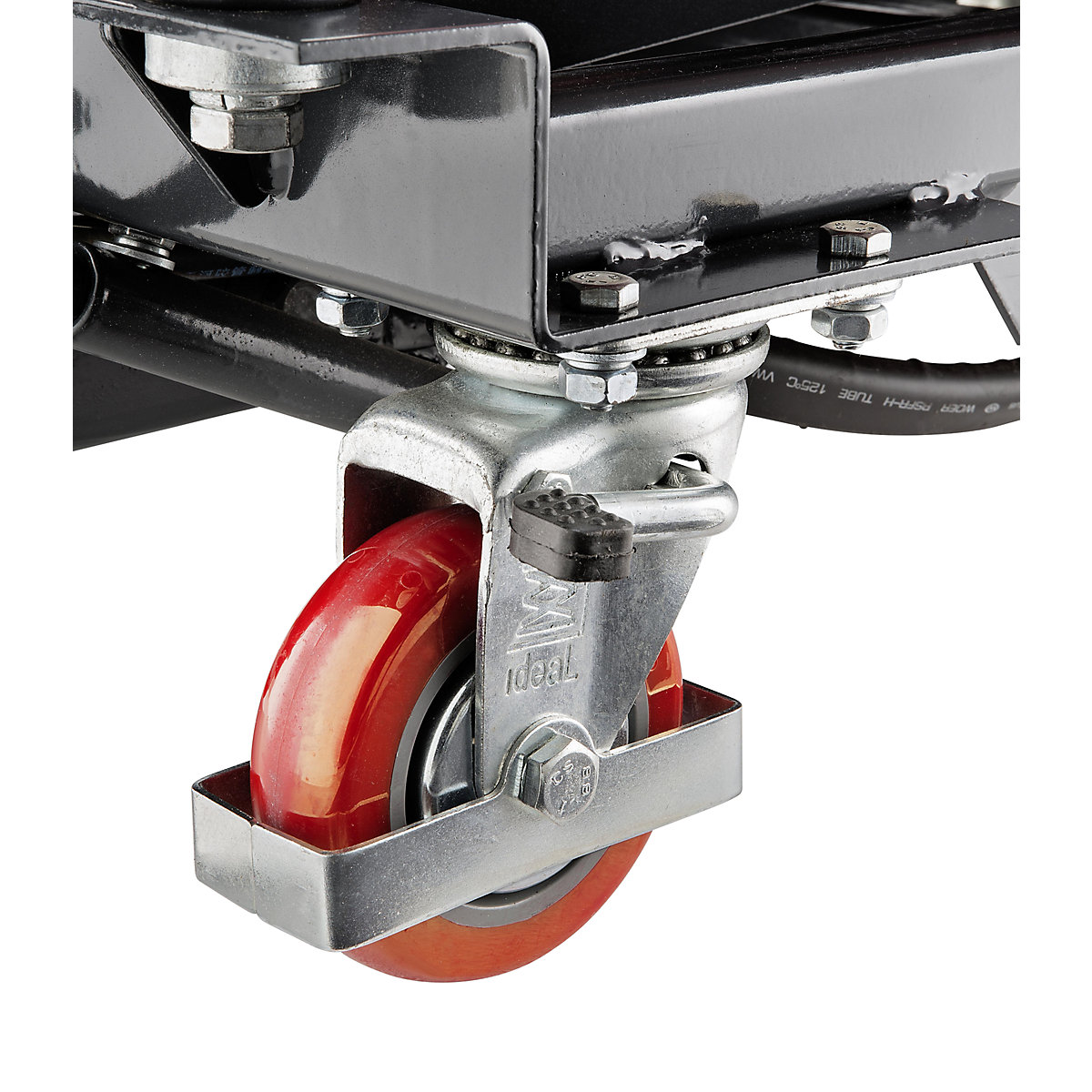

2 swivel castors with foot protection and wheel stop and 2 fixed castors. All castors with non-marking polyurethane tyres.
  • Standard units in reliable quality
  • Lift, lower, transport
  • Ergonomic work at the right working height
3 year guarantee
3 year guarantee
Technical data
Max. load200 kg
Lifting range265 – 755 mm
Overall length870 mm
Overall width450 mm
Platform materialsteel
Platform finishpowder coated
Platform coloursignal red RAL 3001
Push handle finishpowder coated
Push handle colourbasalt grey RAL 7012
Lift per pedal stroke19.6 mm
Pedal strokes to max. lift25 pcs.
Lift drivepedal hydraulics
Product typelifting platform trolleys
Wheel fittings2 swivel castors with foot protection and wheel stops, 2 fixed castors
Wheel materialpolyurethane
Wheel diameter100 mm
Wheel bearingroller bearing
Frame finishpowder coated
Frame colourbasalt grey RAL 7012
Weight44 kg
Platform width450 mm
Platform length700 mm
Featuremobile
manual
Suppliedpartially assembled
EUROKRAFTbasic
