Display catalogue page (PDF)

EUROKRAFTbasic – Lifting platform trolley lifting range 390 – 910 mm

  • Standard units in reliable quality
  • Lift, lower, transport
  • Ergonomic work at the right working height
EUROKRAFTbasic
3 year guarantee
3 year guarantee
Ref.: 480567 49

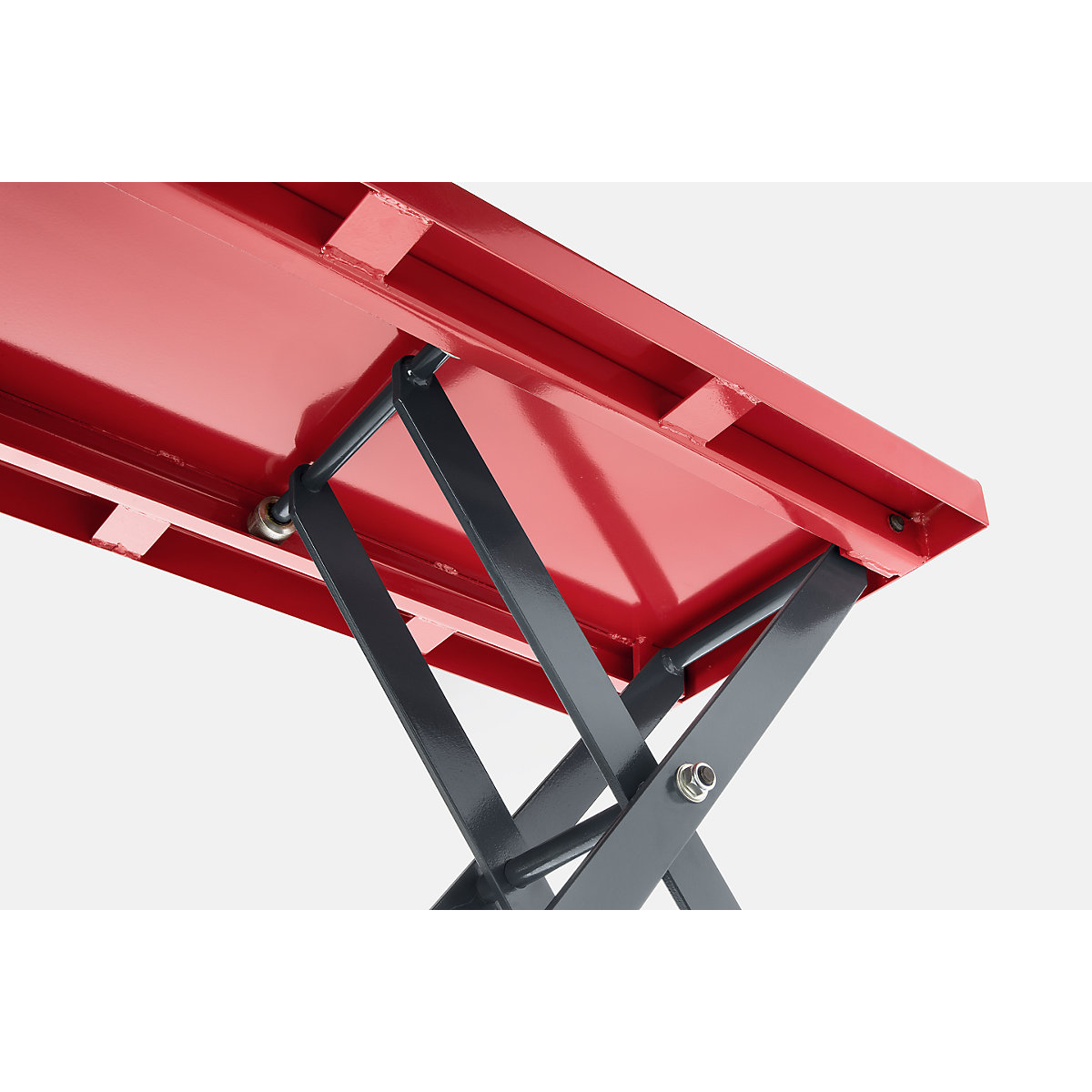

EUROKRAFTbasic – Lifting platform trolley, lifting range 390 – 910 mm, max. load 500 kg
Currently not available

Product description
Lift with pump pedal, precise manual control of lowering. Durable and sophisticated devices. Service-friendly, with inspection supports. Powder coated in basalt grey RAL 7012 and signal red RAL 3001.
Wheels
2 swivel castors with foot protection and wheel stop and 2 fixed castors. All castors with non-marking polyurethane tyres.
  • Standard units in reliable quality
  • Lift, lower, transport
  • Ergonomic work at the right working height
3 year guarantee
3 year guarantee
Technical data
Max. load500 kg
Lifting range390 – 910 mm
Overall length1050 mm
Overall width502 mm
Platform materialsteel
Platform finishpowder coated
Platform coloursignal red RAL 3001
Push handle finishpowder coated
Push handle colourbasalt grey RAL 7012
Lift per pedal stroke13 mm
Pedal strokes to max. lift40 pcs.
Lift drivepedal hydraulics
Product typescissor lifting platform truck
Wheel fittings2 swivel castors with foot protection and wheel stops, 2 fixed castors
Wheel materialpolyurethane
Wheel diameter125 mm
Wheel bearingball bearing
Frame finishpowder coated
Frame colourbasalt grey RAL 7012
Weight81 kg
Platform width502 mm
Platform length852 mm
Featuremobile
manual
Suppliedpartially assembled
EUROKRAFTbasic
