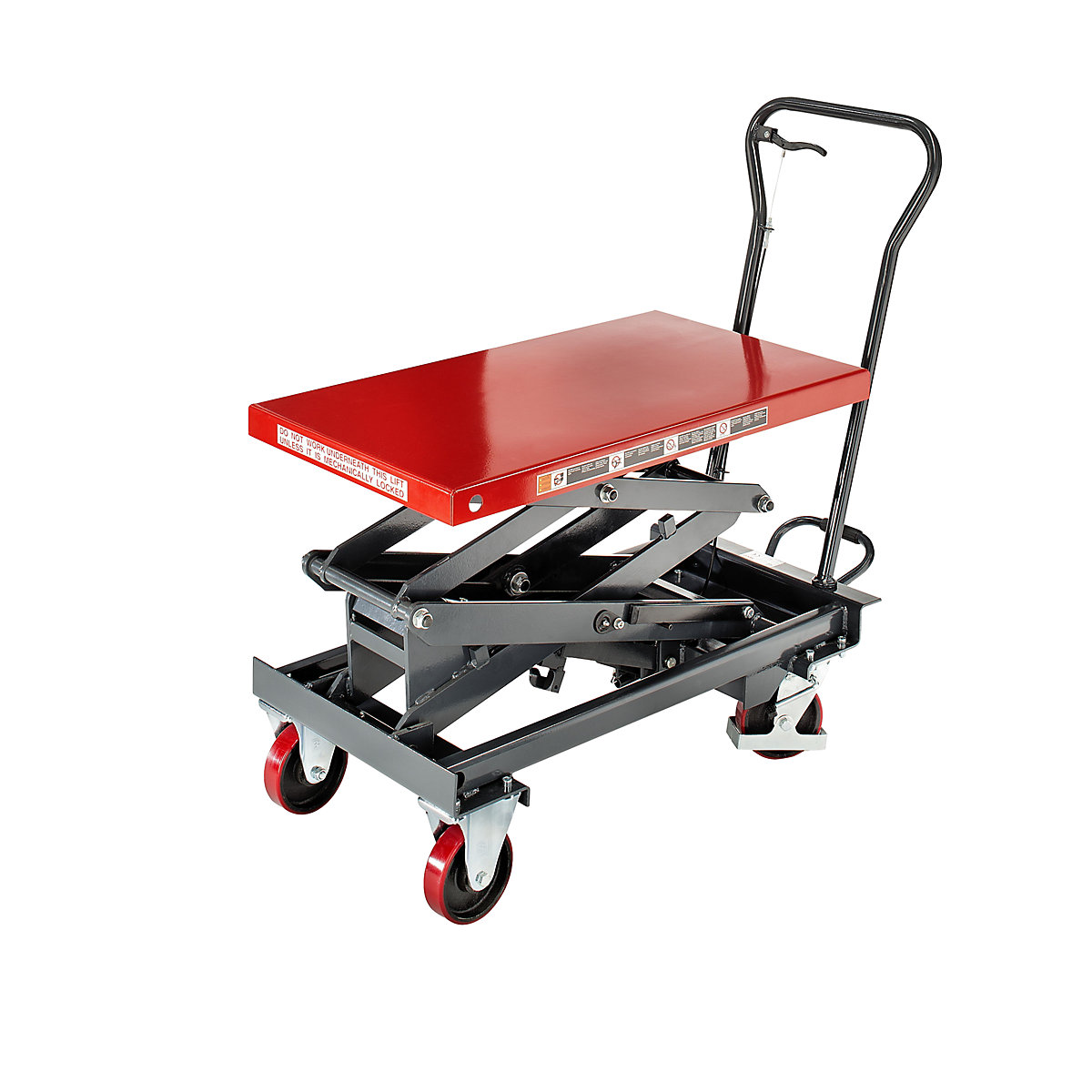

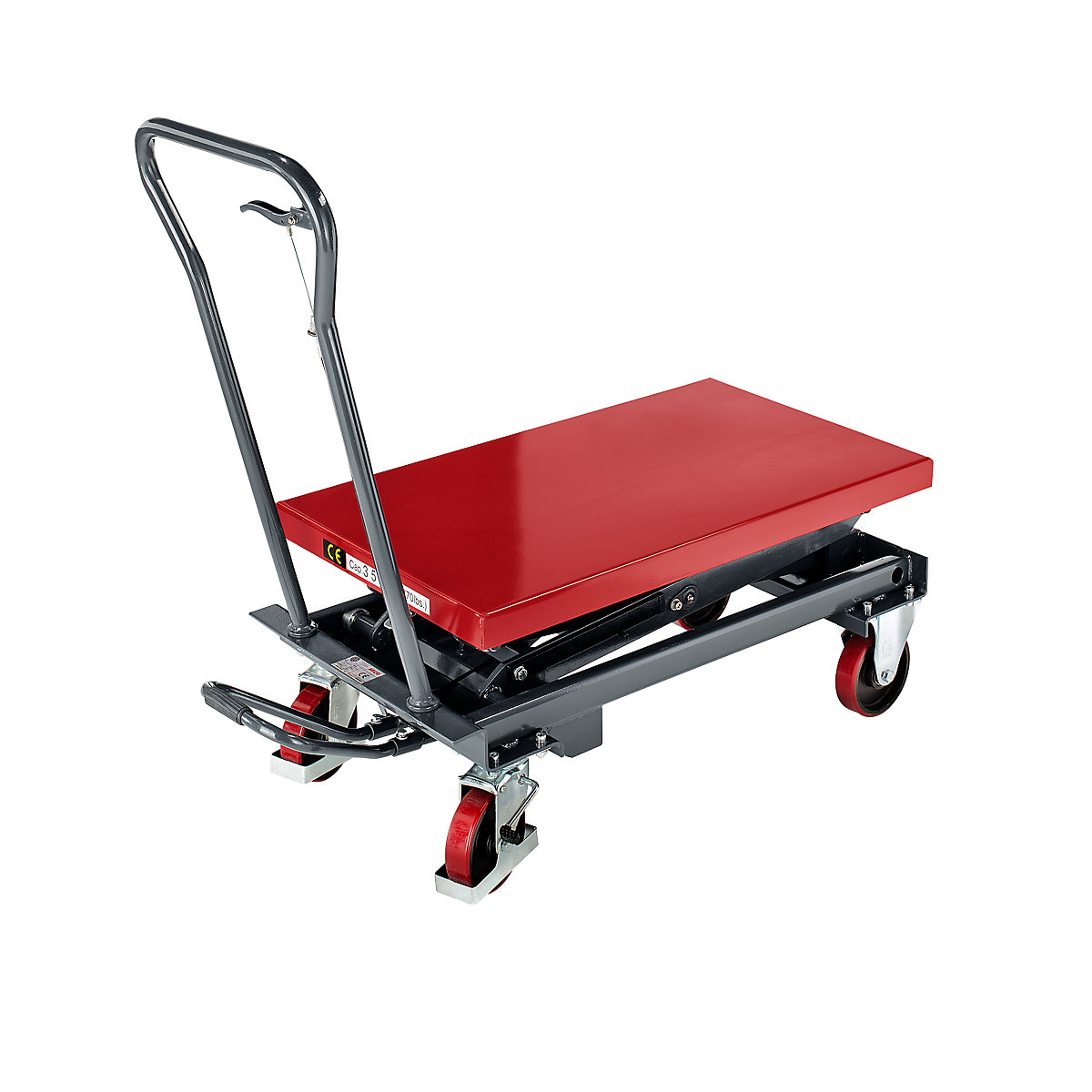

EUROKRAFTbasic – Lifting platform trolley lifting range 435 – 1500 mm

  • Standard units in reliable quality
  • Lift, lower, transport
  • Ergonomic work at the right working height

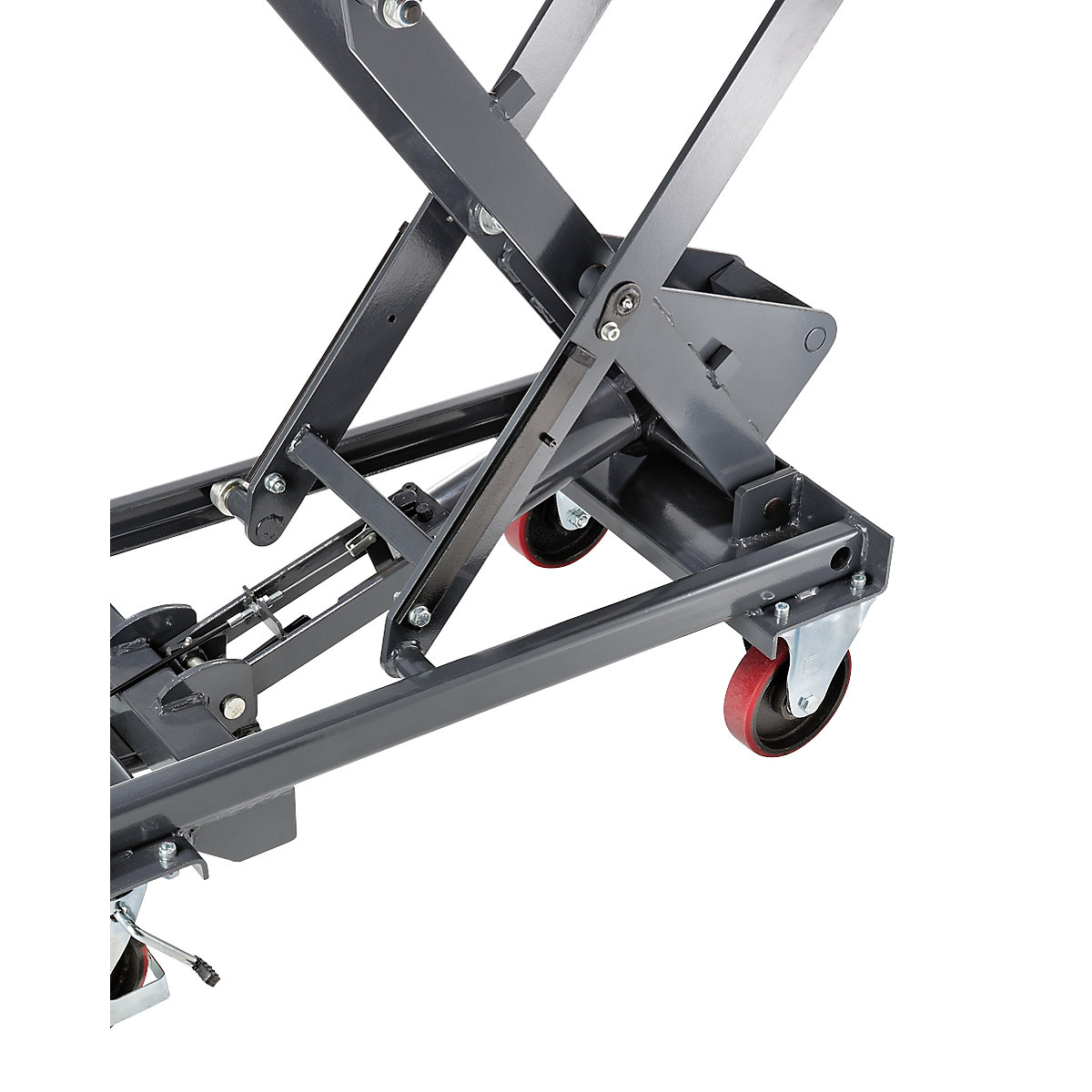

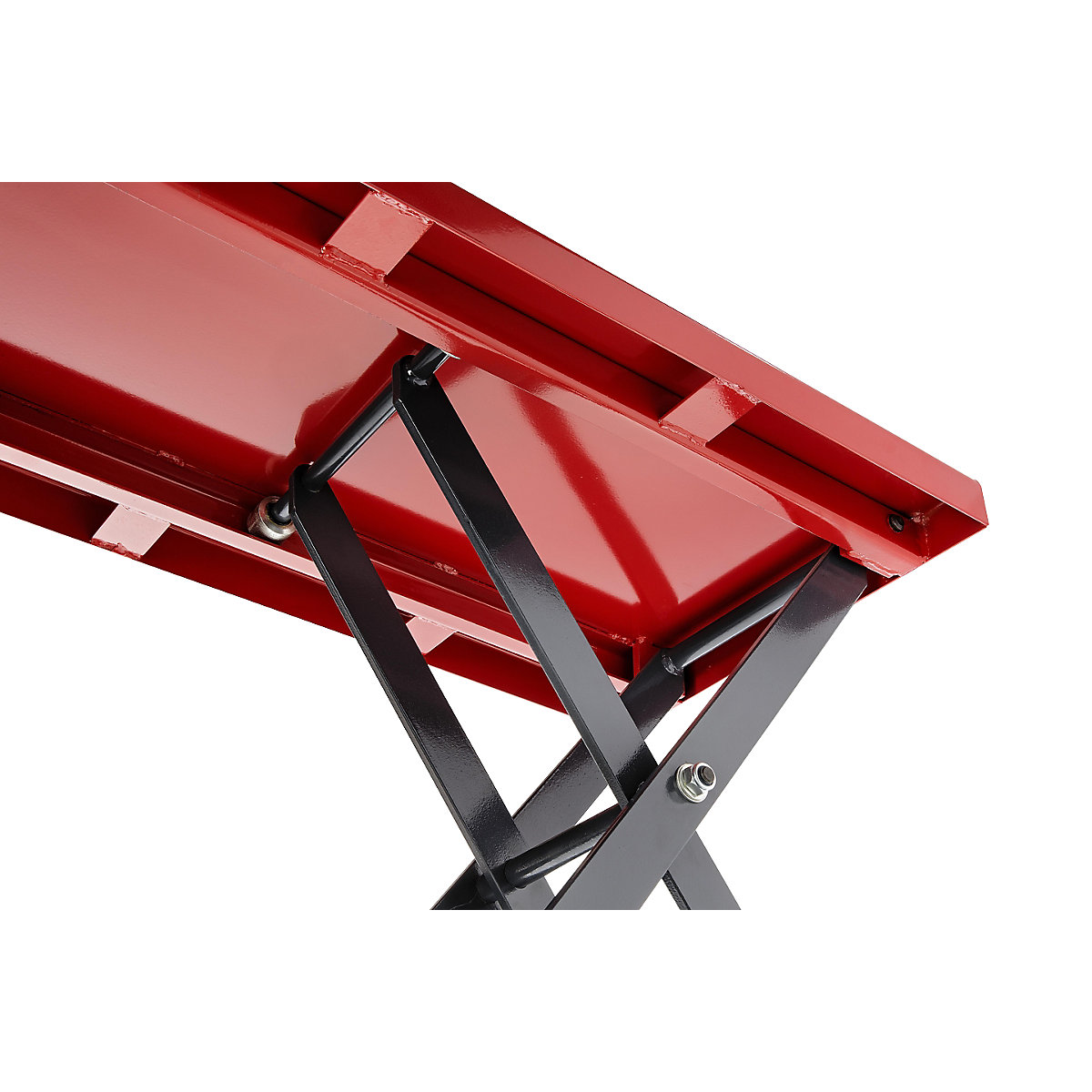

  • With double scissor mechanism
EUROKRAFTbasic
3 year guarantee
3 year guarantee
Ref.: 480568 49

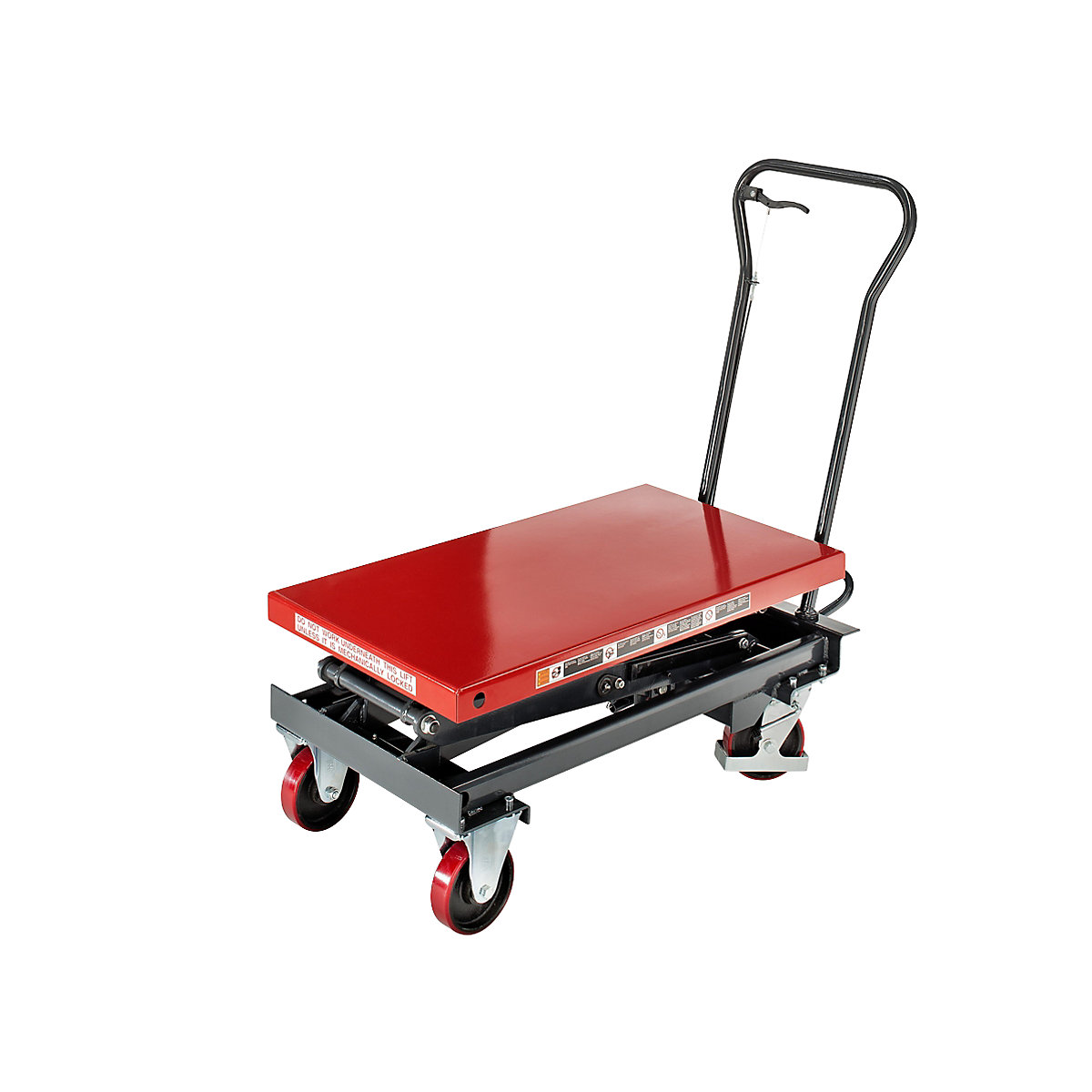

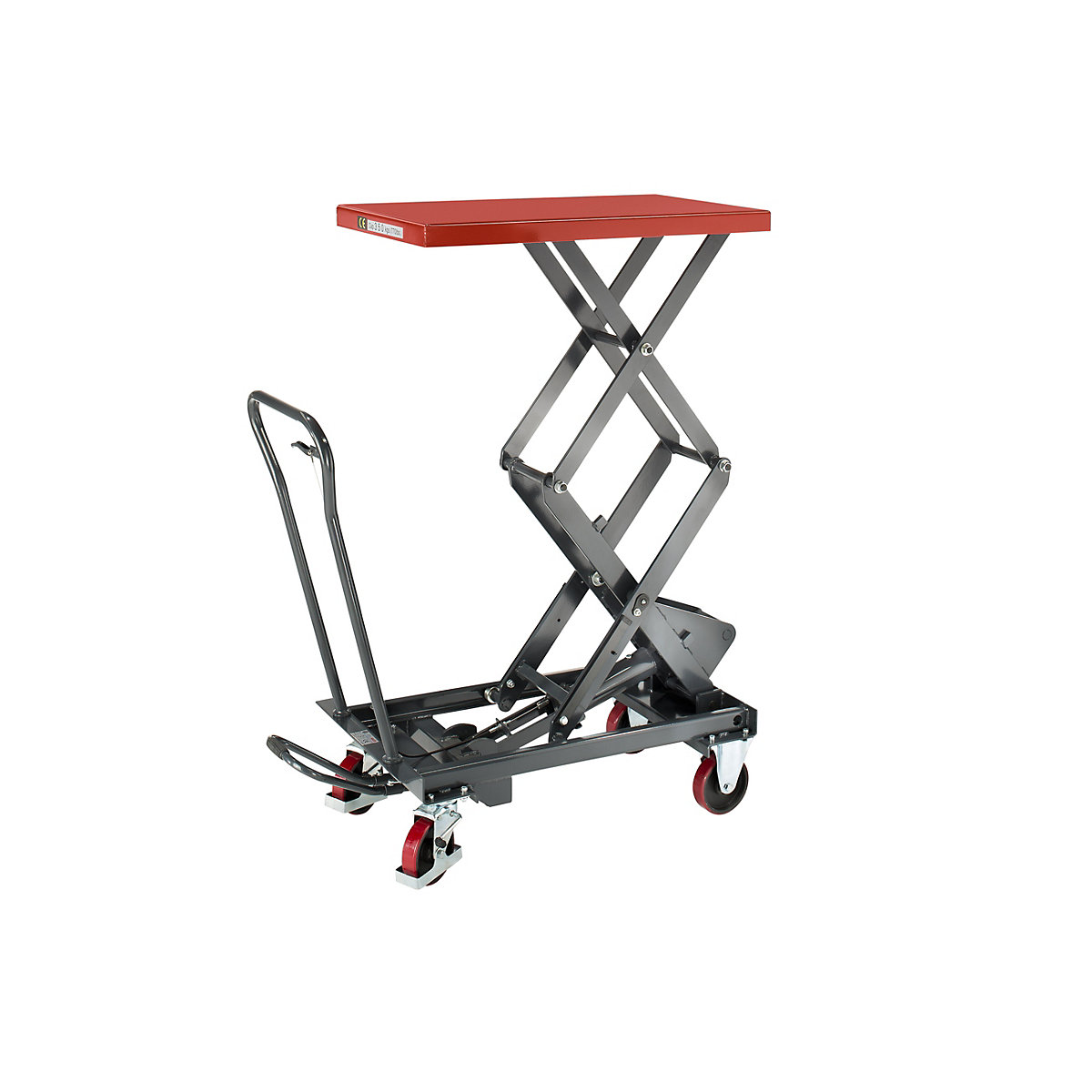

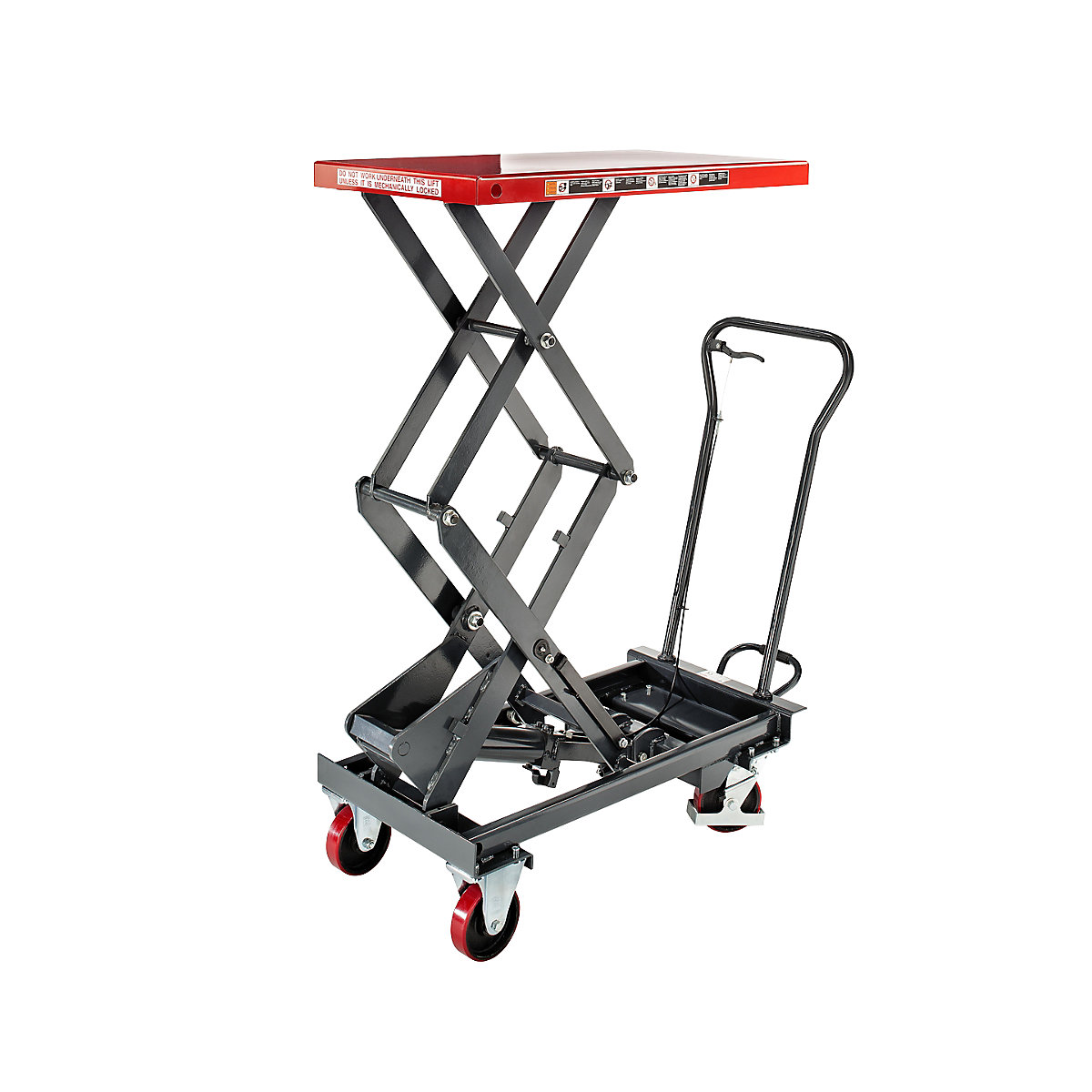

EUROKRAFTbasic – Lifting platform trolley, lifting range 435 – 1500 mm, max. load 350 kg
Price / items (Excl. VAT)
£599.00

Product description

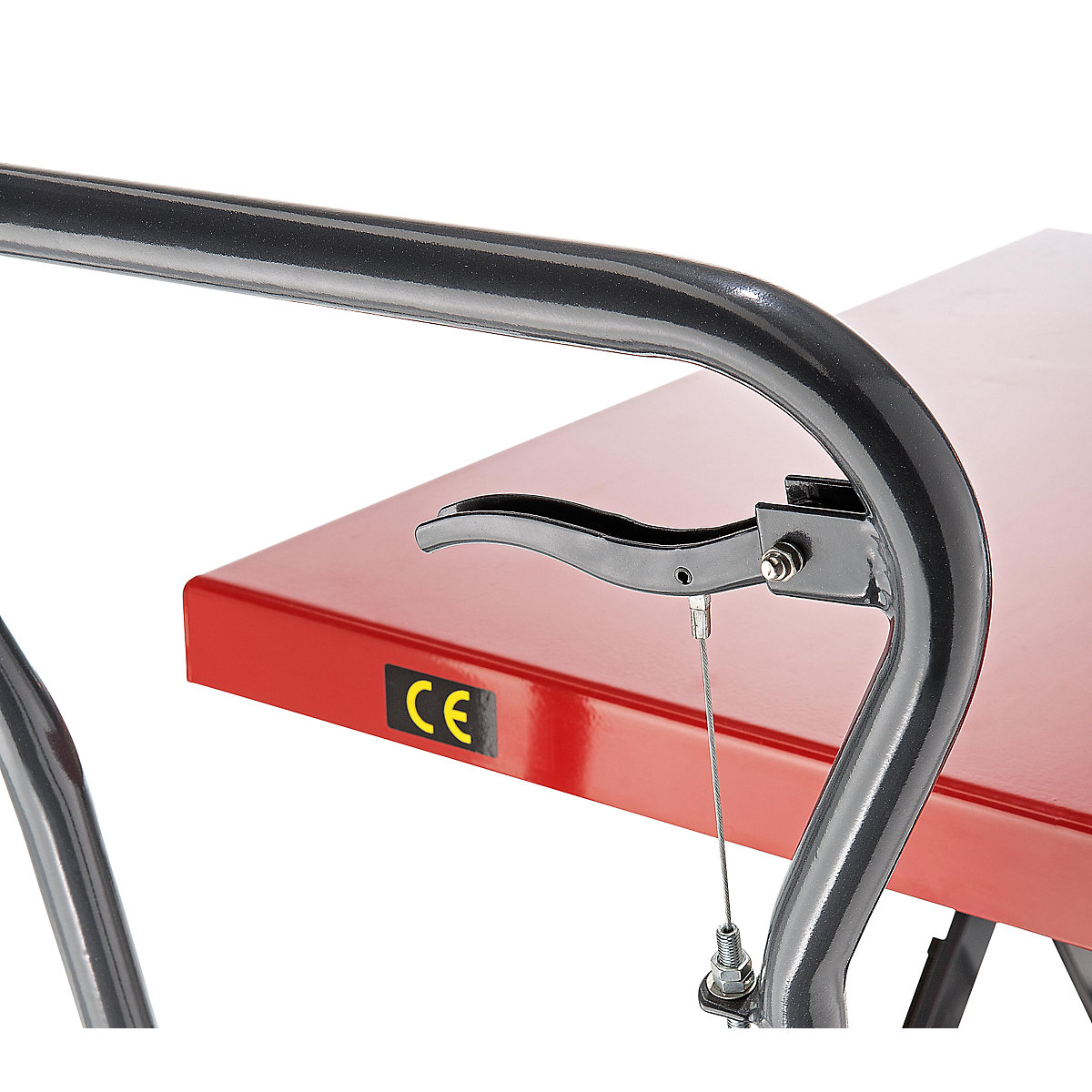

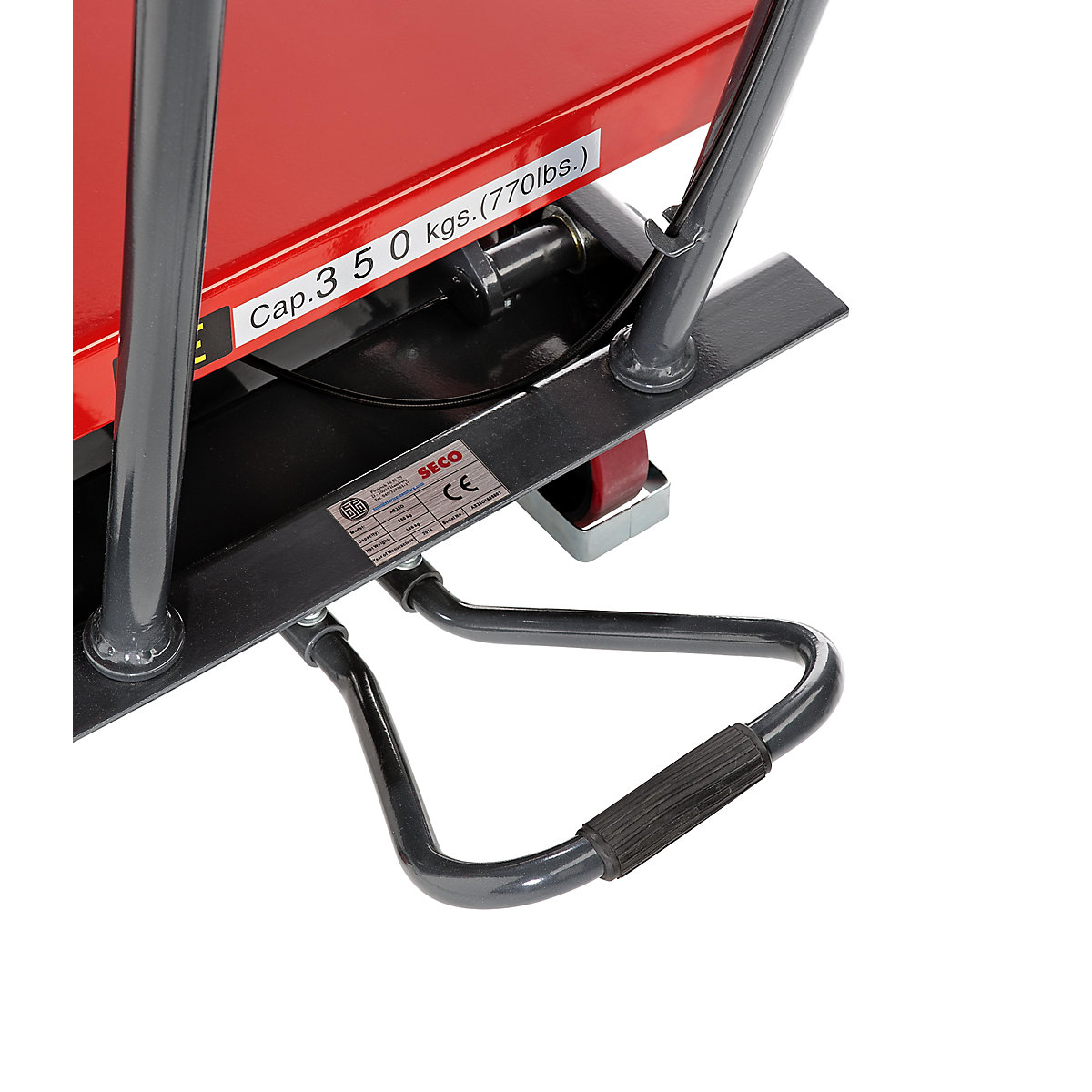

Lift with pump pedal, precise manual control of lowering. Durable and sophisticated devices. Service-friendly, with inspection supports. Powder coated in basalt grey RAL 7012 and signal red RAL 3001.
Wheels

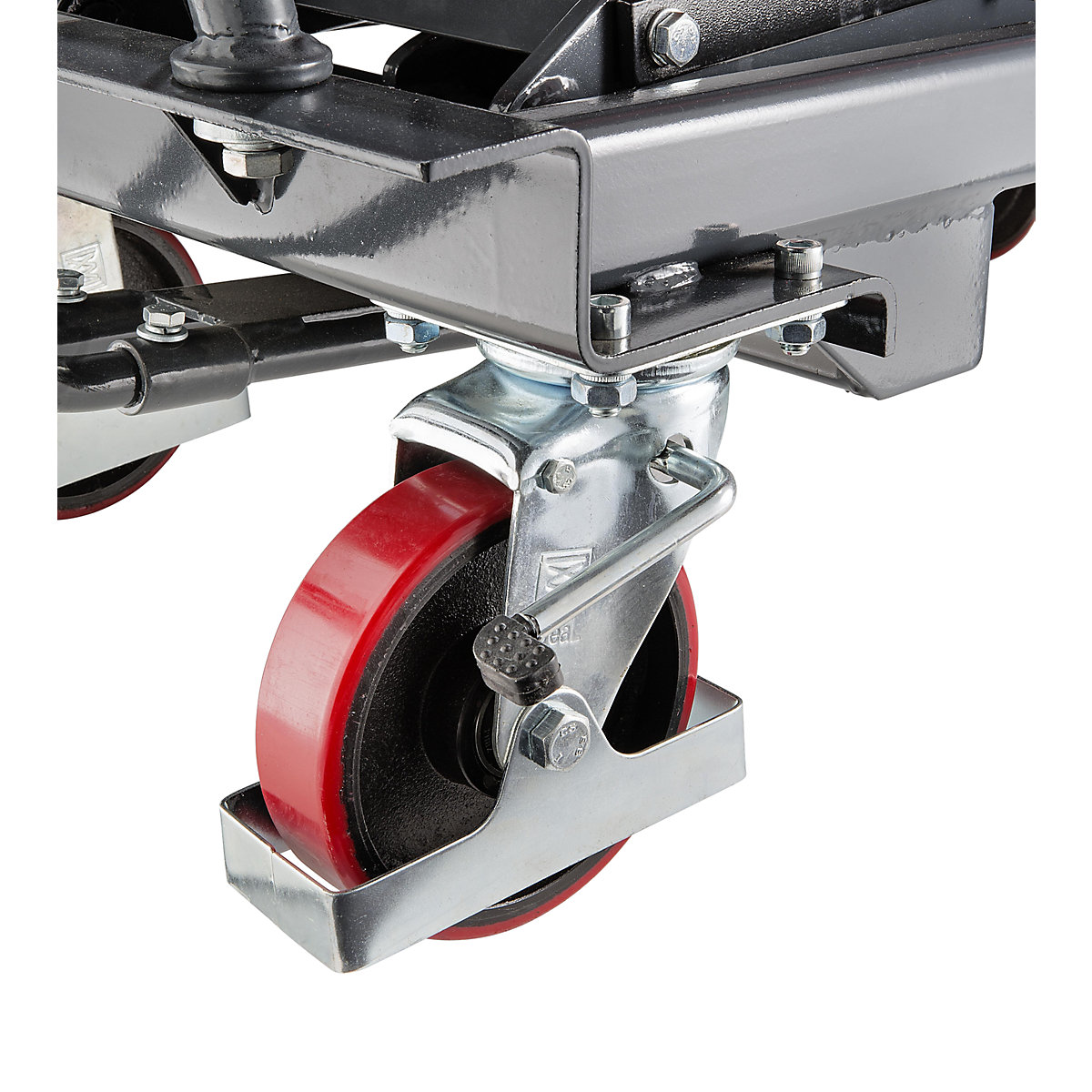

2 swivel castors with foot protection and wheel stop and 2 fixed castors. All castors with non-marking polyurethane tyres.

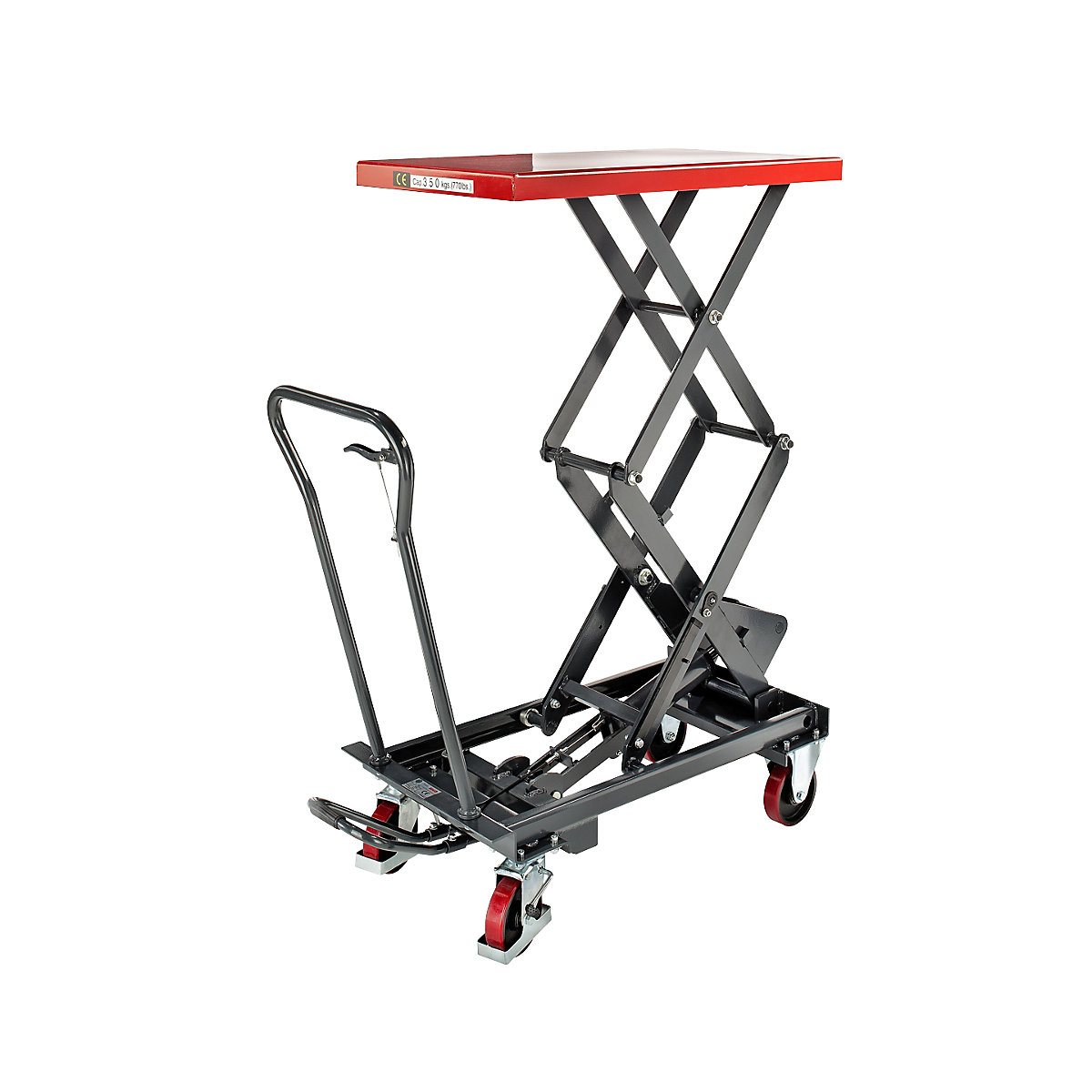

Version with extra large lifting height.
  • Standard units in reliable quality
  • Lift, lower, transport
  • Ergonomic work at the right working height
  • With double scissor mechanism
3 year guarantee
3 year guarantee
Technical data
Max. load350 kg
Lifting range435 – 1500 mm
Overall length1170 mm
Overall width520 mm
Platform materialsteel
Platform finishpowder coated
Platform coloursignal red RAL 3001
Push handle finishpowder coated
Push handle colourbasalt grey RAL 7012
Lift per pedal stroke15.2 mm
Pedal strokes to max. lift70 pcs.
Lift drivepedal hydraulics
Product typedouble scissor lifting platform truck
Wheel fittings2 swivel castors with foot protection and wheel stops, 2 fixed castors
Wheel materialpolyurethane
Wheel diameter150 mm
Wheel bearingball bearing
Frame finishpowder coated
Frame colourbasalt grey RAL 7012
Weight125 kg
Platform width520 mm
Platform length920 mm
Featuremobile
manual
Suppliedpartially assembled
