EUROKRAFTpro – Lift truck with adjustable box fork
- Can be moved as a truck for long routes
- Exact positioning on 4 wheels
- Exchangeable load supports
- For different bins
- Loading and unloading at an ideal height
- Can be adjusted to the bin width
10 year guarantee
Tested safety
This is a test mark. GS stands for tested safety.
This is a test mark. GS stands for tested safety.
New
*Whether azure blue or salmon pink – we will customise the product for you for a surcharge of just 10%. Please note that this voids your right of return, and that the delivery time may be longer. The colours shown on your screen may deviate from the original.
Ref.: 569593 49

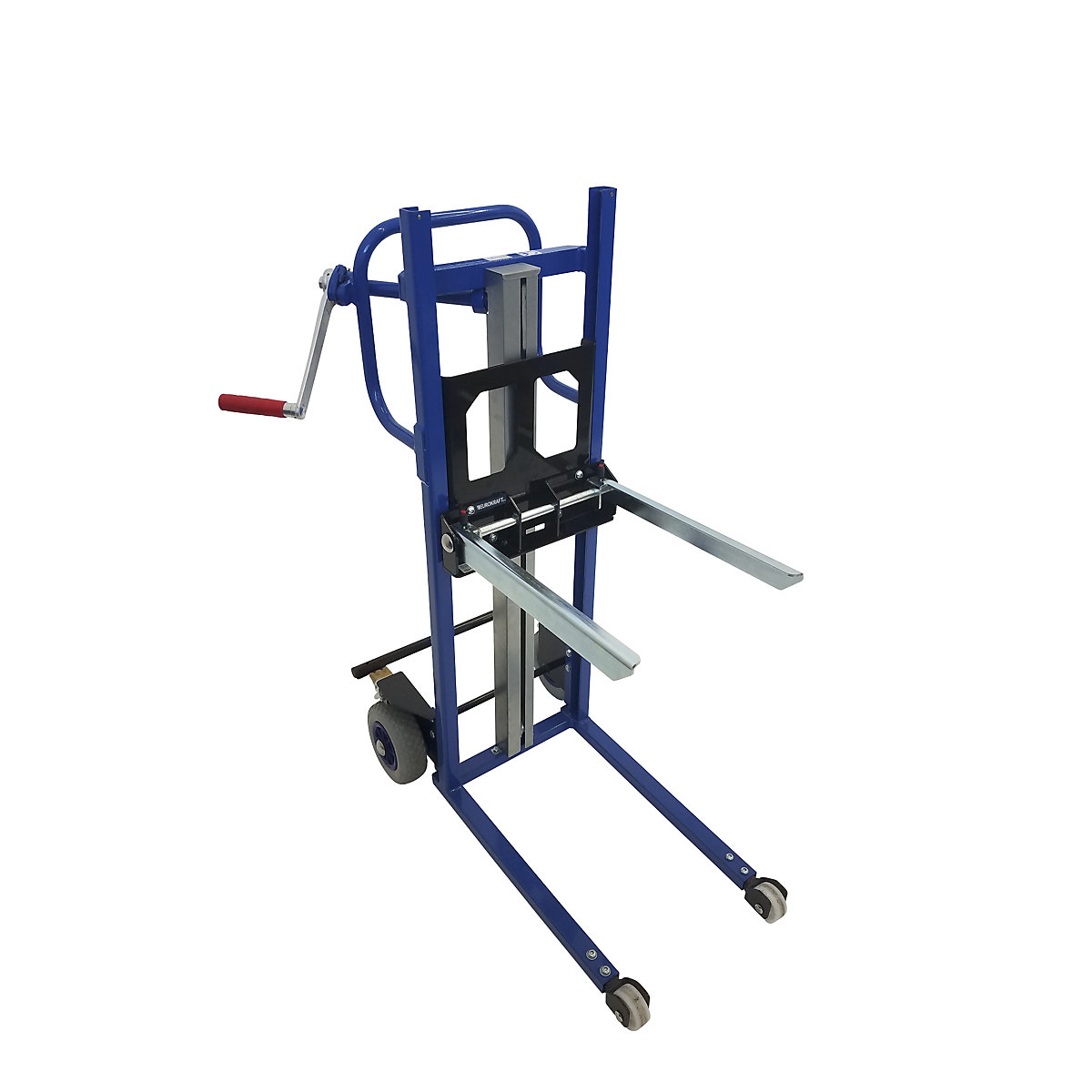

EUROKRAFTpro – Lift truck, with adjustable box fork, lifting range 110 – 970 mm
Price / items (net)
£839.00
Product description
Transport materials and goods to/from the workstation and place them in the ideal working position.

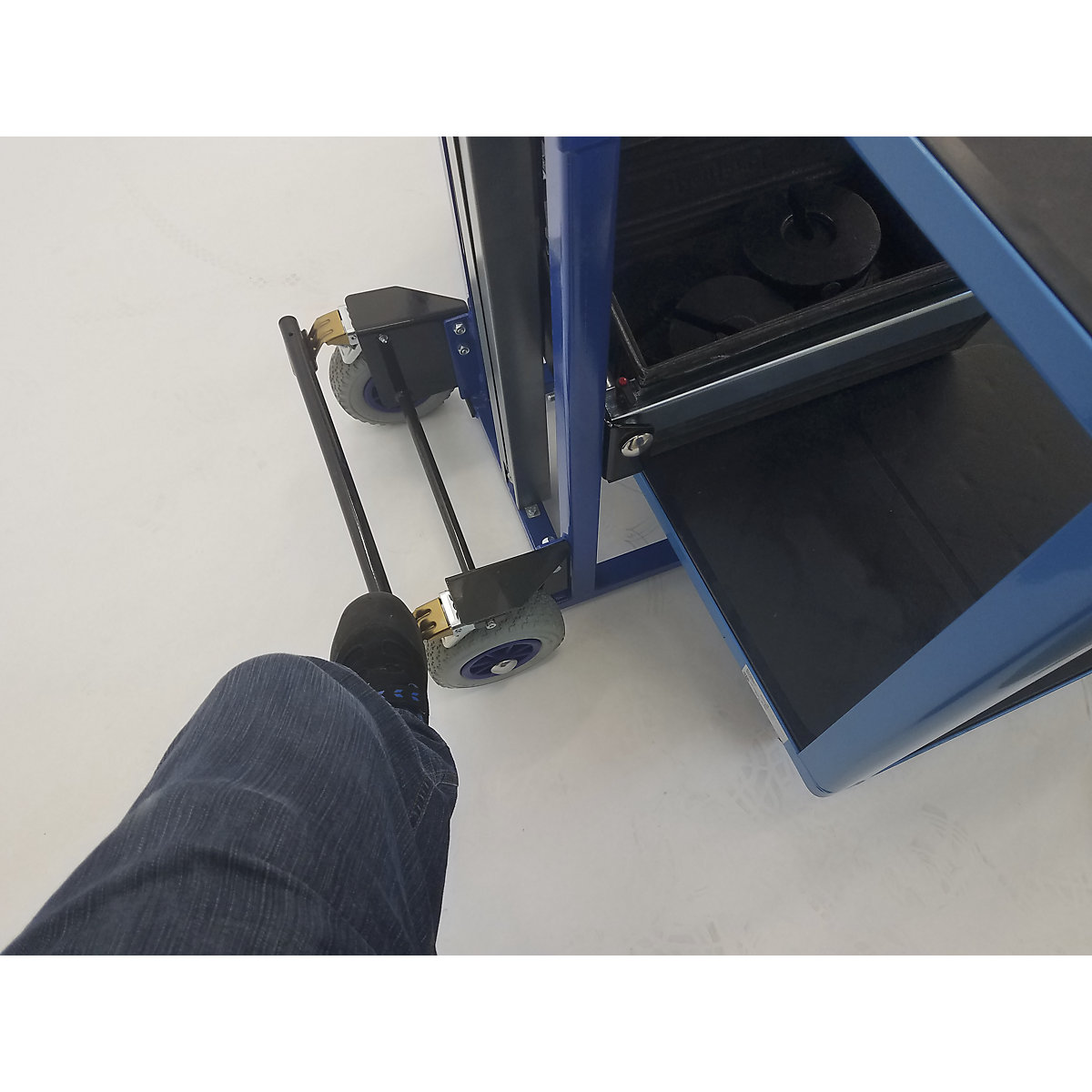

Lift truck with different load support equipment for many applications. Load centre 300 mm. Puncture proof wheels with central brake and 2 swivel castors for exact moving and positioning. Lifting motion produced by means of self locking safety winch and precision roller chain.
Lift truck with different load support equipment for many applications. Load centre 300 mm. Puncture proof wheels with central brake and 2 swivel castors for exact moving and positioning. Lifting motion produced by means of self locking safety winch and precision roller chain.
Available in most RAL colours. Only 10 % extra.
- Can be moved as a truck for long routes
- Exact positioning on 4 wheels
- Exchangeable load supports
- For different bins
- Loading and unloading at an ideal height
- Can be adjusted to the bin width
10 year guarantee
Tested safety
This is a test mark. GS stands for tested safety.
This is a test mark. GS stands for tested safety.
Technical data
| Model | with adjustable box fork |
|---|---|
| Load suspension device LxW/Ø | 450 x 140-330 mm |
| Max. load | 100 kg |
| Load centre | 270 mm |
| Lifting range | 110 – 970 mm |
| Overall length | 925 mm |
| Overall width | 575 mm |
| Overall height | 1265 mm |
| Clearance height | 75 mm |
| Material | steel |
| Feature | manual |
| Finish | powder coated |
| Colour | signal blue RAL 5005 |
| Wheel fittings | 2 wheels, 2 swivel castors |
| Castor diameter front / rear | 35 / 200 mm |
| Fork roller material | nylon |
| Weight | 43.5 kg |
| Support leg length | 610 mm |
| Lift per crank rotation | 130 mm |
| Supplied | partially assembled |
