Ref.: 569591 49
Material lifter – eurokraft pro with adjustable box fork
with fork rollers
Model
Preferred RAL colour*
*Available in almost all RAL colours – we will produce the product to suit your requirements for an extra charge of only 10%. Please note that the right of return does not apply. Colour representations on the monitor can deviate from the original. Products with a custom colour are not CO2 compensated.
Ref.: 569591 49
Material lifter – eurokraft pro with adjustable box fork
with fork rollers
with fork rollers
£1,079.00
Price / item (Excl. VAT)
Only 2 available
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Product description
- For different bins
- Exchangeable load support
- Loading and unloading at an ideal height
- Optionally available with fixed castors or 4-way chassis
- Swivel castors with wheel stops
- Can be adjusted to the bin width

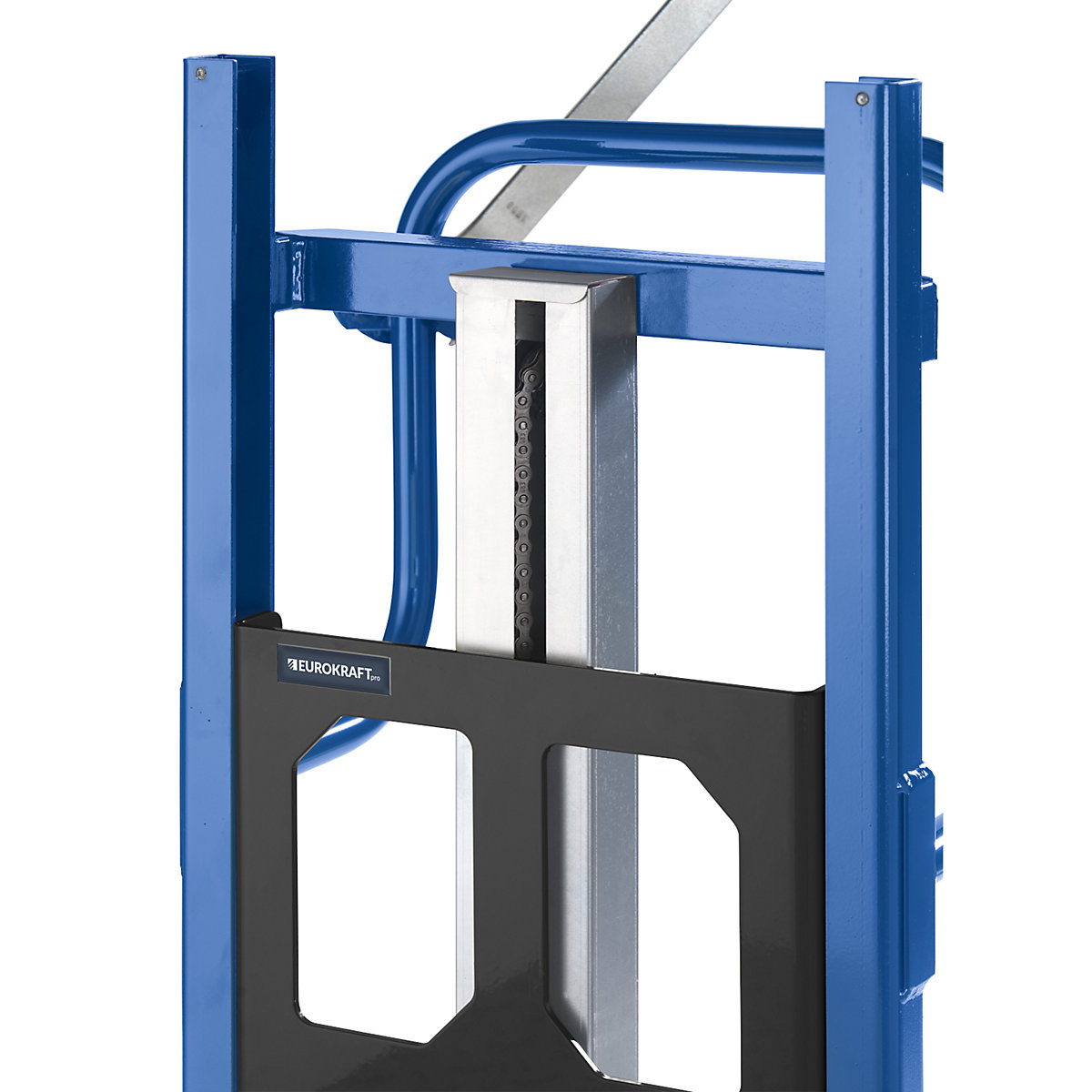

Material lifters with different load support equipment for many applications. Load centre 300 mm. Brings materials or tools to the ideal working height. Can be transported using 2 swivel castors with wheel stops and 2 fork rollers or with a 4-way chassis. Lifting motion produced by self locking safety winch and precision roller chain.
Available in most RAL colours. Only 10 % extra.
10 year guarantee
Technical data
Load suspension device LxW/Ø | 450 x 140 - 330 mm |
---|---|
Max. load | 100 kg |
Load centre | 270 mm |
Lifting range | 110 – 970 mm |
Length | 970 mm |
Width | 506 mm |
Height | 1265 mm |
Clearance height | 75 mm |
Material | steel |
Feature | manual |
Finish | powder coated |
Colour | signal blue RAL 5005 |
Castor diameter front / rear | 70 / 125 mm |
Roller material | nylon |
Weight | 38.31 kg |
Support leg length | 610 mm |
Lift per crank rotation | 130 mm |
Product type | mini lifters |
Supplied | partially assembled |
Model | adjustable box fork / fixed castors |
Wheel fittings | 2 swivel castors with wheel stops, 2 fork rollers |
Instructions |
