Minilift – Edmolift aluminium platform 400 x 400 mm
lifting range 1200 mm, max. load 60 kg
Ref.: 875359 49
Minilift – Edmolift aluminium platform 400 x 400 mm
lifting range 1200 mm, max. load 60 kg
lifting range 1200 mm, max. load 60 kg
Ref.: 875359 49
Product not available
Currently not availableWe will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?Product description
- Ergonomic lifting of loads up to 60 kg
- Robust steel construction with ingress protection IP44
- Replaceable lithium rechargeable battery for continuous operation
- 1.200 mm lifting travel for versatile applications
- Lightweight aluminium platform for easy handling
- Compact, manoeuvrable design for confined work areas

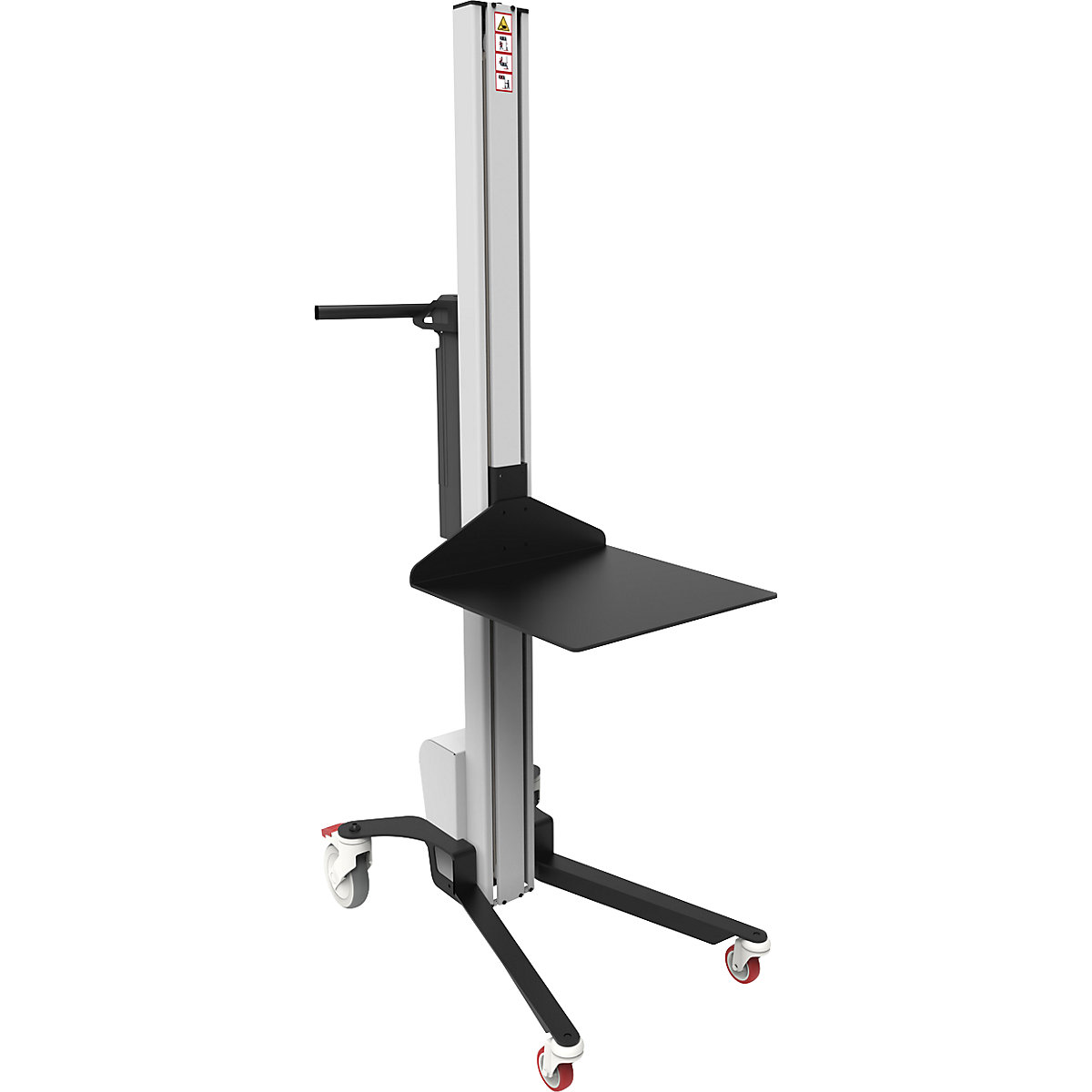

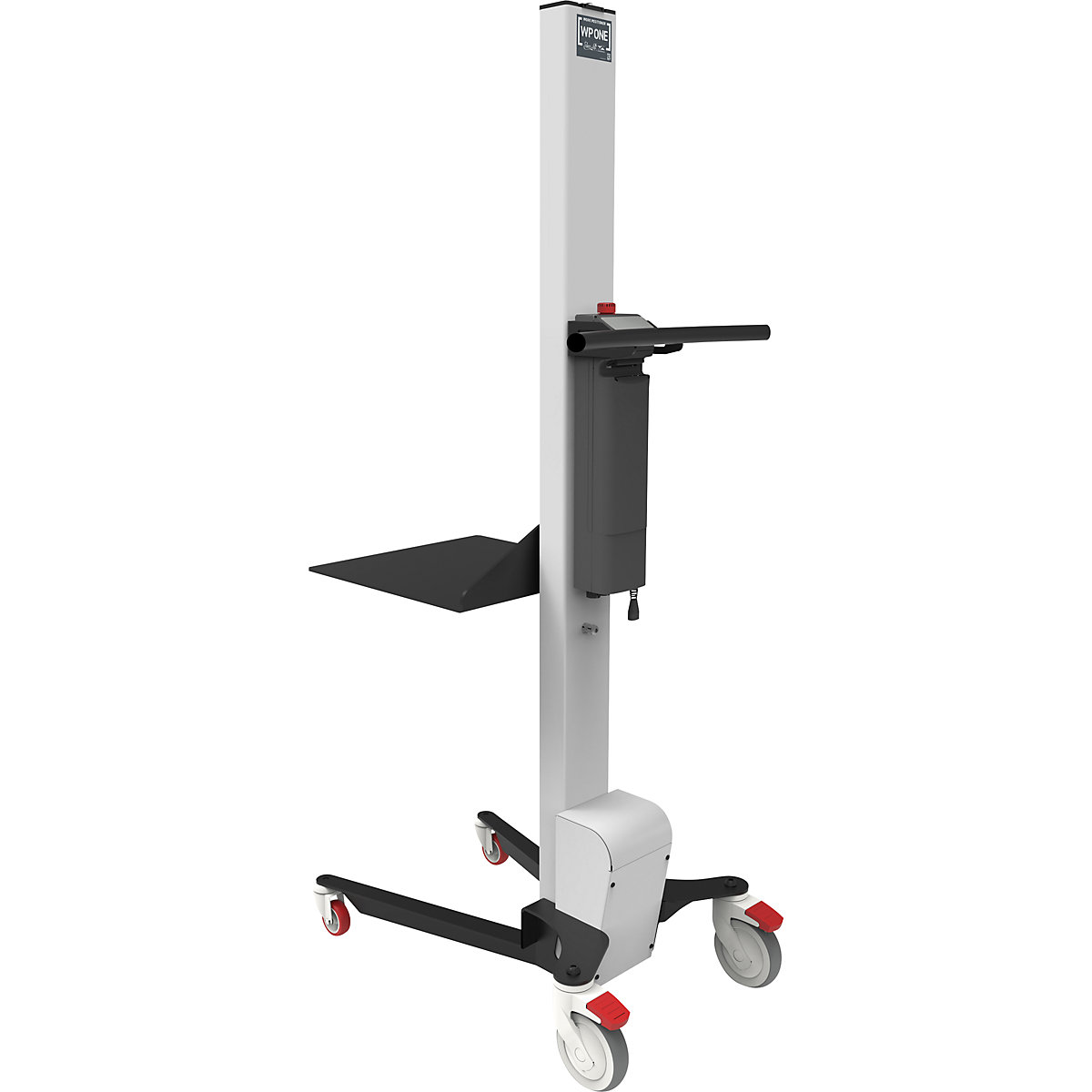

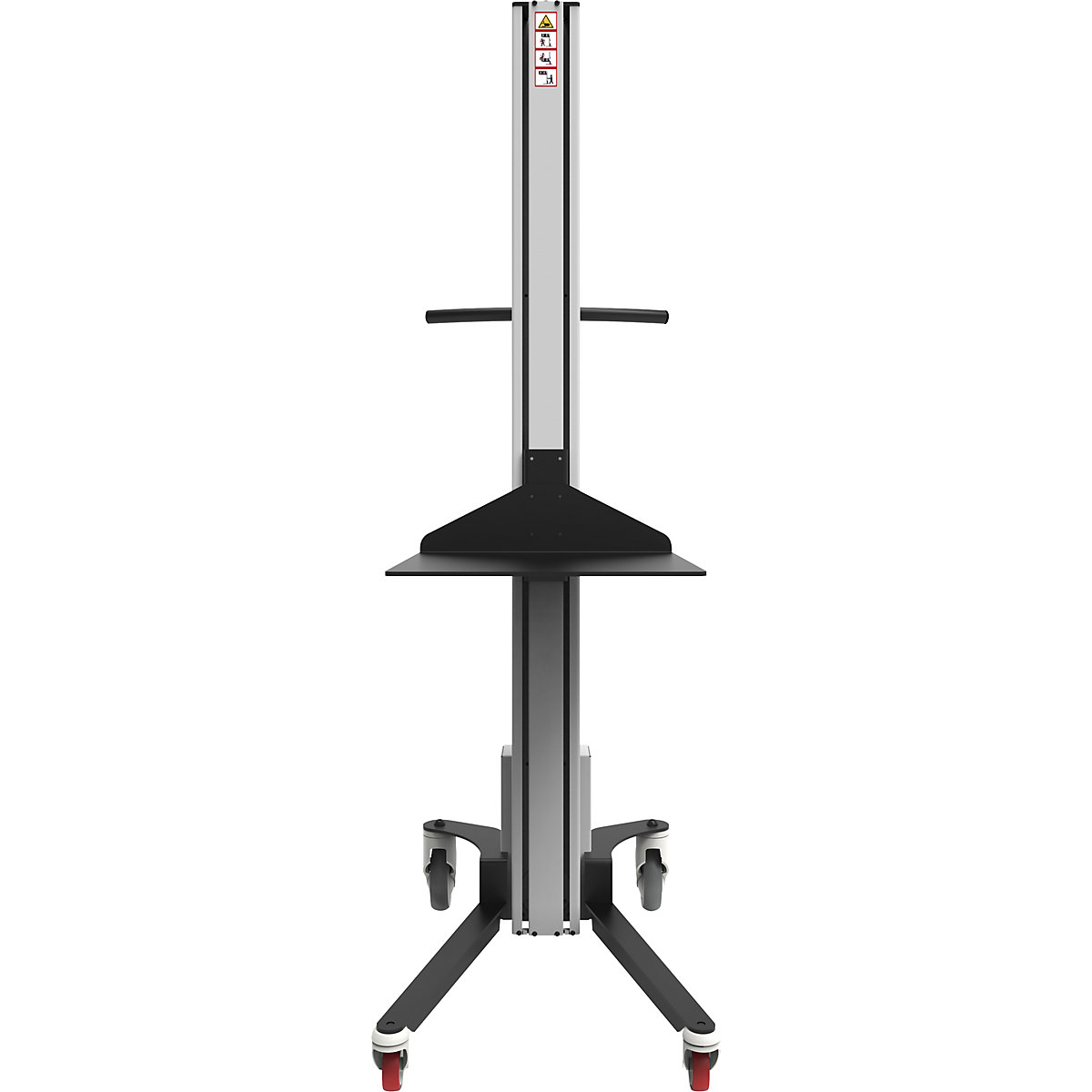

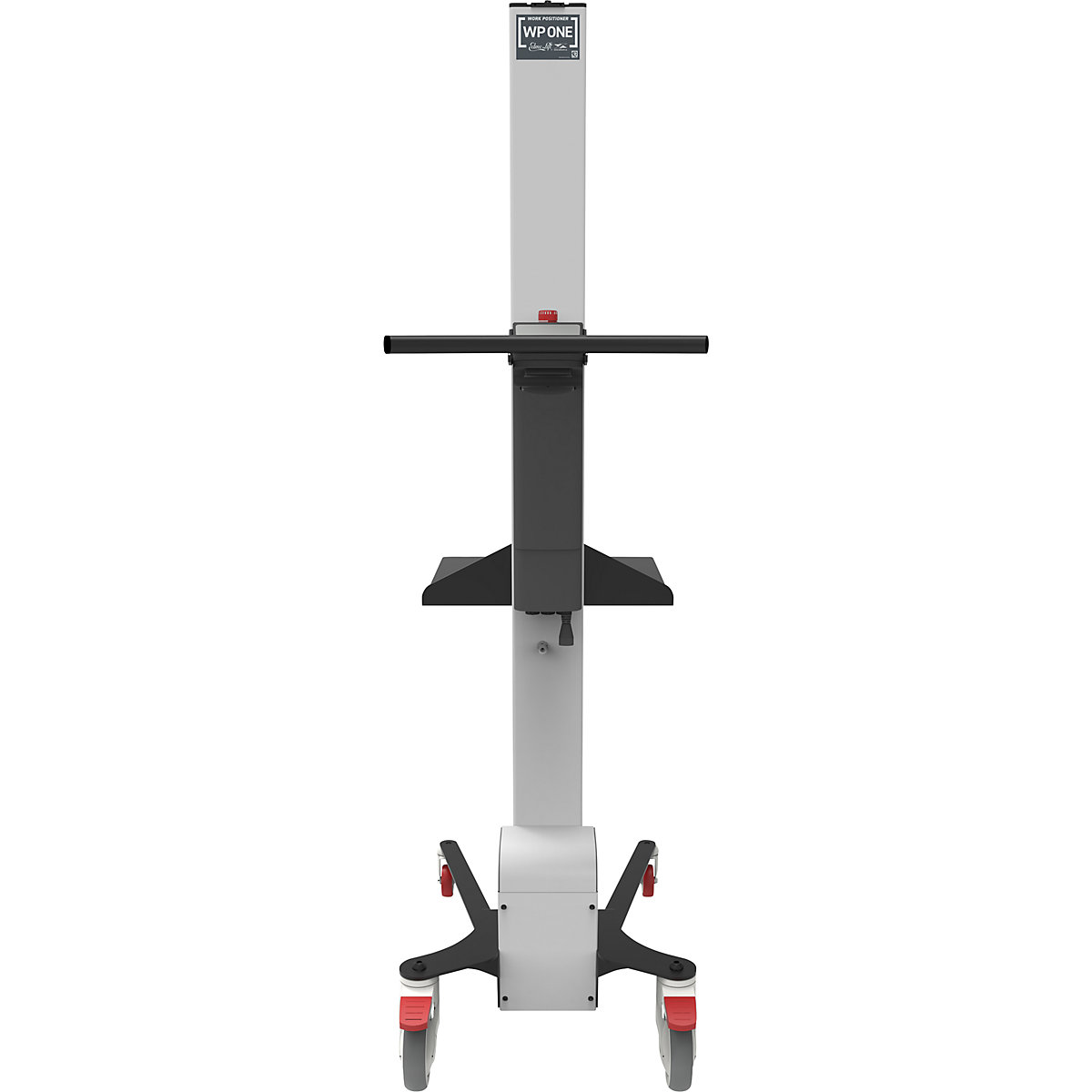

The Minilift is a compact electric lift for the ergonomic lifting and transporting of loads up to 60 kg. With its 1.200 mm stroke, the lightweight aluminium platform and the replaceable lithium battery, the mini stacker supports efficient workflows even during frequent lifting operations. The compact design ensures high manoeuvrability and facilitates use even in tight spaces. The Minilift is based on the proven WP ONE and was specially developed for handling cardboard boxes, consumables and goods.
The robust steel construction ensures high stability in daily use. Thanks to ingress protection IP44, the electric lift is also suitable for work areas where dust or splash water may occur. The lightweight aluminium platform reduces the dead weight and facilitates the positioning of loads. The replaceable lithium battery supports continuous operation. At the same time, the mini stacker helps to reduce physical strain and perform repetitive lifting work more safely.
The Minilift is suitable for warehouses, shipping, production, workshops and retail. Wherever cardboard boxes, materials or goods are regularly moved and lifted, the electric lift facilitates daily workflows. The compact mini stacker supports employees during ergonomic lifting operations, reduces effort and improves material flow even in narrow aisles or confined work areas. This allows loads to be picked up, lifted and provided in a controlled manner, while work processes are supported efficiently and reliably.
The robust steel construction ensures high stability in daily use. Thanks to ingress protection IP44, the electric lift is also suitable for work areas where dust or splash water may occur. The lightweight aluminium platform reduces the dead weight and facilitates the positioning of loads. The replaceable lithium battery supports continuous operation. At the same time, the mini stacker helps to reduce physical strain and perform repetitive lifting work more safely.
The Minilift is suitable for warehouses, shipping, production, workshops and retail. Wherever cardboard boxes, materials or goods are regularly moved and lifted, the electric lift facilitates daily workflows. The compact mini stacker supports employees during ergonomic lifting operations, reduces effort and improves material flow even in narrow aisles or confined work areas. This allows loads to be picked up, lifted and provided in a controlled manner, while work processes are supported efficiently and reliably.
Technical data
| Load suspension device LxW/Ø | 400 x 400 mm |
|---|---|
| Max. load | 60 kg |
| Lifting range | 1200 mm |
| Length | 730 mm |
| Width | 440 mm |
| Height | 1550 mm |
| Min. lifting speed | 110 mm/s |
| Max. lifting speed | 110 mm/s |
| Material | steel aluminium |
| Colour | grey black |
| Protection type | IP44 |
| Battery | 24 V / 10 Ah |
| Battery charger | 100 – 240 V / 50 – 60 Hz |
| Castor diameter front / rear | Front Ø 63 mm, Rear Ø 125 mm mm |
| Weight | 31 kg |
| Platform colour | black |
| Platform width | 400 mm |
| Product type | mini lifters |
| Supplied | flat pack |
