Ref.: 875351 49

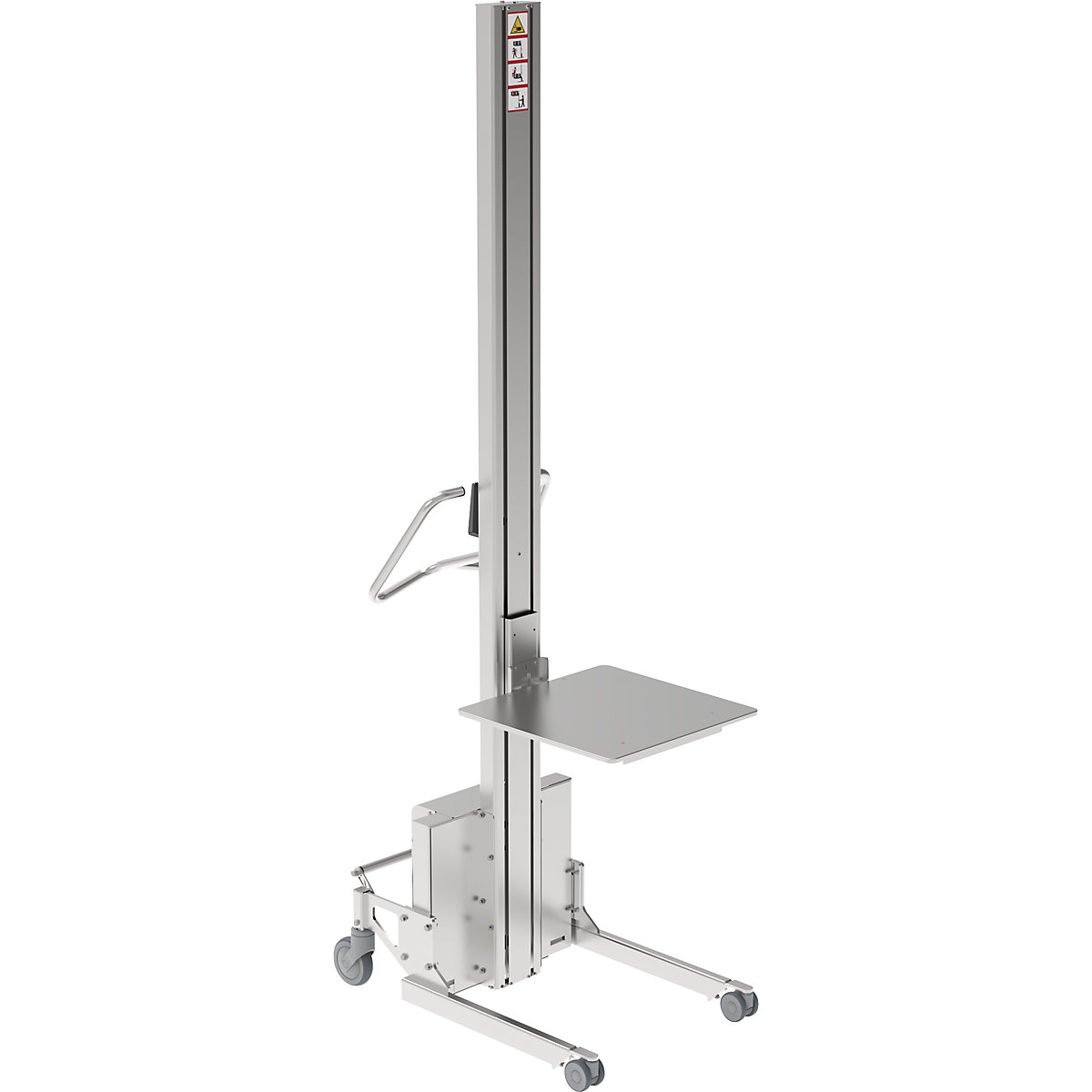

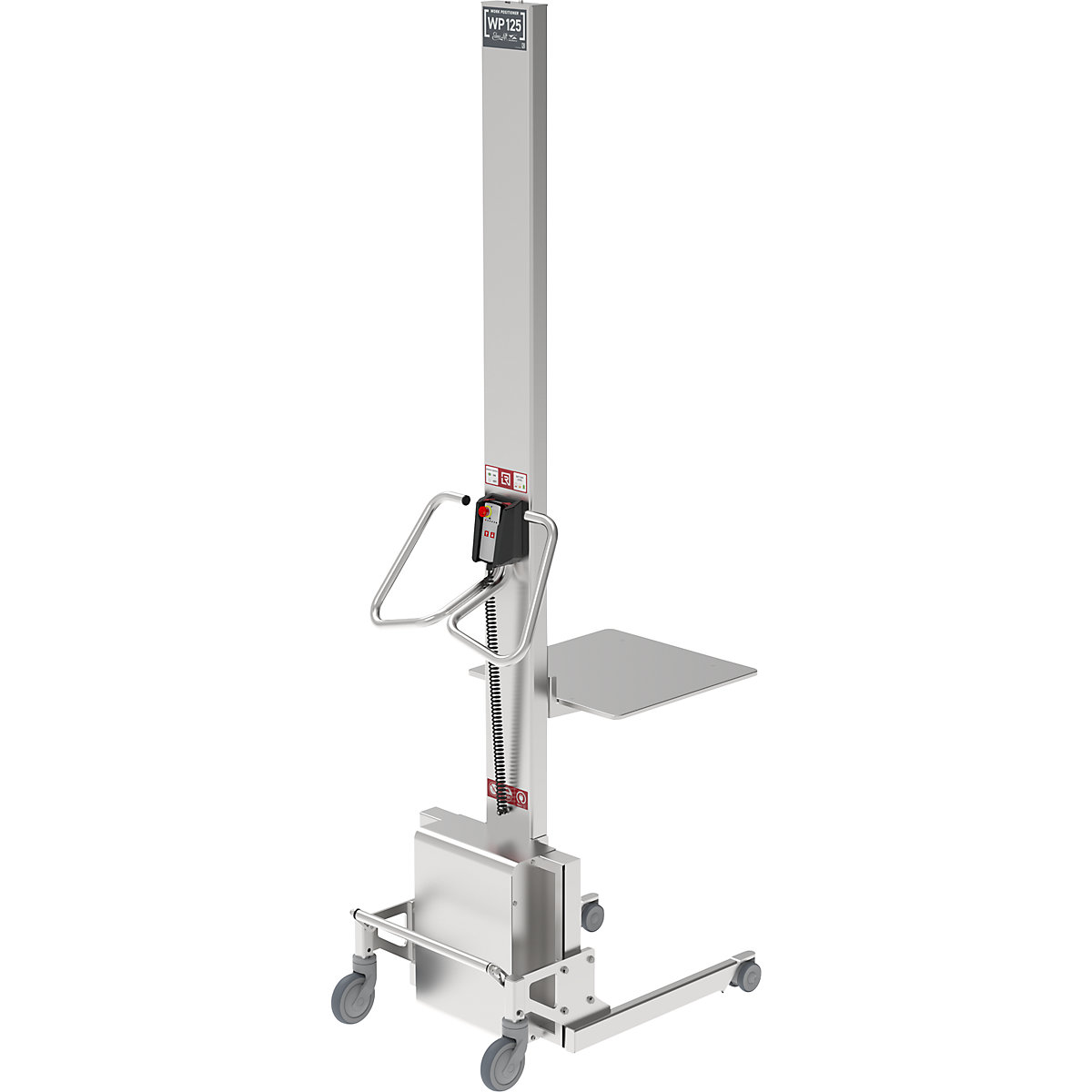

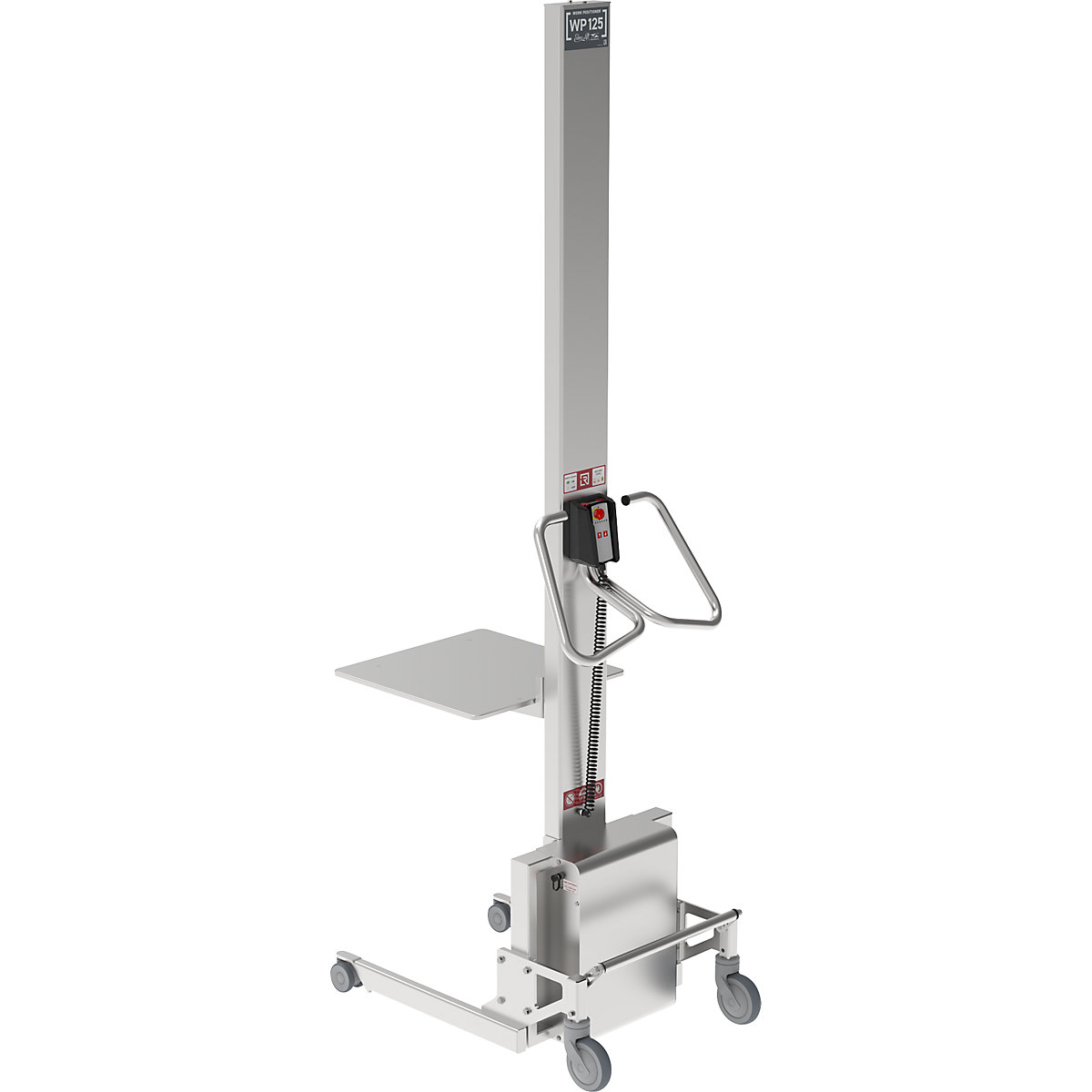

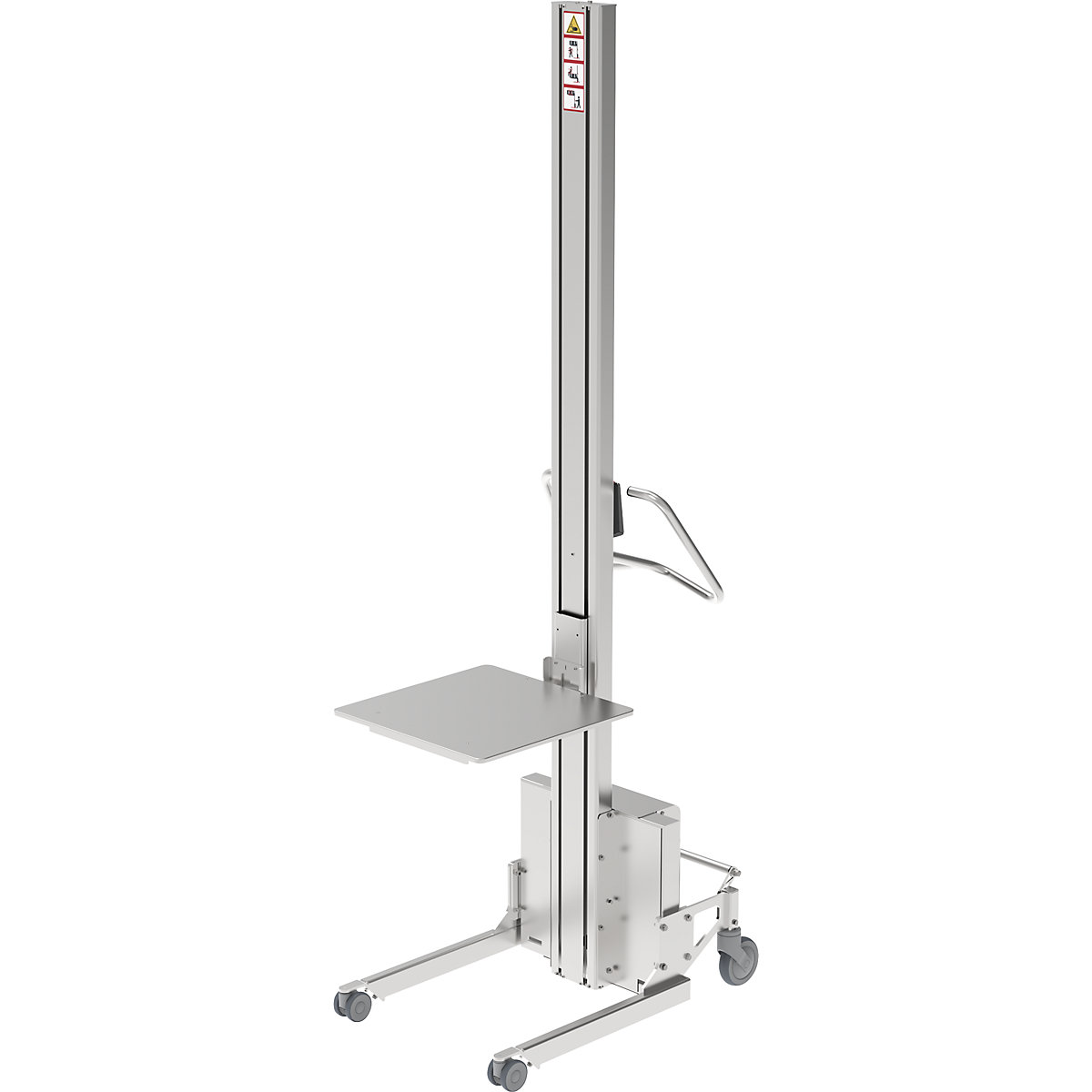

Minilift – Edmolift stainless steel platform 500 x 500 mm

Minilift – Edmolift

lifting range 2050 mm, max. load 110 kg

Max. load [kg]
Ref.: 875351 49

Product description
  • Ergonomic lifting and positioning up to 205 kg
  • Large reach for high shelving and work areas
  • Compact design for confined work environments
  • Suitable for wet cleaning and high hygiene standards
  • Optional with steel or stainless steel platform
  • Designed for demanding industrial applications
The Minilift is a compact electric lift for ergonomic lifting and precise positioning of boxes, containers and components up to 205 kg. The versatile lifting device supports industrial material transport even where space is limited and long reaches are required.

The Minilift facilitates daily lifting operations and reduces the physical strain on employees. With its long reach, the device is particularly suitable for safe storage and retrieval on high shelves as well as for work at greater height. At the same time, the compact design ensures high manoeuvrability in narrow working areas. The electric lift is designed for demanding industrial environments and reliably withstands daily requirements. Wet cleaning also poses no problem, making the lifting device suitable for areas with high hygiene standards. Depending on the area of application, the Minilift is available with a robust, painted steel platform or a stainless steel platform. The stainless steel platform is corrosion-resistant and easy to clean. This makes the device particularly suitable for food processing, the pharmaceutical industry and cleanrooms.

The Minilift is the right solution for production facilities, warehouses, logistics centres as well as companies from the food and pharmaceutical industries. It provides support wherever loads have to be regularly lifted, transported or precisely positioned. The lifting device facilitates repetitive work processes, reduces the effort required and contributes to ergonomic processes. At the same time, the electric lift enables safe working during loading and unloading, order picking as well as when stocking machines and shelves.
Technical data
Load suspension device LxW/Ø500 x 500 mm
Min. lifting speed120 mm/s
Max. lifting speed120 mm/s
Materialstainless steel
Colourgrey
Protection typeIP65
Platform colourgrey
Platform width500 mm
Product typemini lifters
Suppliedassembled
Max. load110 kg
Lifting range2050 mm
Length500 mm
Width530 mm
Height2390 mm
Weight68 kg
Support leg length500 mm
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.
Recyclable
Recyclable products are products that can be recycled at the end of their service life, providing they are separated into all their individual components in designated recycling facilities. This means that the individual components are made of materials that can be exploited using the recycling process and be reprocessed into new products. Recyclable products help reduce the environmental impact of waste and to conserve resources.
