Ref.: 520057 49
Multi-lifter in steel, max. load 150 kg
with 4 steering wheels
Clearance height [mm]
This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 520057 49

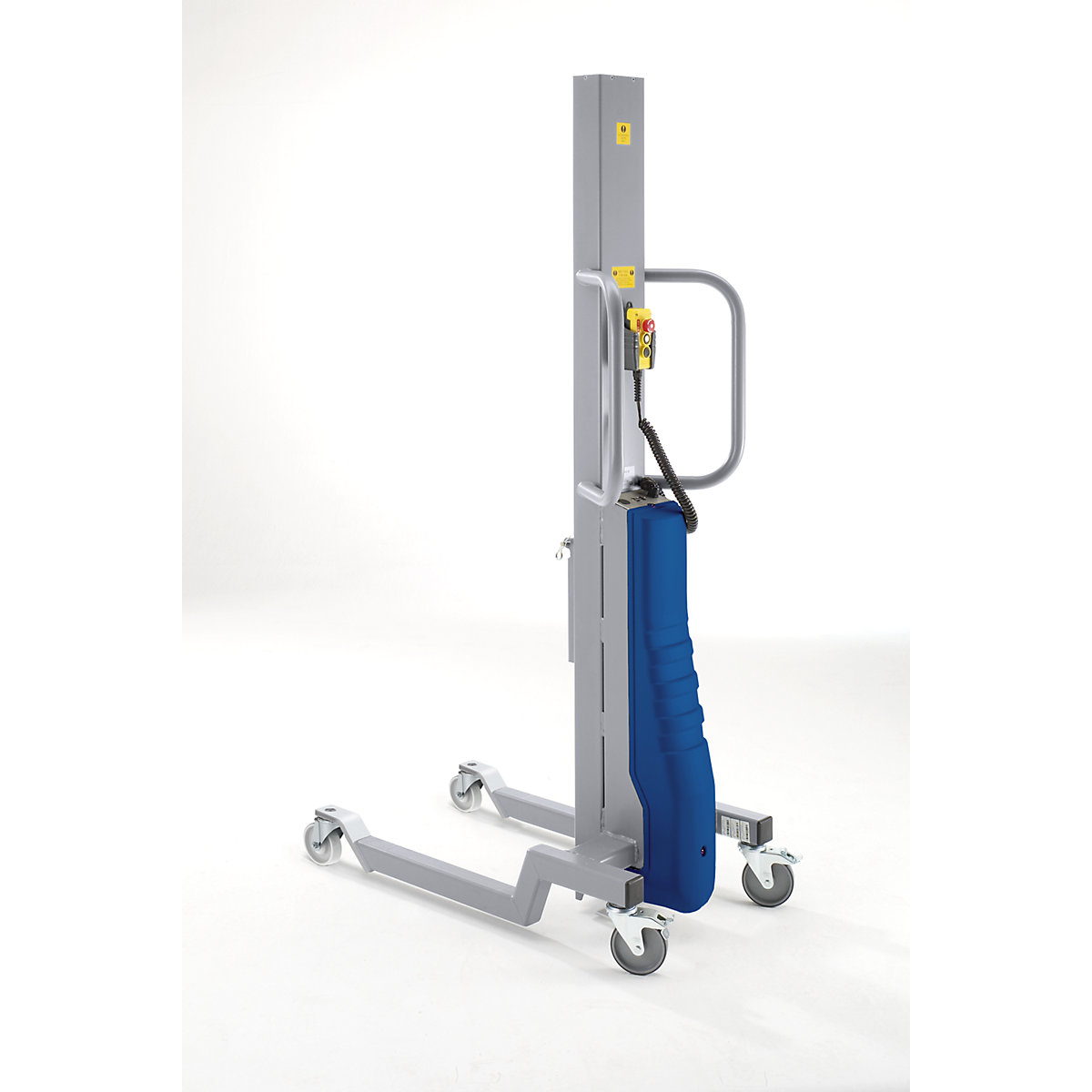

Multi-lifter in steel, max. load 150 kg
with 4 steering wheels
with 4 steering wheels
£6,090.00
£4,850.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Product description
- Max. load 150 kg
- Load centre at 600/500 mm
- No tools required to exchange accessories
- Fully compliant with EN 1757-1

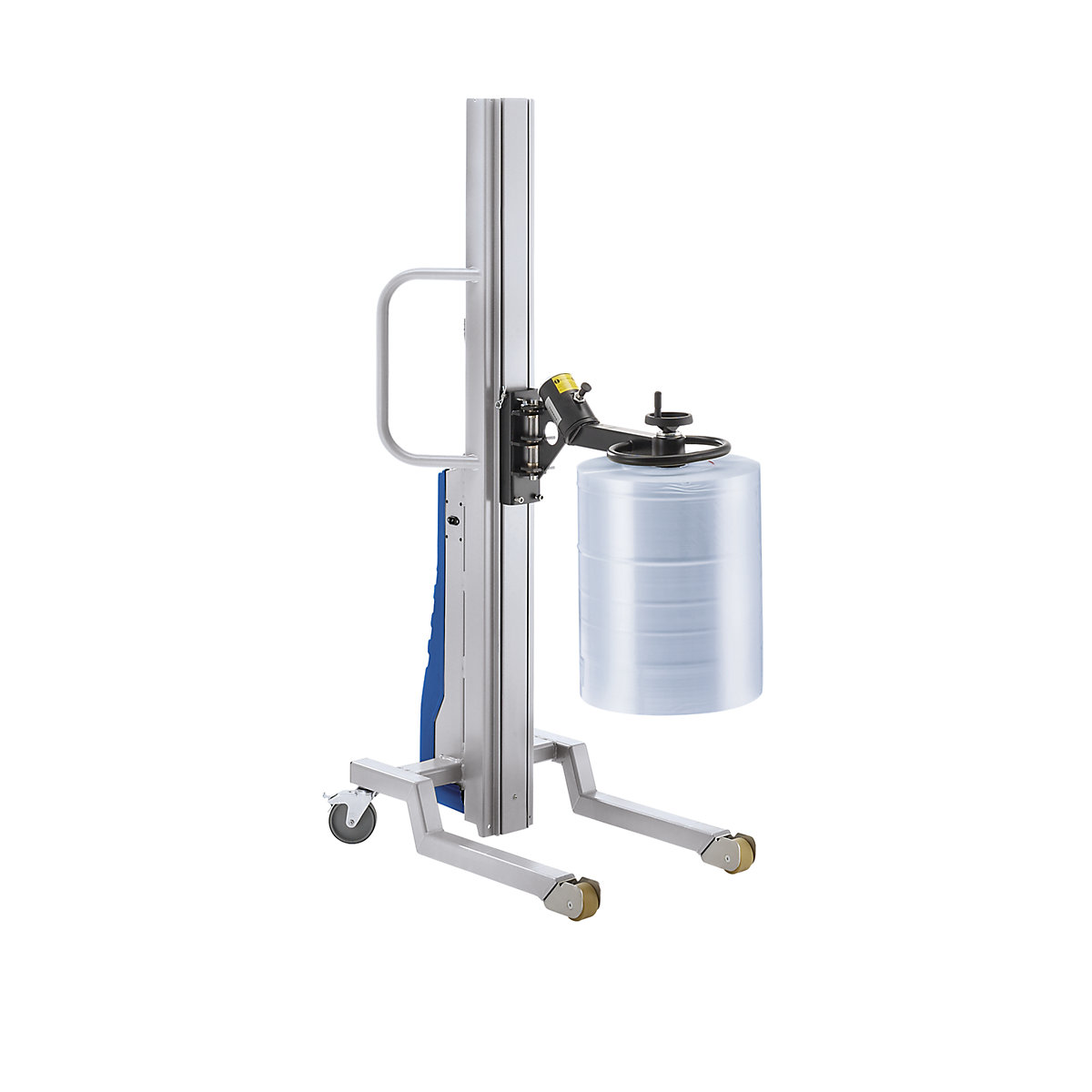

They also allow heavier goods to be lifted in conjunction with easy to exchange accessories. Completely safe and low maintenance spindle drive.
Specified lifting range only applicable in conjunction with optionally available platform (see accessories).
Wheels
2 polyurethane steering wheels on the back, Ø 125 mm, with double stops.

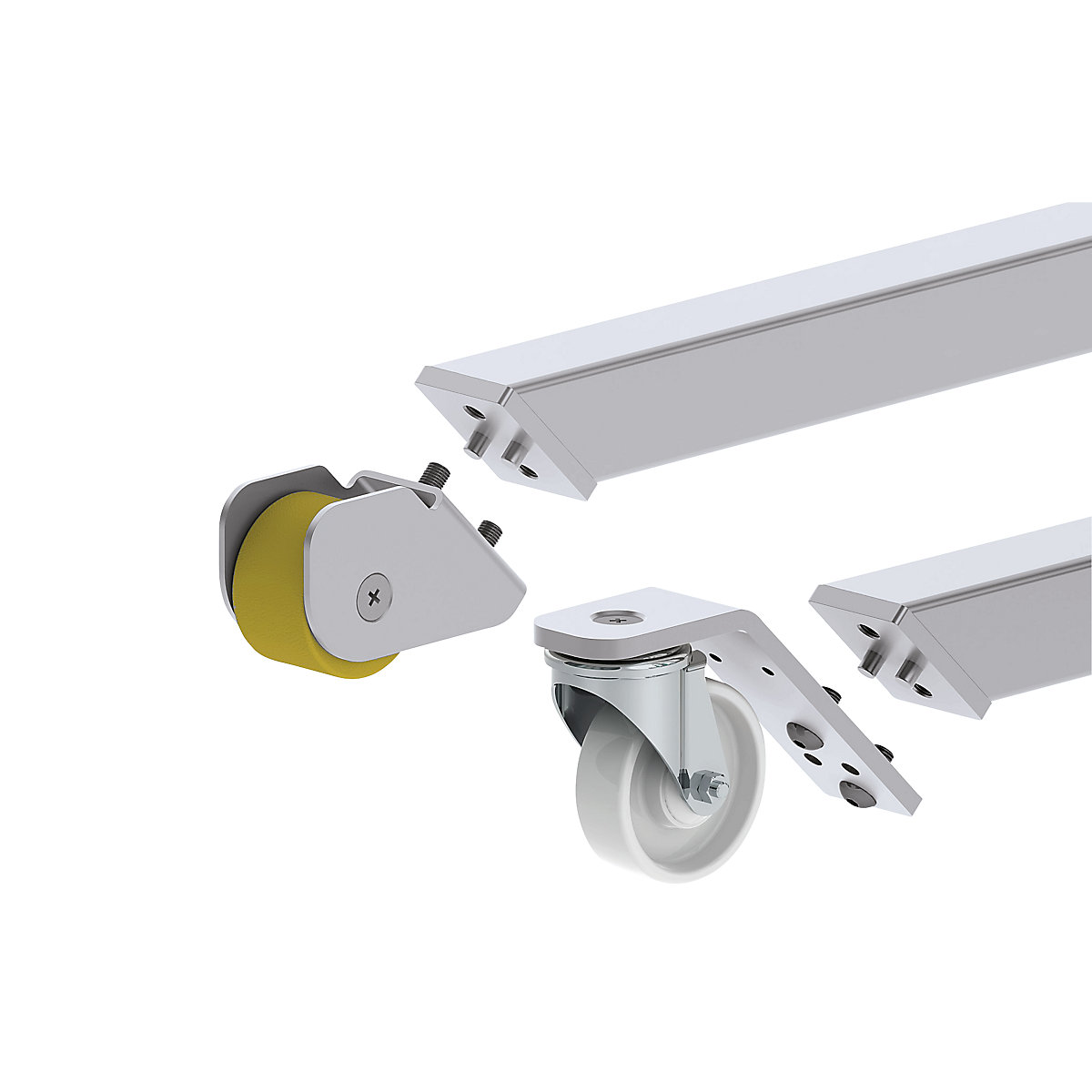

Support legs optionally with straight running PU fork rollers or nylon steering wheels for manoeuvrability.
Wheeled base
Support leg castors enclosed with delivery, easy self-assembly. Can be replaced at any time.
Powder coated in white aluminium RAL 9006, cover in signal blue RAL 5005.
Protection type IP41, control unit IP67.
Specified lifting range only applicable in conjunction with optionally available platform (see accessories).
Wheels
2 polyurethane steering wheels on the back, Ø 125 mm, with double stops.
Support legs optionally with straight running PU fork rollers or nylon steering wheels for manoeuvrability.
Wheeled base
Support leg castors enclosed with delivery, easy self-assembly. Can be replaced at any time.
Powder coated in white aluminium RAL 9006, cover in signal blue RAL 5005.
Protection type IP41, control unit IP67.
Modular construction
Can be expanded as required
– Lifting heights up to 2600 mm
– Chassis can be widened, shortened and extended

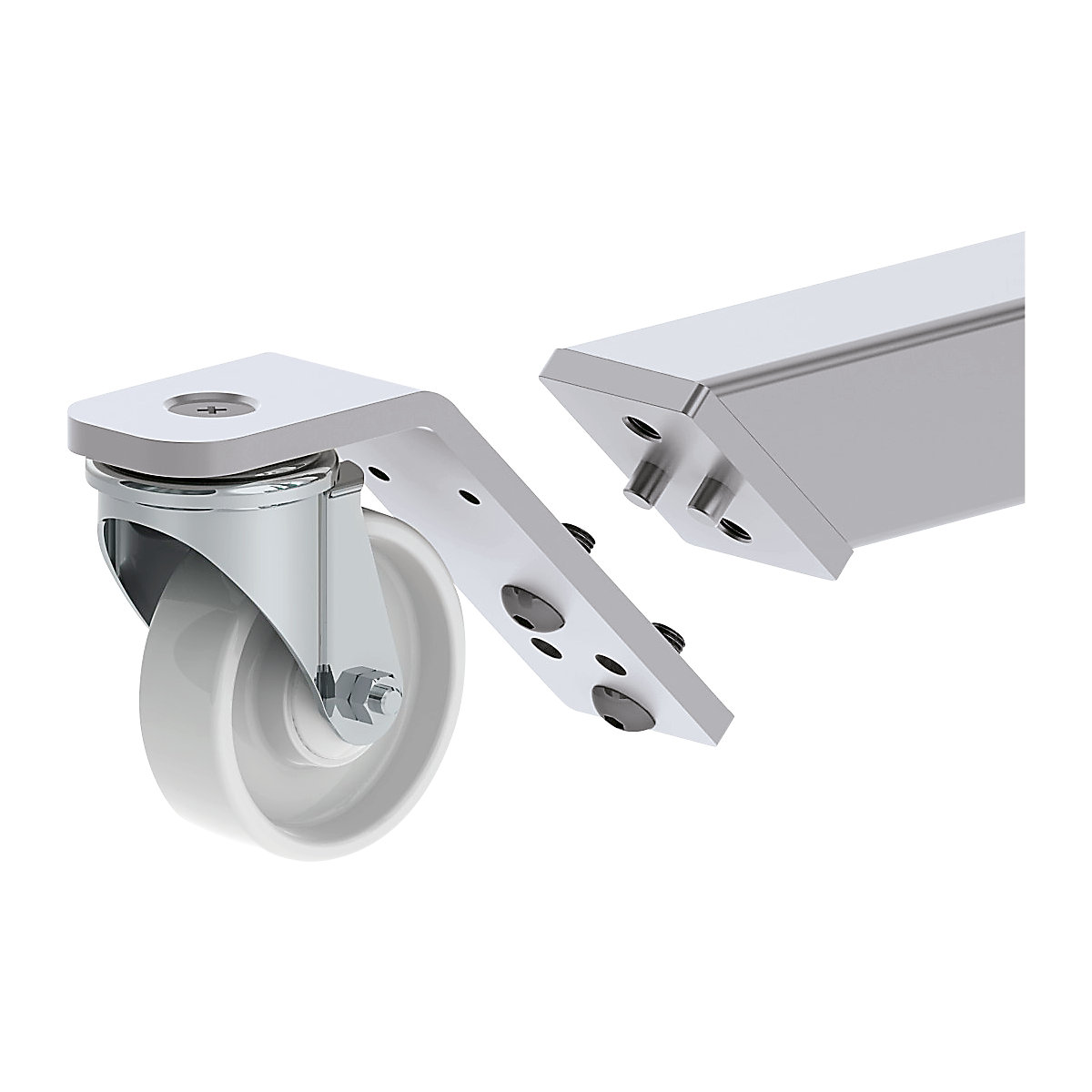

– Swivel castors with Ø 60 mm for chassis height 90 mm (up to max. load of 150 kg)

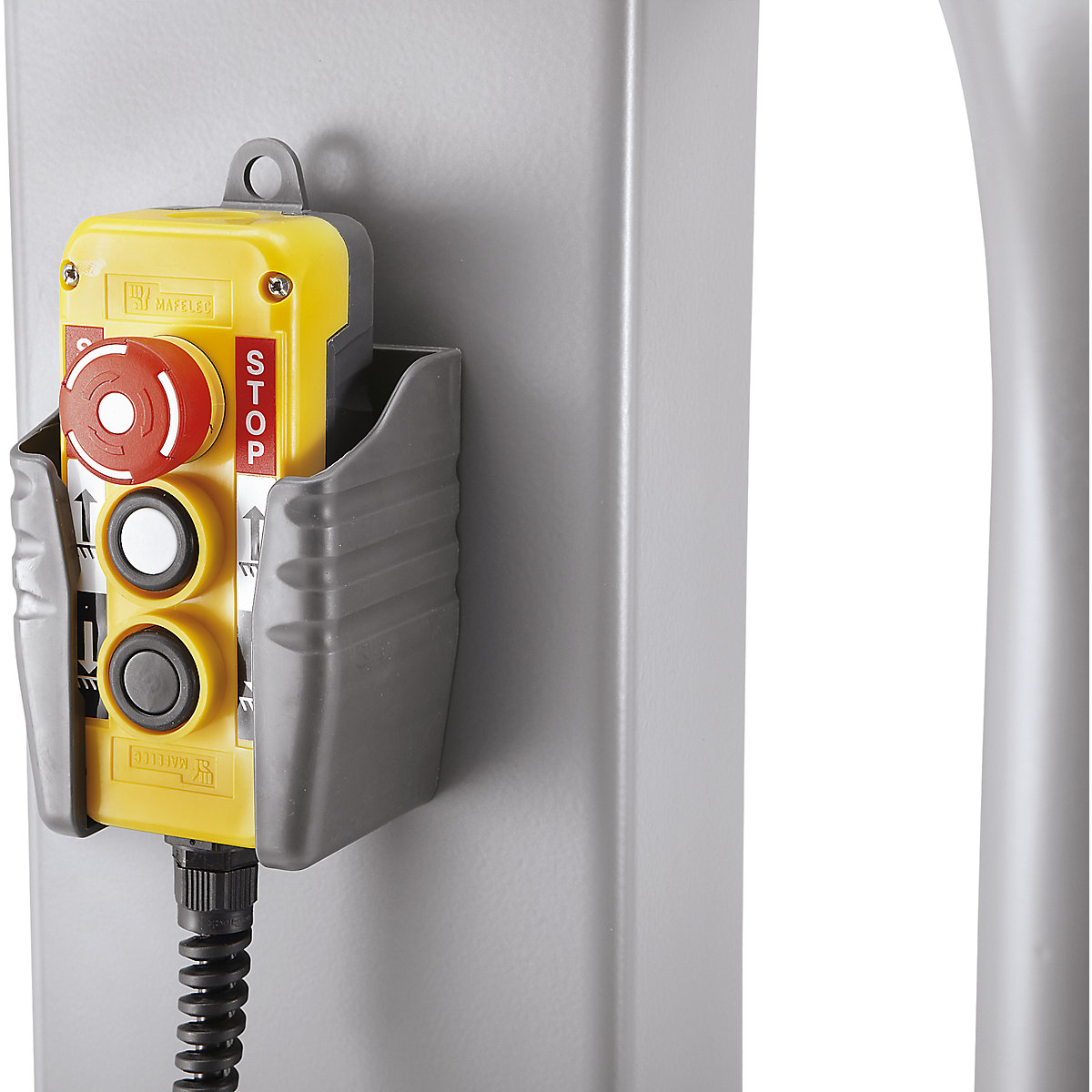

– Electrical equipment can be adapted

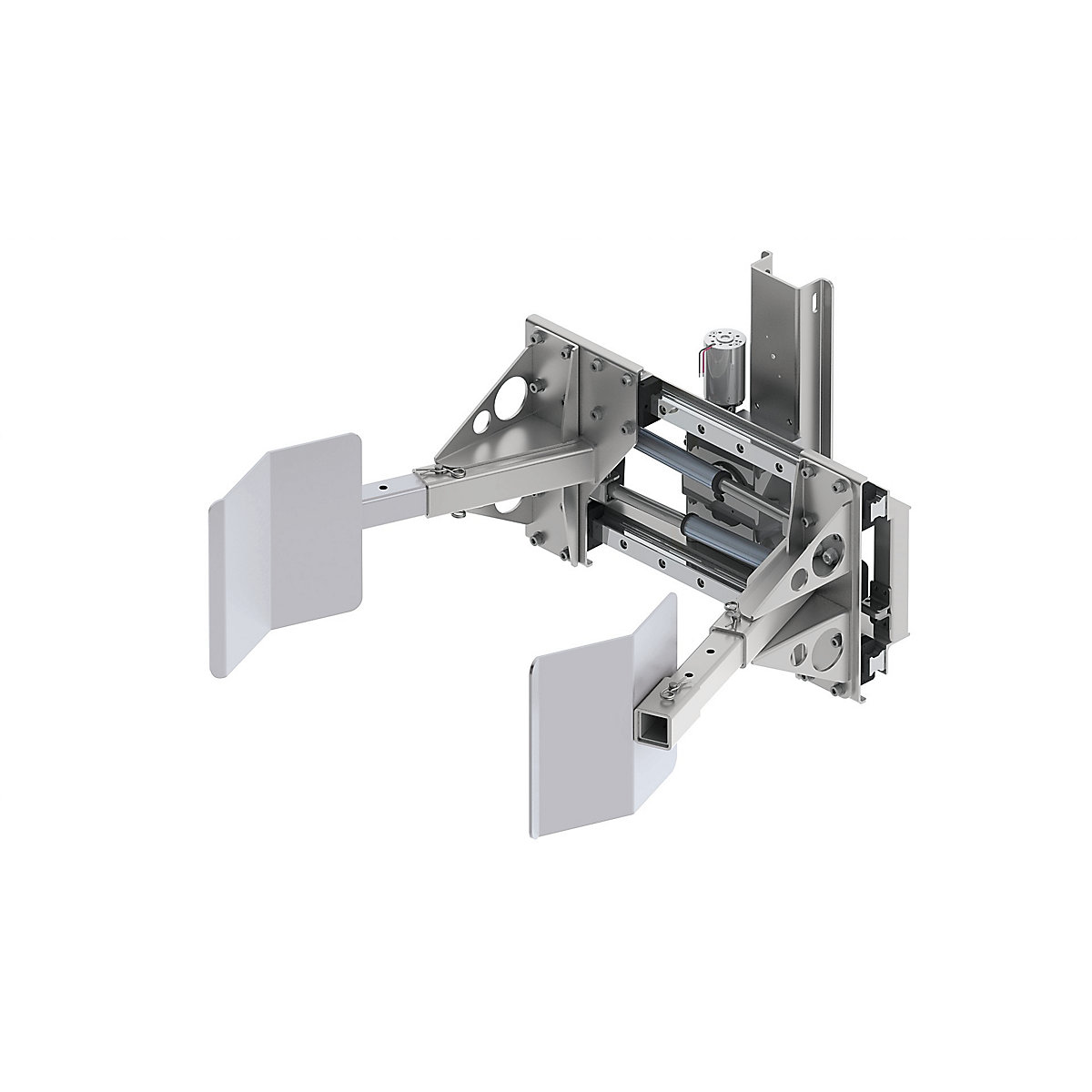

– Custom made accessories
Please ask for details.
Can be expanded as required
– Lifting heights up to 2600 mm
– Chassis can be widened, shortened and extended
– Swivel castors with Ø 60 mm for chassis height 90 mm (up to max. load of 150 kg)
– Electrical equipment can be adapted
– Custom made accessories
Please ask for details.
Technical data
Max. load | 150 kg |
---|---|
Load centre | 600 mm |
Length | 1050 mm |
Width | 570 mm |
Height | 2000 mm |
Spindle lift height | 1385 mm |
Material | steel |
Feature | electric |
Finish | powder coated |
Colour | signal blue RAL 5005 white aluminium RAL 9006 |
Protection type | IP41 / IP67 |
Fittings | battery |
Battery | 2 x 12 V / 20 Ah |
Battery charger | 100 – 240 V / 4 A |
Steering wheel material | polyurethane |
Steering wheel diameter | 125 mm |
Weight | 105 kg |
Support leg length | 625 mm |
Conforms to | EN 1757-1 |
Lifting range with optional platform | 120 – 1505 mm |
Product type | mini lifters |
Supplied | assembled |
Clearance height | 140 mm |
Lowered height | 140 mm |
Wheel fittings | 4 steering wheels, 2 with double stops |
Roller material | nylon |
Fork roller diameter | 100 mm |
Instructions |
