Ref.: 614630 49

Pallet truck with precision scale with item counter

Pallet truck with precision scale
Pallet truck with precision scale, with item counter, 0.5 kg increments from 0 to 2200 kg

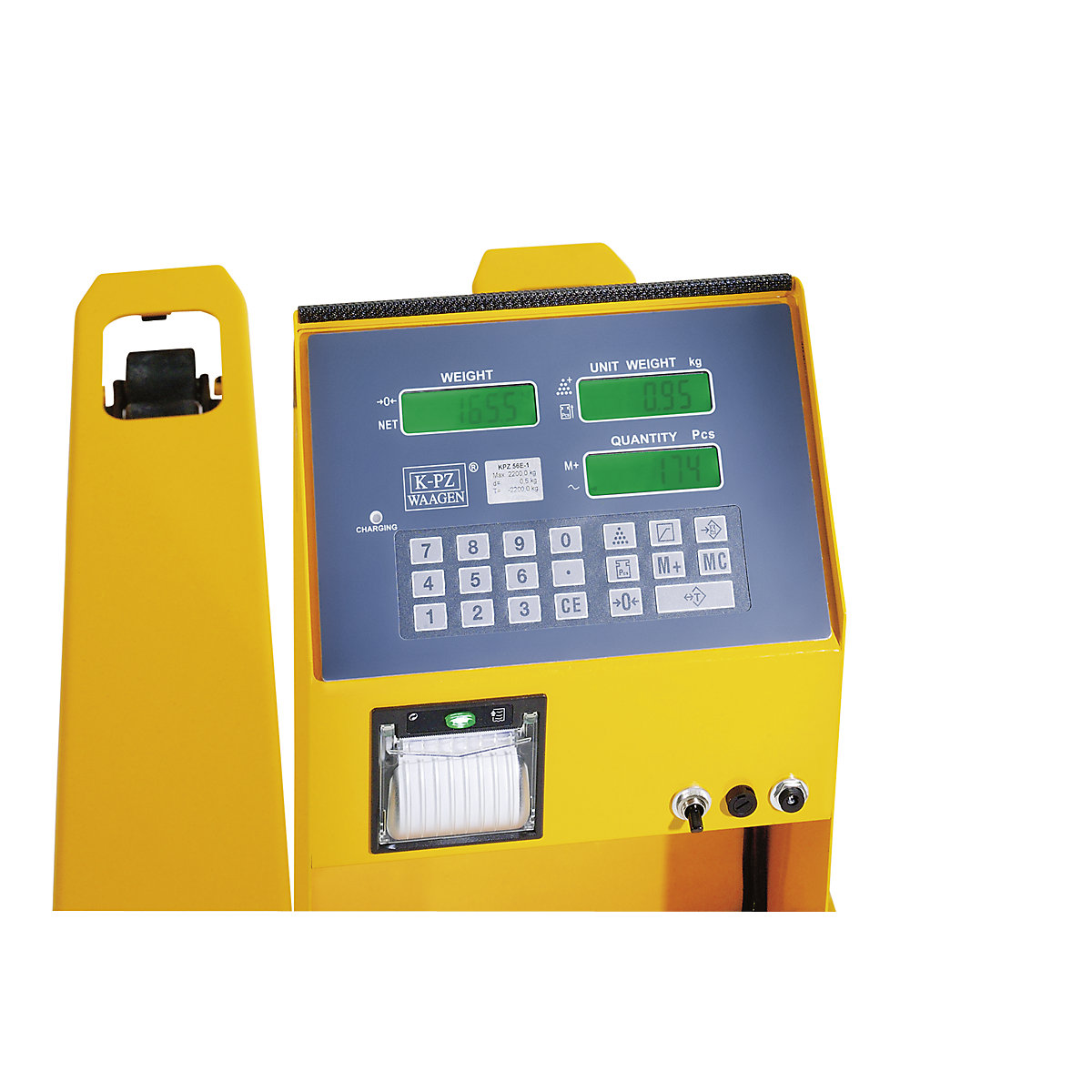

Pallet truck with precision scale (Product illustration 2)

0.5 kg increments from 0 to 2200 kg

Ref.: 614630 49
Product description
Backlit LCD display, height 25 mm, easy to read data. Direct weight control during loading and unloading. Manual and automatic reset as well as taring function.

With item counter.

Scale division
0.5 kg increments from 0 to 2200 kg.

Backlit LCD display, height 25 mm, easy to read data. Direct weight control during loading and unloading. Manual and automatic reset as well as taring function.
On request
Calibrated version, finer scale division, higher max. load as well as custom lengths and widths.
Supplied with external battery charger.
  • For checking received goods according to weight or number of items
  • Extremely robust and precise – maximum deviation is less than 0.1 % of the load being weighed
  • Item counting to quickly check large quantities
  • Determining dispatch weight
  • Order picking with weight check
  • Three LCD displays
  • Memory for ten item weights
  • Manual tare input via 10-key pad
  • Audible and optical signal when target weight or item count is reached
  • Number of weighing processes can be displayed – multiple weights can be added for a cumulative weight
Technical data
Max. load2200 kg
Load centre578 mm
Lifting range85 – 205 mm
Length1570 mm
Fork length1155 mm
Fork width170 mm
Distance across forks560 mm
Steering radius210 °
Scale equipmentwithout printer
Scale modelwith item counter
Weight155 kg
Steering wheel materialsolid rubber
Fork roller materialpolyurethane
Steering wheel diameter200 mm
Steering wheel width40 mm
Fork roller versiontandem
Fork roller diameter80 mm
Fork roller width70 mm
Product typepallet trucks with scales
Fittingsscale
Featuremanual
mobile
Measuring range0 - 2200 kg
Scale division0.5 kg
Figures height25 mm
Weight tolerance< 0,1 %
Battery capacity<150 hrs
Charging time<10 hrs
Suppliedassembled
