Ref.: 614628 49 (wgh4)

Pallet truck with precision scale with thermal transfer printer, standard display

Pallet truck with precision scale
Pallet truck with precision scale, with thermal transfer printer, standard display, multi-range scale-0
Pallet truck with precision scale (Product illustration 2)-1

multi-range scale

Ref.: 614628 49
Product description
  • Scales with a multi-range scale for incoming goods inspection by weight
  • Highly stable construction

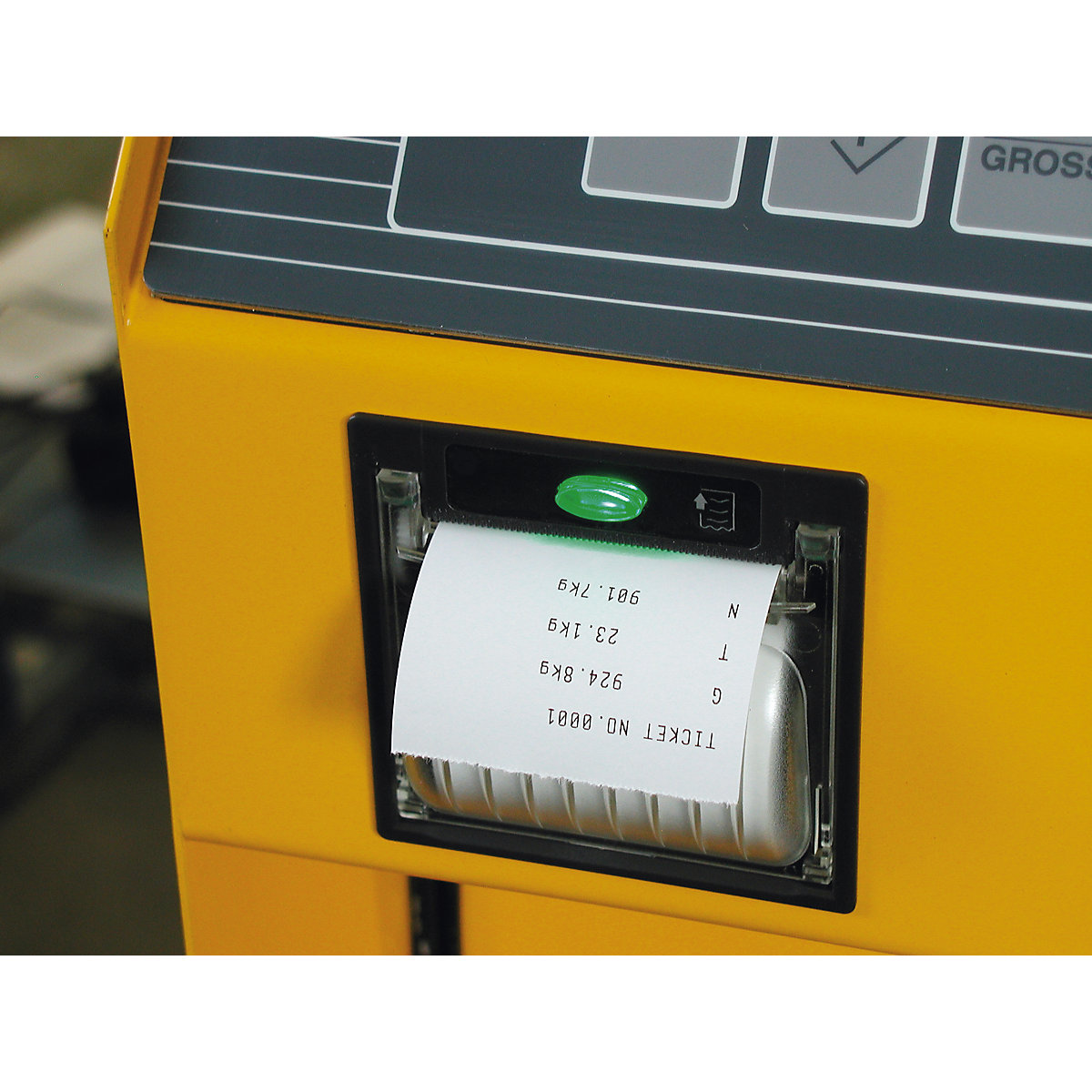

  • Integrated thermal printer for the scales
  • Precise scales with an accuracy within 0.1% of the weight placed on them
  • Max. load 2200 kg
  • Digit intervals 0 – 1100 kg in 0.2 kg increments
  • Scales with rechargeable battery, operating time up to 150 h with average use
  • Digit intervals 1100 – 2200 kg in 0.5 kg increments
  • Determining the dispatch weight and order picking by means of weight checks
The pallet truck with precision scales for robustness combined with accuracy: this fork lift truck provides efficient loading and unloading due to the integrated precision scales. The solid construction ensures stability and reliability in demanding situations. The precise scales with an accuracy within 0.1% of the weight placed on them ensure you have an overview of the load at all times. Featuring a backlit LCD display, the scale offers easy to read data and functions such as manual and automatic zero setting and tare function. The precision scales are equipped with a rechargeable battery that enables an operating time of up to 150 hours with average use. Supplied complete with an external charger.

The multi-range scale featured by the scales enables the weight of loads to be precisely determined. The digits are in intervals from 0 to 1100 kg in 0.2 kg increments, and in 0.5 kg increments from 1100 to 2200 kg. The integration of a thermal printer allows you to print gross, tare and net weights as well as the number of weighing operations directly. The printer is not sensitive to temperature differences and dust. Optimise your logistics by using the pallet truck with precision scales to determine the dispatch weight or to facilitate order picking by means of weight checks.
Upon request: calibrated version, finer scale division, higher max. load as well as custom lengths and widths.
Technical data
Max. load2200 kg
Load centre578 mm
Lifting range85 – 205 mm
Length1570 mm
Fork length1155 mm
Fork width170 mm
Distance across forks560 mm
Steering radius210 °
Scale equipmentwith thermal transfer printer
Modelwith standard display
Weight155 kg
Steering wheel materialsolid rubber
Roller materialpolyurethane
Steering wheel diameter200 mm
Steering wheel width40 mm
Fork roller versiontandem
Fork roller diameter80 mm
Fork roller width70 mm
Product typepallet trucks with scales
Measuring range1100 – 2200 kg
Scale division0.2 – 0.5 kg
Figures height25 mm
Weight tolerance< 0,1 %
Operating time<150 hrs
Charging time<10 hrs
Suppliedassembled
