EUROKRAFTbasic – Pallet truck with weighing scale

4.38 stars out of 5
  • For weighing checks
  • For checking incoming goods
  • Determination of dispatch weights
  • Prevention of overloading
  • Max. load 2000 kg
EUROKRAFTbasic
3 year guarantee
3 year guarantee
Ref.: 968925 49
EUROKRAFTbasic – Pallet truck, with weighing scale, max. load 2000 kg
Price / items (Excl. VAT)
£539.00

Product description
Polyurethane steering wheels and fork rollers.
Includes batteries (2 x AA 1.5 V) for weighing approx. 3000 times. Battery level indicator, switches off automatically after approx. 2 minutes.
Very easy to operate
1. Switch on the weighing unit to determine tare weight
2. Pump forks up to reference height
3. Press tare button
4. Lower forks and pick-up goods to be weighed
5. Pump forks up to reference height to weigh

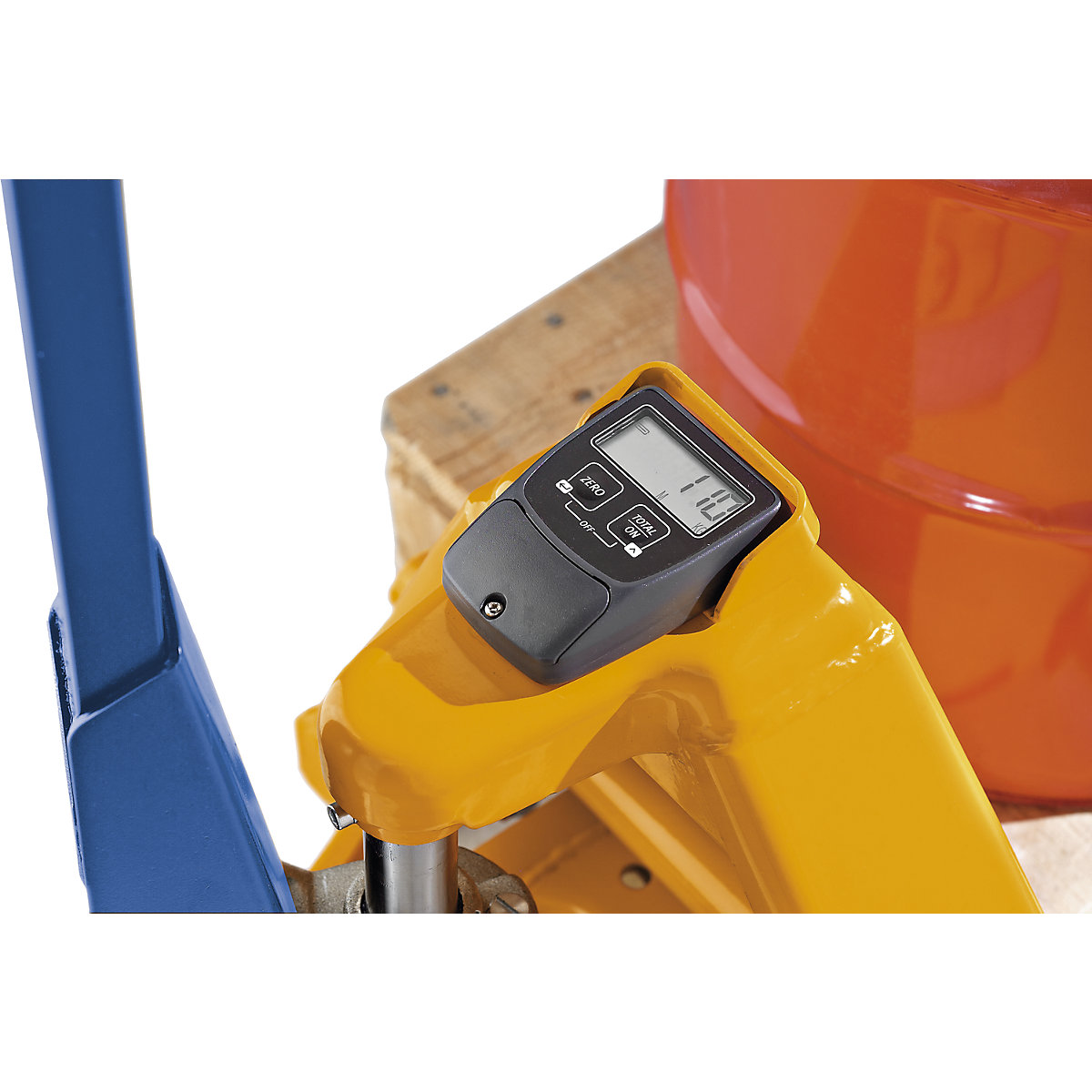

Display unit
Digit height 18 mm. IP65 – protected against dust and splash water.

Measuring tolerances
50 – 500 kg ± 20 kg
500 – 1000 kg ± 30 kg
1000 – 1500 kg ± 40 kg
1500 – 2000 kg ± 50 kg

Scale division
Up to 1000 kg = 5 kg / over 1000 kg = 20 kg
  • For weighing checks
  • For checking incoming goods
  • Determination of dispatch weights
  • Prevention of overloading
  • Max. load 2000 kg
3 year guarantee
3 year guarantee
Technical data
Max. load2000 kg
Lifting range85 – 200 mm
Length1542 mm
Fork length1150 mm
Fork width160 mm
Distance across forks540 mm
Steering radius205 °
Scale equipmentincluding battery
Weight79 kg
Steering wheel materialpolyurethane
Fork roller materialpolyurethane
Steering wheel diameter180 mm
Steering wheel width50 mm
Fork roller versiontandem
Fork roller diameter80 mm
Fork roller width70 mm
Product typepallet trucks with scales
Colourmelon yellow RAL 1028
Protection typeIP65
Fittingsscale
Featuremanual
mobile
Scale division5 / 20 kg
Figures height18 mm
Suppliedassembled
EUROKRAFTbasic
