Ref.: 175697 49

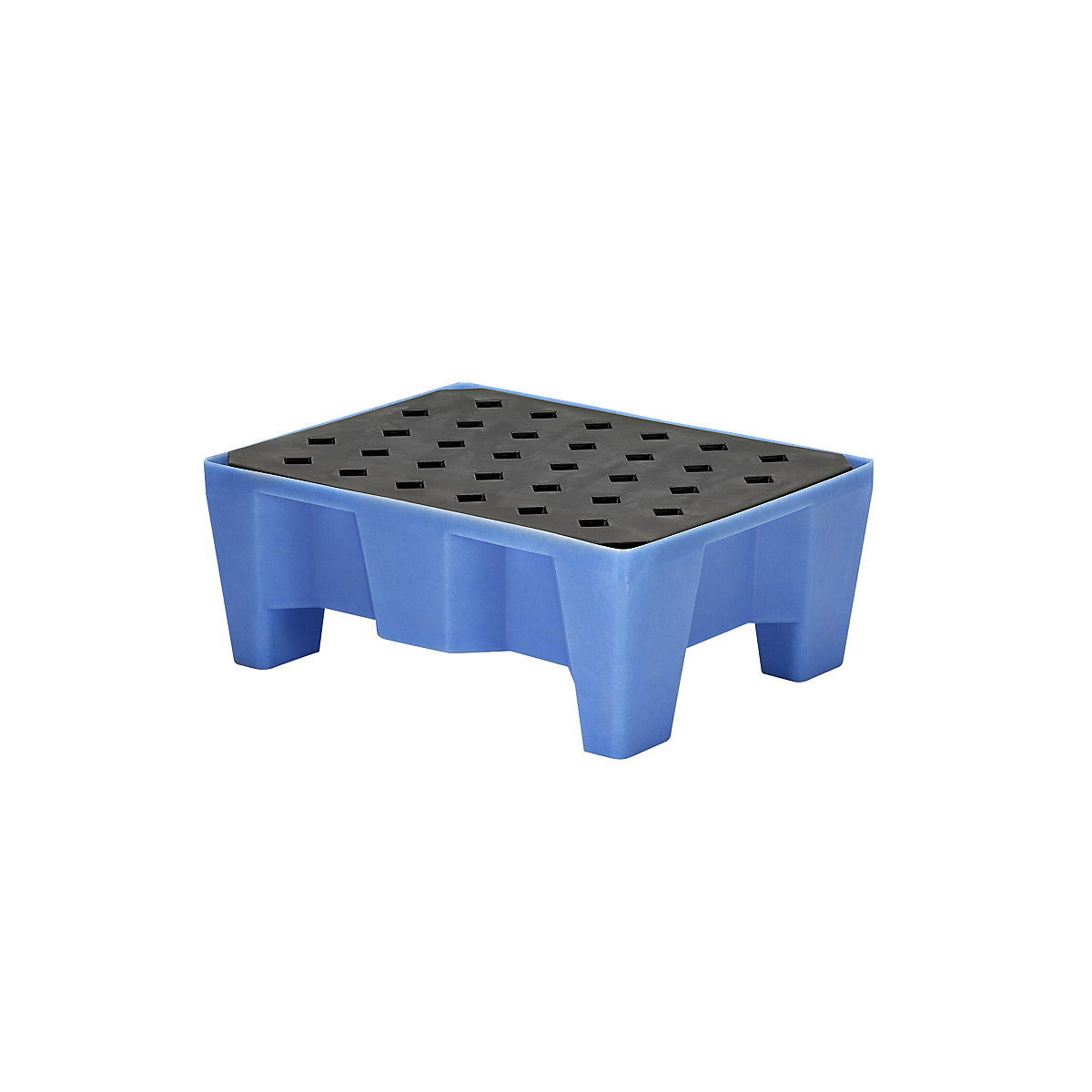

PE tray for 60 l drums and small containers with 4 feet
with grate
Ref.: 175697 49
PE tray for 60 l drums and small containers with 4 feet
with grate
with grate
For water hazardous liquids
Resistant to aggressive, corrosive chemicals
Score: 2.8/5.9£279.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
£279.00
Price / item (Excl. VAT)
£279.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
Product description
- For aggressive and water-hazardous liquids of GHS categories 1 – 4
- Tray and removable grate made entirely of polyethylene – highly resistant to oils, acids, alkaline solutions etc.
- For storage of small containers, 50 and 60 litre drums directly in the tray or on the PE grate
- Robust, durable construction
- With general certification from the DIBt (German Institute for Construction Technology), Berlin
- With 4 feet – accessible from underneath
PE tray for 60-litre drums and small containers – robust sump tray for hazardous substances
The PE tray for 60-litre drums and small containers combines high resistance with a particularly robust, durable construction. The sump tray is suitable for small containers as well as 50 and 60-litre drums and supports the safe, compliant storage of water-hazardous liquids.
The tray and the removable grate are made of resistant polyethylene. Tray and feet are made of one piece. This results in a stable construction for demanding use in industry, workshop and warehouse. The material is highly resistant to oils, acids, alkalis and other aggressive media. A sump capacity of 66 litres ensures that leaking liquids can be reliably collected.
The small container sump tray can be used flexibly. Containers can be placed directly in the tray or on the removable PE grate. The grate creates a safe storage area above the collection area and can be easily removed if required.
For efficient handling, the sump tray is accessible from underneath. With a foot spacing of 290 and 595 mm respectively and a ground clearance of 105 mm, it can be lifted with suitable industrial trucks. This facilitates internal transport and relocation processes.
The PE tray is ideal for compliant indoor storage as well as for the handling and transport of aggressive and water-hazardous liquids of GHS categories 1–4. The general construction approval from the DIBt, Berlin, confirms its suitability for the intended use.
The PE tray for 60-litre drums and small containers combines high resistance with a particularly robust, durable construction. The sump tray is suitable for small containers as well as 50 and 60-litre drums and supports the safe, compliant storage of water-hazardous liquids.
The tray and the removable grate are made of resistant polyethylene. Tray and feet are made of one piece. This results in a stable construction for demanding use in industry, workshop and warehouse. The material is highly resistant to oils, acids, alkalis and other aggressive media. A sump capacity of 66 litres ensures that leaking liquids can be reliably collected.
The small container sump tray can be used flexibly. Containers can be placed directly in the tray or on the removable PE grate. The grate creates a safe storage area above the collection area and can be easily removed if required.
For efficient handling, the sump tray is accessible from underneath. With a foot spacing of 290 and 595 mm respectively and a ground clearance of 105 mm, it can be lifted with suitable industrial trucks. This facilitates internal transport and relocation processes.
The PE tray is ideal for compliant indoor storage as well as for the handling and transport of aggressive and water-hazardous liquids of GHS categories 1–4. The general construction approval from the DIBt, Berlin, confirms its suitability for the intended use.
Technical data
| Type of grate | with PE grate |
|---|---|
| Sump capacity | 66 l |
| Length | 800 mm |
| Width | 605 mm |
| Height | 215 mm |
| Colour | blue black |
| Drum capacity | 2 x 60 l |
| Material | polyethylene |
| Design of sump tray | 4 feet |
| Max. load | 150 kg |
| Clearance height | 105 mm |
| Test symbol | with general certification from the DIBt (German Institute for Construction Technology) Berlin |
| For media | water hazardous dangerous goods chemicals, acids and alkalis oils |
| Hazard class | for water hazardous liquids in GHS categories 1 – 4 |
| Certification | with |
| Product type | 60 l sump trays |
| Supplied | assembled |
| Weight | 9.5 kg |
Sustainability
Product with potential for future improvement
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
Product CO₂ footprint
- Product Carbon Footprint per kg CO2e
- 12.876
- Product Carbon Footprint Calculation Year
- 2026
- Product Carbon Footprint System Boundaries
- Cradle-to-gate
- Product Carbon Footprint Calculation Method
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
