Ref.: 116139 49

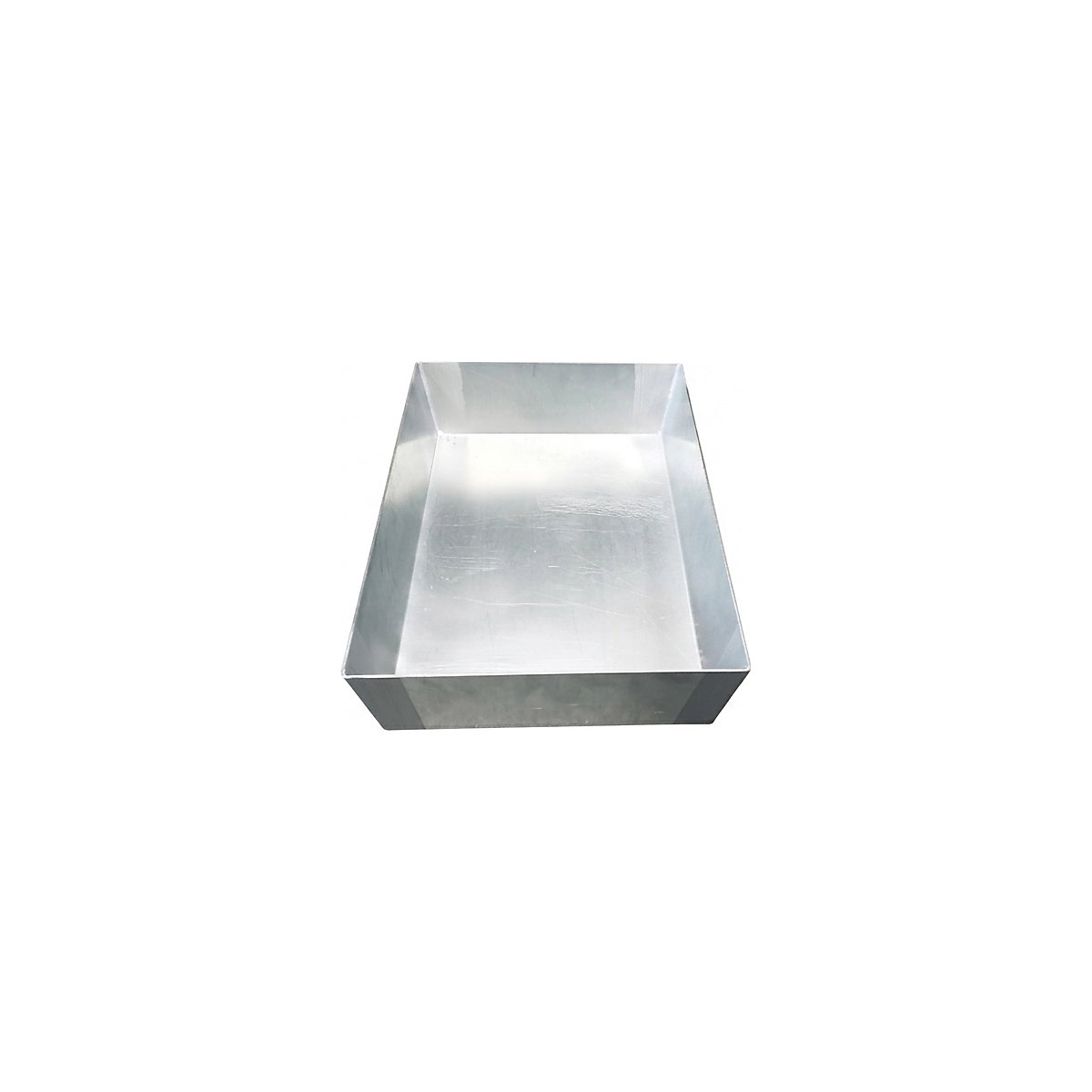

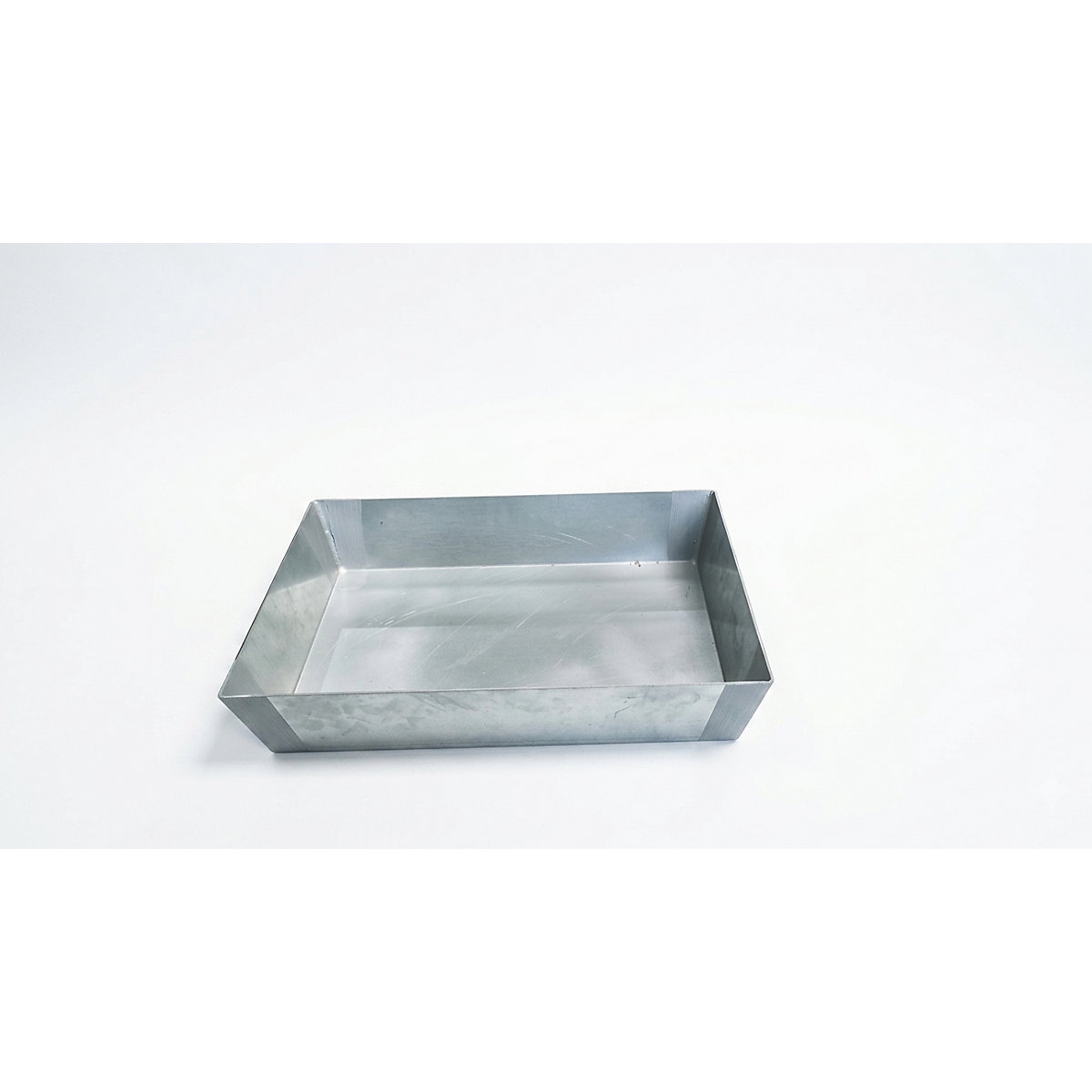

Steel small container pallet tray – eurokraft basic sump capacity 20 l
max. load 50 kg, zinc plated
Ref.: 116139 49
Steel small container pallet tray – eurokraft basic sump capacity 20 l
max. load 50 kg, zinc plated
max. load 50 kg, zinc plated
£159.00
Price / item (Excl. VAT)
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£159.00
Price / item (Excl. VAT)
Product description
- Regulation compliant storage of small containers with flammable and water hazardous liquids
- Trays fit perfectly – even when combined – on Euro or chemical pallets
- Robust trays with declaration of conformity in accordance with StawaR
- Made of 3-mm sheet steel
- Tightly welded
Steel small container pallet sump – safe solution for transport and storage
The steel small container pallet sump combines a robust construction with a custom-fit model for Euro and chemical pallets. As a resistant small container sump, it supports the safe transport and compliant storage of hazardous substances in daily operational use.
The transport sump is made of zinc plated, tightly welded 3-mm sheet steel and is designed for long-term use in storage and production areas. The ÜHP approval according to StawaR confirms its suitability for holding flammable liquids of GHS categories 1 – 3 as well as water-hazardous liquids of GHS categories 1 – 4. Thanks to the custom-fit dimensions, the small container sump can be used individually or combined on Euro and chemical pallets. This allows existing pallet systems to be used without additional adaptation effort.
The steel small container pallet sump helps to reliably collect escaping liquids and protect the ground from contamination. As a transport sump, it is suitable for internal transport processes as well as for the safe storage of small containers. The zinc plated surface offers reliable corrosion protection and supports a long service life. At the same time, the small container sump facilitates compliance with statutory requirements when handling hazardous substances. The stable transport sump can be flexibly integrated into existing storage and logistics processes and supports the safe organisation of hazardous substances on pallets.
The steel small container pallet sump combines a robust construction with a custom-fit model for Euro and chemical pallets. As a resistant small container sump, it supports the safe transport and compliant storage of hazardous substances in daily operational use.
The transport sump is made of zinc plated, tightly welded 3-mm sheet steel and is designed for long-term use in storage and production areas. The ÜHP approval according to StawaR confirms its suitability for holding flammable liquids of GHS categories 1 – 3 as well as water-hazardous liquids of GHS categories 1 – 4. Thanks to the custom-fit dimensions, the small container sump can be used individually or combined on Euro and chemical pallets. This allows existing pallet systems to be used without additional adaptation effort.
The steel small container pallet sump helps to reliably collect escaping liquids and protect the ground from contamination. As a transport sump, it is suitable for internal transport processes as well as for the safe storage of small containers. The zinc plated surface offers reliable corrosion protection and supports a long service life. At the same time, the small container sump facilitates compliance with statutory requirements when handling hazardous substances. The stable transport sump can be flexibly integrated into existing storage and logistics processes and supports the safe organisation of hazardous substances on pallets.
Zinc plated grates available as an accessory.
For water hazardous liquids
For flammable liquids
Technical data
| Type of grate | without |
|---|---|
| Sump capacity | 20 l |
| Length | 600 mm |
| Width | 400 mm |
| Height | 120 mm |
| Material | sheet steel |
| Finish | zinc plated |
| Colour | zinc plated |
| Max. load | 50 kg |
| Test symbol | manufacturer's declaration of conformity in accordance with German construction regulation list A, part 1, DIBt, Berlin |
| Material thickness | 3 mm |
| For media | flammable and water hazardous liquids |
| Hazard class | for flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4 |
| Certification | with |
| Product type | small container sump trays |
| Supplied | assembled |
| Weight | 13.6 kg |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
Product CO₂ footprint
- Product Carbon Footprint per kg CO2e
- 64.421
- Product Carbon Footprint Calculation Year
- 2026
- Product Carbon Footprint System Boundaries
- Cradle-to-gate
- Product Carbon Footprint Calculation Method
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
| Criteria | Weighting | Score |
|---|---|---|
| 30% | 2.2 | |
| 30% | 4.2 | |
| 25% | 2.0 | |
| 10% | 5.0 | |
| 5% | 3.9 | |
| Overall score | 3.4 | |
