Ref.: 603584 49

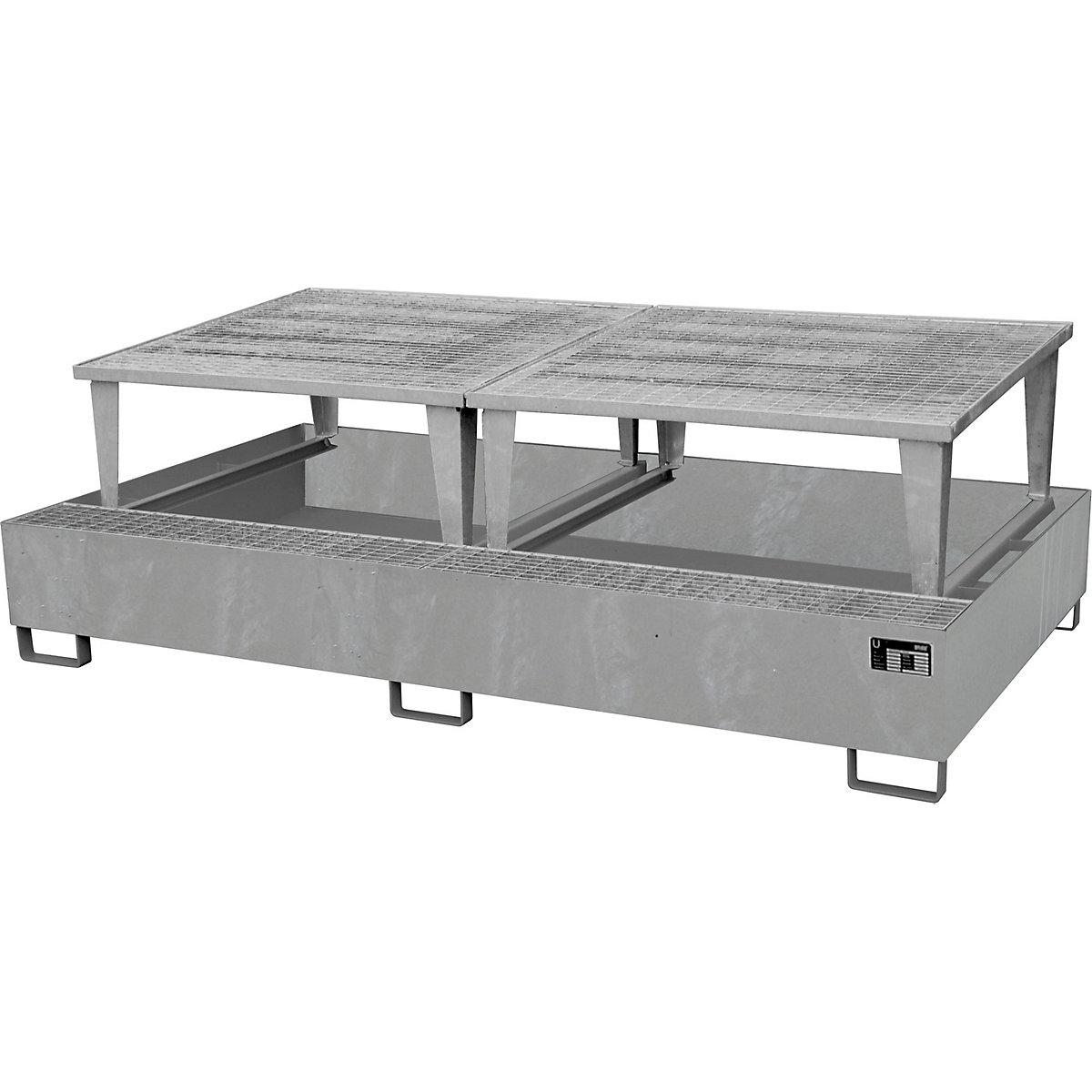

Steel sump tray for IBC / CTC tank containers – eurokraft pro LxWxH 2650 x 1460 x 865 mm, with 2 filling attachments
sump capacity 1000 l, hot dip galvanised
Colour
Ref.: 603584 49
Steel sump tray for IBC / CTC tank containers – eurokraft pro LxWxH 2650 x 1460 x 865 mm, with 2 filling attachments
sump capacity 1000 l, hot dip galvanised
sump capacity 1000 l, hot dip galvanised
10 year guarantee
For water hazardous liquids
For flammable liquids
Sustainability score:Colour
£2,750.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
£2,750.00
Price / item (Excl. VAT)
£2,750.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
Product description
- Made of steel
- For IBC/CTC containers
- Protection against leaking liquids
- High mechanical load capacity
- Suitable for continuous use
- Corrosion-resistant surface
- With zinc plated support grates for storing drums and IBC/CTC and zinc plated filling attachments for easy filling of IBC/CTC
- The filling attachment can be positioned individually
The sump tray is made of steel and designed for the safe storage of tank containers (IBC/KTC). It is used to collect leaking liquids and thus contributes to protecting the ground and environment when storing substances hazardous to water. The steel construction offers high mechanical strength, as required when used with heavy containers and when manoeuvring with industrial trucks. The tray is intended for stationary use in storage, production and handling areas where tank containers are stored or filled. It supports companies in complying with regulations on handling substances hazardous to water. Due to its robust construction, the tray is designed for regular, continuous operational use. The surface finish of the tray is adapted to the respective storage conditions and additionally contributes to corrosion protection. Thanks to its sturdy design, the tray is suitable for permanent indoor and outdoor installation.
Technical data
| Type of grate | with zinc plated grate |
|---|---|
| Sump capacity | 1000 l |
| 1000 l container capacity | 2 pcs. |
| Length | 2650 mm |
| Width | 1460 mm |
| Height | 865 mm |
| Filling attachment dimensions | 1250 x 1210 x 430 / 493 mm |
| Quantity of filling attachments | 2 pcs. |
| Material | sheet steel |
| Max. load | 1000 kg/m² |
| Clearance height | 100 mm |
| Test symbol | manufacturers declaration of conformity in accordance with StawaR |
| Material thickness | 3 mm |
| For media | flammable and water hazardous liquids |
| Hazard class | for flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4 |
| Distributed load | 1000 kg/m² |
| Certification | with |
| Product type | 1000 l sump trays |
| Supplied | assembled |
| Colour | hot dip galvanised |
| Finish | hot dip galvanised |
| Weight | 296 kg |
| Manufacturer / EU responsible Person (GPSR) |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
Product CO₂ footprint
- Product Carbon Footprint per kg CO2e
- 1389.671
- Product Carbon Footprint Calculation Year
- 2026
- Product Carbon Footprint System Boundaries
- Cradle-to-gate
- Product Carbon Footprint Calculation Method
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
Scoring System
More about our sustainability approach.
3.4/5.9Overall score
| Criteria | Weighting | Score |
|---|---|---|
 Climate protection | 30% | 2.5 |
 Circulatory economy | 30% | 4.2 |
 Biodiversity | 25% | 3.0 |
 Economic efficiency | 10% | 0.0 |
 Innovation | 5% | 3.9 |
