Ref.: 568379 49

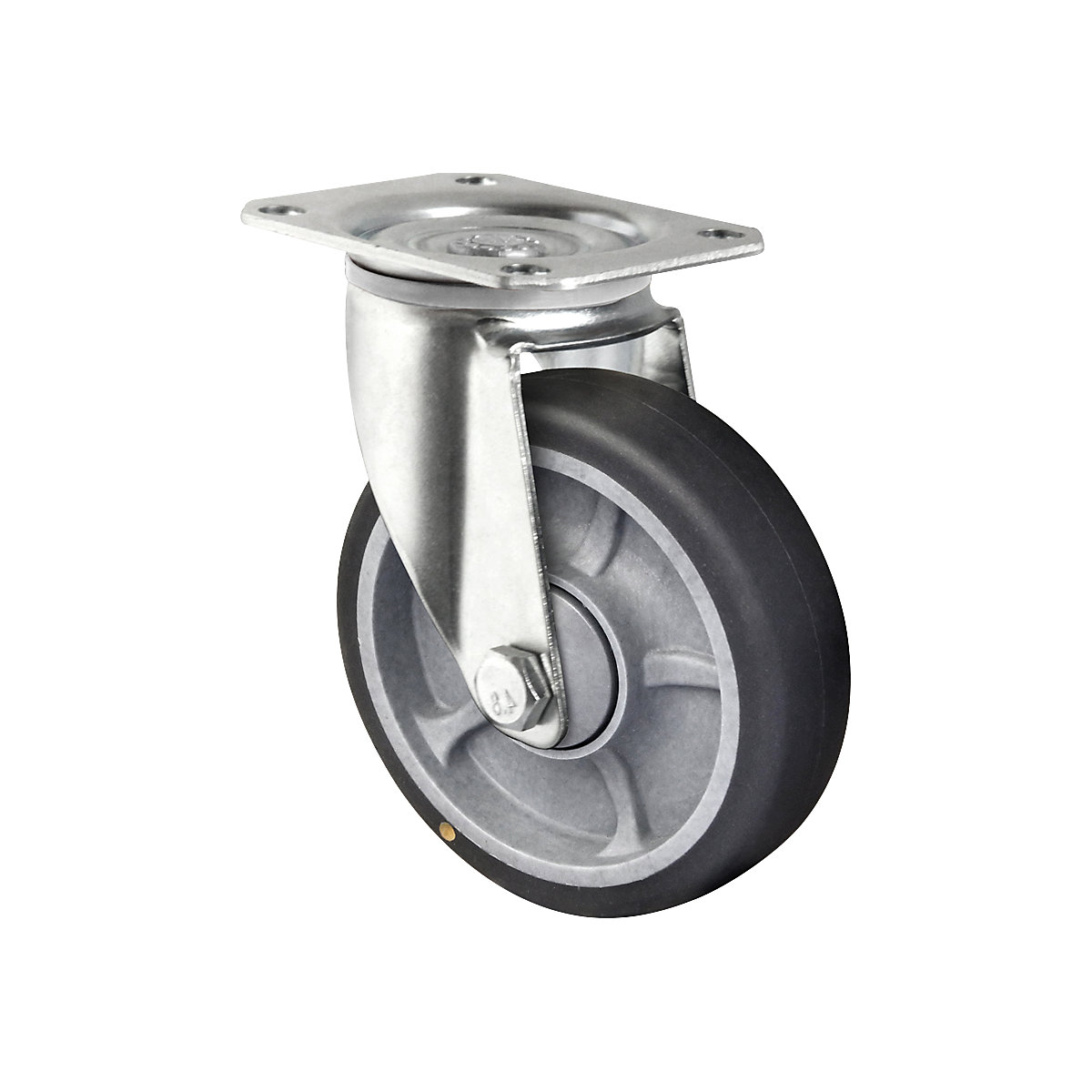

TPE tyres on PP rim, ESD, 2+ items wheel Ø x width 100 x 32 mm
swivel castor
Structure
Wheel diameter [mm]
Ref.: 568379 49
TPE tyres on PP rim, ESD, 2+ items wheel Ø x width 100 x 32 mm
swivel castor
swivel castor
Low rolling resistance
Non-marking
Anti-static
This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
Score: 1.7/5.9Structure
Wheel diameter [mm]
£26.00
Price / item (Excl. VAT)
Total (Excl. VAT)
£52.00
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
£26.00
Price / item (Excl. VAT)
£26.00
Price / item (Excl. VAT)
Total (Excl. VAT)
£52.00
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
Product description
- ESD model
- Do not damage floors, non-marking
- Low rolling resistance, quiet, very smooth running
- Hardness 65 – 70 Shore A
- Temperature resistant from –20 °C to +60 °C
With an electrical conductivity up to a resistance of 0 – 5,000,000 ohm.
Sheet steel housing, electrolytically zinc plated in blue. Swivel bearing with dual turntable bearing. Small plastic thread guard. Ball bearings.
Sheet steel housing, electrolytically zinc plated in blue. Swivel bearing with dual turntable bearing. Small plastic thread guard. Ball bearings.
TPE wheels may leave oily marks on open-pored, unsealed and absorbent flooring.
We are happy to advise you about use on parquetry, stone or other sensitive flooring.
We are happy to advise you about use on parquetry, stone or other sensitive flooring.
Technical data
| Model | ESD castors |
|---|---|
| Wheel material | rubber – thermoplastic rubber elastomer (TPE) |
| Material of rim | polypropylene |
| Type of mounting | with top plate |
| Housing material | steel |
| Wheel bearing | ball bearing |
| Temperature resistance | –20 °C to +60 °C |
| Housing surface | zinc plated by galvanization |
| Shore hardness | 65 – 70 |
| Supplied | assembled |
| Structure | swivel castor |
| Wheel diameter | 100 mm |
| Max. load at 4 km/h | 90 kg |
| Swivel castor offset | 40 mm |
| Screw hole diameter | 8 mm |
| Hub length | 40 mm |
| Hub bore | 8 mm |
| Screw hole spacing | 80/77 x 60 mm |
| Swivel castor plate dimensions | 105 x 80 mm |
| Fixed castor plate dimensions | 105 x 80 mm |
| Overall height | 125 mm |
| Wheel width | 32 mm |
| Product type | swivel castors |
| Weight | 0.589 kg |
| Manufacturer / EU responsible Person (GPSR) |
