Ref.: 781153 49

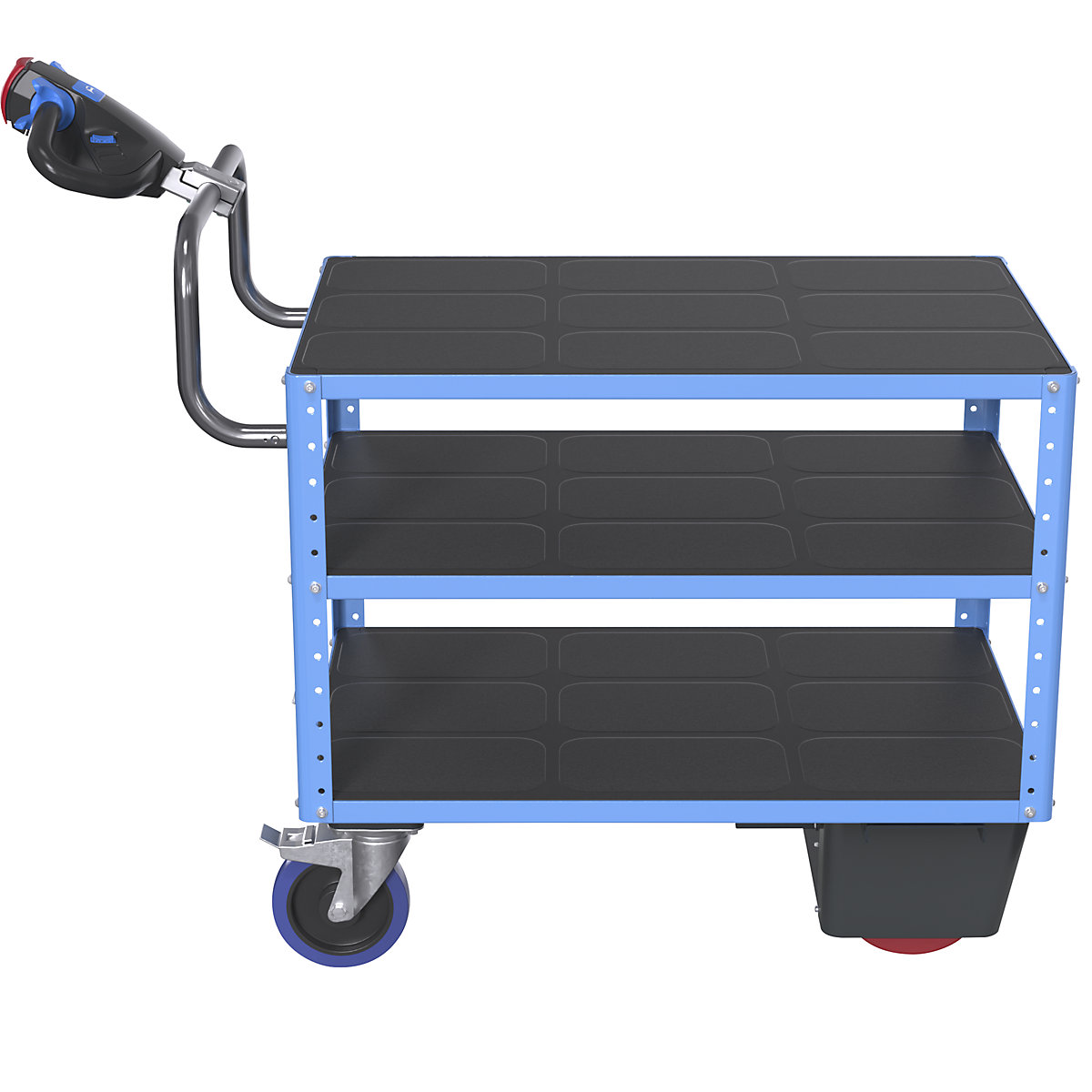

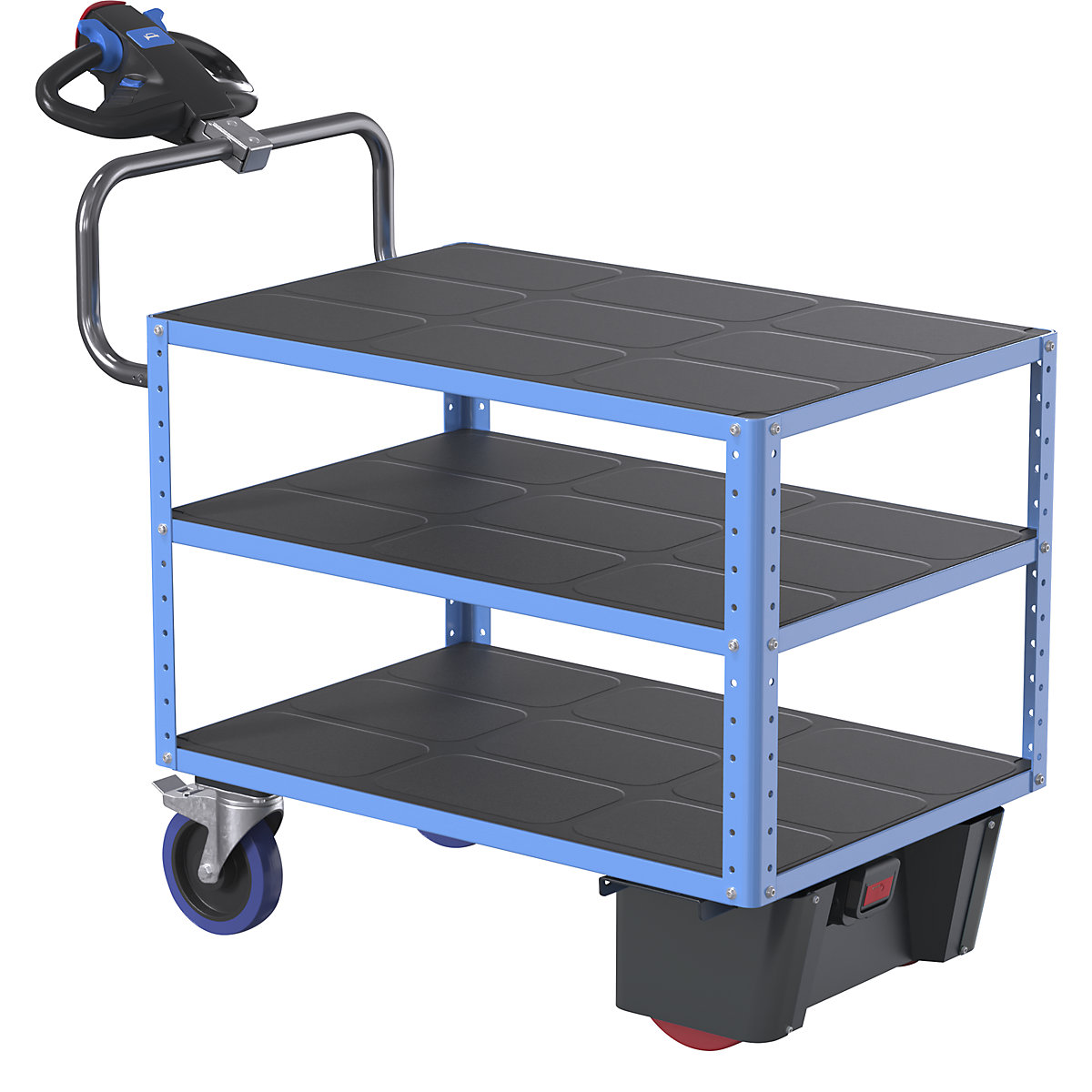

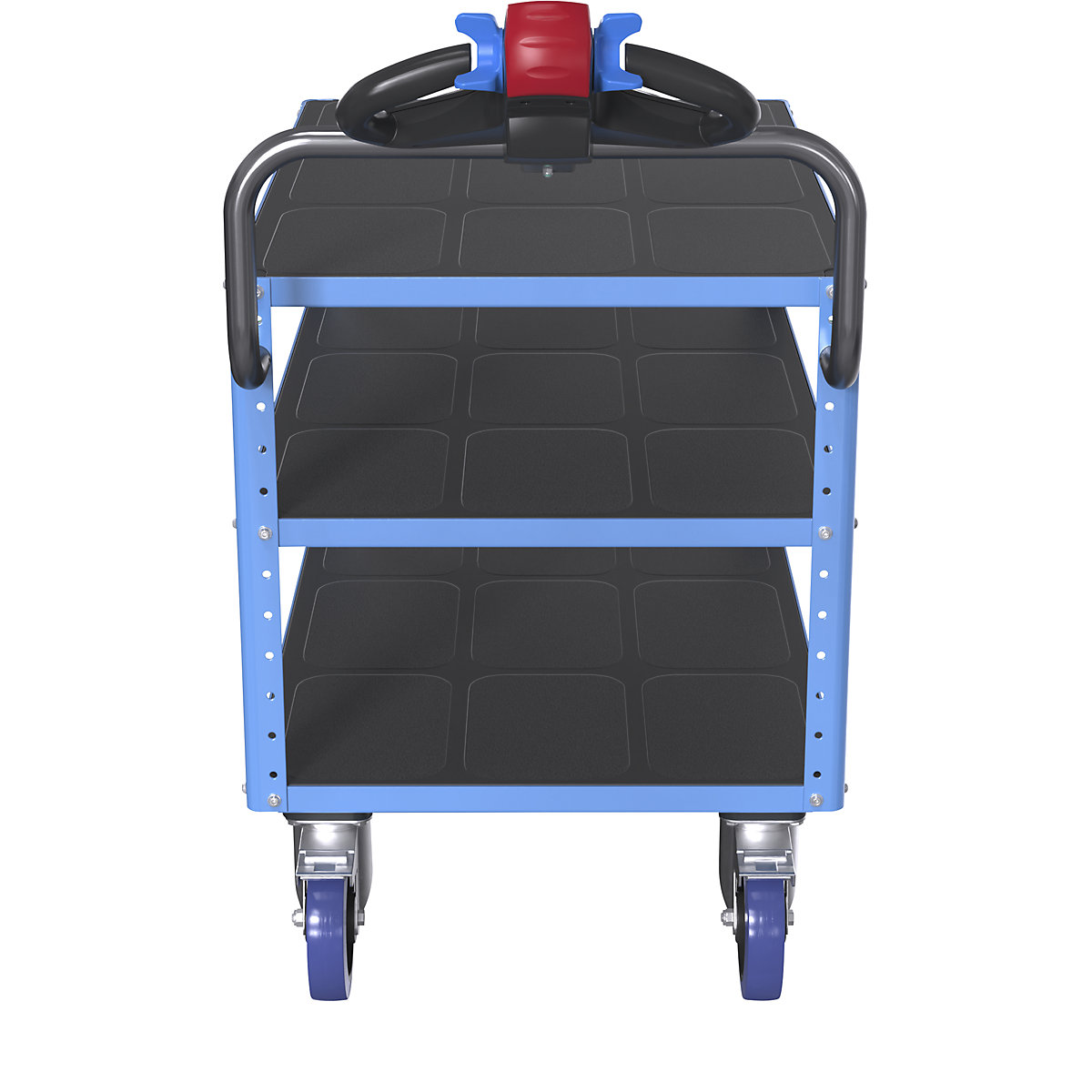

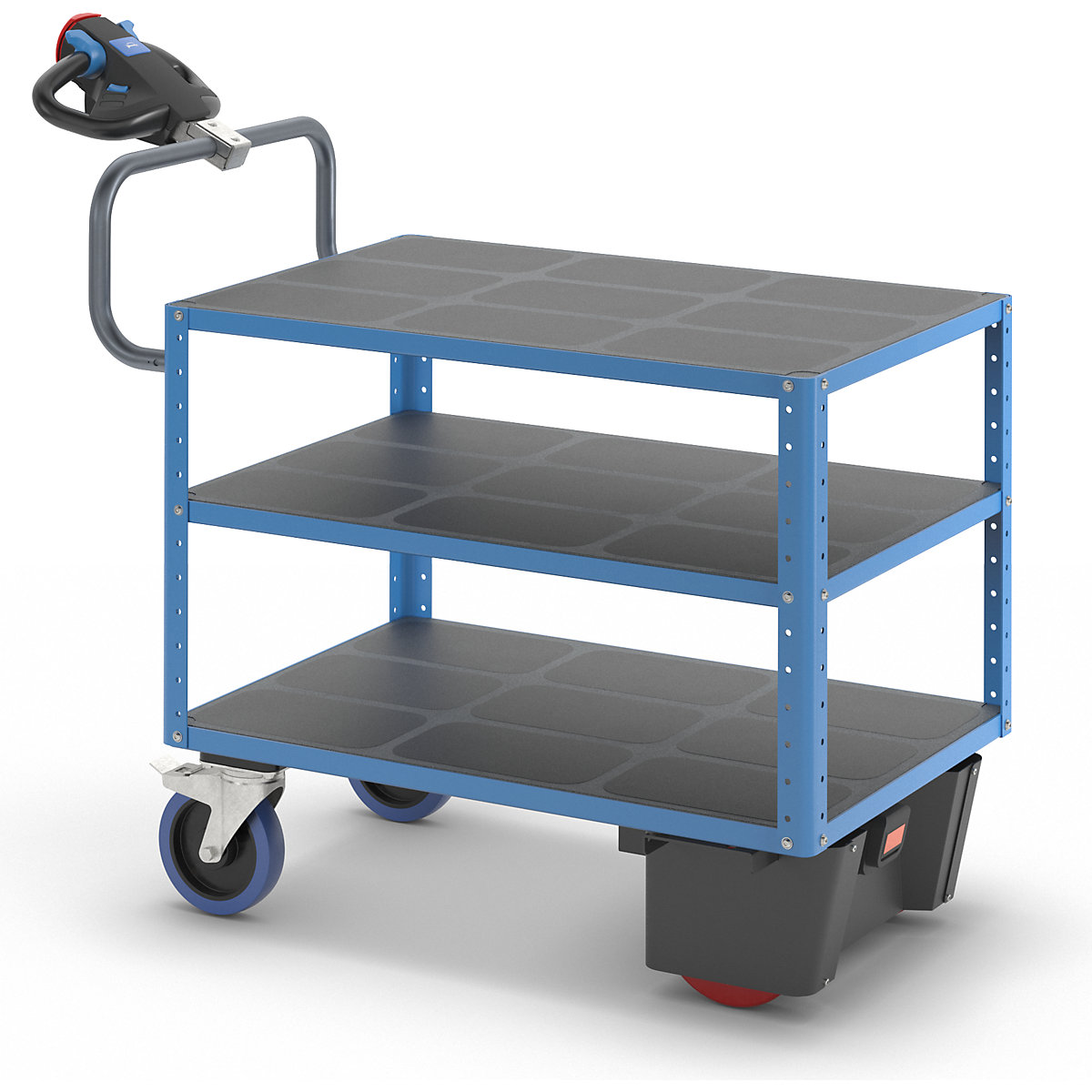

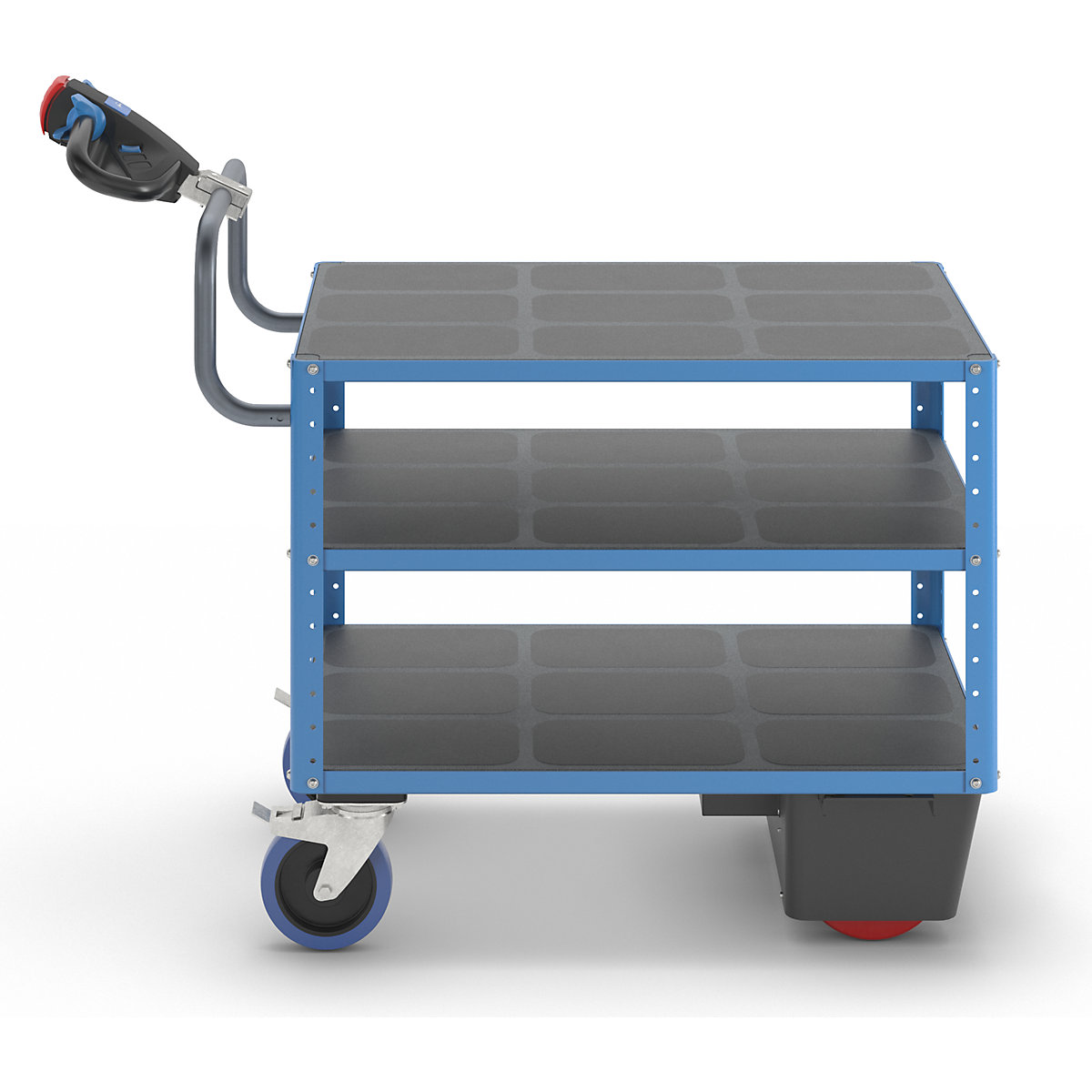

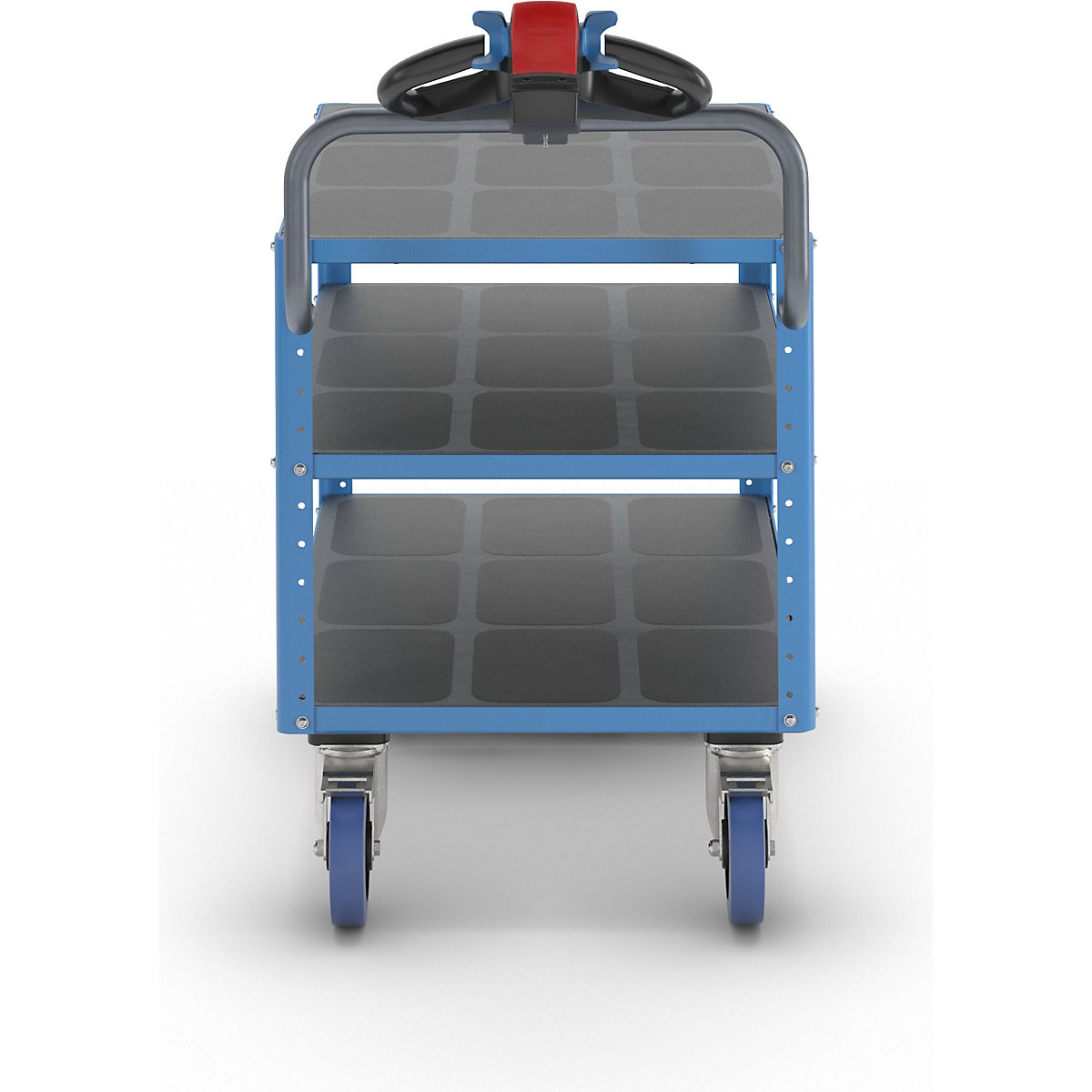

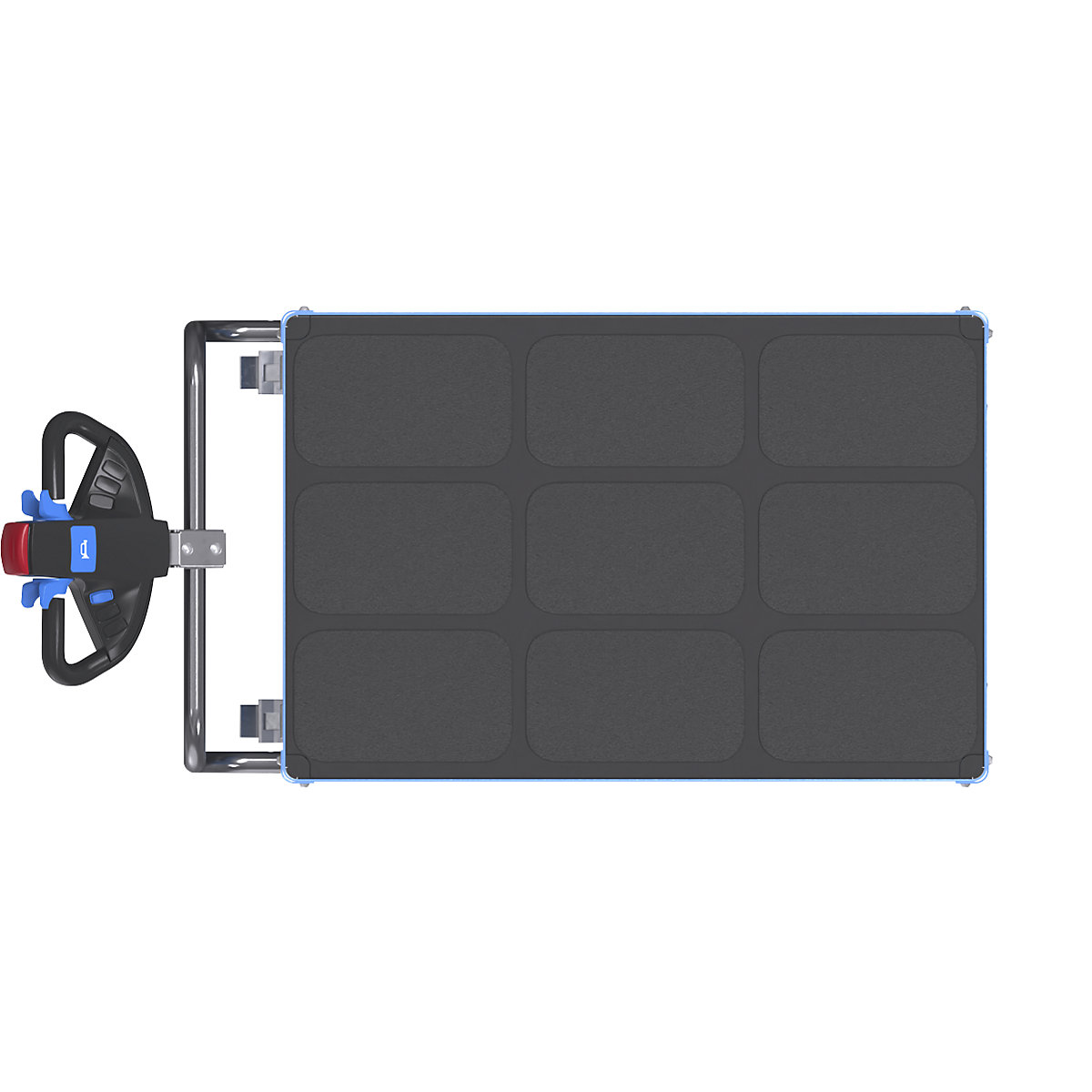

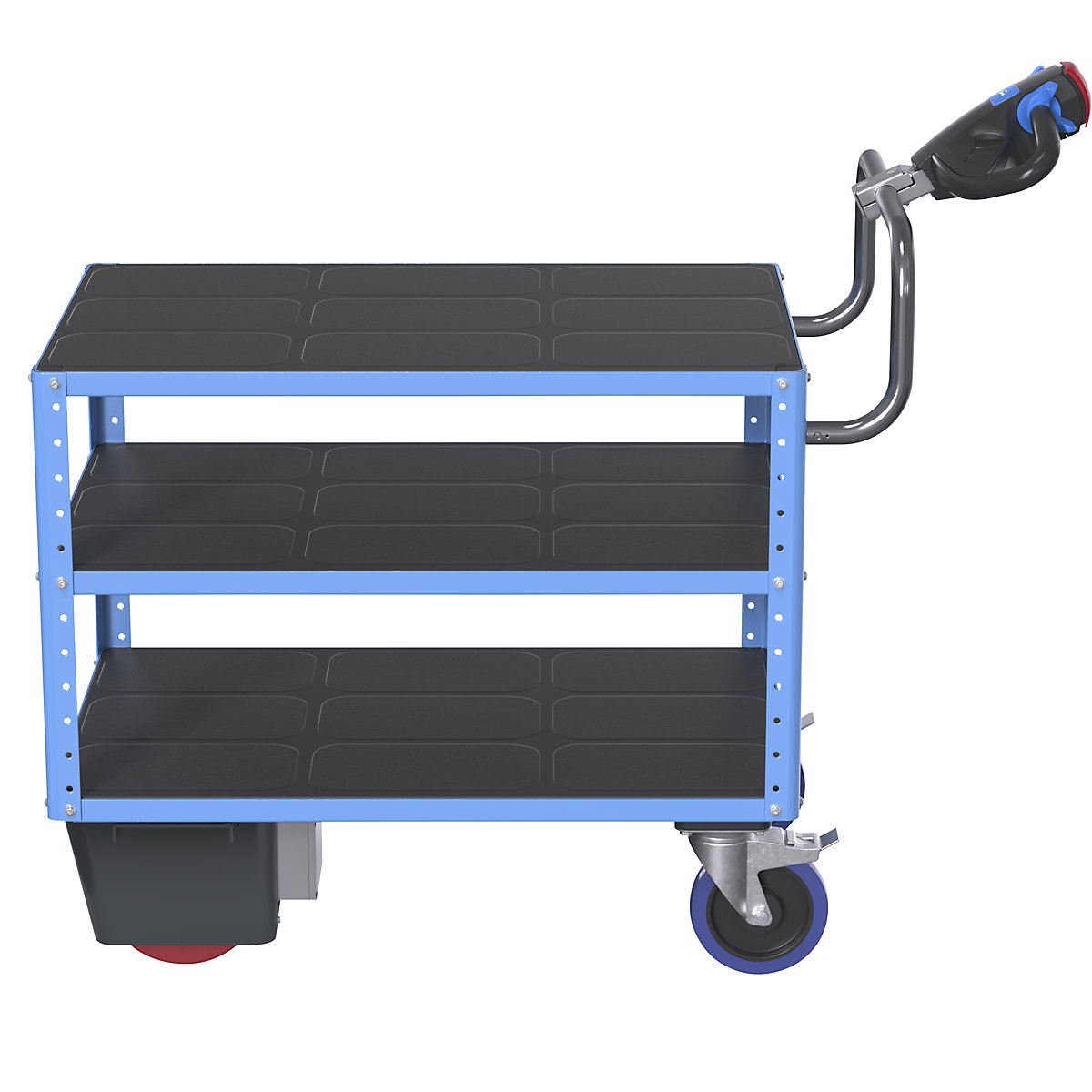

CustomLine assembly trolley with electric drive – eurokraft pro 3 shelves

CustomLine assembly trolley with electric drive – eurokraft pro
Note: related product in light blue with elastic wheels

light blue RAL 5012, fully elastic

New
£4,090.00
Price / item (Excl. VAT)

Delivery time: 4 Week delivery
Product description
  • Ergonomic and smooth travel due to electric drive
  • The drive is controlled by means of Bluetooth using the drawbar head
  • Replaceable rechargeable battery system for unlimited operating time
  • Intuitive operation with perfect steering control
  • A component within the modular CustomLine system
  • Trolley can be individually customised and flexible to upgrade with accessories
  • Little time required for ergonomic adjustment of the working and handle height
  • Max. load 500 kg
The CustomLine assembly trolley with our e-module, complete with powerful lithium-ion battery and charger. Wireless – the drive is controlled by means of Bluetooth using the drawbar head.

The assembly trolley with an electric drive is the perfect solution for the individual requirements encountered in industry and in manufacturing companies. This innovative product, which is a component within our versatile CustomLine product range, offers you flexibility and modularity due to a range of combination options and it can be upgraded with accessories. Promote ergonomic work processes in your company for the well-being of your employees, as the e-module makes it easy and efficient to transport loads of up to 500 kg. The ergonomic handle of the e-module ensures comfortable use, and it can be adapted to different body sizes. The assembly trolley is reliable equipment that will help you with your daily work and is flexible to adapt to your needs while boosting efficiency in your company.

E-module
The e-module is characterised by intuitive operation with perfect control for easy transport of loads up to 500 kg. The battery used for the drive consists of a rechargeable lithium-ion battery, the charging status of which is indicated visually on a battery status indicator. The operating time is up to 8 hours per battery charge with average use. The replaceable battery system makes it easy to exchange the empty battery for a fully charged one to ensure uninterrupted operation. The connection between the drawbar head and drive is wireless and uses Bluetooth, which also enables use in fleet operation. The charging time is just 6 hours for a full charge.

The e-module offers easy navigation, supported by fatigue-free operation due to the ergonomically shaped, multifunctional drawbar head. Sturdy, tubular handles ensure it is easy to steer, and the stepless speed control is provided by two thumb switches, with a maximum speed of 4 km/h. If required, a creep speed can be activated, which enables high precision forward and backward travel. Additional safety features include a warning function in the form of a horn on the drawbar head and a belly switch to prevent entrapment when reversing. The integrated foot protection ensures that there is no risk of becoming trapped under the drive. The e-module does not require a certificate of competence for operation, and anti-theft protection is provided by an access control feature secured by a lock on the drive battery.

CustomLine
The intelligent modular principle allows you to change the configuration of the assembly trolley with electric drive at any time to suit your individual requirements. Choose from our preconfigured items with two or three shelves.* The number of shelves can be increased by adding additional shelves. Plastic shelves provide a secure grip for components to ensure everything stays in place. You can also convert your assembly trolley into a shelf truck for greater versatility. The trolley can be customised due to its modular design. The corner posts with perforated profiles make it easy to secure the shelves at different heights and thereby customise them to suit your components. Change the height of the trolley by combining corner posts of different lengths. Additional shelves and corner posts with perforated profiles are available separately as accessories. The modern design in light blue or charcoal is stylish and offers you even more options for use and colour coding.

For perfect travel comfort in combination with the electric drive, there are two types of tyres to choose from, these being solid rubber wheels or elastic wheels. The e-module can be replaced with a complete set of tyres or be retrofitted to another trolley to suit requirements. It is also available separately as an accessory for retrofitting to the CustomLine assembly trolley and shelf truck.

*Follow the instructions for use

Assembly trolley 1050 x 700 x 900 mm, fully elastic, 3 shelves, equipped with electric drive.
Available in most RAL colours. Only 10 % extra.
Technical data
Worktop materialplastic
Number of levels3 pcs.
Platform materialplastic
Working height900 m
Max. load500 kg
Shelf heights275/Variabel/900 mm
Length1050 mm
Width700 mm
Height900 mm
Product typeassembly trolleys with electric drive
Wheel fittings2 swivel castors with double stops, 2 fixed castors
Wheel diameter200 mm
Wheel bearingroller bearing
Number of shelves3 pcs.
Panel thickness32 mm
Frame materialsteel
Suppliedflat pack
Weight100.8 kg
Colourlight blue RAL 5012
Wheel typefully-elastic
