Ref.: 649450 49

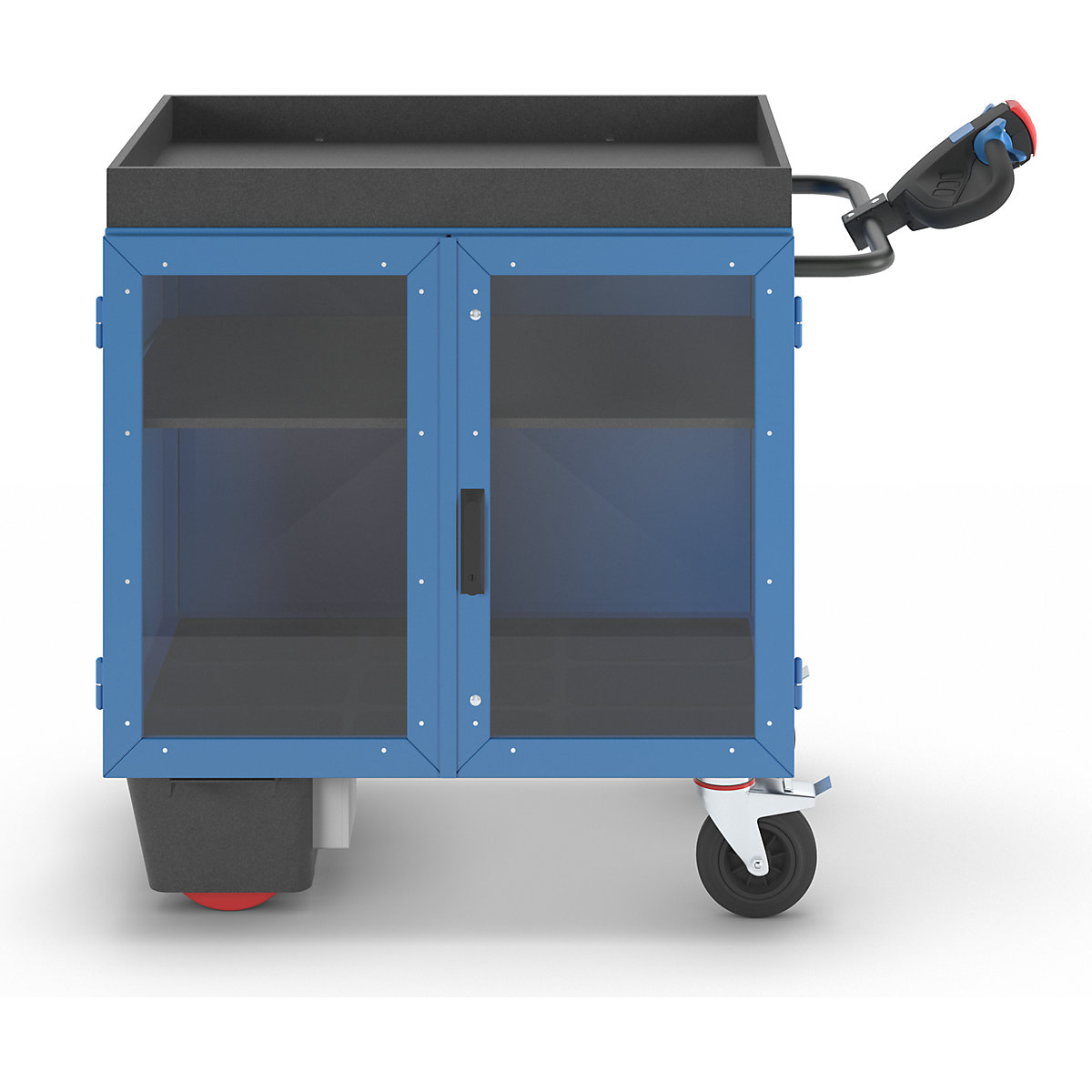

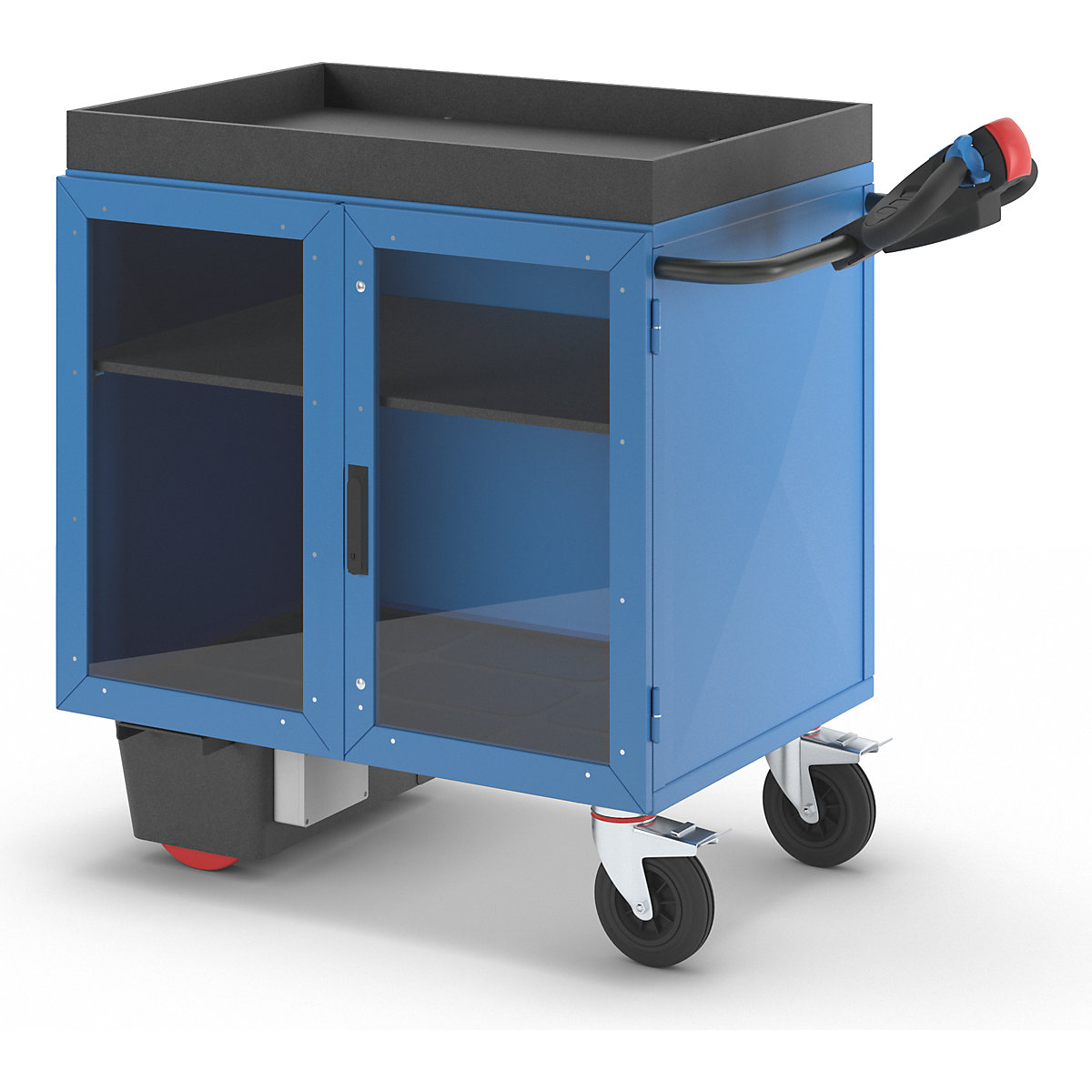

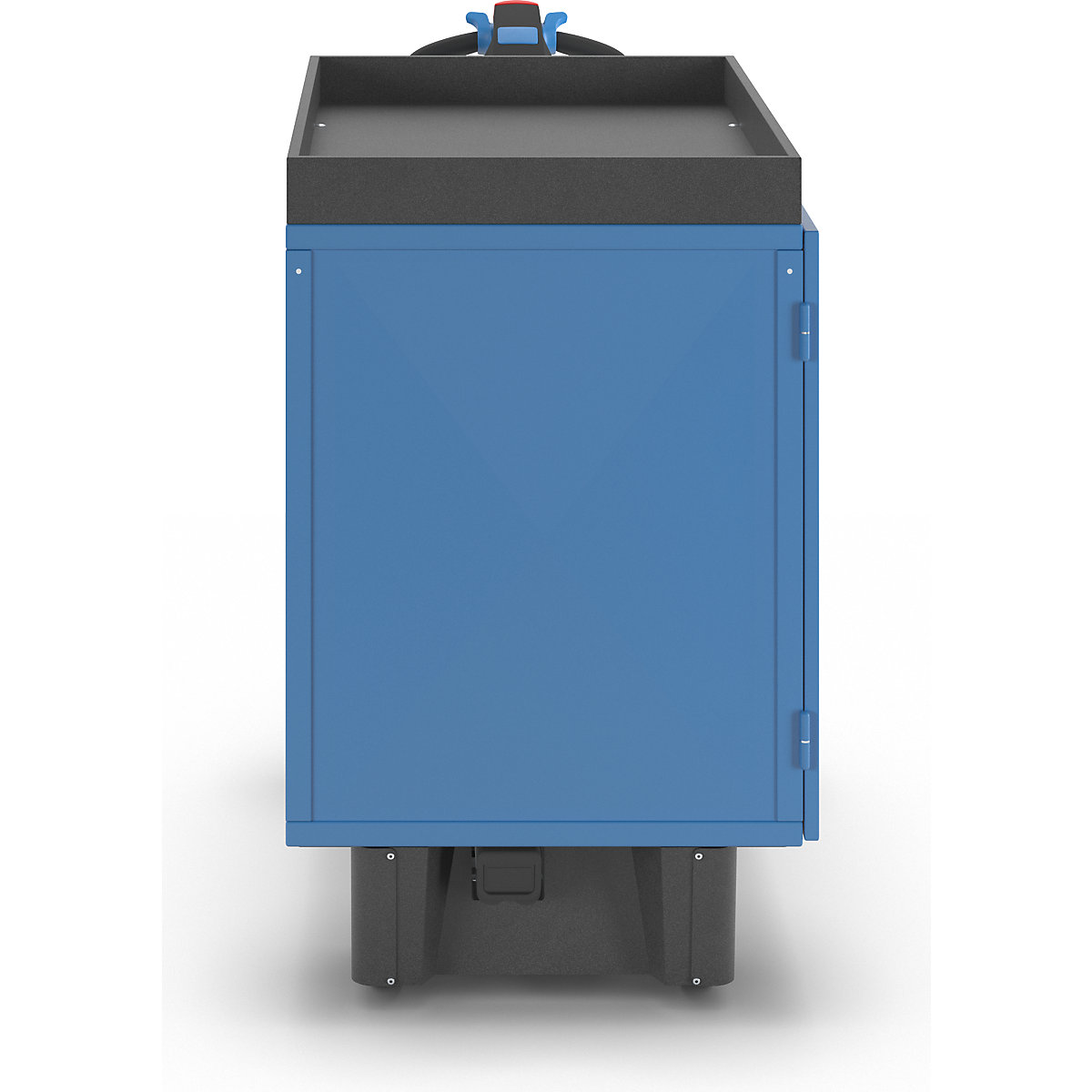

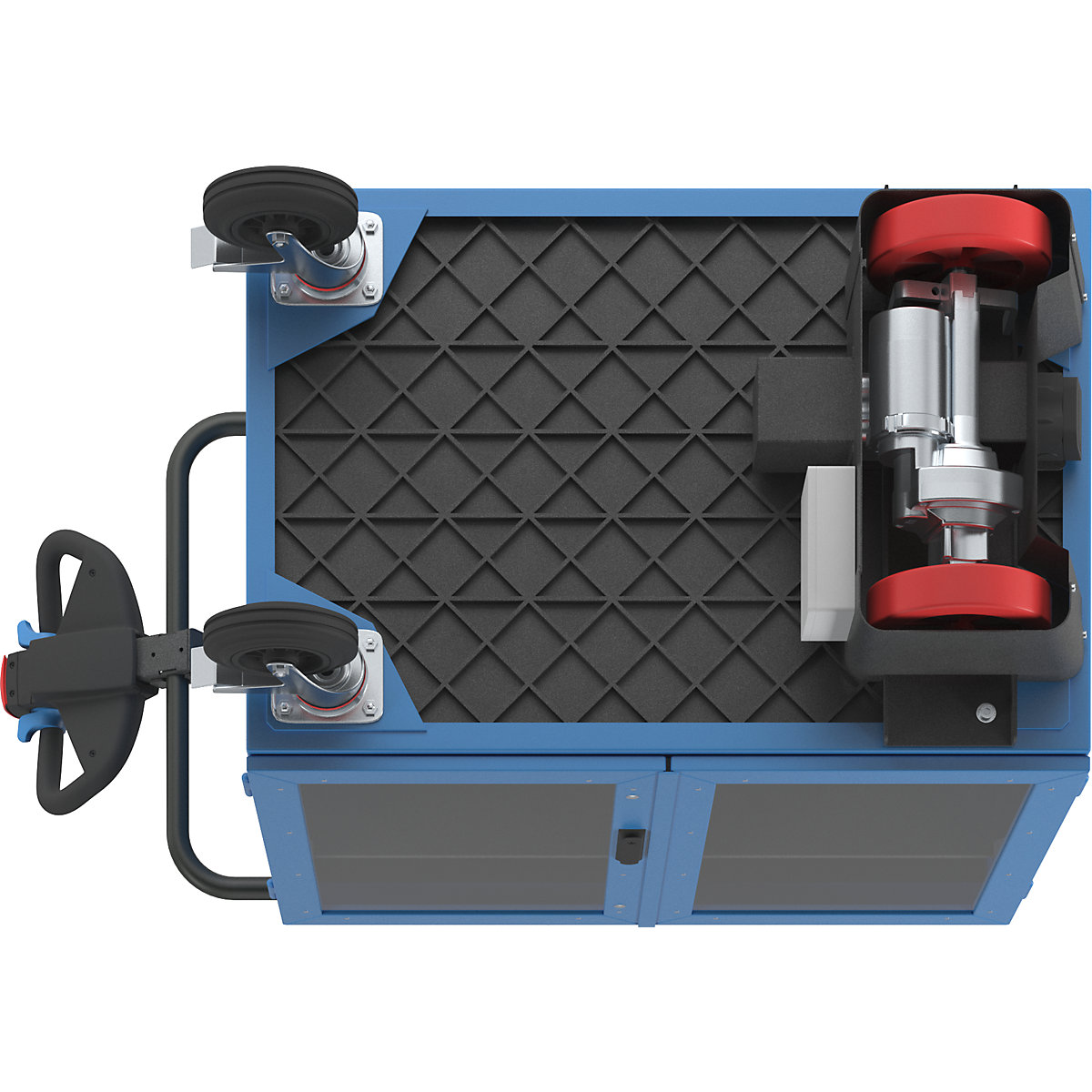

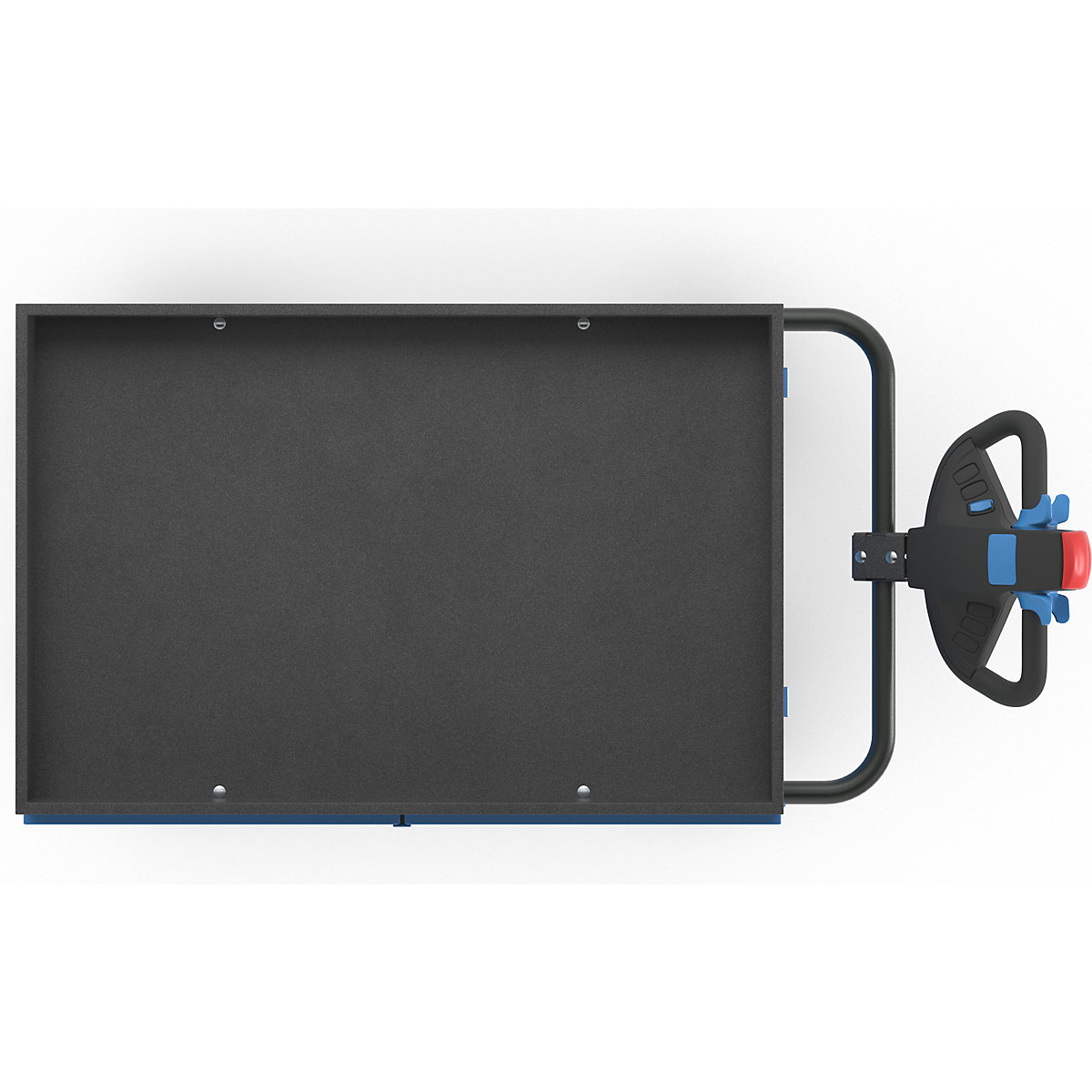

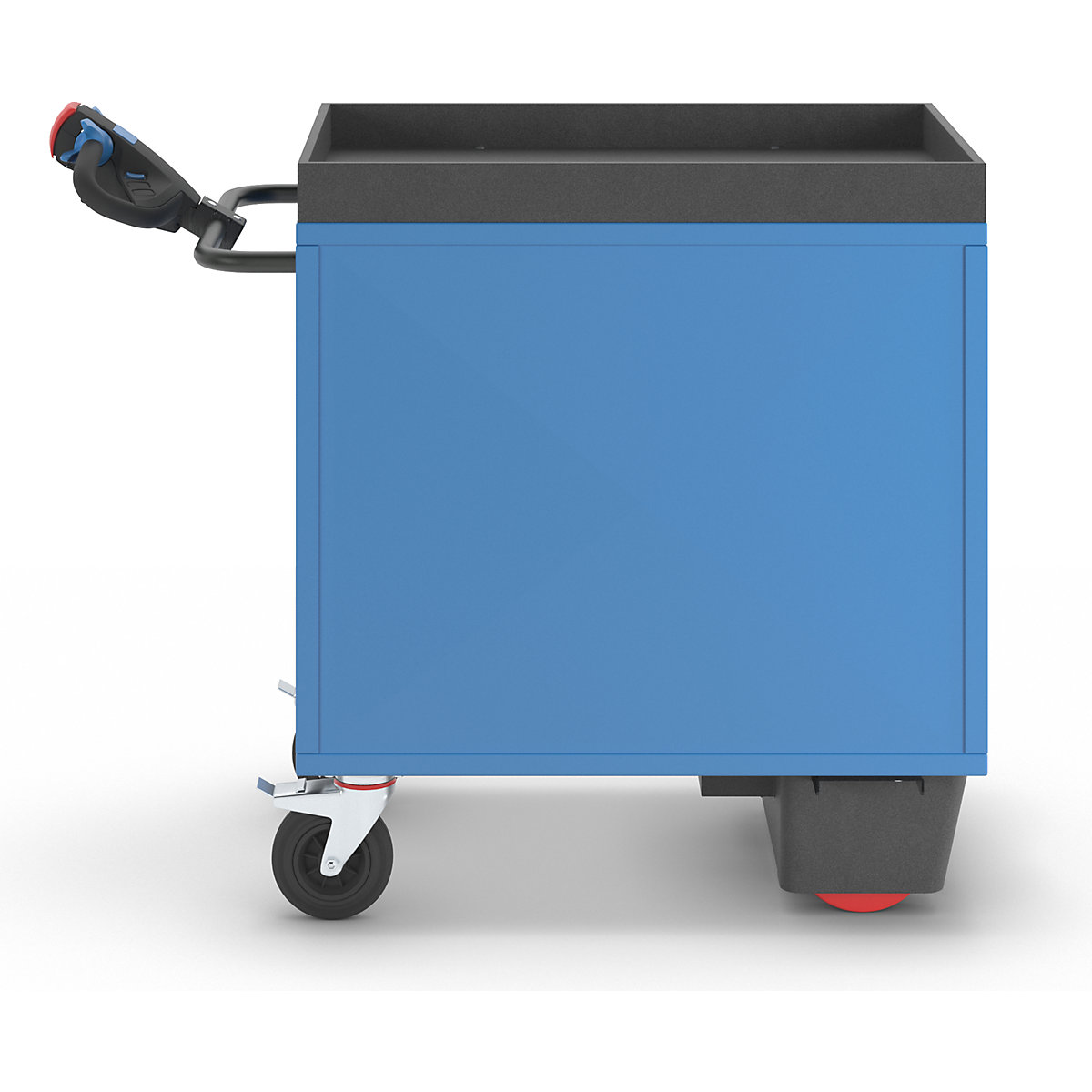

Cupboard trolley with electric drive – eurokraft pro sheet steel with doors
LxWxH 1430 x 750 x 1200 mm
Preferred RAL colour*
*Colours shown in the product image may vary.
Ref.: 649450 49
Cupboard trolley with electric drive – eurokraft pro sheet steel with doors
LxWxH 1430 x 750 x 1200 mm
LxWxH 1430 x 750 x 1200 mm
Preferred RAL colour*
*Colours shown in the product image may vary.
£4,190.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£4,190.00
Price / item (Excl. VAT)
Product description
- Promotes better efficiency in material handling
- Replaceable rechargeable battery system for unlimited operating time
- Intuitive operation with perfect steering control
- Drawbar head with precise speed control, creep speed button, belly switch and horn
- Integrated foot protection on the e-module
- Doors lockable and electric drive with lock
- 4-sided raised edge as an end stop for small parts
Our cupboard trolley in combination with our NEO e-module, ready to use. Complete with powerful lithium ion rechargeable battery and battery charger.
Wireless – the control panel controls the drive via Bluetooth.
Easy assembly: highly versatile modular design
Drive battery: replaceable lithium-ion battery
Charging status: indicated visually and acoustically by a battery level indicator
Full mobility: up to 8 h of operation with one battery charge
Replaceable battery system: simply replace the drained battery with a fully charged one to ensure continuous operation
Pairing: via Bluetooth, wireless, fleet operation possible
Charging time: 6 h until fully charged
Easy navigation
Fatigue-free operation: due to ergonomically shaped, multifunctional drawbar head
Easy steering: due to sturdy tubular handles
Infinitely adjustable speed control: using two thumb keys (maximum speed is 4 km/h)
Creep speed: can be activated as required, for high precision forward and reverse motion
Warning function: horn on drawbar head
Safety belly switch: prevents entrapment when reversing
Integrated foot protection: prevents being caught under the drive unit
For everyone: no certificate of competence required
Protection against theft: access control by means of lock
Wireless – the control panel controls the drive via Bluetooth.
Easy assembly: highly versatile modular design
Drive battery: replaceable lithium-ion battery
Charging status: indicated visually and acoustically by a battery level indicator
Full mobility: up to 8 h of operation with one battery charge
Replaceable battery system: simply replace the drained battery with a fully charged one to ensure continuous operation
Pairing: via Bluetooth, wireless, fleet operation possible
Charging time: 6 h until fully charged
Easy navigation
Fatigue-free operation: due to ergonomically shaped, multifunctional drawbar head
Easy steering: due to sturdy tubular handles
Infinitely adjustable speed control: using two thumb keys (maximum speed is 4 km/h)
Creep speed: can be activated as required, for high precision forward and reverse motion
Warning function: horn on drawbar head
Safety belly switch: prevents entrapment when reversing
Integrated foot protection: prevents being caught under the drive unit
For everyone: no certificate of competence required
Protection against theft: access control by means of lock
All specified max. loads apply with uniform load distribution.
Available in most RAL colours. Only 10 % extra.
10 year guarantee
Technical data
| Max. load | 500 kg |
|---|---|
| Length | 1430 mm |
| Width | 750 mm |
| Height | 1200 mm |
| Internal length | 1015 mm |
| Internal width | 680 mm |
| Internal height | 770 mm |
| Platform length | 1015 mm |
| Platform width | 660 mm |
| Loading height | 1110 mm |
| Number of levels | 0 pcs. |
| Frame material | steel |
| Frame colour | light blue RAL 5012 |
| Material | steel |
| Panel colour | light blue RAL 5012 |
| Door material | makrolon® polycarbonate panels |
| Door colour | light blue RAL 5012 |
| Door type | double hinged doors |
| Feature | with electric drive |
| Lock type | 3-point espagnolette locking with cylinder lock, common key |
| Shelf material | plastic |
| Weight | 125.6 kg |
| Wheel fittings | 2 swivel castors with brakes, 2 drive wheels |
| Wheel type | solid rubber / polyurethane |
| Wheel diameter | Ø 200 / Ø 230 mm |
| Wheel bearing | roller bearing |
| Battery capacity | 12 Ah |
| Charging time | 6 hrs |
| Power | 0.25 kW |
| Voltage | 24 V |
| Max. speed | 5 km/h |
| Product type | cupboard trolleys with electric drive |
| Supplied | partially assembled |
